AI Training - Tutorial - Build and use a custom Docker image

Learn the process of building your own job image for specific needs.

Requirements

• Access to the OVHcloud Control Panel
• A Public Cloud project
• A user for AI Training
• Docker installed on your local computer or a virtual machine
• Knowledge about building an image and a Dockerfile

Quick overview

AI Training allows you to train your models easily, with just a few clicks or commands. This solution runs your training job on compute resources such as CPUs or GPUs. As soon as your training job is finished, the billing will be stopped immediately. Thus, you will save time and increase the productivity of your team while respecting the integrity of your sensitive data (GDPR).

Your AI Training job has to be containerized inside a Docker image. Containers provide isolation but also flexibility. The Docker images that you build can be used locally, with OVHcloud AI Training, but also with other cloud providers.

Inside your Docker image, you are free to install almost anything and everything as long as you follow the guidelines below.

AI Training accepts images from public or private repositories. Find more information about using public and private registries in this documentation.

Guidelines to follow

Create a Dockerfile

A Dockerfile is a script that contains instructions for building our Docker image. It specifies the base image to use, any additional packages or libraries that need to be installed, and any configuration settings or commands that should be run when the container image is started.

Before continuing, please make sure you are in the root directory of your project, containing job files (Python files, requirements.txt, etc.).

Once you are in it, create a new file and name it Dockerfile by using a text editor (vi, vim, nano, etc.).

Here is an example. First, we use cd to move to our project's directory, where all our files are located. Then, we create and edit the Dockerfile:

# Move to the root directory of the project
$ cd ai_training_project/

# This directory should contain all your job files
~/ai_training_project$ ls
# output : cnn.py  main.py  requirements.txt  utils.py

# Create and edit Dockerfile
~/ai_training_project$ vim Dockerfile

Choose a base image

Instead of starting from scratch, feel free to start from an existing Docker image, as long as it is compliant with the following guidelines.

The header of our Dockerfile will look like this:

FROM <base-image>

Which image should we use?

There are many official images available on Docker Hub. For example, we could use the basic Python images which come in many versions and flavors (alpine, slim, etc.), each designed for a specific use case.

If we want to start from a Python 3.10 image, we would use the following command, since python:3.10 is the name of the image:

FROM python:3.10

Here is a potential list of official base images (featuring cuda drivers) that you can use:

• pytorch/pytorch:latest
• tensorflow/tensorflow:latest-gpu
• huggingface/transformers-pytorch-gpu:latest
• mxnet/python
• nvidia/cuda

For example, if we want to start from the base image tensorflow/tensorflow:latest-gpu, we would use:

FROM tensorflow/tensorflow:latest-gpu

Define the home directory

Defining a home directory is a best practice when creating Docker images, because it helps keep the file system organized and makes it easier to reference files and directories within the container.

Our home directory will be /workspace. We must indicate in our Dockerfile that we want to create the /worskpace directory and set it as our home directory. This can be done by using the WORKDIR instruction:

WORKDIR /workspace
ENV HOME=/workspace

Add job's files to the home directory

Once the /workspace directory is set up, we can add our files (Python scripts, requirements.txt, and the Dockerfile) to it thanks to the ADD instruction.

Here is an example to add one specific file, such as a main.py Python file:

ADD main.py /workspace/

If our project is composed of many files, we can also add all our project's directory files by using:

ADD . /workspace

Give the OVHcloud user access to the home directory

It means that if we want to be able to create and write in a specific directory at runtime, we will have to give it specific rights. We can do it with the following instruction:

RUN chown -R 42420:42420 <specific-directory>

As mentioned, the home directory for the "OVHcloud" user (with UID 42420) will be /workspace. We can then replace <specific-directory> by /workspace. Keep in mind that you can change the ownership of any other useful directory.

To summarize, this is what our Dockerfile looks like for now:

FROM tensorflow/tensorflow:latest-gpu

WORKDIR /workspace
ENV HOME=/workspace
ADD . /workspace

RUN chown -R 42420:42420 /workspace

Install what we need

As explained before, it is possible that the chosen Docker image does not include all the libraries that our project needs to work properly. In this case, we need to install them to ensure that our AI Training job works correctly.

We distinguish two types:

• Linux packages
• Python libraries

These installation instructions begin with the RUN prefix, which is used to execute a command during the image building process.

Install system packages

For example, let's assume that the ffmpeg package (used to process multimedia files) is required by our AI Training job but is missing from our base image. We would then use:

RUN apt-get update && apt-get install -y ffmpeg

If we need to install several packages, we can write them one after the other as follows:

RUN apt-get update && apt-get install -y \
  ffmpeg \
  libsndfile1-dev \
  ... \

To improve your Dockerfile by making it shorter, we can also list all our packages in a packages.txt file, and install it with:

RUN xargs -a packages.txt apt-get install --yes

Install Python libraries

To install the missing Python libraries, we advise to create a requirements.txt file, in the root directory of your project, where we will write all our needed libraries that are missing from our base image.

Here is an example of a requirements.txt file. As you can see, we have indicated each required library of our project. Please replace <version> with the applicable version of each library, e.g., 1.2.3:

librosa==<version>
torch==<version>
torchaudio==<version>

Now, it is time to indicate in our Dockerfile that we want to install the Python libraries from this requirements.txt file, by using a RUN pip install -r instruction:

RUN pip install -r requirements.txt

Specify the main command that runs our job

The CMD instruction is typically used to specify the main command that runs our AI Training job, such as a python script or a binary executable. It can only be used once in a Dockerfile.

This is where we will specify which Python file we would like to run. Here is a basic example to run a main.py Python file, located at the root:

CMD ["python", "/workspace/main.py"]

If your main.py file has arguments, you can specify them in the CMD command as follows:

CMD ["python", "/workspace/main.py", "--arg1", "value1", "--arg2", "value2"]

-- bash -c 'python /workspace/main.py arg1 arg2'

Other useful commands

Instead of adding all the project's files by using ADD . /workspace, you might be interested in using the COPY instruction, which can be better and safer for copying files and directories from our local directory to our Docker image.

For example, if we want to add the file example.py to the home directory of our image:

COPY example.py /workspace/example.py

Final Dockerfile overview

To sum up this tutorial, this is what our final Dockerfile looks like:

# Base image
FROM tensorflow/tensorflow:latest-gpu

# Create and set the HOME directory
WORKDIR /workspace
ENV HOME=/workspace

# Add our job's file to this directory
ADD . /workspace

# Give the OVHcloud user (42420:42420) access to this directory
RUN chown -R 42420:42420 /workspace

# Install required packages and libraries
RUN apt-get update && apt-get install -y ffmpeg libsndfile1-dev
RUN pip install -r requirements.txt

# Run your job (Optional. You can specify your file when launching the AI Training job)
CMD ["python", "/workspace/main.py"]

Build our image

Once the Dockerfile is complete and matches our needs, we have to choose an image name and build the image using the following command (make sure you are still in the root directory of your project, where the Dockerfile is located):

# Build the image using your machine's default architecture
docker build . -t <image-identifier>

# Build image targeting the linux/amd64 architecture
docker buildx build --platform linux/amd64 -t <image-identifier> .

• The first command builds the image using your system’s default architecture. This may work if your machine already uses the linux/amd64 architecture, which is required to run containers with our AI products. However, on systems with a different architecture (e.g. ARM64 on Apple Silicon), the resulting image will not be compatible and cannot be deployed.

• The second command explicitly targets the linux/AMD64 architecture to ensure compatibility with our AI services. This requires buildx, which is not installed by default. If you haven’t used buildx before, you can install it by running: docker buildx install

Try to find a name that is easily identifiable. This will allow you to manage your Docker images more easily, especially when you have multiple images and versions.

For example, we could use:

docker build . -t cnn_image_segmentation_project

Test the image locally (Optional)

If we want to verify that our built image is working properly, we can run the following command:

docker run --rm -it --user=42420:42420 <image-identifier>

Push the image in the registry of our choice

Pushing our image to a registry is needed for AI Training to pull it.

AI Training provides, for each Public Cloud project, a default registry called shared registry where all users of the same Public Cloud project can push their custom images.

Here are the basic commands to push a Docker image to a registry:

    docker login -u <registry-user> -p <registry-password> <registry-address>
    docker tag <image-identifier> <registry-address>/<image-identifier>:<tag-name>
    docker push <registry-address>/<image-identifier>:<tag-name>

For example, if we want to push the first version of our built image named cnn_image_segmentation_project inside a registry registry.us-east-va.ai.cloud.ovh.us, we would use:

    docker login -u <registry-user> -p <registry-password> my-registry.ai.cloud.ovh.us
    docker tag cnn_image_segmentation_project:v1.0.0 my-registry.ai.cloud.ovh.us/cnn_image_segmentation_project:v1.0.0
    docker push my-registry.ai.cloud.ovh.us/cnn_image_segmentation_project:v1.0.0

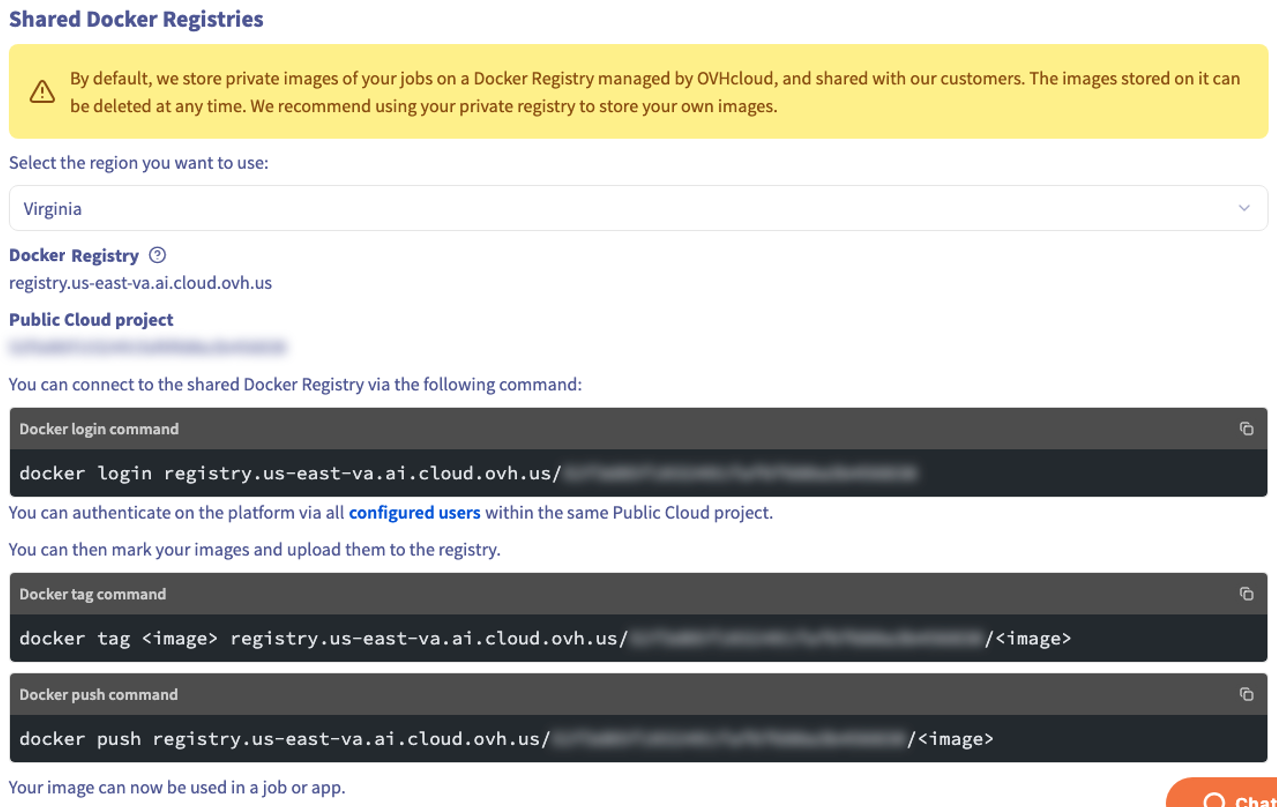

If you want to know the exact commands to push on your shared registry, please navigate to the Docker registries tab of the AI Dashboard and scroll down.

Dockerfile examples

If you want more concrete examples, feel free to look at the different Dockerfiles available on our ai-training-examples GitHub repository.
