This guide will show you all the administration tools, other than the Prism Central and Prim Element web interfaces, which are:
- ncli which can be accessed locally, via SSH on Prism Central and Prism Element,
- acli which can be used via SSH on CVMs,
- Cmdlets for Powershell, and
- The REST API from the Prism Central or Prism Element URL.
Requirements
- A Nutanix cluster in your OVHcloud account.
- Access to the OVHcloud Control Panel.
- For the REST API, you must have a virtual machine running Linux with a text editor to run the curl and jq commands.
Tools overview
ncli command
ncli is located on Prism Central and all CVMs through an SSH connection. You can also install it locally on a Windows or Linux desktop from the Prism Central web interface.
ncli allows you to manage aspects of the Nutanix cluster such as storage, tasks, and some actions on virtual machines within the cluster.
acli tool
The acli command is only available on CVMs. It is used for managing VMs, network, and snapshot hosts.
Powershell extensions
Powershell is a scripting language developed by Microsoft and based on Net.Framework.
It works in Microsoft, Linux, and MacOS environments but is mainly used in a Microsoft environment.
All of the examples below have been run in a Microsoft environment.
Nutanix has added extensions that allow cluster and VM administration using Powershell scripts.
API REST administration interface
Through the URL of Prism Central or Prism Element, you can use an API named REST API either in the command line with the curl tool or through another programming language such as python or php or even with the standard commands of Powershell.
Instructions
Examples of ncli use
Connect via SSH with an SSH client on one of the CVMs:
ssh nutanix@oneofcvm
The ncli command is used followed by options, as in this example ncli entity action option1=`value` option2=`value2 but it also can be used interactively by running only ncli.
Creating a Storage Container named newcontainer in interactive mode
ncli
ctr create name="NewContainer" sp-name="default-storage-pool-10728992352041"
Id : 0005ce15-3f3c-a8ce-3802-043f72bf18a6::2900908
Uuid : c3db4020-2a98-4636-b9eb-8ebf10a1b351
Name : Moncontainer
Storage Pool Id : 0005ce15-3f3c-a8ce-3802-043f72bf18a6::9
Storage Pool Uuid : 111d4e91-10df-4f6c-a774-b79b53077131
Free Space (Logical) : 37.69 TiB (41,445,056,716,652 bytes)
Used Space (Logical) : 0 bytes
Allowed Max Capacity : 37.69 TiB (41,445,056,716,652 bytes)
Used by other Containers : 260.86 GiB (280,096,141,312 bytes)
Explicit Reservation : 0 bytes
Thick Provisioned : 0 bytes
Replication Factor : 2
Oplog Replication Factor : 2
NFS Whitelist Inherited : true
Container NFS Whitelist : 192.168.0.77/255.255.255.255
VStore Name(s) : Moncontainer
Random I/O Pri Order : SSD-PCIe, SSD-SATA, DAS-SATA
Sequential I/O Pri Order : SSD-PCIe, SSD-SATA, DAS-SATA
Compression : off
Fingerprint On Write : off
On-Disk Dedup : off
Erasure Code : off
Software Encryption : off
Deleting the Storage Container
Run the following command to delete the Storage Container without confirmation:
ncli ctr remove name="Newcontainer"
Examples of using the acli command
Connect via SSH with an SSH client on one of the CVMs:
ssh nutanix@oneofcvmipaddress
The acli command is used followed by options, such as acli entities.action for-which option1="value1" option2="value2", but it also can be used interactively by running only acli from a CVM
If acli is used followed by a sequence of orders, a confirmation request will always be offered if a choice is made.
To automate the task and make a default choice, use this syntax instead acli -y entities.action for-which option1="value" option2="value2".
Creating a snapshot in interactive mode
Run these commands from one of the CVMs:
acli
<acropolis> vm.snapshot_create VM-TEST snapshot_name_list="Example"
<acropolis> exit
View and delete a snapshot without going through interactive mode
Run these commands to view and delete a snapshot with a confirmation request:
# Snapshot listing
acli snapshot.list
Snapshot Name Snapshot ID Creation Time VM Name
Example2 fce5483f-5a9d-4b76-9ad7-48685fb4a638 Wednesday March 23 2022, 09:27:16 AM VM-TEST
# Snapshot delete
acli snapshot.delete Example2
Delete 1 snapshots? (yes/no)
Delete 1 snapshots? (yes/no) yes
Example2: pending
Example2: complete
Use this syntax without prompting when deleting the snapshot:
# Snapshot delete
acli -y snapshot.delete Example2
Example2: pending
Example2: complete
How to configure and use Powershell on Windows
Installing Powershell 7 and Nutanix modules
You need to install the latest version of Powershell from this Powershell installation website.
Download and install the installer that corresponds to your version of Windows, in 32 bits or more generally in 64 bits.
Launch the Powershell 7 command prompt in administrator mode.
PS C:\Users\Administrator> Install-Module Nutanix.Cli
Untrusted repository
You are installing the modules from an untrusted repository. If you trust this repository, change its
InstallationPolicy value by running the Set-PSRepository cmdlet. Are you sure you want to install the modules from
'PSGallery'?
[Y] Yes [A] Yes to All [N] No [L] No to All [S] Suspend [?] Help (default is "N"):A
PS C:\Users\Administrator> Install-module Nutanix.Prism.PS.Cmds
PS C:\Users\Administrator> Install-module Nutanix.Prism.Common
Command examples with Powershell for Nutanix
Import modules for Powershell from the PowerShell 7 console:
PS C:\Users\Administrator> Import-Module Nutanix.Cli -Prefix NTNX
PS C:\Users\Administrator> Import-Module Nutanix.Prism.Common -Prefix NTNX
PS C:\Users\Administrator> Import-Module Nutanix.Prism.PS.Cmds -Prefix NTNX
Log in to Prism Central by executing the command below and edit these items:
-
< PRISM CENTRAL IP >Replace this item with the IP address or FQDN of Prism Central -
< PRISM CENTRAL USERNAME >Replace this item with the Prism Central username
PS C:\Users\Administrator> Connect-NTNXPrismCentral <PRISM CENTRAL IP> -UserName < PRISM CENTRAL USERNAME > -AcceptInvalidSSLCerts
Password: *****************
[Warning]: This Prism Central version[pc.2022.1] might not be compatible.This might cause some cmdlets to not function correctly.Please consider upgrading to pc.2020.7 or later Do you still want to continue [Y/N]?:Y
Server : ipprismcentral
Version : pc.2022.1
UserName : < PRISM CENTRAL IP >
AcceptInvalidSSLCerts : True
ForcedConnection : False
Run the command below to see a list of all virtual machines:
PS C:\Users\Administrator> Get-NTNXvm
pcHostName : 192.168.0.222
vmId : 0005ce15-3f3c-a8ce-3802-043f72bf18a6::c8ef83db-a095-49f3-9bb8-cbcdc85c3ebf
uuid : c8ef83db-a095-49f3-9bb8-cbcdc85c3ebf
powerState : off
vmName : OVHgateway
guestOperatingSystem :
ipAddresses : {}
hypervisorType : kKvm
hostName :
hostId :
hostUuid :
containerIds : {0005ce15-3f3c-a8ce-3802-043f72bf18a6::728, 0005ce15-3f3c-a8ce-3802-043f72bf18a6::728}
containerUuids : {98e67c38-77c4-4e05-bc20-b38bab5b28b2, 98e67c38-77c4-4e05-bc20-b38bab5b28b2}
nutanixVirtualDisks : {/SelfServiceContainer/.acropolis/vmdisk/a7da0957-9f90-4c07-8d12-65f851350453,
/SelfServiceContainer/.acropolis/vmdisk/b308778d-594f-4903-bc30-c2a2fd45ed5d}
nutanixVirtualDiskIds : {0005ce15-3f3c-a8ce-3802-043f72bf18a6::a7da0957-9f90-4c07-8d12-65f851350453,
0005ce15-3f3c-a8ce-3802-043f72bf18a6::b308778d-594f-4903-bc30-c2a2fd45ed5d}
nutanixVirtualDiskUuids : {a7da0957-9f90-4c07-8d12-65f851350453, b308778d-594f-4903-bc30-c2a2fd45ed5d}
virtualNicIds : {0005ce15-3f3c-a8ce-3802-043f72bf18a6::c8ef83db-a095-49f3-9bb8-cbcdc85c3ebf:50:6b:8d:c5
:d4:8a, 0005ce15-3f3c-a8ce-3802-043f72bf18a6::c8ef83db-a095-49f3-9bb8-cbcdc85c3ebf:50:6
b:8d:e2:16:4e}
virtualNicUuids : {1e8defc6-ea18-4d67-ba41-d3ae21047940, 537632dc-4db3-483e-a7bb-500d2c1e56ba}
clusterUuid : 0005ce15-3f3c-a8ce-3802-043f72bf18a6
virtualGpuUuids :
memoryCapacityInBytes : 1073741824
memoryReservedCapacityInBytes : 0
numVCpus : 1
cpuReservedInHz :
numNetworkAdapters : 2
controllerVm : False
controlDomain :
vdiskNames : {}
vdiskFilePaths : {/SelfServiceContainer/.acropolis/vmdisk/a7da0957-9f90-4c07-8d12-65f851350453,
/SelfServiceContainer/.acropolis/vmdisk/b308778d-594f-4903-bc30-c2a2fd45ed5d}
diskCapacityInBytes : 11811543040
displayable : False
acropolisVm : True
protectionDomainName :
protectionType :
consistencyGroupName :
description :
runningOnNdfs : True
nonNdfsDetails :
fingerPrintOnWrite :
onDiskDedup :
gpusInUse : False
vmType :
Reuse the previous command followed by | and the ft command to display only the virtual machine name:
PS C:\Users\Administrator> Get-NTNXvm | ft vmname
vmName
------
vmfromrestapimajhttpd3
WS2022TEMPLATE
vmfromrestapiws
NTNX-221060034-A-CVM
VM-WS2019
gateway368
PFSENSE-POUR-MOVE
VM-TESTFG
WS2022b
prism-central
NutaDemo1
NTNX-520001155-A-CVM
NTNX-520001158-A-CVM
MOVE
NTNX-520000892-A-CVM
VM-WS2022
OVHgateway
Use this command sequence to find and remove a virtual machine named VW-WS2022:
PS C:\Users\Administrator> Get-NTNXVM | where-object {$_.Source.vmname -like "VM-WS2022" } | Remove-NTNXVM
Using REST API commands
All of the examples shown below must be run on a virtual machine running Linux with the curl tool.
Some commands need other tools that are available in most Linux distributions.
Display all API options from Central Prism
You can get the list of REST API options from Prism Central.

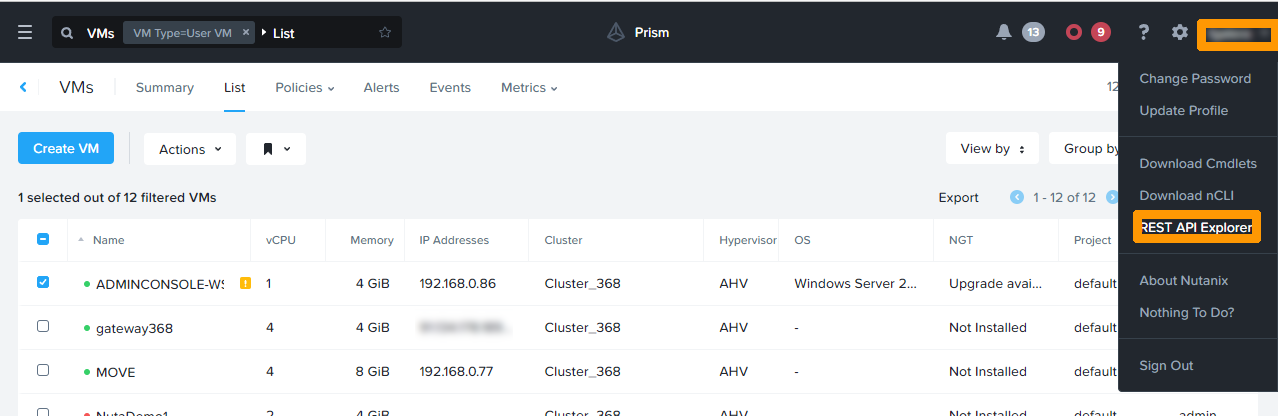

In the top right-hand corner of the Prism Central interface, click Username, then REST API Explorer. The list of command groups is displayed on the left.

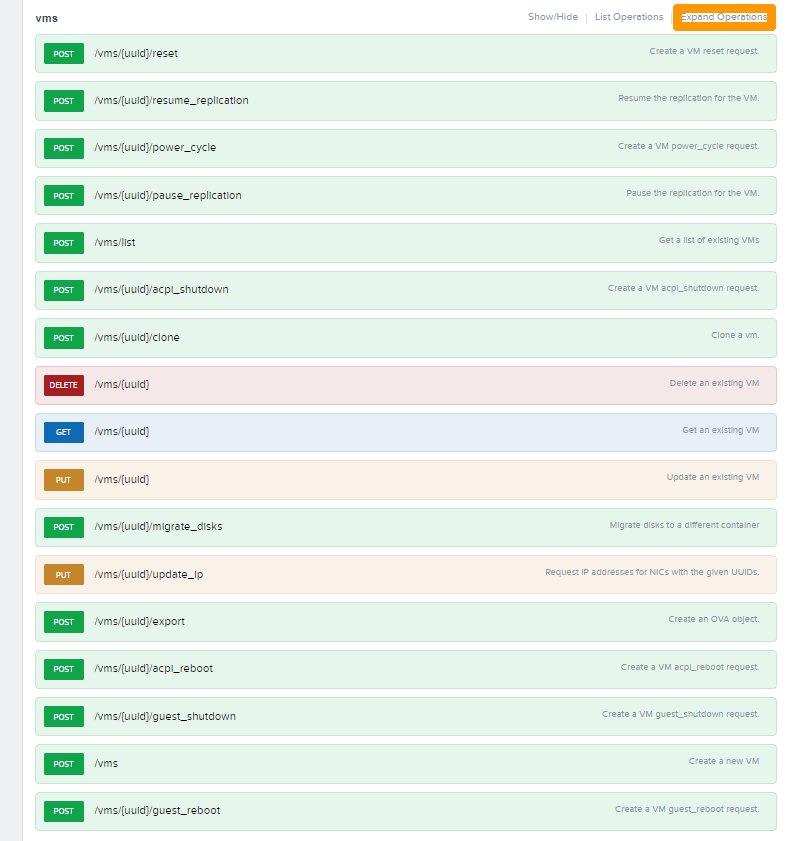

Click the drop-down icons to the right of one of the command groups to display all possible commands in that group.

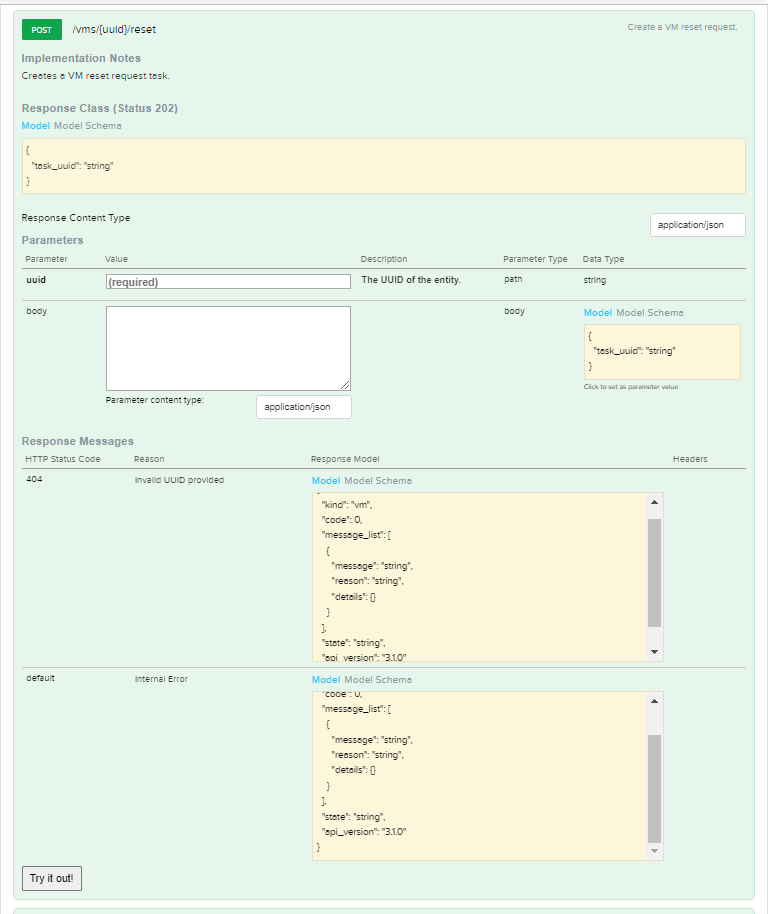

Click Expand operations to list the syntax for a particular command.
Various simple examples
Connect via SSH to a Linux VM in the cluster that has the curl and jq commands installed.
For these examples to work, replace:
-
< PRISMCENTRAL IP >by the IP address or FQDN of Prism Central. -
< PRISM CENTRAL USER >by the Prism Central user. -
< PRISM CENTRAL PASSWORD >by the Prism Central user password.
View the list of ISO and QCOW2 images installed on Prism Central
curl -k -X POST --header "Content-Type: application/json" --header "Accept: application/json" -u "< PRISM CENTRAL USER >:< PRISM CENTRAL PASSWORD >" -d {} "https://< PRISM CENTRAL IP >:9440/api/nutanix/v3/images/list" | jq
This command generated a file in a readable json format using the jq command, which contains the list of images and the information needed for other REST API commands.
{
"api_version": "3.1",
"metadata": {
"total_matches": 14,
"kind": "image",
"length": 14,
"offset": 0
},
"entities": [
{
"status": {
"state": "COMPLETE",
"execution_context": {
"task_uuid": [
"3a4315c8-0f9e-4182-be89-9083371ef40e"
]
},
"name": "ubuntu-20.04.3-live-server-amd64.iso",
"resources": {
"retrieval_uri_list": [
"https://127.0.0.1:9440/api/nutanix/v3/images/4a48f395-80f3-4afe-a3e4-91700db88901/file"
],
"current_cluster_reference_list": [
{
"kind": "cluster",
"uuid": "0005ce15-3f3c-a8ce-3802-043f72bf18a6"
}
],
"architecture": "X86_64",
"size_bytes": 1261371392,
"image_type": "ISO_IMAGE",
"source_uri": "file://4a48f395-80f3-4afe-a3e4-91700db88901"
},
"description": "Ubuntu Server 20.04"
},
"spec": {
"name": "ubuntu-20.04.3-live-server-amd64.iso",
"resources": {
"image_type": "ISO_IMAGE",
"source_uri": "file://4a48f395-80f3-4afe-a3e4-91700db88901",
"architecture": "X86_64"
},
"description": "Ubuntu Server 20.04"
},
"metadata": {
"last_update_time": "2021-10-12T13:38:55Z",
"kind": "image",
"uuid": "4a48f395-80f3-4afe-a3e4-91700db88901",
"creation_time": "2021-10-12T13:38:49Z",
"spec_version": 2,
"spec_hash": "00000000000000000000000000000000000000000000000000",
"categories_mapping": {},
"owner_reference": {
"kind": "user",
"uuid": "00000000-0000-0000-0000-000000000000",
"name": "admin"
},
"categories": {}
}
},
Viewing the list of virtual machines
Run this command to display the list of virtual machines:
curl -k -X POST --header "Content-Type: application/json" --header "Accept: application/json" -u "< PRISM CENTRAL USER >:< PRISM CENTRAL PASSWORD >" -d {} "https://< PRISM CENTRAL IP >:9440/api/nutanix/v3/vms/list" | jq
Below is a part of the generated file, containing the virtual machine UUID.
There is a UUID for each element of the Nutanix clusters (VM, Vdisks, images, etc..). This number is unique.
"kind:" "vm" corresponds to the type of the object.
"kind": "vm",
"uuid": "46574b90-333b-4cd9-a737-3af0f8e242b7",
Viewing VM Information from its uuid
Run the following command by replacing < VM UID > with the UUID of a previously listed virtual machine:
curl -k -X GET --header "Accept: application/json" - u "< PRISM CENTRAL USER >:< PRISM CENTRAL PASSWORD >" "https://< PRISM CENTRAL IP >:9440/api/nutanix/v3/vms/< VM UUID >" | jq
Viewing the Network List
Run this command to display the list of networks in Nutanix:
curl -k -X POST --header "Content-Type: application/json" --header "Accept: application/json" -u "< PRISM CENTRAL USER >:< PRISM CENTRAL PASSWORD >" -d {} "https://< PRISM CENTRAL IP >:9440/api/nutanix/v3/subnets/list" | jq
Viewing Information about Administered Clusters in the Prism Central Console
Run the following command to display information about the clusters administered by Prism Central:
curl -k --request POST --url "https://< PRISM CENTRAL IP >:9440/api/nutanix/v3/clusters/list" -u "< PRISM CENTRAL USER >:< PRISM CENTRAL PASSWORD >" --header 'Content-Type: application/json' --data '{ }' | jq
In addition to displaying information, you can act on the Nutanix cluster to create or modify elements of a cluster.
We will see how to create two virtual machines in an automated way, one in a Linux environment and the other on Windows.
Creating a virtual machine on Linux
You can install Linux from pre-installed images, and you can customize the configuration with cloud-init, which uses the yaml file format. To import images into a Nutanix cluster, you can refer to our guide on importing ISO images.
Follow these instructions to create a virtual machine from a Ubuntu cloud-init customizable image.
On Linux, create a password in SHA-512 format with the command mkpasswd:
mkpasswd --method=SHA-512 -s
Password:
ExampleSHA512axUNIzgF$4R6hbeVF7Nqz3JMUSI47vINSmwt3XufAIC1lvu15twR/8HMkuRIGd7ZNNLMDGYYGyrgZXwgI7q2BP2rCAv9BU1
-
< RSAKEYFORLOGIN >by an RSA key that will connect via the SSH userlinux account. -
< PASSWORDGENERATEDBYMKPASSWORD >by the password created in SHA-512 format.
#cloud-config
hostname: vm-fromcloudinit
fqdn: vm-fromcloudinit.localdomain
users:
- name: userlinux
ssh-authorized-keys:
- ssh-rsa RSAKEYFORLOGIN >
sudo: ['ALL=(ALL) NOPASSWD:ALL']
groups: sudo
shell: /bin/bash
lock_passwd: false
passwd: < PASSWORDGENERATEDBYMKPASSWD >
package_upgrade: true
packages:
- nginx
runcmd:
- sleep 60 & reboot
Transform the yaml file into mime64 format and store it in a variable so that it can be integrated into the virtual machine configuration file.
USERDATA=$(base64 -w 0 cloud-config.yaml)
echo $USERDATA
-
< VMNAME >must be replaced with the name of the virtual machine you want to give in the Nutanix console. -
< UUID-IMAGE-LINUX-CLOUD-INIT >must be replaced with the UUID of the cloud-init-compatible Linux image. -
< UUID-NETWORK >must be replaced with the UUID of the network on which the virtual machine will operate. -
< MIME64FORMATEDYAMLFILE >must be replaced with the contents of the$USERDATAvariable. -
< CLUSTER-NAME >must be replaced with the cluster name. -
< CLUSTER-UUID >must be replaced with the cluster UUID.
All the necessary information is either accessible from the Prism Central web interface or through the REST API access seen above.
{
"spec":{
"name":"< VMNAME >",
"resources":{
"power_state":"ON",
"num_vcpus_per_socket":2,
"num_sockets":2,
"memory_size_mib":4096,
"disk_list":[{
"device_properties":{
"device_type":"DISK",
"disk_address": {
"device_index": 0,
"adapter_type": "SCSI"
}
},
"data_source_reference": {
"kind": "image",
"uuid": "< UUID-IMAGE-WINDOWS2022SYSPREPED >"
}
},
{
"device_properties":{
"device_type":"CDROM",
"disk_address": {
"device_index": 0,
"adapter_type": "IDE"
}
}
}],
"nic_list":[{
"nic_type":"NORMAL_NIC",
"is_connected":true,
"ip_endpoint_list":[{
"ip_type":"DHCP"
}],
"subnet_reference":{
"kind":"subnet",
"name":"base",
"uuid":"< UUID-NETWORK >"
}
}],
"guest_tools":{
"nutanix_guest_tools":{
"state":"ENABLED",
"iso_mount_state":"MOUNTED"
}
},
"guest_customization": {
"sysprep": {
"unattend_xml": "< MIME64FORMATEDYAMLFILE >"
},
"is_overridable": false
}
},
"cluster_reference":{
"kind":"cluster",
"name":"< CLUSTER-NAME >",
"uuid":"< CLUSTER-UUID >"
}
},
"api_version":"3.1.0",
"metadata":{
"kind":"vm"
}
}
Run this command to install the virtual machine:
curl -k -H Accept:application/json -H Content-Type:application/json -u "< PRISM CENTRAL USER >:< PRISM CENTRAL PASSWORD >" -X POST "https://< PRISM CENTRAL IP >:9440/api/nutanix/v3/vms" -d @vmwindows.json | jq .
The new virtual machine will then appear in Prism Central with NGINX installed and updates performed.
Creating a virtual machine on Windows
You can install virtual machines on Windows from a prepared image using the Windows-integrated sysprep command and apply a customization file to it.
The image can be imported directly from a virtual machine in the cluster.
The configuration file is an XML file. You can create this file using the Windows ADK tools that you can download from the Microsoft site via this link and use Windows system image manager to create a suitable XML file.
Below is an example XML file for Windows 2019 that creates an admin user and changes the password for the admin and Administrator account to P@ssw0rd:
<?xml version="1.0" encoding="utf-8"?>
<unattend xmlns="urn:schemas-microsoft-com:unattend">
<settings pass="windowsPE">
<component name="Microsoft-Windows-International-Core-WinPE" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<SetupUILanguage>
<UILanguage>en-US</UILanguage>
<WillShowUI>Never</WillShowUI>
</SetupUILanguage>
<InputLocale>0409:00000409</InputLocale>
<SystemLocale>en-US</SystemLocale>
<UILanguage>en-US</UILanguage>
<UserLocale>en-US</UserLocale>
</component>
<component name="Microsoft-Windows-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<UserData>
<AcceptEula>true</AcceptEula>
<FullName>Nutanix Doc</FullName>
<Organization>Nutanix Doc</Organization>
</UserData>
<EnableFirewall>true</EnableFirewall>
<EnableNetwork>true</EnableNetwork>
</component>
</settings>
<settings pass="specialize">
<component name="Microsoft-Windows-Shell-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<TimeZone>Central Standard Time</TimeZone>
</component>
</settings>
<settings pass="oobeSystem">
<component name="Microsoft-Windows-Shell-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<UserAccounts>
<AdministratorPassword>
<Value>UABAAHMAcwB3ADAAcgBkAEEAZABtAGkAbgBpAHMAdAByAGEAdABvAHIAUABhAHMAcwB3AG8AcgBkAA==</Value>
<PlainText>false</PlainText>
</AdministratorPassword>
<LocalAccounts>
<LocalAccount wcm:action="add">
<Password>
<Value>UABAAHMAcwB3ADAAcgBkAFAAYQBzAHMAdwBvAHIAZAA=</Value>
<PlainText>false</PlainText>
</Password>
<Group>Administrators</Group>
<Name>admin</Name>
</LocalAccount>
</LocalAccounts>
</UserAccounts>
<OOBE>
<HideEULAPage>true</HideEULAPage>
<HideOEMRegistrationScreen>true</HideOEMRegistrationScreen>
<HideOnlineAccountScreens>true</HideOnlineAccountScreens>
<HideWirelessSetupInOOBE>true</HideWirelessSetupInOOBE>
<ProtectYourPC>1</ProtectYourPC>
<HideLocalAccountScreen>true</HideLocalAccountScreen>
</OOBE>
</component>
<component name="Microsoft-Windows-International-Core" processorArchitecture="wow64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<UILanguage>en-US</UILanguage>
<UserLocale>en-US</UserLocale>
<SystemLocale>en-US</SystemLocale>
<InputLocale>0409:00000409</InputLocale>
</component>
</settings>
<cpi:offlineImage cpi:source="wim:c:/sw2019/sources/install.wim#Windows Server 2019 SERVERSTANDARD" xmlns:cpi="urn:schemas-microsoft-com:cpi" />
</unattend>
Copy the XML file to a Linux VM in the cluster and transform it into MIME64 format, as below, to integrate it into the VM configuration file in json format:
USERDATA=$(base64 -w 0 answerfile.xml)
echo $USERDATA
Edit the vmwindows.json file below by editing these items to fit your environment:
-
< VMNAME >must be replaced with the name of the VM you want to give in the Nutanix console. -
< UID-IMAGE-WINDOWS2022SYSPREPED >must be replaced with the UUID of the Windows SYSPREPED image that can be used with an XML file. -
< UID-NETWORK >must be replaced with the name of the network on which the virtual machine will operate. -
< MIME64FORMATEDYAMLFILE >must be replaced with the contents of the$USERDATAvariable. -
< CLUSTER-NAME >must be replaced with the cluster name. -
< CLUSTER-UUID >must be replaced with the cluster UUID.
All necessary information is either accessible from the Prism Central web interface or through REST API commands.
{
"spec":{
"name":"< VMNAME >",
"resources":{
"power_state":"ON",
"num_vcpus_per_socket":2,
"num_sockets":2,
"memory_size_mib":4096,
"disk_list":[{
"device_properties":{
"device_type":"DISK",
"disk_address": {
"device_index": 0,
"adapter_type": "SCSI"
}
},
"data_source_reference": {
"kind": "image",
"uuid": "< UUID-IMAGE-WINDOWS2022SYSPREPED >"
}
},
{
"device_properties":{
"device_type":"CDROM",
"disk_address": {
"device_index": 0,
"adapter_type": "IDE"
}
}
}],
"nic_list":[{
"nic_type":"NORMAL_NIC",
"is_connected":true,
"ip_endpoint_list":[{
"ip_type":"DHCP"
}],
"subnet_reference":{
"kind":"subnet",
"name":"base",
"uuid":"< UUID-NETWORK >"
}
}],
"guest_tools":{
"nutanix_guest_tools":{
"state":"ENABLED",
"iso_mount_state":"MOUNTED"
}
},
"guest_customization": {
"sysprep": {
"unattend_xml": "< MIME64FORMATEDYAMLFILE >"
},
"is_overridable": false
}
},
"cluster_reference":{
"kind":"cluster",
"name":" CLUSTER-NAME ;",
"uuid":" CLUSTER-UUID ;"
}
},
"api_version":"3.1.0",
"metadata":{
"kind":"vm"
}
}
curl -k -H Accept:application/json -H Content-Type:application/json -u "< PRISM CENTRAL USER >:< PRISM CENTRAL PASSWORD >" -X POST "https://< PRISM CENTRAL IP >:9440/api/nutanix/v3/vms" -d @vmwindows.json | jq .
The new virtual machine will appear in Prism Central, it is then started with the response file options.
Go further
For more information and tutorials, please see our other Nutanix support guides or explore the guides for other OVHcloud products and services.
