Learn how to add or remove a node in a Nutanix cluster.
Nutanix clusters are scalable; you can add (Scale Out) or remove (Scale In) nodes in an existing cluster.
This tutorial is designed to help you as much as possible with common tasks. If you are having difficulty performing these actions, please contact a specialized service provider. OVHcloud can't provide you with technical support in this regard.
Requirements
- Access to the OVHcloud Control Panel
- A Nutanix cluster in your OVHcloud account
- Access to the cluster's Prism Central administration interface
Technical information
With the Hosted Private Cloud solution powered by Nutanix, it is possible to add or remove several nodes when expanding the cluster. However, you must maintain a minimum of 3 nodes, with a maximum of 15 nodes, per cluster for Nutanix on OVHcloud.
The nodes to be added must have the same version of AOS as the existing cluster.
Instructions
Scale Out (add a node)
Add a node

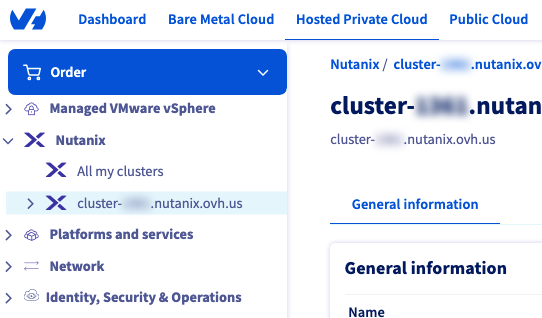

From the OVHcloud Control Panel, navigate to your Nutanix cluster via the Hosted Private Cloud and Nutanix menus.

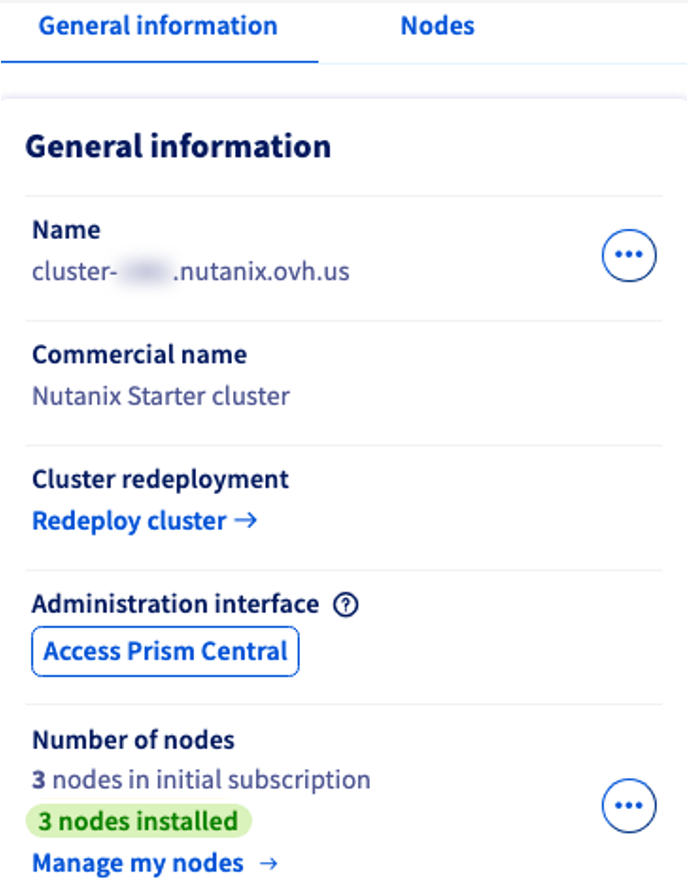

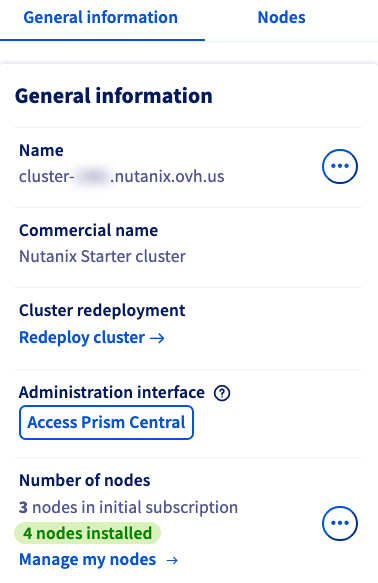

In the General information tab, you can see the Number of nodes. Click Manage my nodes →.

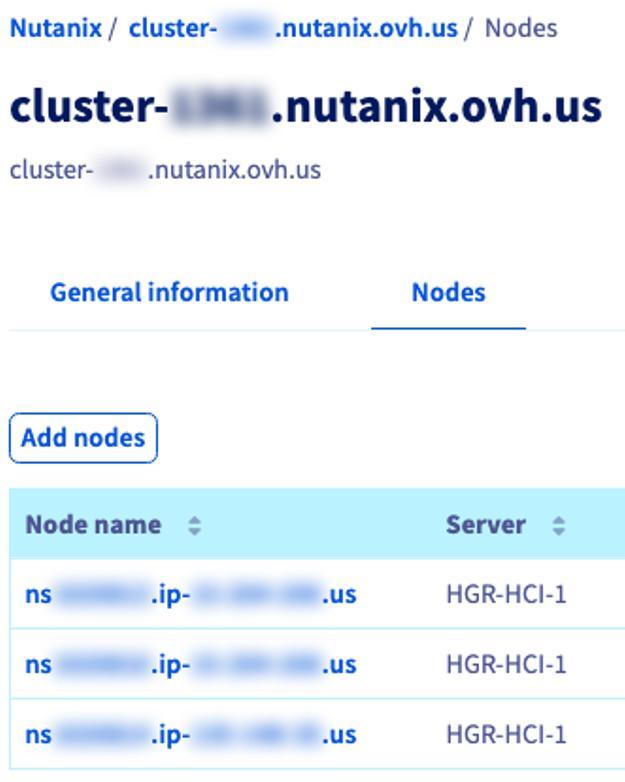

In the Nodes tab, select Add nodes.

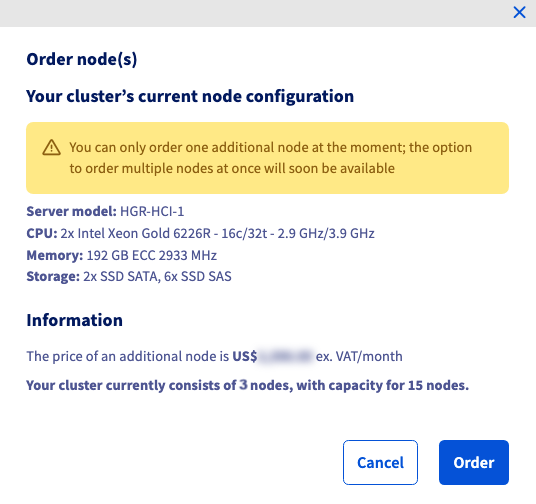

In the pop-up window, review the configuration information and pricing. Click Order to add the node(s).

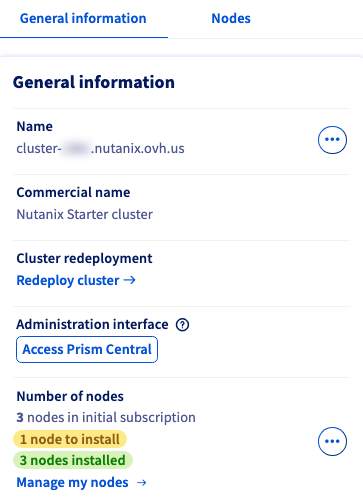

Once the node is delivered, you can see the status in the General information tab.
The Number of nodes area will show a new node to install.
Install an OS

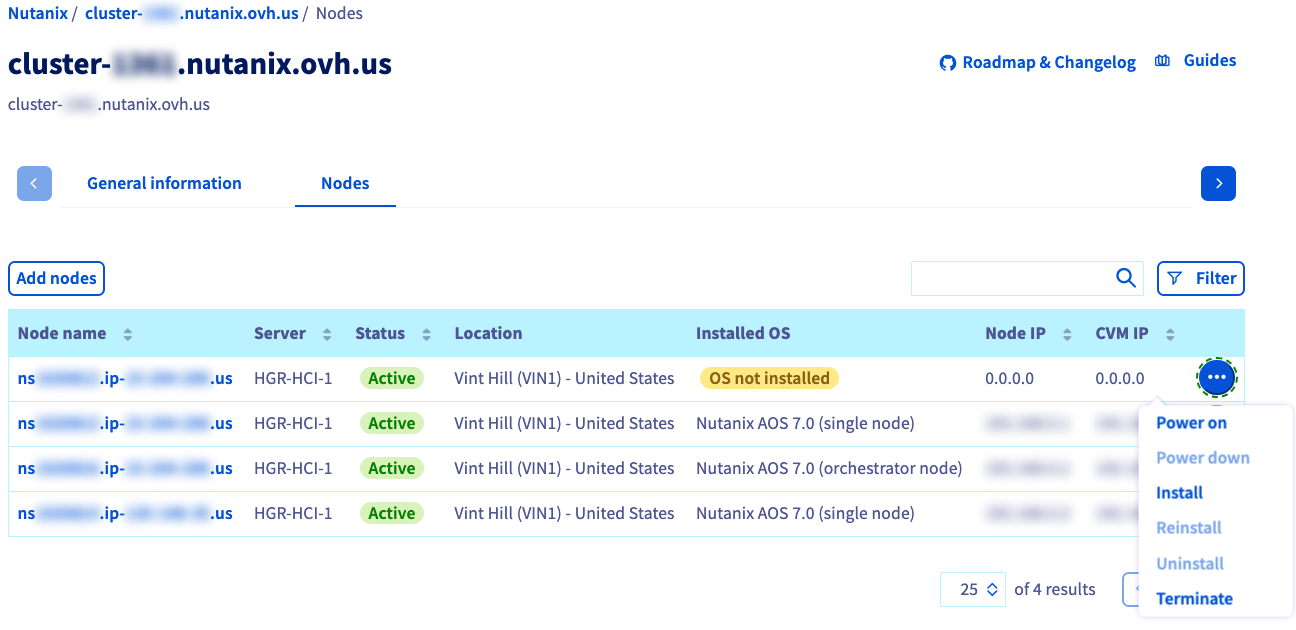

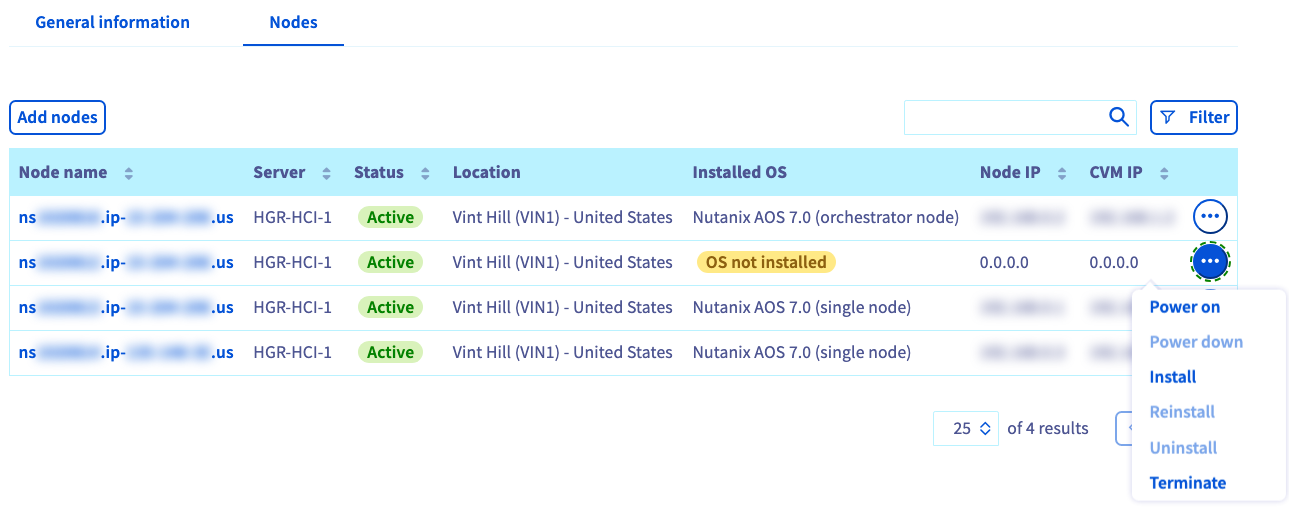

If you click Manage my nodes → again, you will see a list of your nodes. For any node with a OS not installed status, click the more options ... button and select Install.

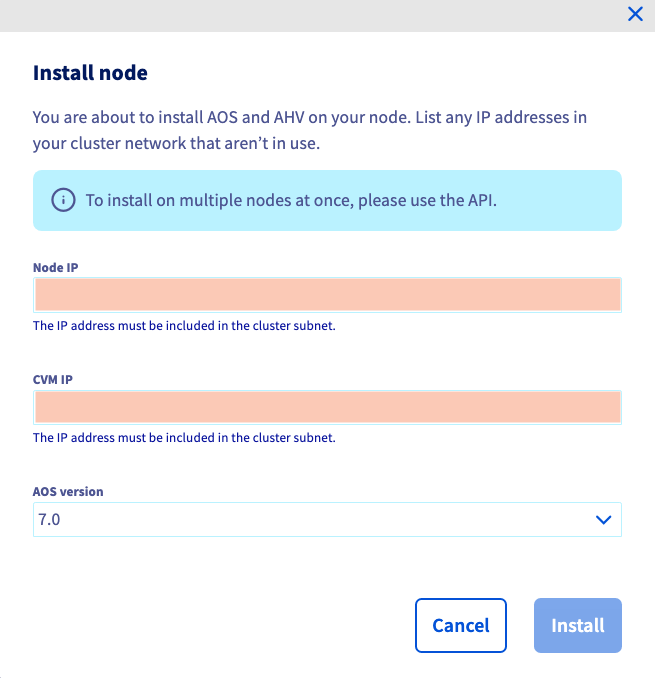

Enter the configuration details for your node. Be sure to install the same AOS version as your cluster.
Click Install.

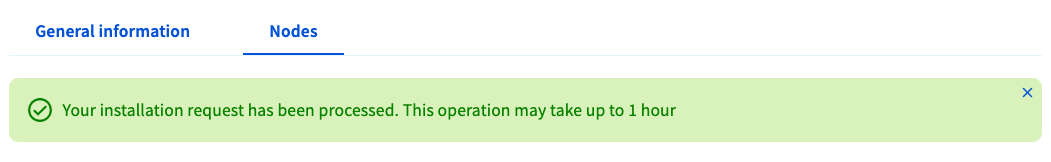

A confirmation message will appear.
To install your node via the OVHcloud API, use this call:
Once the node has been installed, you can connect to Prism Central/Element and expand your cluster. Please refer to the documentation below:
Scale In (remove a node)
Power down a node
From the OVHcloud Control Panel, navigate to your Nutanix cluster via the Hosted Private Cloud and Nutanix menus.
In the General information tab, you can see the Number of nodes. Click Manage my nodes →.

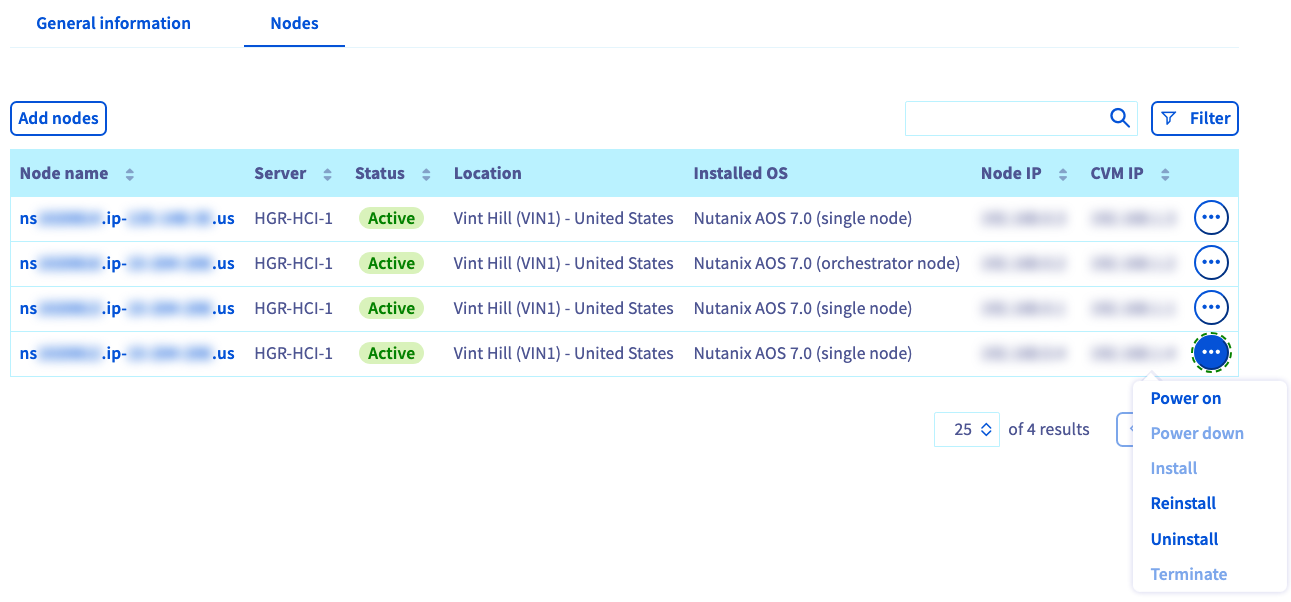

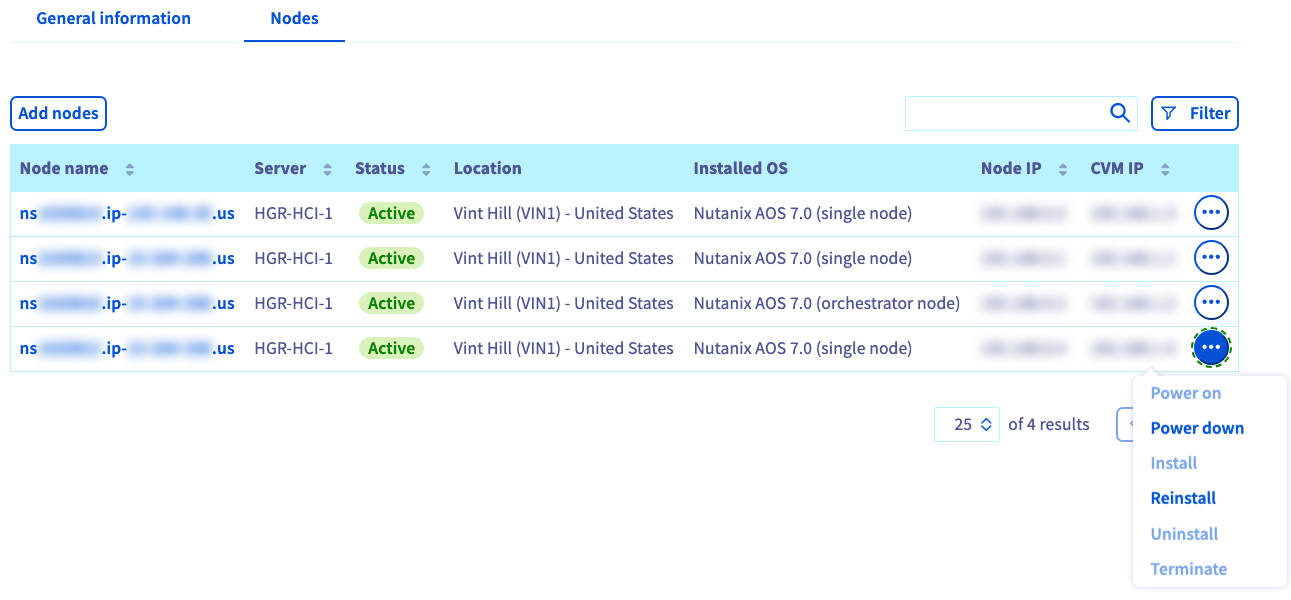

For the node you wish to remove, click the more options ... button and select Power down.

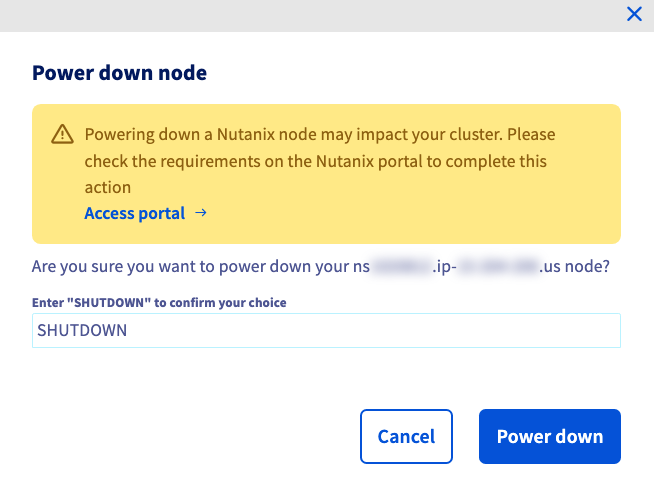

A warning pop-up will appear. Type the required term and click Power
down.
NOTE: Powering down a Nutanix node may impact your cluster. Please check the requirements on the Nutanix portal to complete this action.

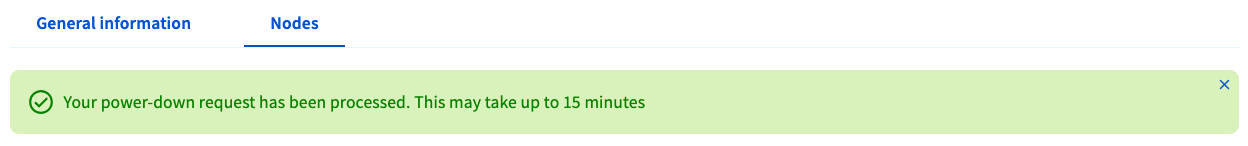

A confirmation banner will appear to confirm that your request is processing.
You can also power down your node via the OVHcloud API.
Get the Boot ID:
Enter power as the bootType.
Set the Boot ID:
Power down the node:
Uninstall the node
Once the node is powered down, click the more options ... button and select Uninstall.

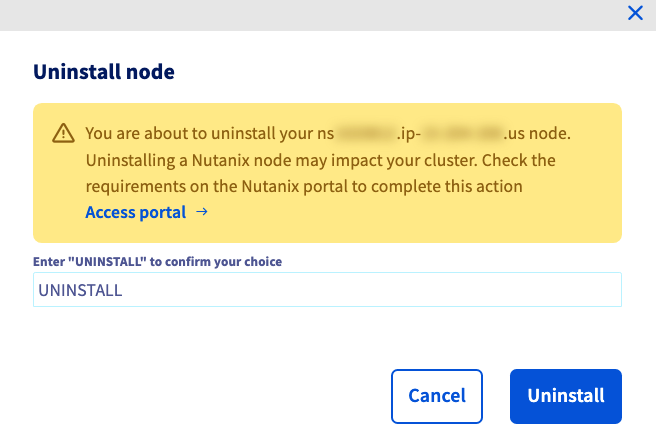

A warning pop-up will appear. Type the required term and click Uninstall.
NOTE: Uninstalling a Nutanix node may impact your cluster. Please check the requirements on the Nutanix portal to complete this action.
A confirmation banner will appear to confirm that your request is processing.
To uninstall your node via the OVHcloud API, use the following call:
Remove the node
Once the node is uninstalled, click the more options ... button and select Terminate.

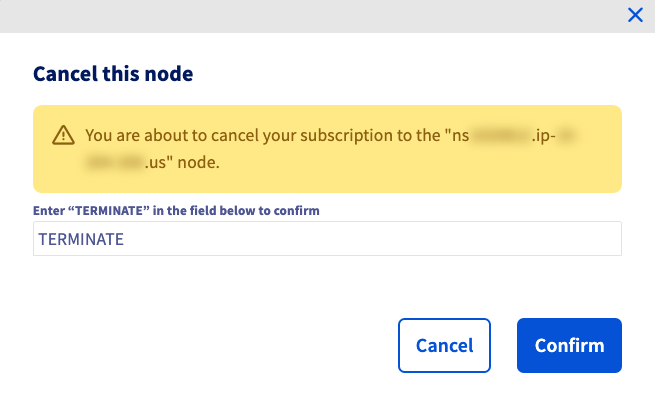

A warning pop-up will appear. Type the required term and click Terminate.
NOTE: Your suspended service will appear in your nodes list for approximately one week before being permanently deleted. This allows you to reactivate the service if you need to reverse the deletion.
