Objective
Kyverno (Greek for “govern”) is a policy engine designed specifically for Kubernetes.
With Kyverno, policies are managed as Kubernetes resources and no new language is required to write policies (compared to OPA Gatekeeper, which uses Rego programming language). This allows using familiar tools such as kubectl
, git
, and kustomize
to manage policies.
Kyverno policies can validate, mutate, and generate Kubernetes resources.

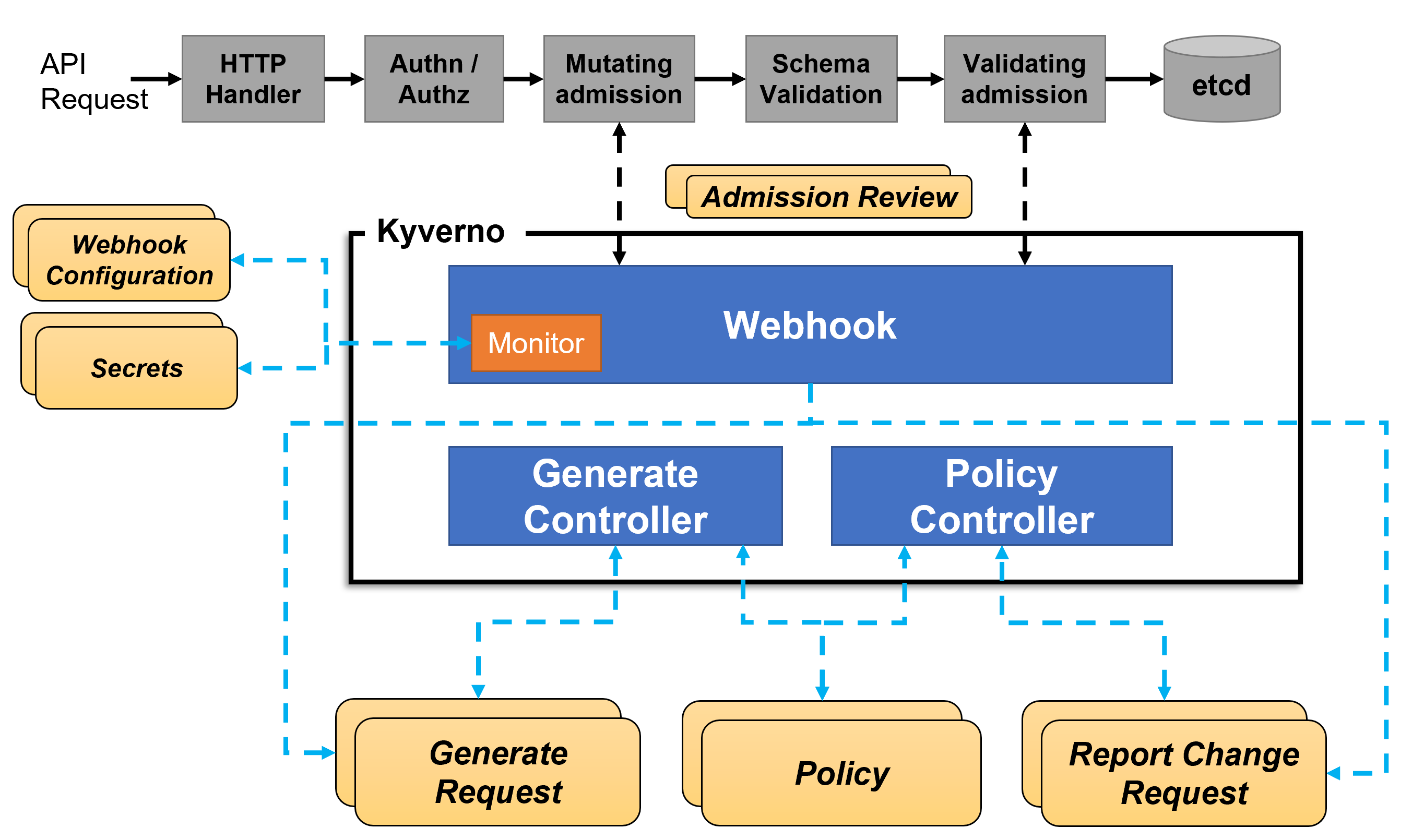

Kyverno runs as a dynamic admission controller in a Kubernetes cluster. Kyverno receives validating and mutating admission webhook HTTP callbacks from the Kubernetes API Server and applies matching policies to return results that enforce admission policies or reject requests.
Kyverno policies can match resources using the resource kind, name, and label selectors. Wildcards are supported in the names.
Mutating and Validating policies can be written as overlays (similar to Kustomize).
Policy enforcement is captured using Kubernetes events. Kyverno also reports policy violations for existing resources.
Concretely, when you apply a resource on the Kubernetes cluster, the manifest you sent to the Kubernetes API must pass many stages before they get created as a resource you desire. Two stages in which we are interested are Mutating Admission and Validating admission.
Kyverno's many features include:
- Validate and mutate using overlays (like Kustomize!)
- Synchronize configurations across namespaces
- Scan existing workloads and generate audit reports
- Block non-conformant resources using admission controls or report policy violations
- Test policies and validate resources using the
kyverno
CLI in your CI/CD pipeline before applying to your cluster
Read more about Kyverno.
Securing a Kubernetes cluster is important so thanks to Kyverno you can check several security best practices. For example:
- Configure Readiness & Liveness probes
- Configure resource quotas
- Do not use mutable (latest) image tags
- Restrict image registries
- Configure pod security
- Fine-grained RBAC
At OVHcloud, we provide you with the best products and services and security is very important to us. That’s why we wanted to help you discover Kyverno which will help you secure your OVHcloud Managed Kubernetes with policy management.
In this guide, you will:
- Install Kyverno
- Write and deploy several policies
- Test the behavior
You can use the Reset cluster function in the Public Cloud section of the OVHcloud Control Panel to reinitialize your cluster before following this tutorial.
Requirements
This tutorial assumes that you already have a working OVHcloud Managed Kubernetes cluster and some basic knowledge of how to operate it. If you want to learn more about these topics, please look at the deploying a Hello World application documentation.
Instructions
Installing Kyverno CLI
You can install the CLI using Krew or building the CLI from the source.
For this tutorial, you will install the CLI from source:
git clone https://github.com/kyverno/kyverno
cd kyverno
make cli
cp ./cmd/cli/kubectl-kyverno/kyverno /usr/local/bin/kyverno
You should have results like this:
$ git clone https://github.com/kyverno/kyverno Cloning into 'kyverno'... remote: Enumerating objects: 64593, done. remote: Counting objects: 100% (984/984), done. remote: Compressing objects: 100% (496/496), done. Receiving objects: 6% (3876/64593), 876.01 KiB | 1.60 MiB/s Receiving objects: 6% (4222/64593), 876.01 KiB | 1.60 MiB/s remote: Total 64593 (delta 531), reused 832 (delta 483), pack-reused 63609 Receiving objects: 100% (64593/64593), 55.81 MiB | 3.43 MiB/s, done. Resolving deltas: 100% (35868/35868), done. $ cd kyverno $ make cli GOOS=darwin go build -o /Users/avache/git/github.com/kyverno/kyverno/cmd/cli/kubectl-kyverno/kyverno -ldflags="-s -w -X github.com/kyverno/kyverno/pkg/version.BuildVersion=v1.5.0-rc1-223-gf0359f82 -X github.com/kyverno/kyverno/pkg/version.BuildHash=main/f0359f8272a181923db0704696803d44a43f69f8 -X github.com/kyverno/kyverno/pkg/version.BuildTime=2022-01-19_12:10:05" /Users/avache/git/github.com/kyverno/kyverno/cmd/cli/kubectl-kyverno/main.go go: downloading k8s.io/klog v1.0.0 go: downloading github.com/spf13/cobra v1.2.1 go: downloading sigs.k8s.io/controller-runtime v0.10.3 go: downloading k8s.io/apiextensions-apiserver v0.22.4 go: downloading k8s.io/apimachinery v0.22.4 go: downloading k8s.io/klog/v2 v2.10.0 go: downloading sigs.k8s.io/yaml v1.3.0 go: downloading github.com/fatih/color v1.12.0 go: downloading github.com/go-git/go-billy/v5 v5.0.0 go: downloading github.com/go-git/go-git/v5 v5.2.0 go: downloading github.com/go-logr/logr v0.4.0 go: downloading github.com/kataras/tablewriter v0.0.0-20180708051242-e063d29b7c23 go: downloading github.com/lensesio/tableprinter v0.0.0-20201125135848-89e81fc956e7 go: downloading k8s.io/api v0.22.4 go: downloading k8s.io/cli-runtime v0.22.4 go: downloading github.com/evanphx/json-patch v4.11.0+incompatible go: downloading k8s.io/client-go v0.22.4 go: downloading github.com/googleapis/gnostic v0.5.5 go: downloading github.com/kyverno/json-patch/v5 v5.5.1-0.20210915204938-7578f4ee9c77 go: downloading github.com/orcaman/concurrent-map v0.0.0-20190826125027-8c72a8bb44f6 go: downloading gopkg.in/yaml.v3 v3.0.0-20210107192922-496545a6307b go: downloading k8s.io/kube-openapi v0.0.0-20211115234752-e816edb12b65 go: downloading github.com/distribution/distribution v2.7.1+incompatible ... go: downloading github.com/dimchansky/utfbom v1.1.1 $ cp ./cmd/cli/kubectl-kyverno/kyverno /usr/local/bin/kyverno
After the installation, check that the kyverno
CLI is working:
kyverno version
You should see behavior like this:
$ kyverno version
Version: v1.5.0-rc1-223-gf0359f82
Time: 2022-01-19_12:10:05
Git commit ID: main/f0359f8272a181923db0704696803d44a43f69f8
The Kyverno Command Line Interface (CLI) is designed to validate and test policies' behavior prior to adding them to a cluster. Therefore, the best practice is to use the kyverno
CLI in your CI/CD pipelines to assist with the resource authoring process to ensure they conform to standards prior to them being deployed.
Installing Kyverno
For this tutorial, we are using the Kyverno Helm chart.
Add the Kyverno Helm repository:
helm repo add kyverno https://kyverno.github.io/kyverno/
helm repo update
These commands will add the Kyverno Helm repository to your local Helm chart repository and update the installed chart repositories:
$ helm repo add kyverno https://kyverno.github.io/kyverno/
helm repo update
"kyverno" has been added to your repositories
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "nvidia" chart repository
...
...Successfully got an update from the "kyverno" chart repository
...
Update Complete. ⎈Happy Helming!⎈
Install the latest version of Kyverno with the helm install
command:
helm install kyverno kyverno/kyverno --namespace kyverno --create-namespace
This command will install the latest version of Kyverno and create a new kyverno
namespace:
$ helm install kyverno kyverno/kyverno --namespace kyverno --create-namespace
NAME: kyverno
LAST DEPLOYED: Wed Jan 19 11:41:15 2022
NAMESPACE: kyverno
STATUS: deployed
REVISION: 1
NOTES:
Thank you for installing kyverno v2.1.6 😀
Your release is named kyverno, app version v1.5.4
Note: You can also install Kyverno in HA (High Availability) mode with the following command:helm install kyverno kyverno/kyverno -n kyverno --create-namespace --set=replicaCount=3
You can check if the Kyverno pod is running:
$ kubectl get pods -n kyverno
NAME READY STATUS RESTARTS AGE
kyverno-554ffb4c96-f2lvs 1/1 Running 0 50s
And you can check that Kyverno installed several webhooks on your cluster:
$ kubectl get validatingwebhookconfigurations,mutatingwebhookconfigurations
NAME WEBHOOKS AGE
validatingwebhookconfiguration.admissionregistration.k8s.io/kyverno-policy-validating-webhook-cfg 1 52s
validatingwebhookconfiguration.admissionregistration.k8s.io/kyverno-resource-validating-webhook-cfg 2 52s
NAME WEBHOOKS AGE
mutatingwebhookconfiguration.admissionregistration.k8s.io/kyverno-policy-mutating-webhook-cfg 1 52s
mutatingwebhookconfiguration.admissionregistration.k8s.io/kyverno-resource-mutating-webhook-cfg 2 52s
mutatingwebhookconfiguration.admissionregistration.k8s.io/kyverno-verify-mutating-webhook-cfg 1 52s
Create and Deploy Policies
Kyverno is running on your OVHcloud Managed Kubernetes cluster, so now you can simply create and deploy policies with the rules you want to put in place in your cluster.
In this guide, we will show you how to create several policies that will:
- Deny deploying resources in the
default
namespace - Automatically create a ConfigMap in all namespaces except
kube-system
,kube-public
, andkyverno
- Automatically add a label to Pods, Services, ConfigMaps, and Secrets in a given namespace
Policy 1: Disallow deployments in the default
namespace
For our first example, we want to deny deploying resources in the default
namespace.
Why? Because it’s a good practice to isolate workloads/applications with Namespaces. One namespace per project/team/…
So imagine if several teams deploy different applications in the default
namespace - they will not be isolated.
The policy will validate whether new resources can be deployed, so we will create a validate
policy.
Create a new policy in a policy-disallow-default-namespace.yaml
file:
apiVersion: kyverno.io/v1
kind: ClusterPolicy
metadata:
name: disallow-default-namespace
spec:
validationFailureAction: enforce
rules:
- name: validate-namespace
match:
resources:
kinds:
- Pod
validate:
message: "Using \"default\" namespace is not allowed."
pattern:
metadata:
namespace: "!default"
- name: require-namespace
match:
resources:
kinds:
- Pod
validate:
message: "A namespace is required."
pattern:
metadata:
namespace: "?*"
- name: validate-podcontroller-namespace
match:
resources:
kinds:
- DaemonSet
- Deployment
- Job
- StatefulSet
validate:
message: "Using \"default\" namespace is not allowed for pod controllers."
pattern:
metadata:
namespace: "!default"
- name: require-podcontroller-namespace
match:
resources:
kinds:
- DaemonSet
- Deployment
- Job
- StatefulSet
validate:
message: "A namespace is required for pod controllers."
pattern:
metadata:
namespace: "?*"
Note: The validationFailureAction policy attribute that controls admission is set to enforce to block resource creation or updates when the resource is non-compliant. The default value, audit, will report violations (in a PolicyReport or ClusterPolicyReport), but it will not block requests.
To deploy the Kyverno policy in the cluster, execute the following command to apply the YAML file:
kubectl apply -f policy-disallow-default-namespace.yaml
After applying the policy, check if the policy is correctly applied on the cluster:
$ kubectl apply -f policy-disallow-default-namespace.yaml
clusterpolicy.kyverno.io/disallow-default-namespace created
$ kubectl get clusterpolicy
NAME BACKGROUND ACTION READY
disallow-default-namespace true enforce true
Note: With the Kyverno installation, new CRDs have been added. The one that interests us is the new resource type ClusterPolicy
. So in order to list, display, edit, and remove Kyverno policies, you can execute the kubectl
command with ClusterPolicy
resource object type.
Ex: kubectl get clusterpolicy
or kubectl get cpol
with the short name.
Now you will try to deploy a simple application in the default
namespace.
For that, create a file named my-pod.yaml
with the following content:
apiVersion: v1
kind: Pod
metadata:
name: my-pod
spec:
containers:
- name: hello-world
image: ovhplatform/hello
ports:
- containerPort: 80
Apply it without defining any namespace (namespace is default
by default):
kubectl apply -f my-pod.yaml
$ kubectl apply -f my-pod.yaml
Error from server: error when creating "my-pod.yaml": admission webhook "validate.kyverno.svc-fail" denied the request:
resource Pod/default/my-pod was blocked due to the following policies
disallow-default-namespace:
validate-namespace: 'validation error: Using "default" namespace is not allowed.
Rule validate-namespace failed at path /metadata/namespace/'
Perfect, you no longer have the ability to deploy a Pod/Deployment/Replica Set/Job/Stateful Set in the default
namespace.
Policy 2: Create a Config Map in all namespaces excepted kube-system
, kube-public
, and kyverno
For our second example, we want to create a generate
policy that will create a new Config Map called zk-kafka-address
in all new namespaces except kube-system
, kube-public
, and kyverno
.
Create a new policy in a policy-generate-cm.yaml
file:
apiVersion: kyverno.io/v1
kind: ClusterPolicy
metadata:
name: zk-kafka-address
spec:
rules:
- name: k-kafka-address
match:
resources:
kinds:
- Namespace
exclude:
resources:
namespaces:
- kube-system
- kube-public
- kyverno
generate:
synchronize: true
kind: ConfigMap
name: zk-kafka-address
# generate the resource in the new namespace
namespace: "{{request.object.metadata.name}}"
data:
kind: ConfigMap
metadata:
labels:
somekey: somevalue
data:
ZK_ADDRESS: "192.168.10.10:2181,192.168.10.11:2181,192.168.10.12:2181"
KAFKA_ADDRESS: "192.168.10.13:9092,192.168.10.14:9092,192.168.10.15:9092"
Note: When the synchronize
attribute is set to true
, modifications will be synchronized to the generated resources.
In our case, if you change the values of ZK_ADDRESS
and KAFKA_ADDRESS
, for example, all of the created Config Maps will be updated.
To deploy the Kyverno policy in the cluster, execute the following command to apply the YAML file:
kubectl apply -f policy-generate-cm.yaml
After applying the policy, check if the policy is correctly applied on the cluster:
$ kubectl apply -f policy-generate-cm.yaml clusterpolicy.kyverno.io/zk-kafka-address created $ kubectl get cpol -A NAME BACKGROUND ACTION READY disallow-default-namespace true enforce true zk-kafka-address true audit true
The generate
rule is triggered during the API CREATE
operation.
In order to test the behavior of this policy, you will create a new namespace test2
:
kubectl create ns test2
Then check if the new Config Map appears in the new test2
namespace:
kubectl get cm -A
You should have results like these:
$ kubectl create ns test2 namespace/test2 created $ kubectl get cm -A NAMESPACE NAME DATA AGE default kube-root-ca.crt 1 7d20h kube-node-lease kube-root-ca.crt 1 7d20h kube-public kube-root-ca.crt 1 7d20h kube-system canal-config 5 7d20h kube-system coredns 1 7d20h kube-system extension-apiserver-authentication 6 7d20h kube-system kube-dns-autoscaler 1 7d20h kube-system kube-proxy 1 7d20h kube-system kube-root-ca.crt 1 7d20h kyverno kube-root-ca.crt 1 7d19h kyverno kyverno 2 7d19h kyverno kyverno-metrics 1 7d19h test kube-root-ca.crt 1 7d16h test2 kube-root-ca.crt 1 2m28s test2 zk-kafka-address 2 2m27s
As you can see, the Config Map zk-kafka-address
has been created in the new test2
namespace.
Policy 3: Add a label app: my-awesome-app
to Pods, Services, ConfigMaps, and Secrets in a given namespace
The aim of this policy is to automatically add a label app=my-awesome-app
to Pods, Services, Config Maps, and Secrets in the namespaces team-a
.
In order to do that, we will show you how to deploy a mutate
policy.
Note: Resource mutation
occurs before validation
so the validation rules should not contradict the changes performed by the mutation section.
Create a new policy in a policy-add-label.yaml
file:
apiVersion: kyverno.io/v1
kind: ClusterPolicy
metadata:
name: add-label
spec:
rules:
- name: add-label
match:
resources:
kinds:
- Pod
- Service
- ConfigMap
- Secret
namespaces:
- team-a
mutate:
patchStrategicMerge:
metadata:
labels:
app: my-awesome-app
To deploy the Kyverno policy in the cluster, execute the following command to apply the YAML file:
kubectl apply -f policy-add-label.yaml
After applying the policy, check if the policy is correctly applied on the cluster:
$ kubectl apply -f policy-add-label.yaml clusterpolicy.kyverno.io/add-label created $ kubectl get cpol -A NAME BACKGROUND ACTION READY add-label true audit disallow-default-namespace true enforce true zk-kafka-address true audit true
Now you can create a new namespace team-a
, deploy a new Pod into it and check if the new label has been correctly added automatically:
kubectl create ns team-a
kubectl apply -f my-pod.yaml -n team-a
kubectl get pod my-pod -n team-a --show-labels
Note: Previously in this guide, we showed you the creation of a Pod in a file named my-pod.yaml
, so in this step you can reuse it.
You should obtain the following results:
$ kubectl create ns team-a namespace/team-a created $ kubectl apply -f my-pod.yaml -n team-a pod/my-pod created $ kubectl get pod my-pod -n team-a --show-labels NAME READY STATUS RESTARTS AGE LABELS my-pod 1/1 Running 0 29s app=my-awesome-app
Debugging/Validating
Previously in this guide, we showed you how to install the kyverno
CLI. With this CLI, you can apply, test, and validate policies.
In this tutorial, we want to show you that the CLI is perfect for a usage on your local machine (for dev/test usages) and in your CI/CD pipelines in order to test and validate the policies you want to deploy in production are correct.
You can for example check if policies we created are validated with the kyverno validate
command:
kyverno validate *.yaml
You should obtain results like these:
$ kyverno validate *.yaml
----------------------------------------------------------------------
Policy disallow-default-namespace is valid.
----------------------------------------------------------------------
Policy add-label is valid.
----------------------------------------------------------------------
Policy zk-kafka-address is valid.
Troubleshooting
If you have any problem with Kyverno, for example you deployed a policy and don’t know why it’s not working, you can go to the Kyverno troubleshooting page.
What’s next?
You now have a policy management on your Kubernetes cluster, and you deployed a few policies to test the behavior of Kyverno.
In order to see more examples of policies, you can go to Kyverno policies repository. This repository contains Kyverno policies for a wide array of uses on various Kubernetes and ecosystem resources and subjects.
If you have any questions about Kyverno, you can also go to the Kyverno Slack community.
Having a policy management is a good practice to follow. It will help you to keep your cluster clean and secure.
Cleanup
First, remove the ClusterPolicies
you deployed in this guide:
kubectl delete cpol --all
To uninstall Kyverno, you can use the helm uninstall
command in order to delete the Kyverno Helm chart:
helm uninstall kyverno kyverno/kyverno --namespace kyverno
