Learn how to use and manage your public and private registries through ovhai command line interface (AI CLI), API, and OVHcloud Control Panel. This will help you when working with OVHcloud AI Tools, especially with AI Training and AI Deploy.



Requirements



Instructions

This documentation is divided into the following parts:

  • Manage existing registries through
    • OVHcloud Control Panel (UI)
    • OVHcloud AI CLI ovhai
  • Create, configure, and use new registries
    • Private Harbor registry
    • Private Docker registry
    • GitHub registry (packages)



Manage existing registries

The Public Cloud provides a default registry called shared registry, where users of the same Public Cloud project can push their custom images and use them through our AI Tools.

NOTE: This shared registry can help you perform your tests but should not be used in production, as we reserve the right to delete its content if deemed necessary. The images pushed to this registry are for AI Tools' workloads only and will not be accessible for external uses.

This is why it can be interesting to add and manage other registries. We can either do this by using the OVHcloud Control Panel (UI) or the ovhai CLI.

Click each tab across the top to view all content.

First, log in to the OVHcloud Control Panel and go to the AI Dashboard section via the Public Cloud menu.

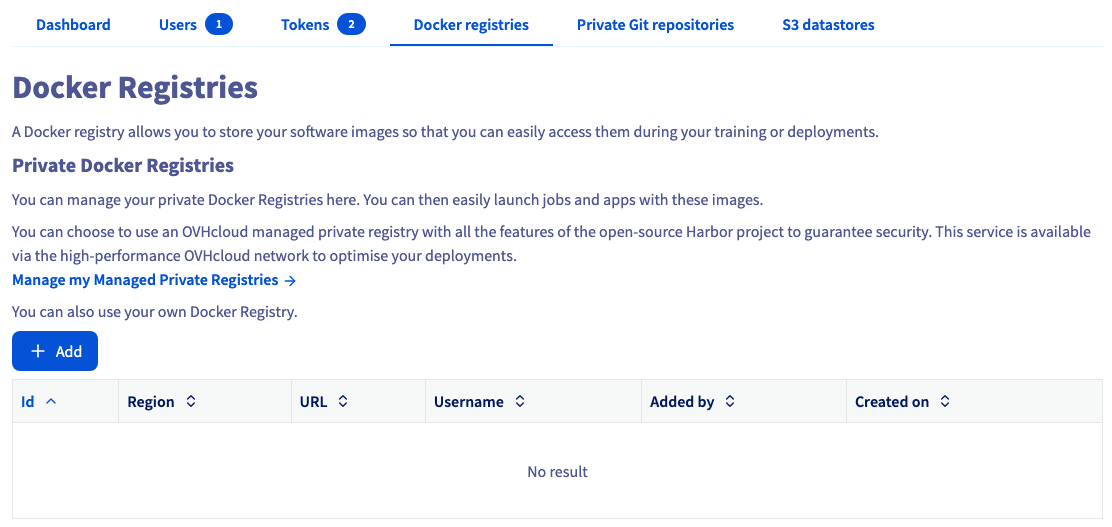

By clicking the Docker registries tab, you should be able to see and manage (add, delete) your different private registries.


Note that the shared registry will not appear here. This one is displayed in the Home panel of AI Training.

If you prefer, you can also use the OVHcloud ovhai CLI:

List all your available registries with:

ovhai registry list

Add a registry by using:

ovhai registry add <registry-url>

Update one of your registries with the following command:

ovhai registry update <id>

Delete a registry by using:

ovhai registry delete <id>

If you do not have our ovhai CLI yet, learn how to install it here.



Create, configure, and use new registries

Using your own and private registries is the best way to use your images without exposing them to everyone. There are three main possibilities:

  • Private Harbor registry
  • Private Docker registry
  • GitHub registry / packages

We will see how to implement each of these registries and use them through AI Tools.

In any case, note that the default shared registry will remain available even if you add new registries.

Click each tab across the top to view all content.

OVHcloud Managed Private Registry service allows you to spawn your own authenticated Docker registry where you can privately store your Docker images. This registry is an instance of Harbor, an open source trusted cloud native registry project that stores, signs, and scans Docker images.



Creation

To create your new private registry, we advise you to read and follow the steps mentioned in the Creating a private registry documentation.

At the end of this step, you should have your registry identification details.



Configuration

Then, you will need to use these credentials to connect to the Harbor UI. This will allow you to manage this private registry. This simple step is explained in the Connecting to the UI documentation.

To finish setting up your private Harbor registry, you will need to create a project on Harbor, and associate a user to it (Administrator user is added by default, but you can create a new one for this project). You will find all the information you need in this documentation.



Get your OVHcloud Managed Private Registry API URL

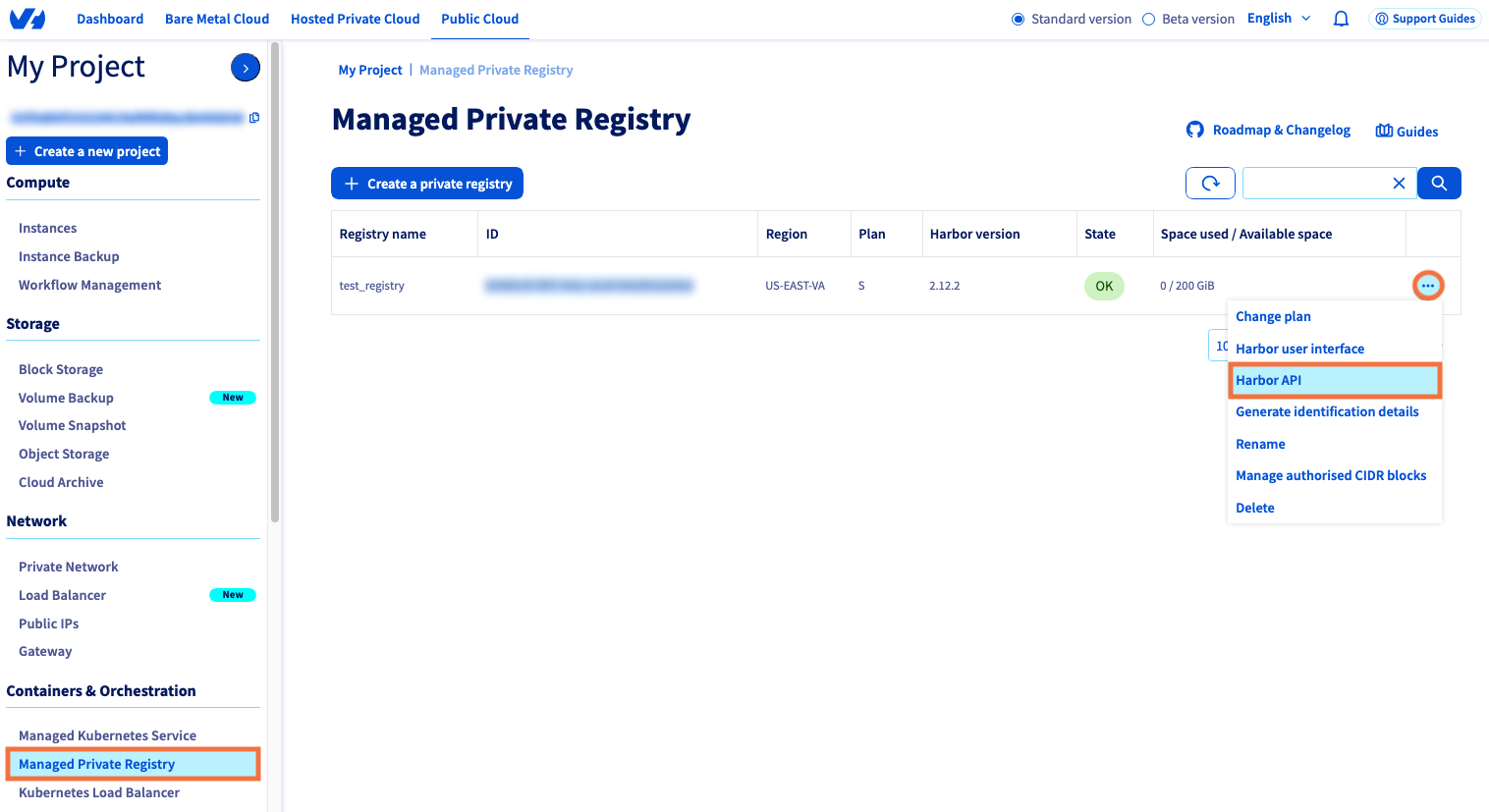

To add this registry to AI Tools, you will need to retrieve its URL. To do this, go to the Managed Private Registry section on the OVHcloud Public Cloud Manager, click the more options ... button to the right, and choose Harbor API:

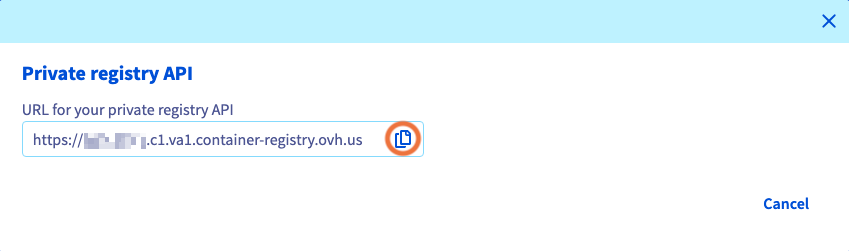

Then, copy the URL of the Harbor API, which is the URL of your private registry:




Add the Harbor registry

To add your registry, you can either use the OVHcloud Control Panel (UI) or the ovhai CLI.

During this step, you will be asked for your user's credentials (user ID and password). You can use the default user (administrator) credentials, which were obtained during the registry creation step, or those of another user if you have created one.



Using UI

To add your private registry via UI, log in to the OVHcloud Control Panel, go to the AI Dashboard section.

From the dashboard, you can add your private Harbor registry by clicking Docker registries > + Add.

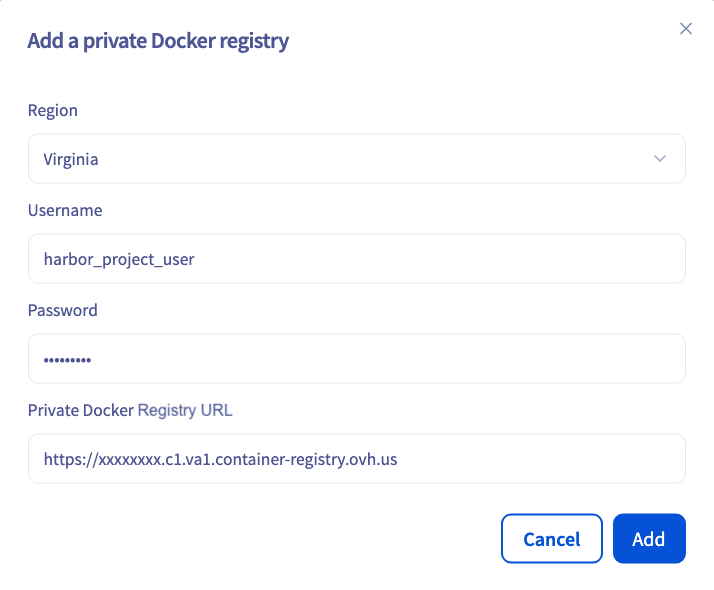

Here, you will need to provide the credentials of your registry along with its URL.

When you have finished filling in the form, click Add.




Using CLI

To add your private Harbor registry via CLI, use:

ovhai registry add <registry-url>

Once your registry is added, you should see it in your registries list. You can then use any images pushed on this registry for your AI Training jobs and AI Deploy apps.



Push an image to your registry

NOTE: Be careful for the following, we will use the displayed URL. This version does not contain the https:// part, which is present in the URL given by the Public Cloud.

Log in to your private registry, using a user with write rights to your registry project, with the following command:

docker login -u <user> -p <password> <private-registry-address>

Once connected, all you have to do is build, tag, and push your image. Here is an example:

Build the image from the current directory's Dockerfile:

docker build . -t <image-name>:<tag-name>

Tag the compiled image:

docker tag <image-name>:<tag-name> <private-registry-address>/<harbor_project_name>/<image-name>:<tag-name>

Push the image to your private registry's project:

docker push <private-registry-address>/<harbor_project_name>/<image-name>:<tag-name>



Use your private registry images with OVHcloud AI Tools

Now that your private registry has been created, added to your Public Cloud account, you can use its image(s) in AI Training and AI Deploy.

Here is a basic example with AI Training, when using the CLI:

ovhai job run <private-registry-address>/<harbor_project_name>/<image-name>:<tag-name>

You can also use the OVHcloud Control Panel if you prefer. In this case, you will have to indicate your custom Docker image during Step 2 of your job/app creation. This path will be <private-registry-address>/<harbor_project_name>/<image-name>:<tag-name>.


If you prefer to use a private registry from your Docker account, it is also possible.

Let's say we have created a private repository on our Docker account.

We build, tag, and push our Docker image in this private repository:

docker build . -t <image-name>:<tag-name>
docker tag <image-name>:<tag-name> <docker_hub_username>/<private_repository_name>:<tag-name>
docker push <docker_hub_username>/<private_repository_name>:<tag-name>



Add the private Docker registry

Once your image is pushed to your Docker account, you will need to add your private Docker registry to the registries of your Public Cloud project.

As with Harbor, this can either be done with the UI or CLI. This time, your private registry's URL will be index.docker.io and the requested username and password correspond to those of your Docker account.

During this step, you will be asked for your Docker credentials.



Using UI

Log in to the OVHcloud Control Panel, go to the AI Dashboard section.

From the dashboard, you can add your private Docker registry by clicking Docker registries > Add button.

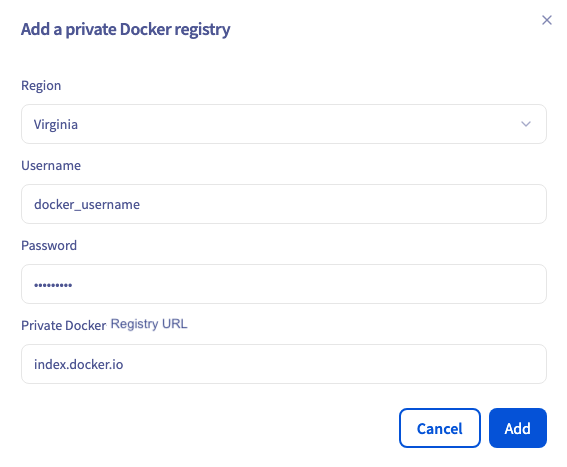

Here, you will need to provide your Docker credentials along with its URL.

When you have finished filling in the form, click Add.




Using CLI

To add your private Docker registry via CLI, use:

ovhai registry add index.docker.io

Once your registry is added, you should see it in your registries list.



Use your private registry images with OVHcloud AI Tools

You can now use the images contained in this private Docker registry in AI Tools by specifying index.docker.io. Here is an example to deploy a Streamlit application on AI Deploy:

ovhai app run index.docker.io/<docker_hub_username>/<private_repository_name>:<tag-name> \
--default-http-port 8501

You can also use the Control Panel to deploy a job or an app from your private Docker registry. You will just need to specify your Docker image path, during Step 2 of your job/app creation. This path will be index.docker.io/<docker_hub_username>/<private_repository_name>:<tag-name>.

You can also use a GitHub registry, also known as GitHub Packages.

As indicated in their documentation, you can build and push a package image by using the following commands:

docker login ghcr.io --username <your_username> --password <your_token>
docker tag <image_name> ghcr.io/<your_username>/<repo-name>:<tag-name>
docker push ghcr.io/<your_username>/<repo-name>:<tag-name>



Add a GitHub registry

Once your image is pushed on your GitHub account, you will need to add your GitHub registry to the registries of your Public Cloud project. As with Harbor and Docker, this can either be done with UI or CLI. This time, your registry's URL will be ghcr.io.

You will be asked for your GitHub credentials.



Using UI

Log in to the OVHcloud Control Panel, go to the AI Dashboard section.

From the dashboard, you can add your private Docker registry by clicking Docker registries > Add button.

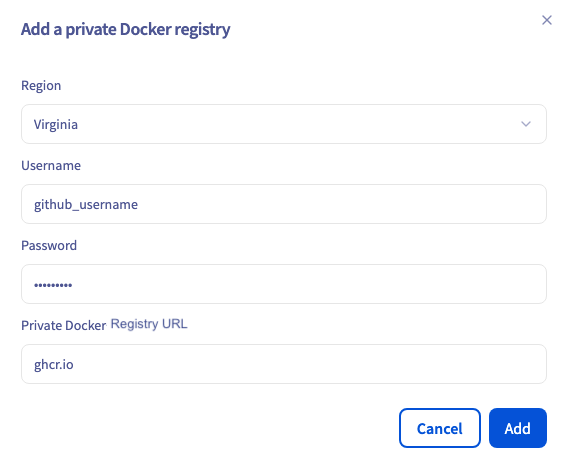

Here, you will need to provide your GitHub credentials along with the registry URL.

When you have finished filling in the form, click Add.




Using CLI
ovhai registry add ghcr.io

Once your registry is added, you should see it in your registries list.



Use your GitHub registry images with OVHcloud AI Tools

You can now use the packages/images contained in this GitHub registry in AI Tools by specifying ghcr.io. Here is an example to deploy a Streamlit application on AI Deploy:

ovhai app run ghcr.io/<your_username>/<repo-name>:<tag-name> \
--default-http-port 8501

You can also use the Control Panel to deploy a job or an app from a GitHub registry. You will just need to specify your GitHub image path, during Step 2 of your job/app creation. This path will be ghcr.io/<your_username>/<repo-name>:<tag-name>. Once you have pushed your image, you can access it via ghcr.io/<your_username>/<repo-name>.
