"OVHgateway" is the name of the outgoing point of your cluster to the internet.
This guide will explain how this gateway works, and how to redeploy it.
Instructions
Technical details
General information
The VM is based on Ubuntu 20.04 LTS (“The Focal Fossa”).
The OVHgateway has a lightweight design, with 2 NICs, 1 vCPU, 1 GB of memory, and 20 GiB of disk space.
ens3 is the interface for the external network and owns the Additional IP address in the subnet base with VLAN 0.ens4 is the interface for the internal network in the subnet infra with VLAN 1.
OVHcloud teams have customized the VM with an IPTABLES script.
ICMP requests are only allowed in the private network.
User data script
The VM is deployed with cloud-init, a tool that applies user data to your instances automatically.
#cloud-config
---
hostname: gw
fqdn: gw.ovh.cloud
users:
- name: ovh
shell: /bin/nologin
disable_root: true
write_files:
- path: /etc/netplan/50-cloud-init.yaml
content: |
network:
version: 2
renderer: networkd
ethernets:
ens3:
addresses: [PUBLICIP]
gateway4: PUBLICGW
nameservers:
addresses: [DNS]
ens4:
addresses: [PRIVATEIP]
- path: /etc/systemd/system/firegateway.service
content: |
[Unit]
Description=GatewayFirewall
Wants=network.target network-online.target
After=network.target network-online.target
[Service]
Type=simple
ExecStart=/root/firegateway
Restart=always
TimeoutStartSec=0
[Install]
WantedBy=multi-user.target
- path: /root/firegateway
content: |
#!/bin/bash
iptables -F
iptables -X
iptables -t nat -F
iptables -t nat -X
iptables -t mangle -F
iptables -t mangle -X
iptables -P INPUT DROP
iptables -P OUTPUT DROP
iptables -P FORWARD ACCEPT
iptables -A INPUT -i ens4 -p ICMP -j ACCEPT
iptables -A OUTPUT -p ICMP -j ACCEPT
iptables -A INPUT -i ens3 -m state --state ESTABLISHED,RELATED -j ACCEPT
iptables -A INPUT -i ens4 -j ACCEPT
iptables -t nat -A POSTROUTING -o ens3 -j MASQUERADE
runcmd:
- netplan generate
- netplan apply
- /sbin/sysctl -w net.ipv4.conf.default.rp_filter=1
- /sbin/sysctl -w net.ipv4.tcp_syncookies=1
- /sbin/sysctl -w net.ipv4.conf.all.accept_redirects=0
- /sbin/sysctl -w net.ipv4.conf.all.secure_redirects=0
- /sbin/sysctl -w net.ipv4.conf.default.accept_source_route=0
- sed -i s/#net.ipv4.ip_forward/net.ipv4.ip_forward/g /etc/sysctl.conf
- /sbin/sysctl -w net.ipv4.ip_forward=1
- iptables -t nat -A POSTROUTING -o ens3 -j MASQUERADE
- chmod +x /root/firegateway
- systemctl enable firegateway.service
- systemctl disable ssh.service
- apt remove -y wget curl ftp git htop mtr-tiny open-vm-tools tcpdump telnet tmux snapd openssh-server
- apt update && apt upgrade -y
- apt-get clean -y
- apt autoremove -y
final_message: "The system is finally up, after $UPTIME seconds"
How to redeploy the VM gateway with the central Prism interface
Step 1: Collect information
To redeploy the gateway VM you will need:
- Additional IP address
- LAN subnet (subnet of CVM, Prism Central, AHV hypervisors)
- Subnet name
Check the Additional IP address

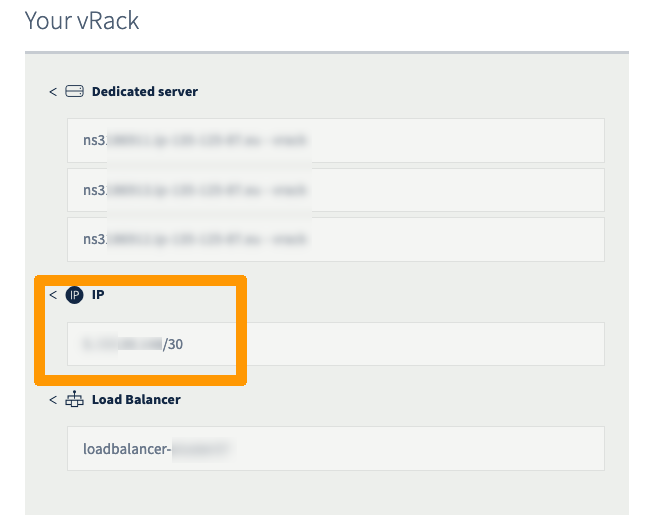

Log in to the OVHcloud Control Panel and open the management section of your vRack. Verify the Additional IP address used by the Nutanix Cluster.
For vRack purposes, the first, penultimate, and last addresses in any given IP block are always reserved for the network address, network gateway, and network broadcast respectively. This means that the first usable address is the second address in the block, as shown below:
198.51.100.0 Reserved: Network address
198.51.100.1 First usable IP
198.51.100.2 Reserved: Network gateway
198.51.100.3 Reserved: Network broadcast
Check the private subnet or gateway private IP address

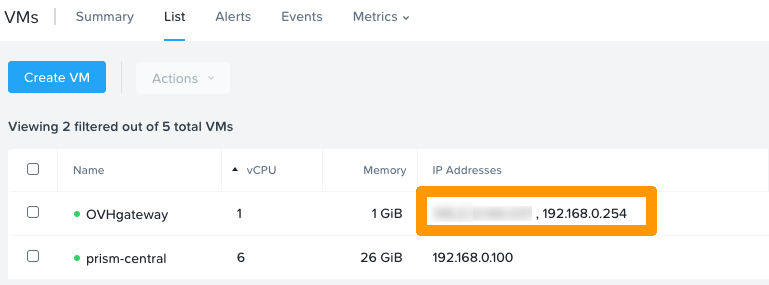

If the gateway still exists, go to the VM in the VM section of your Prism Central WebUI.
The gateway IP is displayed here.

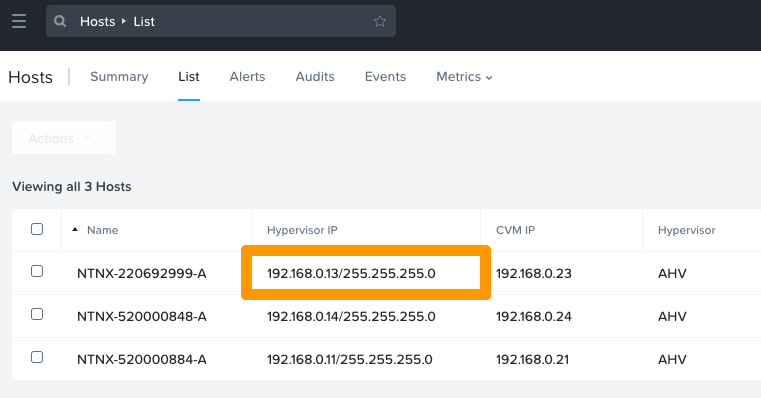

However, if the gateway is not present, check the subnet by going to Hardware then Hosts in the Prism Central WebUI.
In this case, the subnet is 192.168.0.0/24. In the default configuration, the gateway IP address is therefore 192.168.0.254.
Retrieve the subnet name
If the gateway still exists, go to the VM in the VM section of your Prism Central WebUI.
Click on the OVHgateway VM and open the NICs tab.
Step 2: Create the VM
Log in to Prism Central and create a VM.

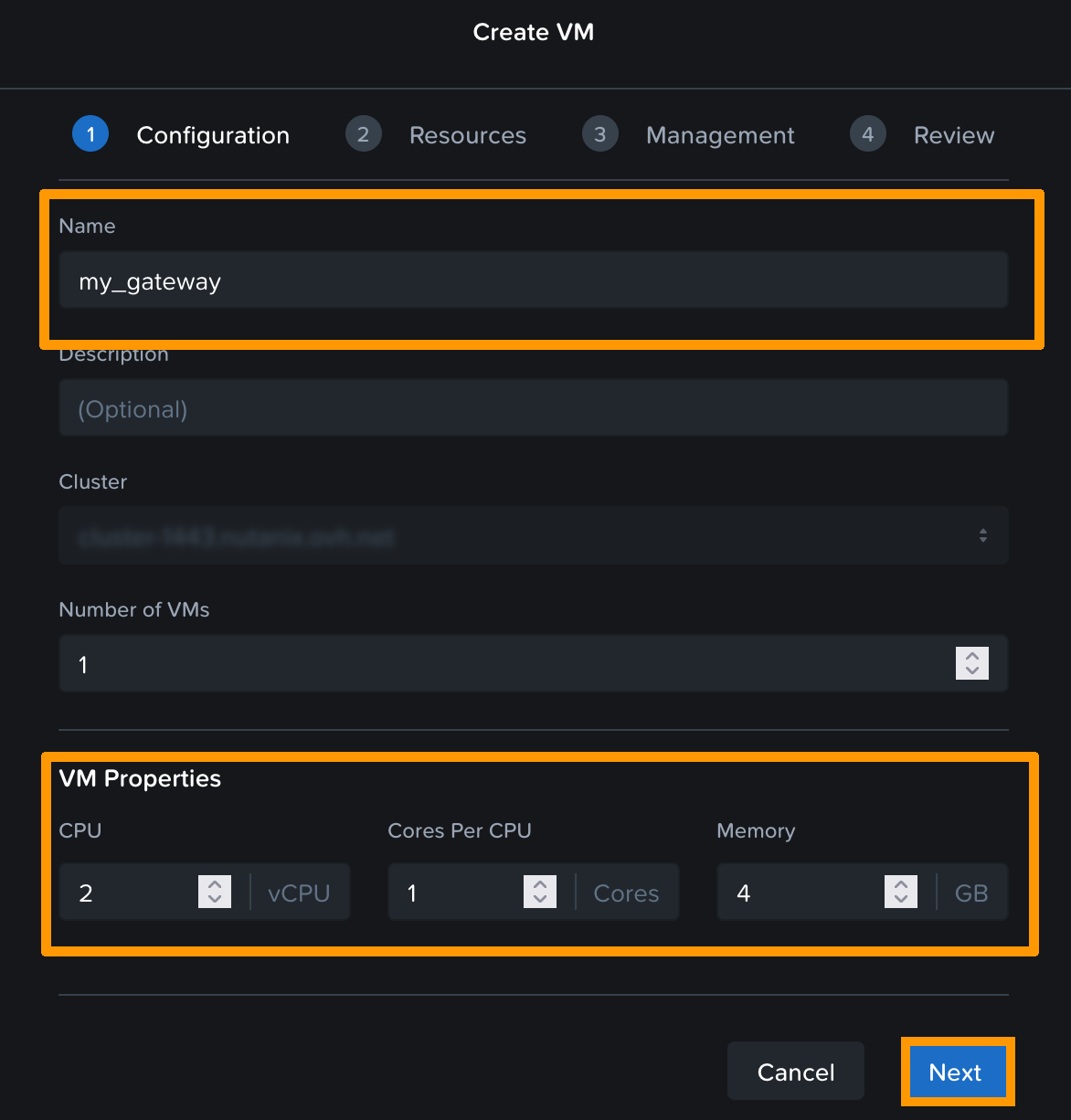

Customize the VM name and characteristics.
Click Next.

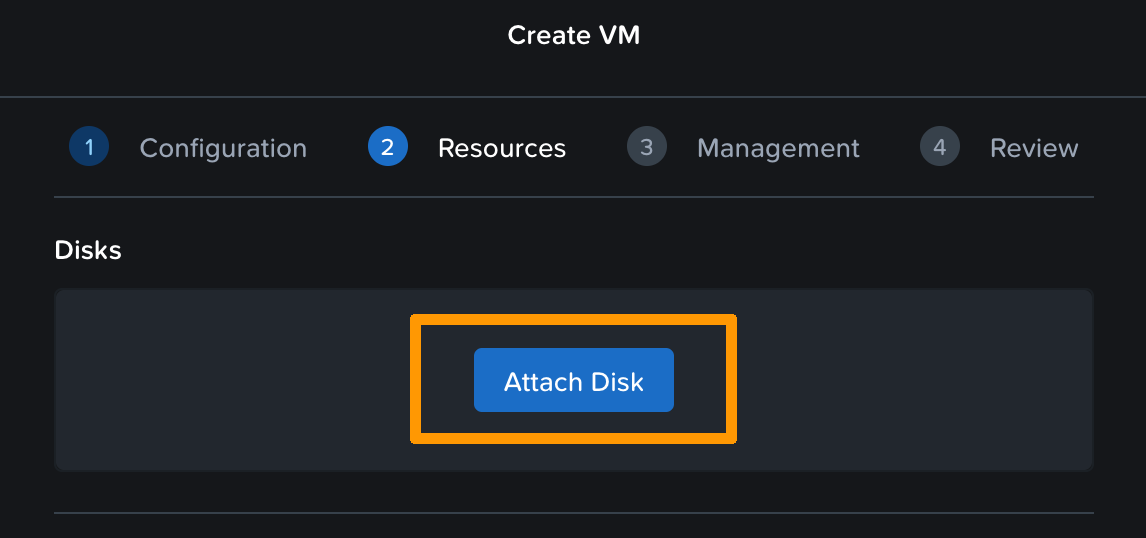

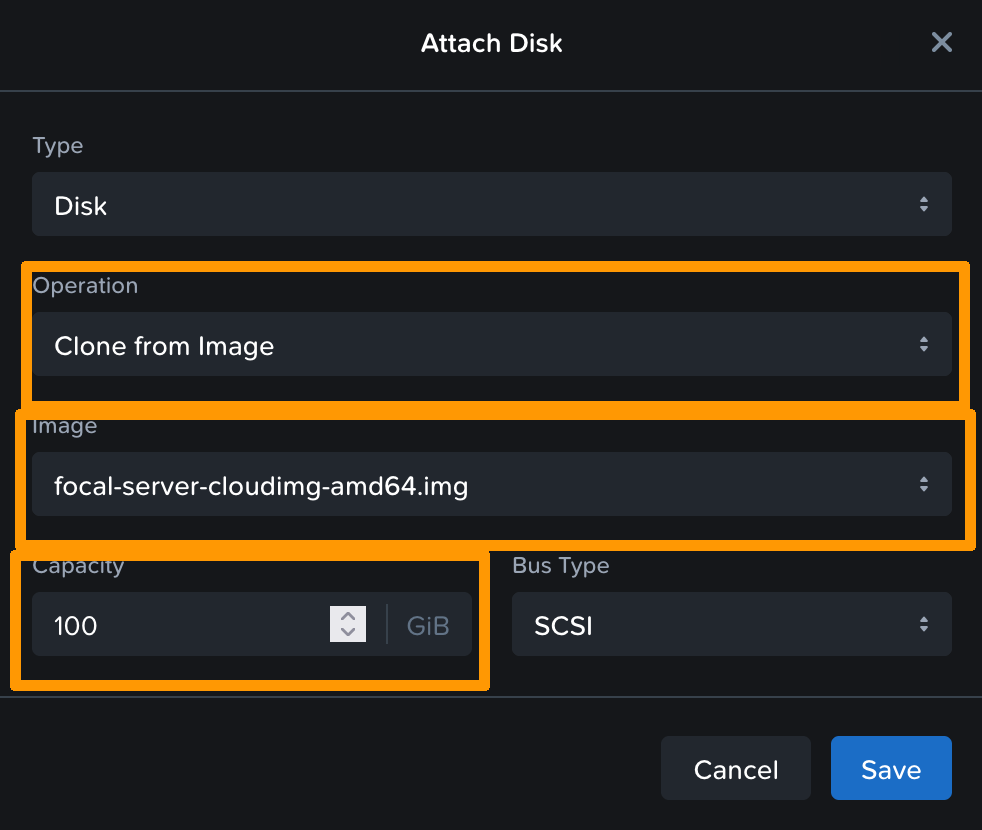

You then need to attach a disk. To do this, you can select the image used to create the original gateway.

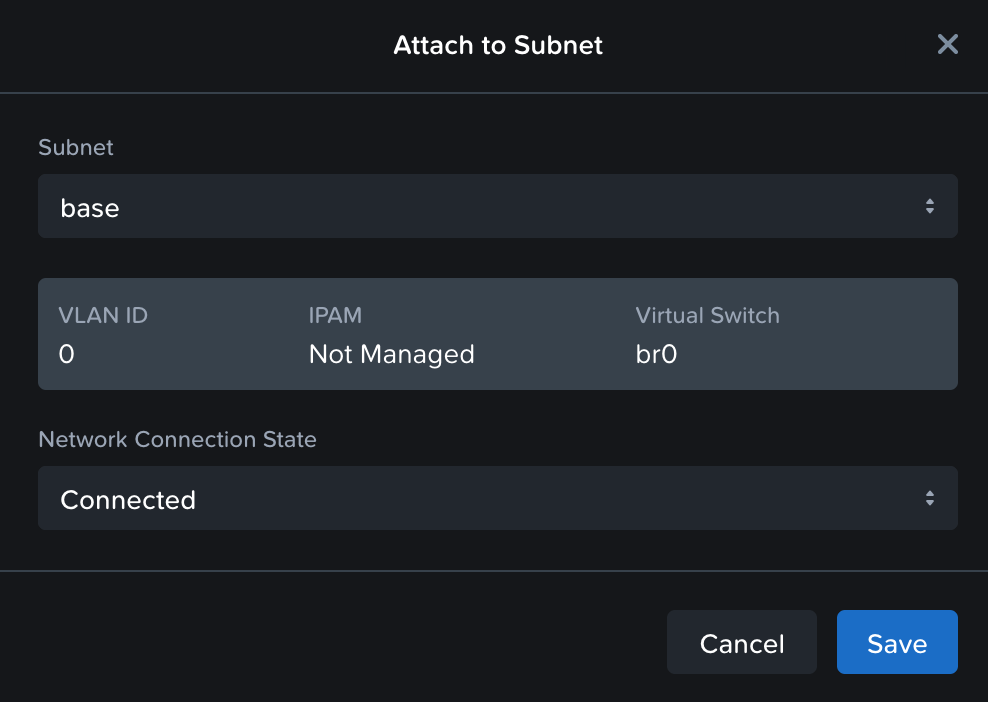

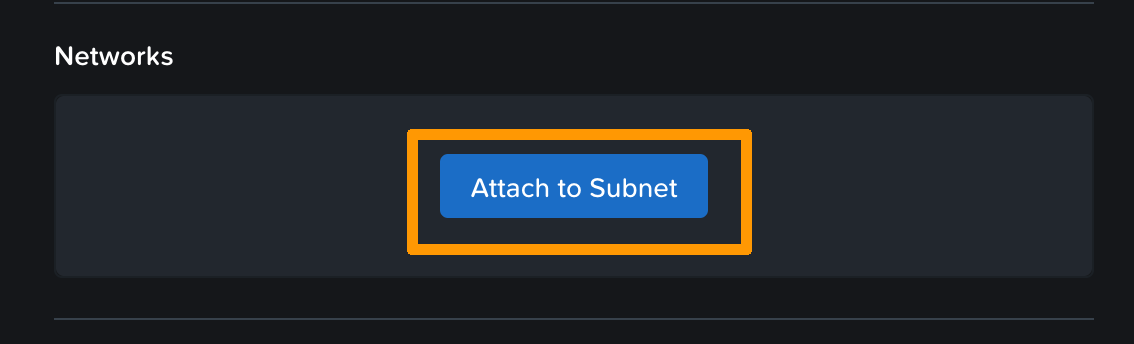

Then add two nics to the “base” network:
Click Next.
In the management interface, choose cloud-init in the “Guest customization” section.
You now need to create a yaml script to define the parameters. This script contains the user data. When the system boots, these settings such as users, packets, files, etc. will be applied to the VM.
Below, you will find a template that you can modify with your values to create your VM.
- Replace the
hostname,fqdn,name,passwd,ssh-autorized-keys, and IP addresses with the values you want. - This file creates the file for netplan, applies the configuration, and initializes a reboot.
- The password must be a hash value. You can generate it with the command below.
mkpasswd --method=SHA-512 --rounds=4096
#cloud-config
hostname: <yourhostname>
fqdn: <yourhostname.ovh.cloud>
users:
- name: <yourusername>
sudo: ['ALL=(ALL) NOPASSWD:ALL']
groups: sudo
shell: /bin/bash
lock_passwd: false
passwd: <yourhashpass>
ssh-authorized-keys: <your public ssh key>
write_files:
- path: /etc/netplan/50-cloud-init.yaml
content: |
network:
version: 2
renderer: networkd
ethernets:
ens3:
addresses: [198.51.100.1/30]
gateway4: 198.51.100.2
nameservers:
addresses: [213.186.33.99]
ens4:
addresses: [192.168.0.254/24]
runcmd:
- netplan generate
Paste this script into the box provided.
Click Next, then Create VM.
How to redeploy the VM gateway in the command line
Step 1: collect information
To redeploy the gateway VM, you will need the following:
- Additional IP address
- LAN subnet (CVM hypervisor subnet, Prism Central, AHV)
- Subnet name
Check the Additional IP address
Log in to the OVHcloud Control Panel and access your vRack management. Check the Additional IP address used by the Nutanix cluster.
When using the vRack, the first, penultimate, and last addresses in a given IP block are always reserved for the network address, network gateway, and network broadcast respectively. This means that the first usable address is the second address in the block, as shown below:
198.51.100.0 Reserved: Network address
198.51.100.1 First usable IP
198.51.100.2 Reserved: Network gateway
198.51.100.3 Reserved: Network broadcast
Verify the private IP address of the subnet or private gateway
If the gateway still exists, go to the VM section of the Prism Central web interface.
The gateway IP is displayed here.
However, if the gateway is not present, check the subnet by going to the Hardware menu and then Hosts in the Prism Central web interface.
In this case, the subnet is 192.168.0.0/24. In the default configuration, the gateway IP address is 192.168.0.254.
Retrieve Subnet Name
If the gateway still exists, go to the VM section of the Prism Central web interface.
Click on the OVHgateway VM and open the NICs tab.
Retrieve the necessary information using the Nutanix API
To deploy the VM, you need the UUID of the image and the network.
Open a terminal and run the following command:
curl -k -H Accept:application/json -H Content-Type:application/json -u "admin:PRISMADMINPASSWORD" -X POST https://fqdn-cluster:9440/api/nutanix/v3/images/list -d{} | jq .
{
"api_version": "3.1",
"metadata": {
"total_matches": 1,
"kind": "image",
"length": 1,
"offset": 0
},
"entities": [
{
"status": {
"state": "COMPLETE",
"name": "focal-server-cloudimg-amd64.img",
"resources": {
"retrieval_uri_list": [
"https://127.0.0.1:9440/api/nutanix/v3/images/22c00053-a23e-4dae-a9a9-de0d60ce29ce/file"
],
"current_cluster_reference_list": [
{
"kind": "cluster",
"uuid": "0005dda3-c2a2-6485-5399-043f72b508a0"
}
],
"architecture": "X86_64",
"size_bytes": 2361393152,
"image_type": "DISK_IMAGE",
"source_uri": "http://192.168.0.1:49200/focal-server-cloudimg-amd64.img"
},
`description`: `ubuntu-focal`
},
"spec": {
"name": "focal-server-cloudimg-amd64.img",
"resources": {
"image_type": "DISK_IMAGE",
"source_uri": "http://192.168.0.1:49200/focal-server-cloudimg-amd64.img",
"architecture": "X86_64"
},
`description`: `ubuntu-focal`
},
"metadata": {
"last_update_time": "2022-05-02T08:49:21Z",
"kind": "image",
"uuid": "54b919e1-b1e5-4d4a-b055-47ff298bf7d7",
"spec_version": 0,
"creation_time": "2022-05-02T08:49:21Z",
"spec_hash": "00000000000000000000000000000000000000000000000000",
"categories_mapping": {},
"categories": {}
}
}
]
}
In the metadata, you will find the UUID, here: 54b919e1-b1e5-4d4a-b055-47ff298bf7d7, for the image named focal-server-cloudimg-amd64.img.
You then need to find the correct subnet UUID. Run the command below:
curl -k -H Accept:application/json -H Content-Type:application/json -u `admin:PRISMADMINPASSWORD` -X POST https://fqdn-cluster:9440/api/nutanix/v3/subnets/list -d{} | jq.
{
"api_version": "3.1",
"metadata": {
"total_matches": 3,
"kind": "subnet",
"length": 3,
"offset": 0
},
"entities": [
{
"status": {
"state": "COMPLETE",
"name": "base",
"resources": {
"vswitch_name": "br0",
"subnet_type": "VLAN",
"virtual_switch_uuid": "3dba2120-9467-4c57-8781-2b21b40485c1",
"vlan_id": 0,
"ip_usage_stats": {
"num_macs": 2
}
},
"cluster_reference": {
"kind": "cluster",
"name": "cluster-xxxx.nutanix.ovh.net",
"uuid": "0005ee26-4f51-e468-2a6a-043f72b50ef0"
}
},
"spec": {
"name": "base",
"resources": {
"vswitch_name": "br0",
"subnet_type": "VLAN",
"virtual_switch_uuid": "3dba2120-9467-4c57-8781-2b21b40485c1",
"vlan_id": 0
},
"cluster_reference": {
"kind": "cluster",
"name": "cluster-xxxx.nutanix.ovh.net",
"uuid": "0005ee26-4f51-e468-2a6a-043f72b50ef0"
}
},
"metadata": {
"last_update_time": "2022-11-25T13:09:43Z",
"kind": "subnet",
"uuid": "3652d420-9f94-4350-8af7-b921d0761781",
"spec_version": 0,
"creation_time": "2022-11-25T13:09:43Z",
"spec_hash": "00000000000000000000000000000000000000000000000000",
"categories_mapping": {},
"categories": {}
}
},
{
"status": {
"state": "COMPLETE",
"name": "infra",
"resources": {
"vswitch_name": "br0",
"subnet_type": "VLAN",
"virtual_switch_uuid": "3dba2120-9467-4c57-8781-2b21b40485c1",
"vlan_id": 1,
"ip_usage_stats": {
"num_macs": 4
}
},
"cluster_reference": {
"kind": "cluster",
"name": "cluster-xxxx.nutanix.ovh.net",
"uuid": "0005ee26-4f51-e468-2a6a-043f72b50ef0"
}
},
"spec": {
"name": "infra",
"resources": {
"vswitch_name": "br0",
"subnet_type": "VLAN",
"virtual_switch_uuid": "3dba2120-9467-4c57-8781-2b21b40485c1",
"vlan_id": 1
},
"cluster_reference": {
"kind": "cluster",
"name": "cluster-xxxx.nutanix.ovh.net",
"uuid": "0005ee26-4f51-e468-2a6a-043f72b50ef0"
}
},
"metadata": {
"last_update_time": "2022-11-25T13:09:43Z",
"kind": "subnet",
"uuid": "e60826da-4aab-4810-b7d3-0604a3e16719",
"spec_version": 0,
"creation_time": "2022-11-25T13:09:43Z",
"spec_hash": "00000000000000000000000000000000000000000000000000",
"categories_mapping": {},
"categories": {}
}
},
]
}
The result of the query returns the configuration of the subnets. You will need to find the UUIDs of these subnets, which are located below kind: subnet in the uuid variable as in this example:
-
3652d420-9f94-4350-8af7-b921d0761781for VLAN base on VLAN 0 -
e60826da-4aab-4810-b7d3-0604a3e16719for VLAN infra on VLAN 1
Step 2: Create files needed for CLI deployment
To deploy the VM, you need two files: vm.json, describing the virtual machine, and the cloud-init.yaml configuration file that contains user data such as password, network, etc.
Create the vm.json file:
{
"spec": {
"name": "YOURVMNAME",
"resources": {
"power_state": "ON",
"num_vcpus_per_socket": 4,
"num_sockets": 1,
"memory_size_mib": 4096,
"disk_list": [
{
"disk_size_mib": 41264,
"device_properties": {
"device_type": "DISK",
"disk_address": {
"device_index": 0,
"adapter_type": "SATA"
}
},
"data_source_reference": {
"kind": "image",
"uuid": "54b919e1-b1e5-4d4a-b055-47ff298bf7d7"
}
}
],
"nic_list": [
{
"nic_type": "NORMAL_NIC",
"ip_endpoint_list": [
{
"ip_type": "DHCP"
}
],
"subnet_reference": {
"kind": "subnet",
"name": "base",
"uuid": "3652d420-9f94-4350-8af7-b921d0761781"
},
"is_connected": true
},
{
"nic_type": "NORMAL_NIC",
"ip_endpoint_list": [
{
"ip_type": "DHCP"
}
],
"subnet_reference": {
"kind": "subnet",
"name": "infra",
"uuid": "e60826da-4aab-4810-b7d3-0604a3e16719"
},
"is_connected": true
}
],
"guest_customization": {
"cloud_init": {
"user_data": "USERDATA"
},
"is_overridable": false
}
}
},
"api_version": "3.1.0",
"metadata": {
"kind": "vm"
}
}
Check data_source_reference to ensure that the UUID is the UUID of your system image:
"data_source_reference": {
"kind": "image",
"uuid": "54b919e1-b1e5-4d4a-b055-47ff298bf7d7"
}
Also, check the UUID of your subnets :
"subnet_reference": {
"kind": "subnet",
"name": "base",
"uuid": "3652d420-9f94-4350-8af7-b921d0761781"
}
"subnet_reference": {
"kind": "subnet",
"name": "infra",
"uuid": "e60826da-4aab-4810-b7d3-0604a3e16719"
}
You now need to create the cloud-init.yaml file. This file contains user data. When the system boots, these settings such as users, packets, files, etc. will be applied to the VM.
Below, you will find a template that you can modify with your values to create your individual VM.
- Replace the
hostname,fqdn,name,passwd,ssh-autorized-keys, and IP addresses with the values you want. - This file creates the file for netplan, applies the configuration, and initializes a reboot.
- The password must be a hash value. You can generate it with the command below.
mkpasswd --method=SHA-512 --rounds=4096
#cloud-config
hostname: <yourhostname>
fqdn: <yourhostname.ovh.cloud>
users:
- name: <yourusername>
sudo: ['ALL=(ALL) NOPASSWD:ALL']
groups: sudo
shell: /bin/bash
lock_passwd: false
passwd: <yourhashpass>
ssh-authorized-keys: <your public ssh key>
write_files:
- path: /etc/netplan/50-cloud-init.yaml
content: |
network:
version: 2
renderer: networkd
ethernets:
ens3:
addresses: [198.51.100.1/30]
gateway4: 198.51.100.2
nameservers:
addresses: [213.186.33.99]
ens4:
addresses: [192.168.0.254/24]
runcmd:
- netplan generate
Step 3: Create the VM
Transform the cloud-init.yaml into “base64” and place it in a variable:
USERDATA=$(base64 -w 0 cloud-init.yaml)
Then replace the string “USERDATA” in vm.json with the value of the variable USERDATA in the vm.json file:
sed -i s/USERDATA/${USERDATA}/g vm.json
Finally, use a cURL query to save and power on the VM:
curl -k -H Accept:application/json -H Content-Type:application/json -u "admin:PRISMADMINPASSWORD" -X POST https://fqdn:9440/api/nutanix/v3/vms -d @vm.json | jq .
Go further
For more information and tutorials, please see our other Nutanix support guides or explore the guides for other OVHcloud products and services.
