This guide will show you how to interconnect two Nutanix clusters, provided by OVHcloud through an IPsec VPN. To do this, we will replace the OVHgateway virtual machines that provide internet access with a gateway under the pfSense operating system.

Requirements

Two Nutanix clusters provided by OVHcloud, on different sites
Access to the OVHcloud Control Panel
Access to your clusters via Prism Central
A different private IP addressing scheme applied per cluster
Being familiar with uses for an IPsec VPN using the Nutanix Disaster Recovery Plan guide

Instructions

In this guide, we will carry out part of the installation on the cluster in "Datacenter 1", and another part in "Datacenter 2". Below is the list of tasks to be performed in stages on each cluster:

Step 1 Solution Overview
Step 2 Gateway Replacement in Datacenter 1
Step 2.1 Downloading sources for pfSense installation
Step 2.2 Creating the virtual machine GW-PFSENSE
Step 2.3 Shutting down the virtual machine OVH-GATEWAY
Step 2.4 Retrieving the public address in the OVHcloud Control Panel
Step 2.5 Starting the virtual machine GW-PFSENSE
Step 2.6 Installing pfSense
Step 2.7 Ejecting pfSense CDROM from virtual machine GW-PFSENSE
Step 2.8 Configuring pfSense IP addresses through the console
Step 2.9 Configuring certain options through the Web interface
Step 2.9.1 Changing the default password for pfSense
Step 2.9.2 Adding a rule to allow remote administration from a public address
Step 3 Gateway configuration in Datacenter 2
Step 3.1 Downloading sources for pfsense installation
Step 3.2 Creating the virtual machine GW-PFSENSE
Step 3.3 Shutting down the virtual machine OVH-GATEWAY
Step 3.4 Retrieving the public address on the OVHcloud Control Panel
Step 3.5 Starting the virtual machine GW-PFSENSE
Step 3.6 Installing pfSense
Step 3.7 Ejecting pfSense CDROM from virtual machine GW-PFSENSE
Step 3.8 Configure pfSense IP addresses through the console
Step 3.9 Configuring certain options through the Web interface
Step 3.9.1 Changing the default password for pfSense
Step 3.9.2 Adding a rule to allow remote administration from a public address
Step 4 Setting up IPsec VPN
Step 4.1 Setting up the site in Datacenter 1

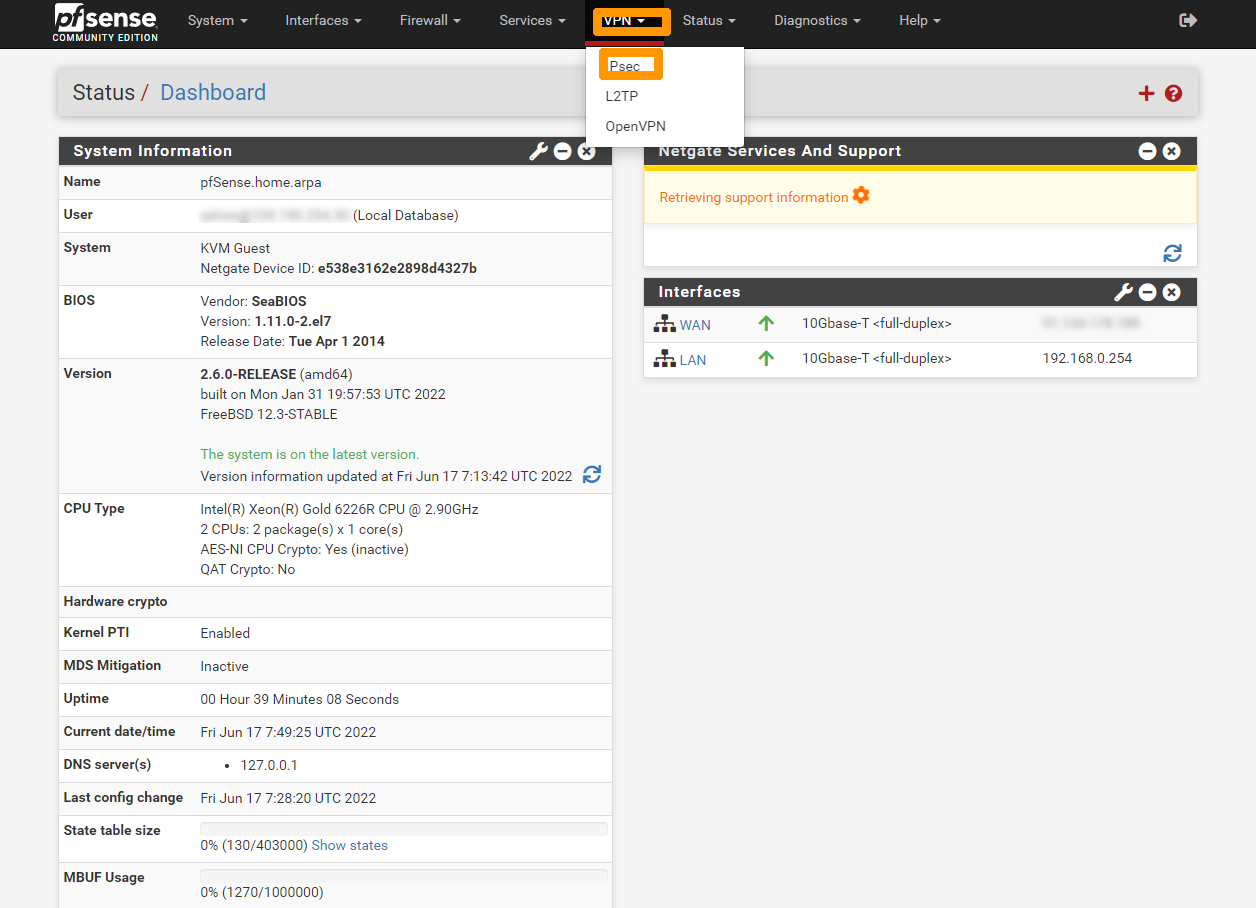

Step 4.1.1 Setting up IPsec VPN in Datacenter 2

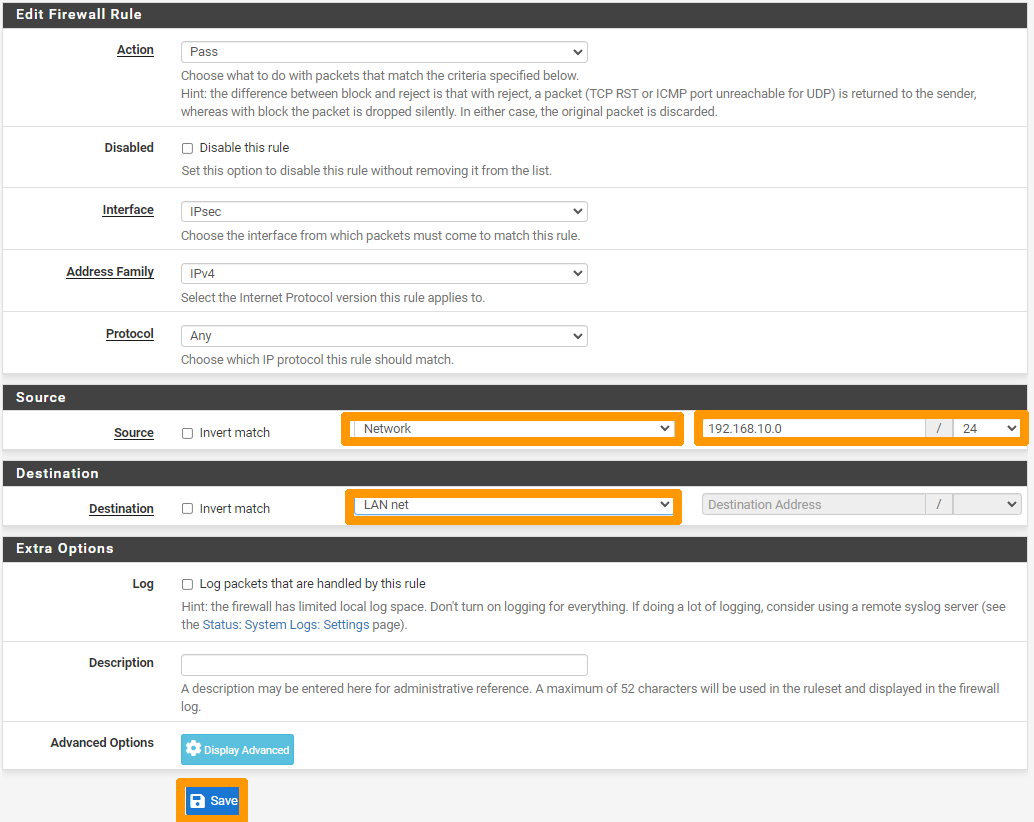

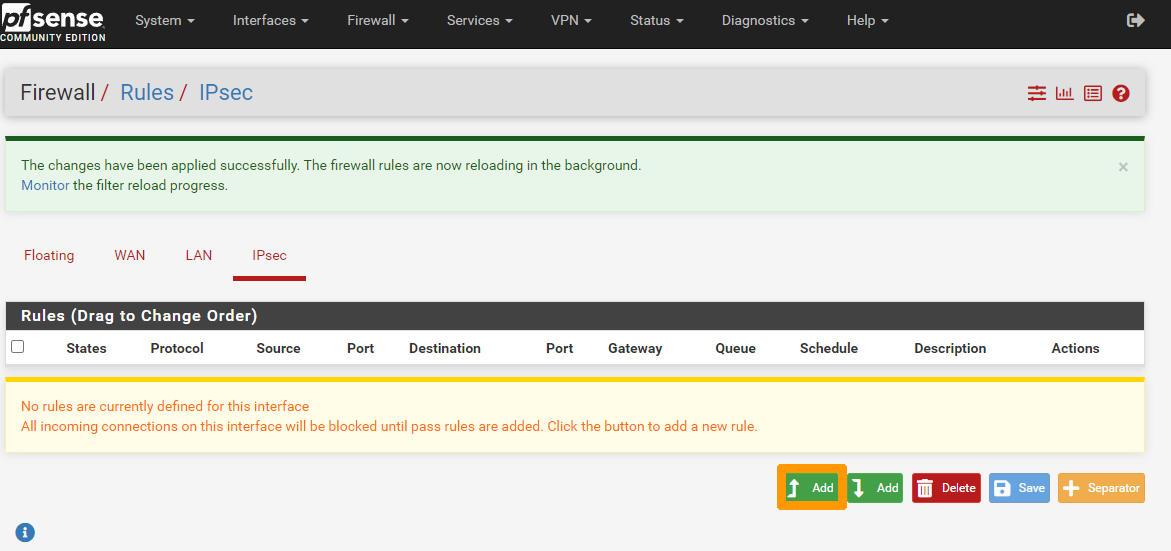

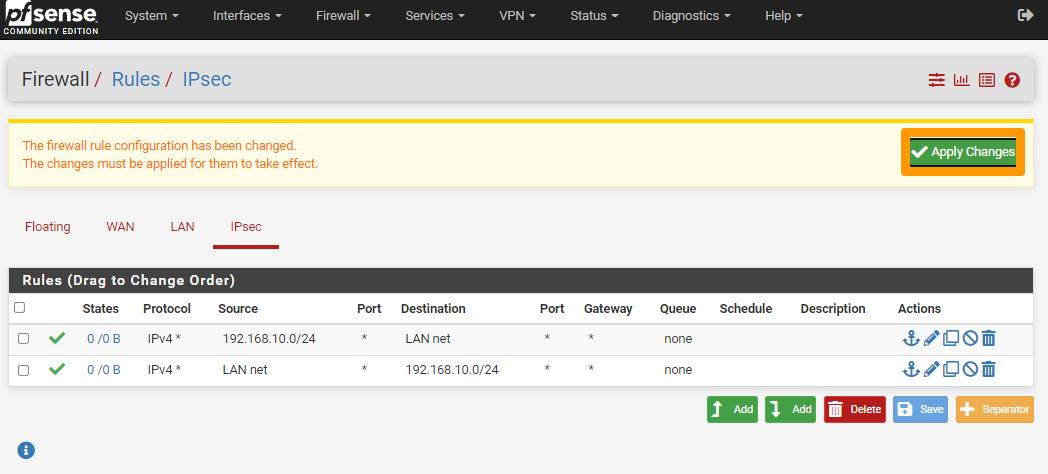

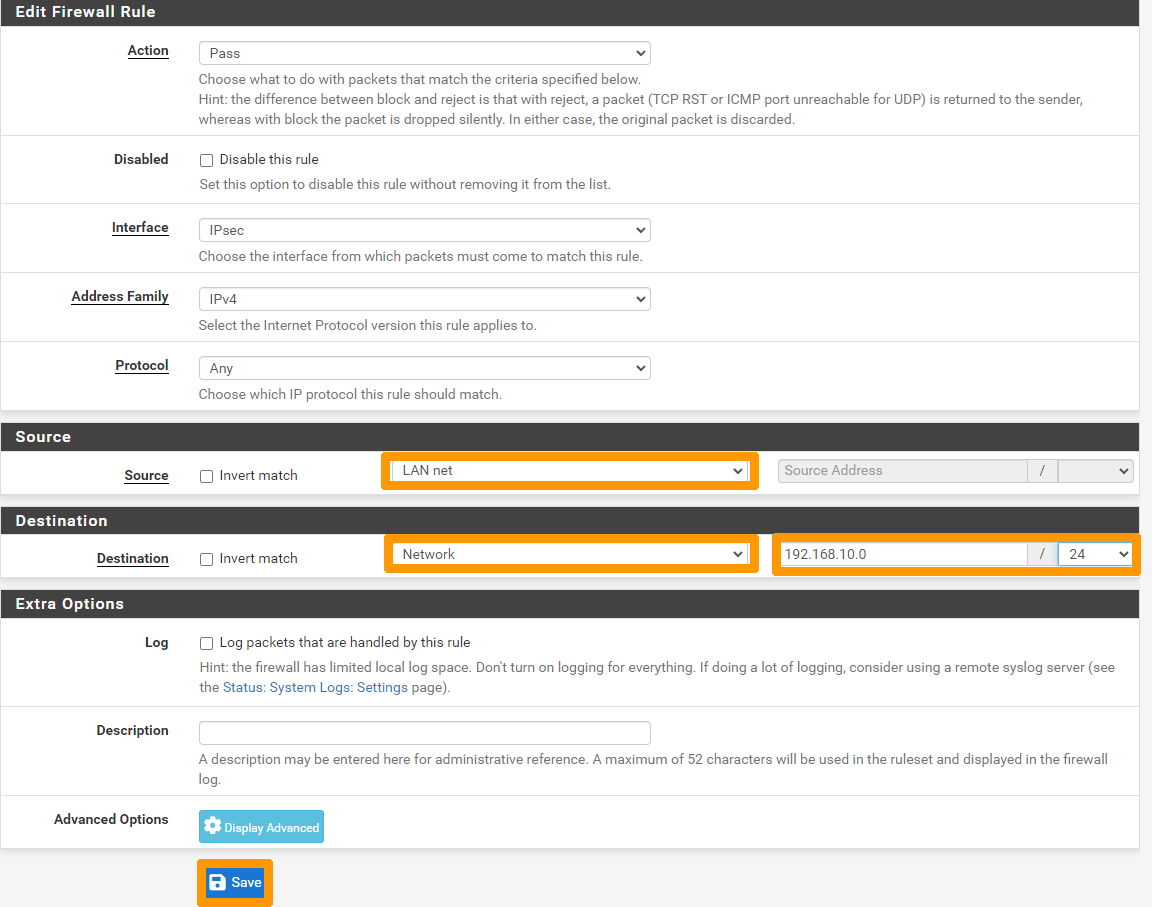

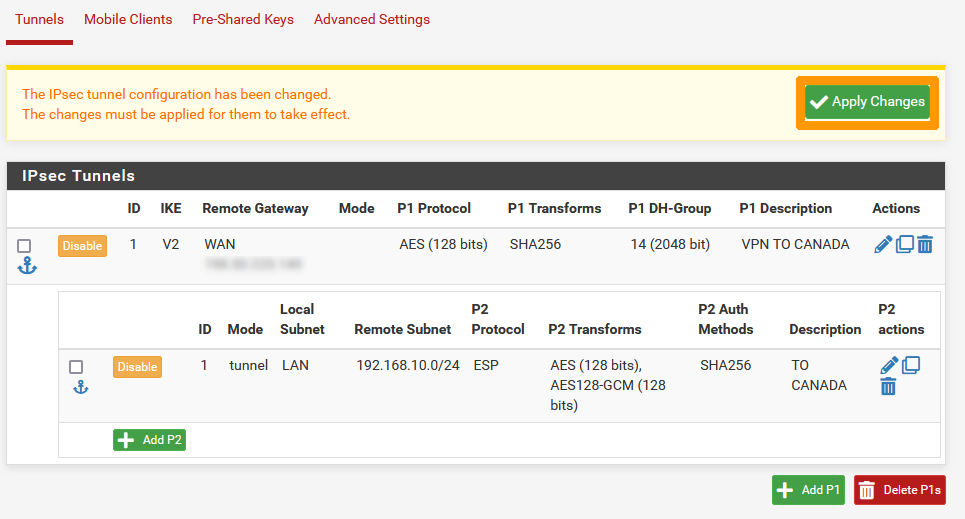

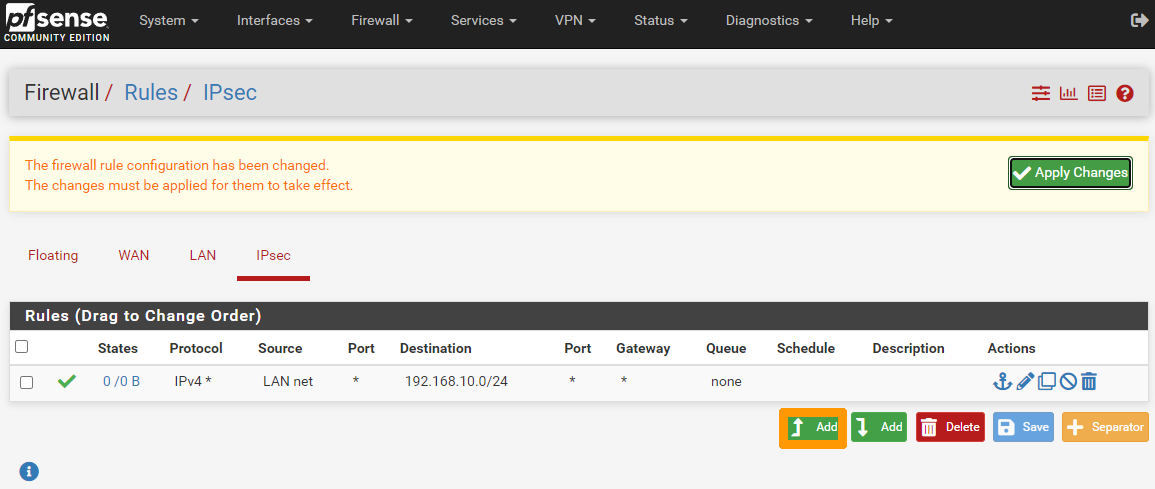

Step 4.1.2 Adding a firewall rule to allow network flow through IPsec VPN between Datacenter 1 and Datacenter 2
Step 4.2 Setting up your website in Datacenter 2

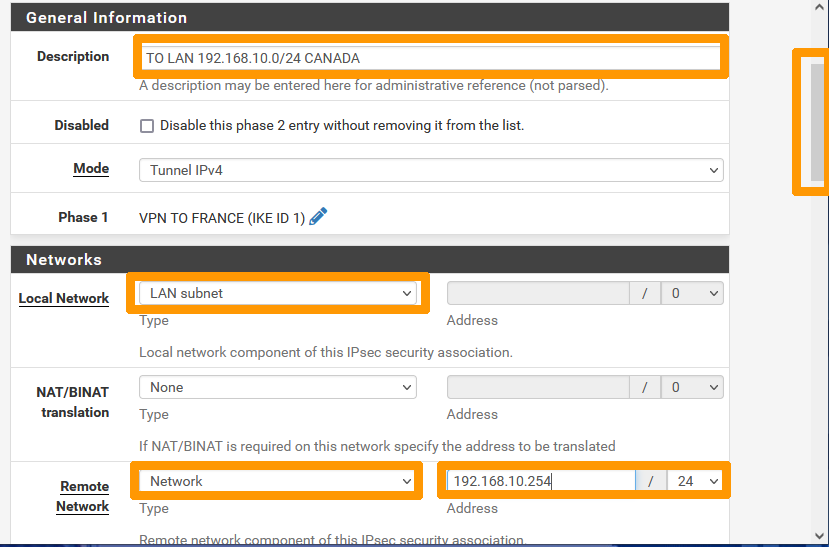

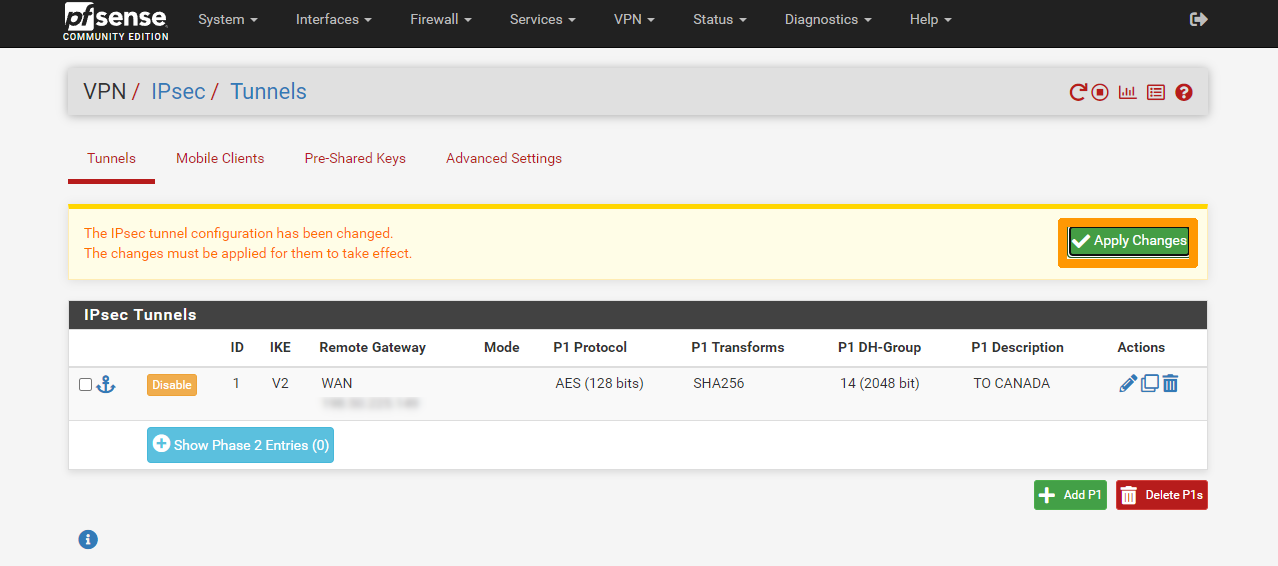

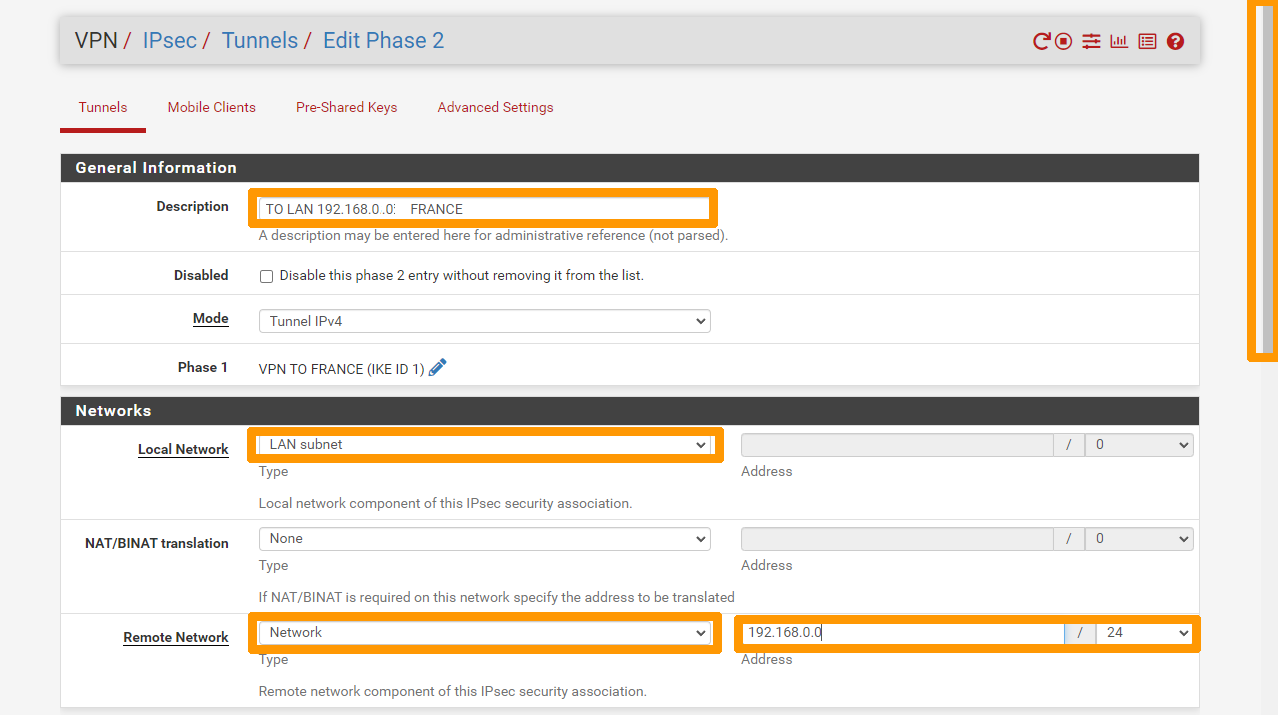

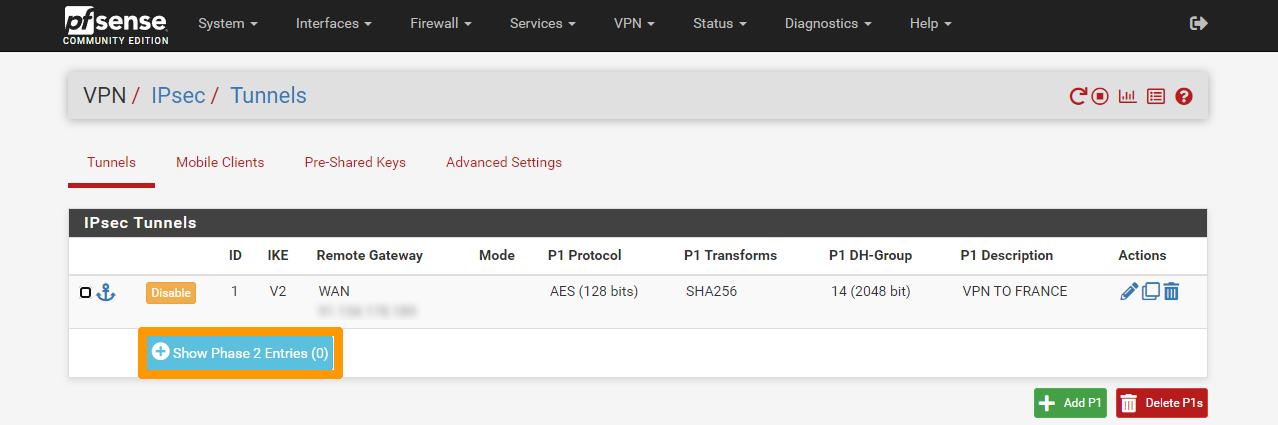

Step 4.2.1 Setting up IPsec VPN to Datacenter 1

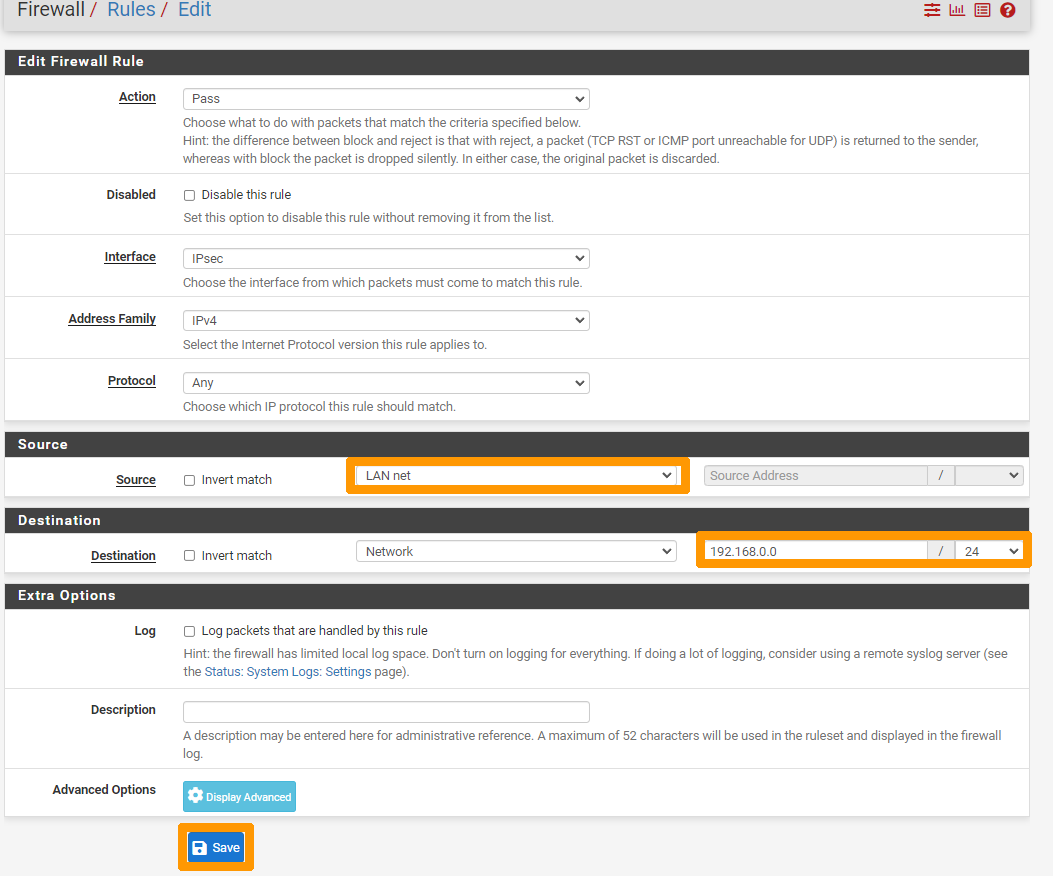

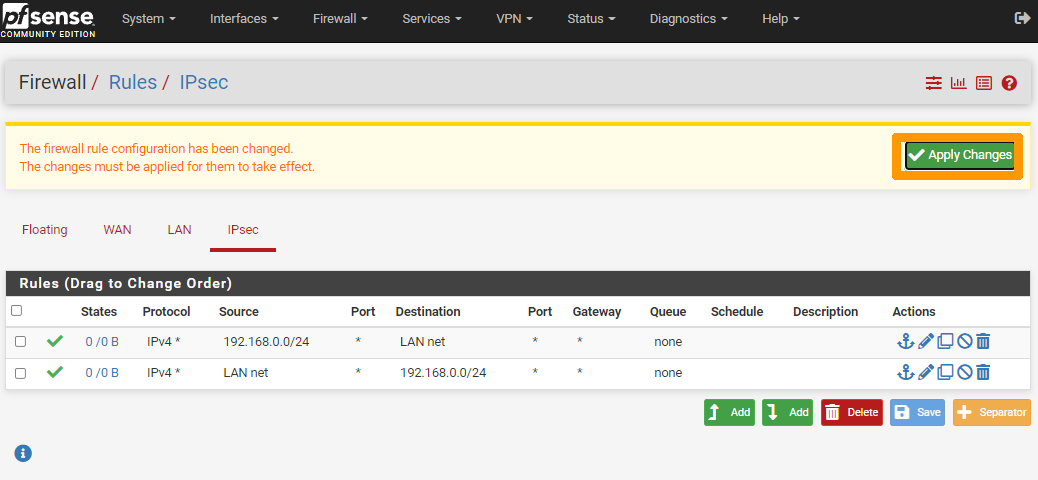

Step 4.2.2 Adding a firewall rule to allow network flow through IPsec VPN between Datacenter 1 and Datacenter 2

Step 1 Solution Overview

We will interconnect two Nutanix clusters, one in Datacenter 1 and the other in Datacenter 2, both in OVHcloud datacenters.
They each use a different IP address scheme, as follows:

Cluster in Datacenter 1: 192.168.10.0/24
Cluster in Datacenter 2: 192.168.0.0/24

To allow this configuration, we will replace the OVHgateway virtual machine on each site with a virtual machine with the pfSense operating system, which will continue to provide outbound internet access and manage the VPN tunnel using IPsec.

Step 2 Bridge replacement in Datacenter 1

Step 2.1 Downloading sources for pfSense installation

Download an ISO image for the pfSense installation from this link: Downloading pfSense.

Using this documentation, add the pfSense ISO image to your Nutanix cluster.

Step 2.2 Creating the GW-PFSENSE virtual machine

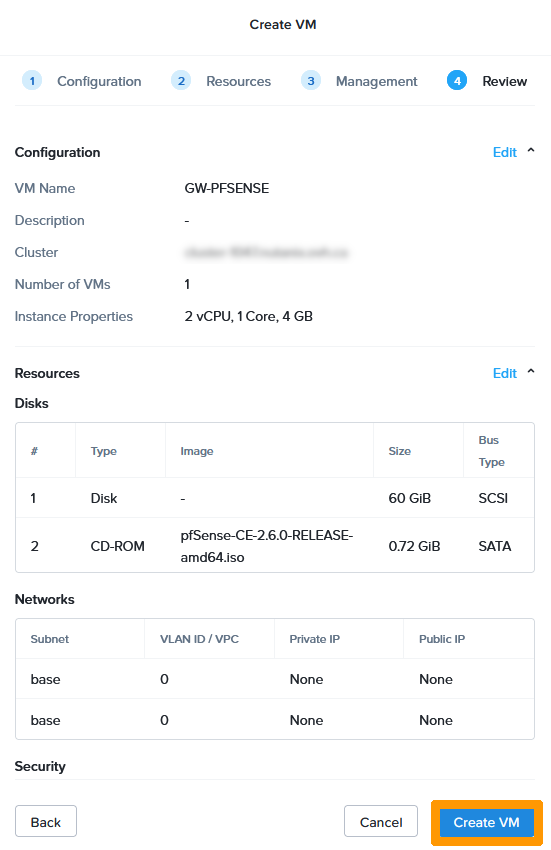

Create a virtual machine with the settings below, then click Create VM:

Name: GW-PFSENSE
Storage1: 60 GB HDD
Storage2: DVD drive connected to the pfSense ISO file
RAM: 4 GB
CPU: 2 vCPU
Network: two network cards on the AHV network: **Base**

You can use our guide on virtual machine management to create this virtual machine.

Step 2.3 Shutting down the OVH-GATEWAY virtual machine

To avoid duplicate IP addresses on the network, stop the OVHgateway virtual machine before starting the new virtual machine on pfSense.

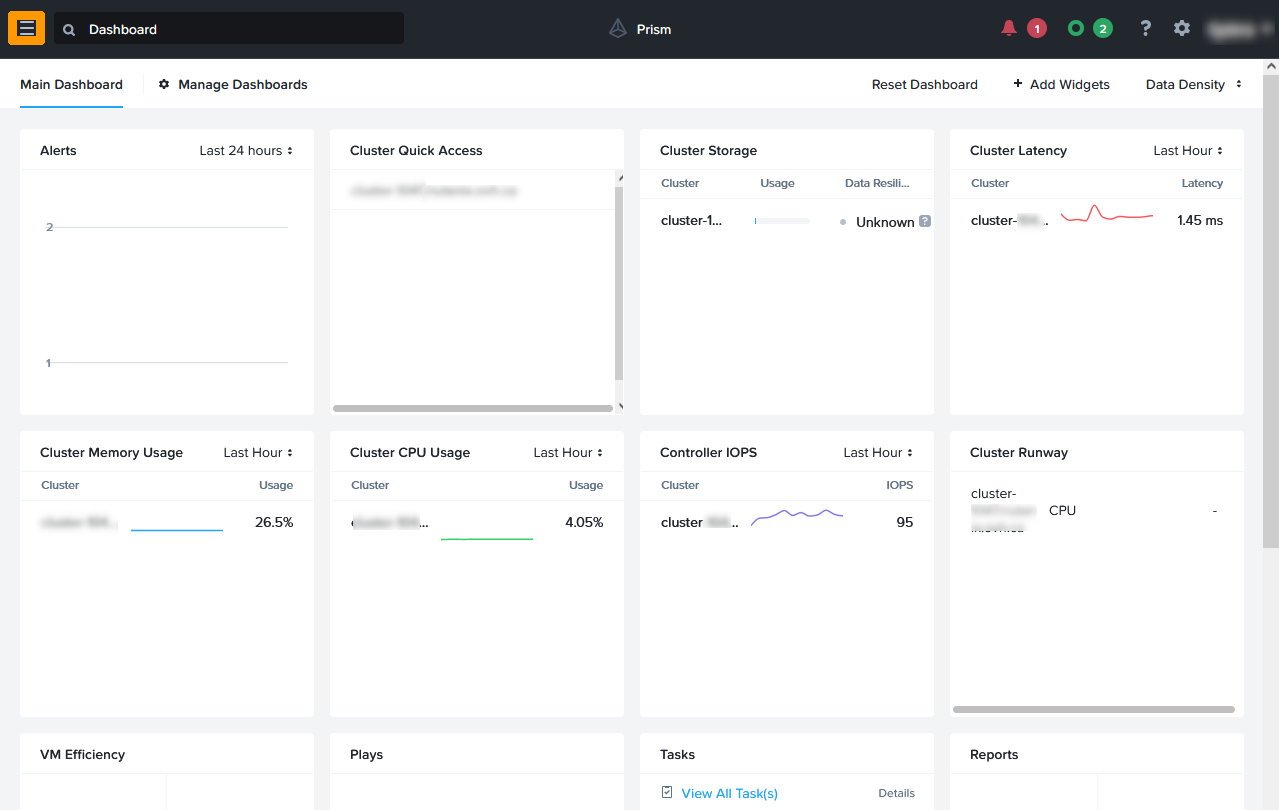

Via Prism Central, click in the top left on the main menu.

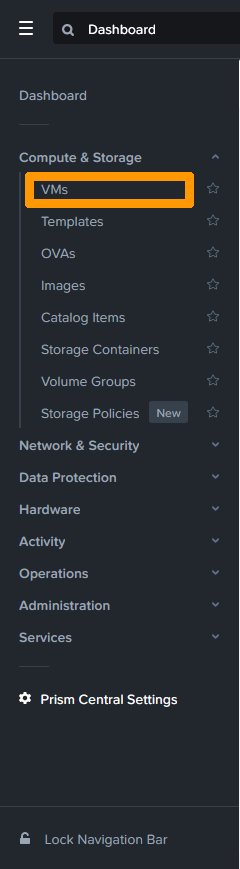

Click VMs.

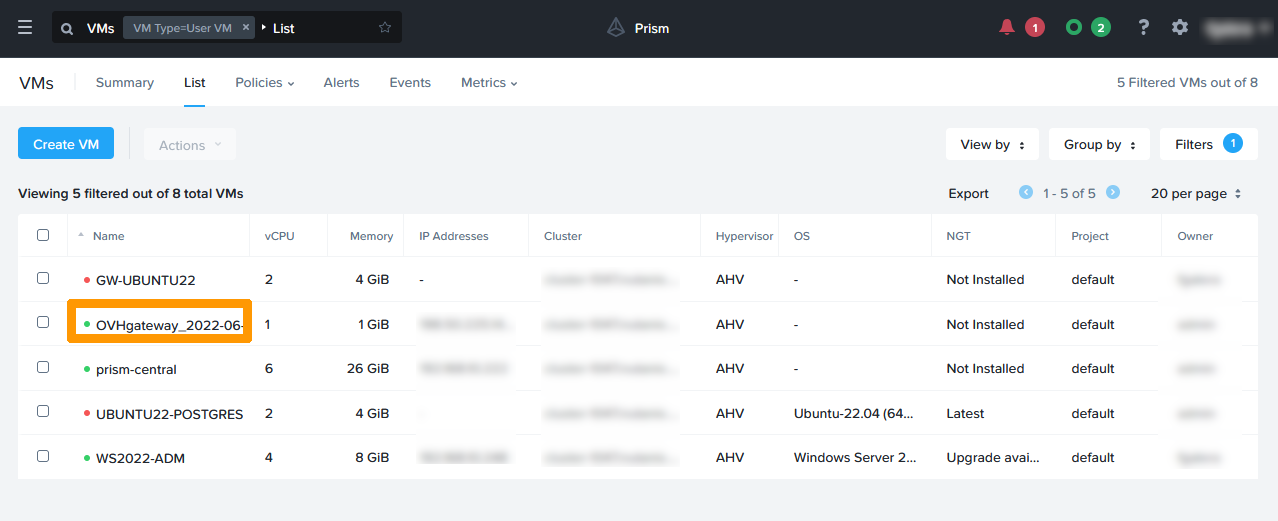

Click on the OVHgateway virtual machine.

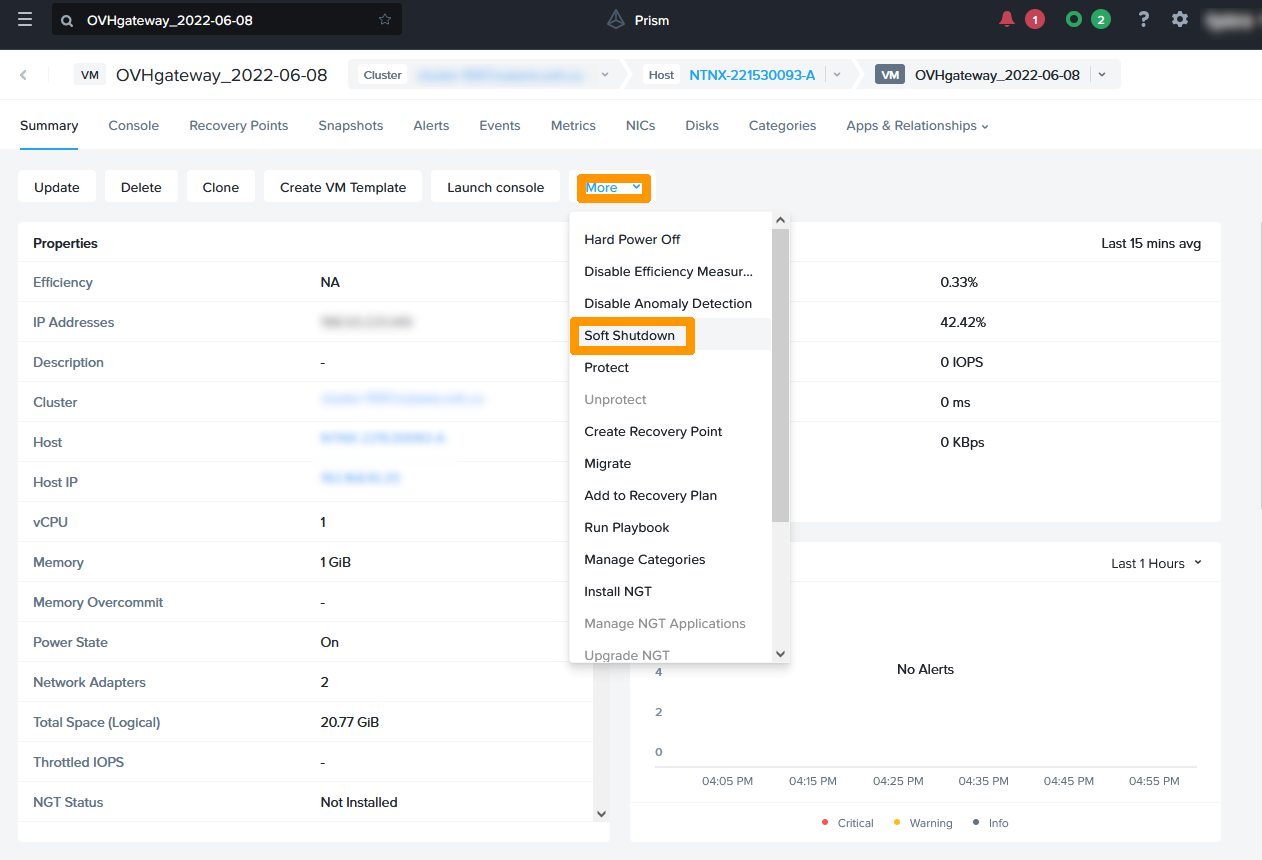

From the More menu at the top, click Soft Shutdown.

Step 2.4 Retrieving the public address in the OVHcloud Control Panel

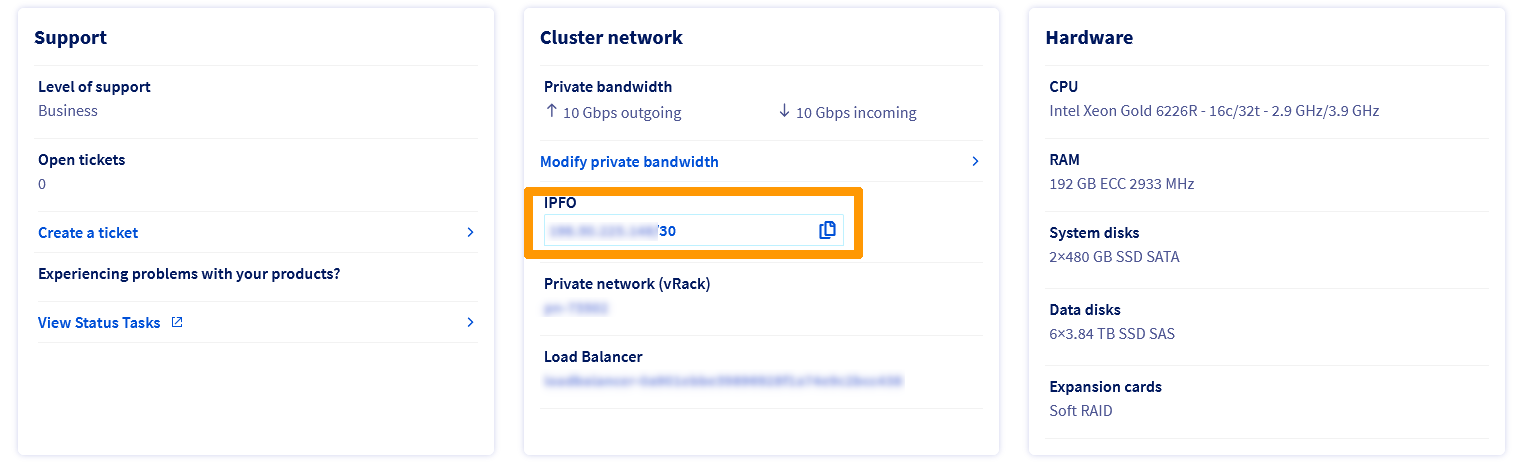

Retrieve information about the OVHcloud gateway network settings.

What is called IPFO is a range of 4 addresses. The first and last are reserved, the third is on OVHcloud hardware and serves as an internet gateway. The only usable IP address is the second address in the range.

During installation, we will reuse this information to assign it to the new GW-PFSENSE virtual machine

XX.XX.XX.N Reserved network address that appears on the OVHcloud client site
XX.XX.XX.N+1 IP address to be assigned to the GW-PFSENSE virtual machine WAN interface
XX.XX.XX.N+2 Address to be used as a gateway on the GW-PFSENSE VM WAN interface
XX.XX.XX.N+3 Reserved broadcast IP address

For example, if the IPFO address displayed on the client site is 123.123.123.4/30, use:

123.123.123.5 for the WAN interface address.
123.123.123.6 for the gateway on the WAN interface.

Step 2.5 Start the GW-PFSENSE virtual machine

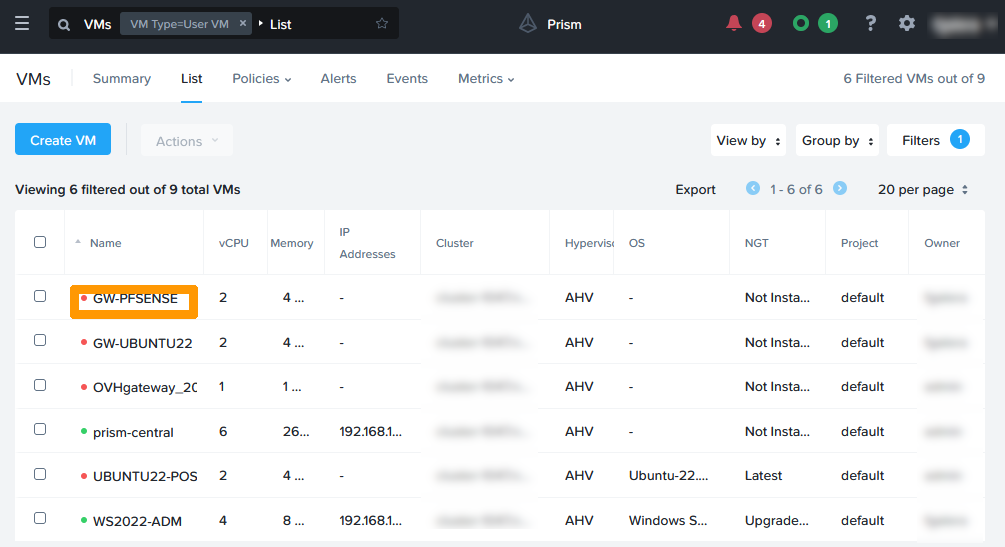

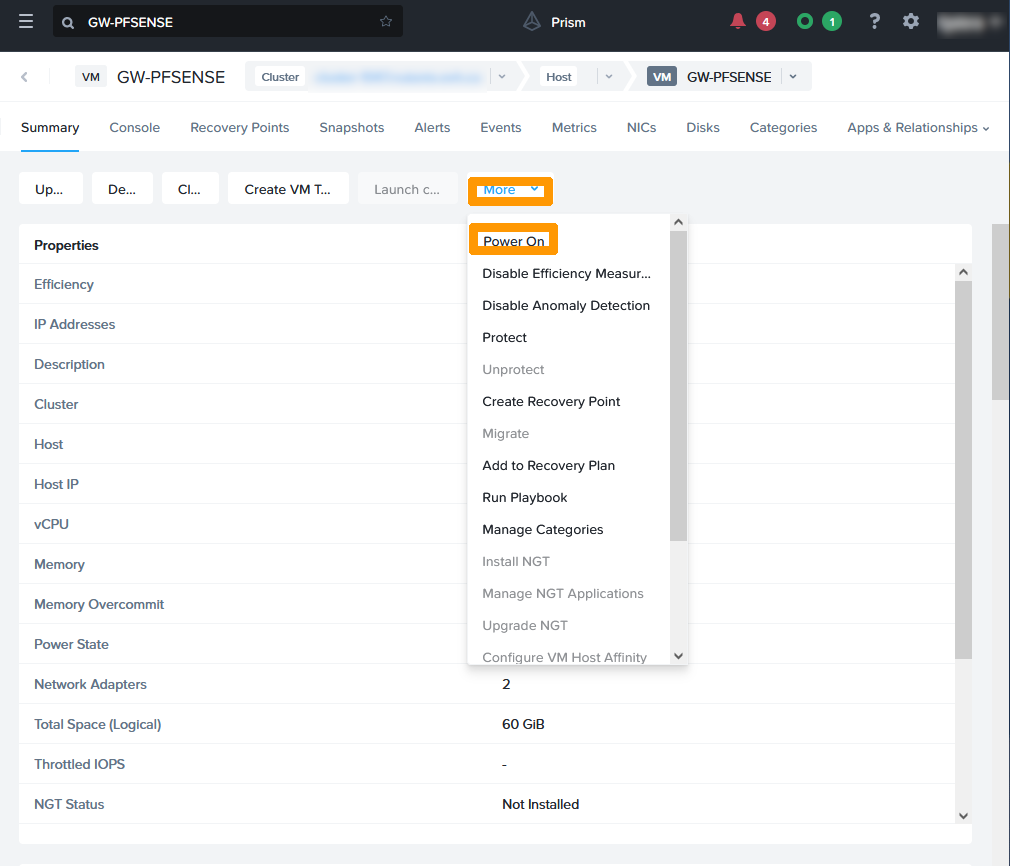

Go back to virtual machine management in Prism Central and click on GW-PFSENSE.

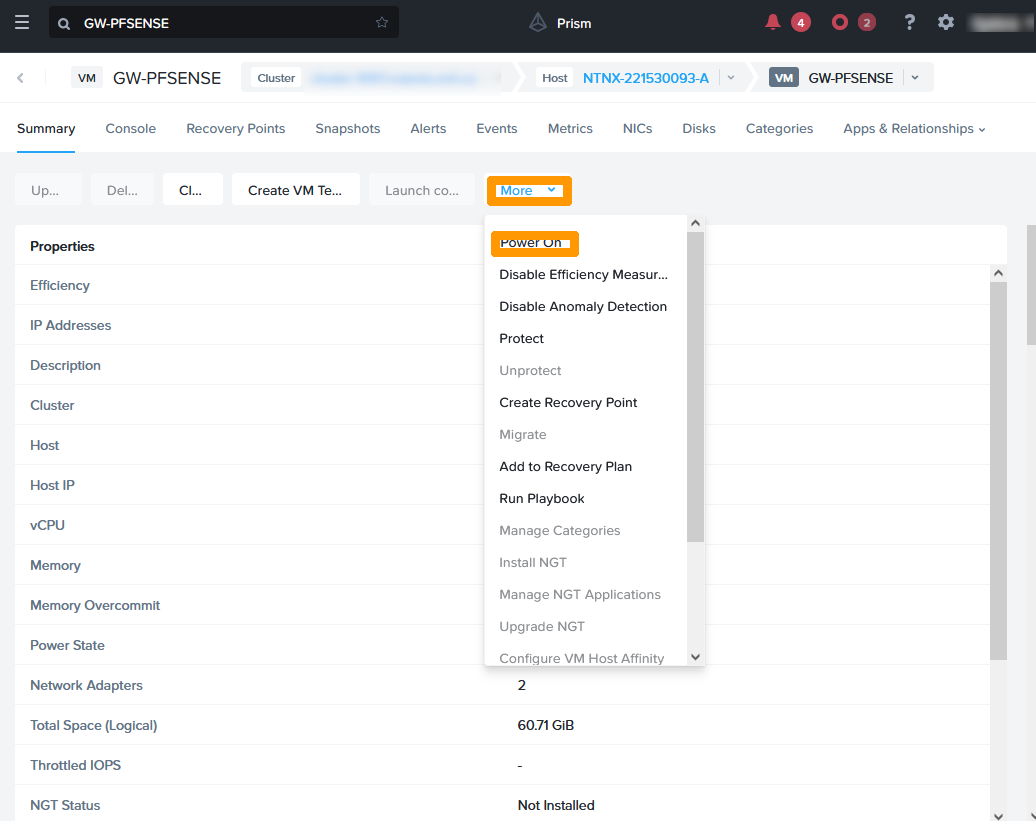

From the More menu, select Power On.

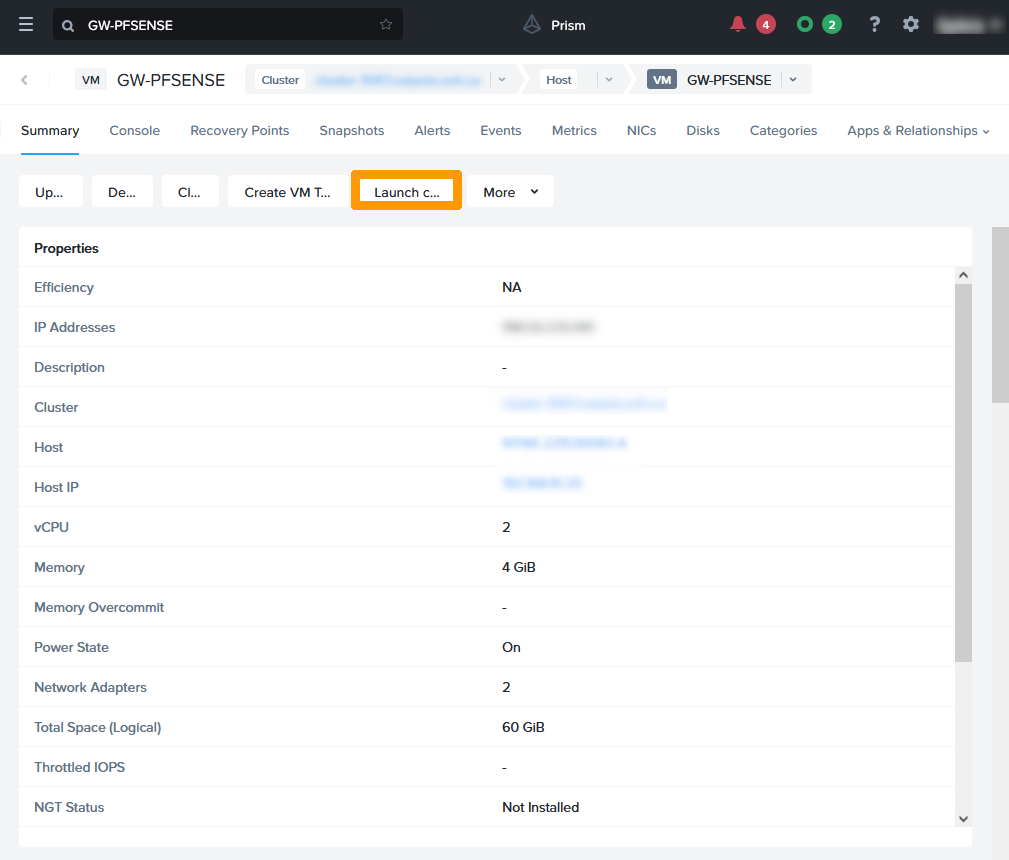

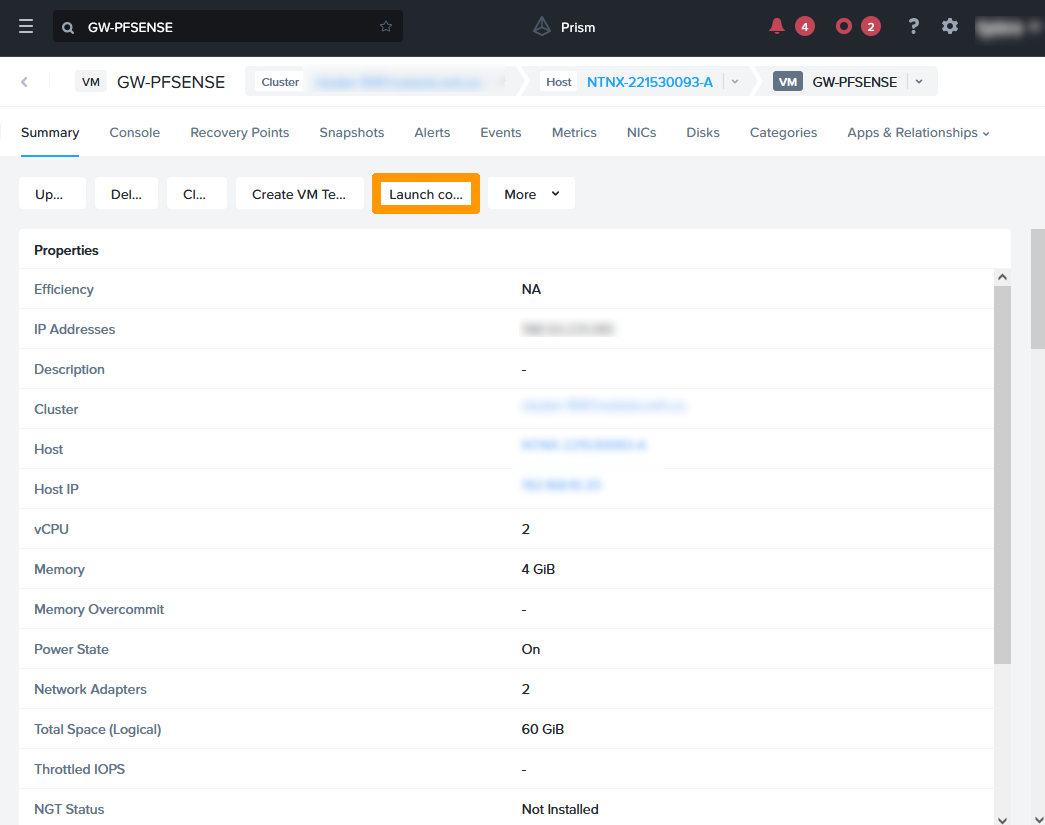

Click Launch console.

Step 2.6 Installing pfSense

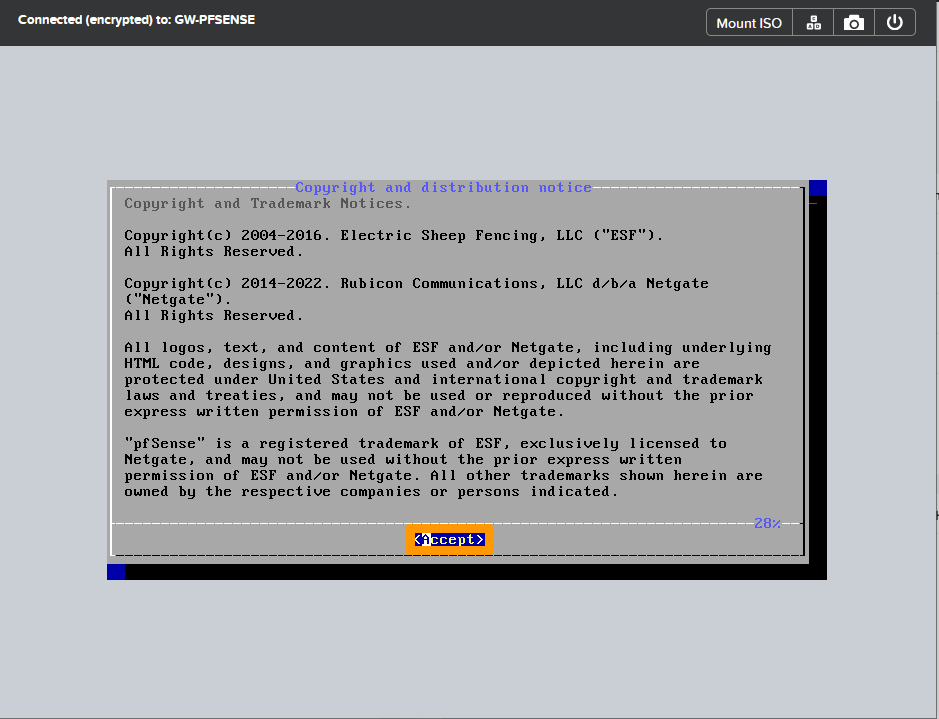

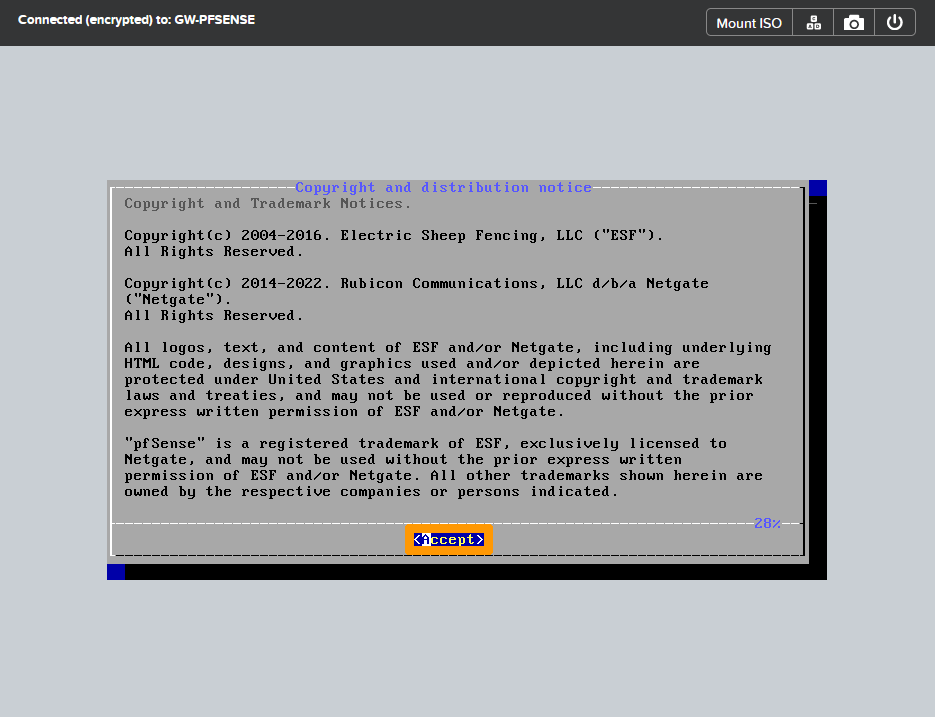

Review the pfSense license information and press the Enter key to accept it.

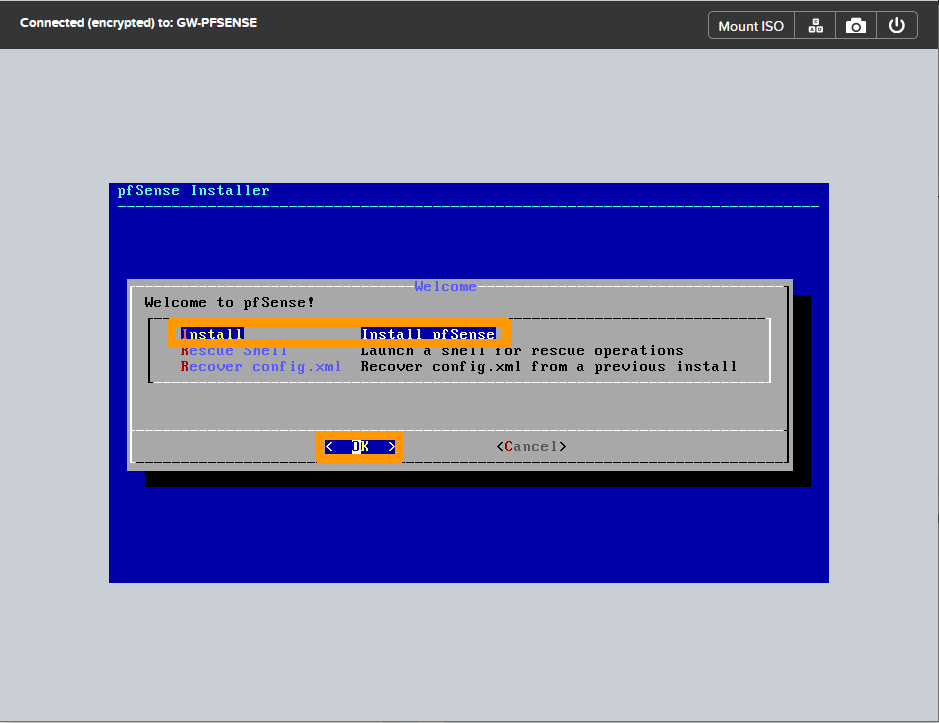

Choose Install, switch to OK with the Tab key, then press Enter.

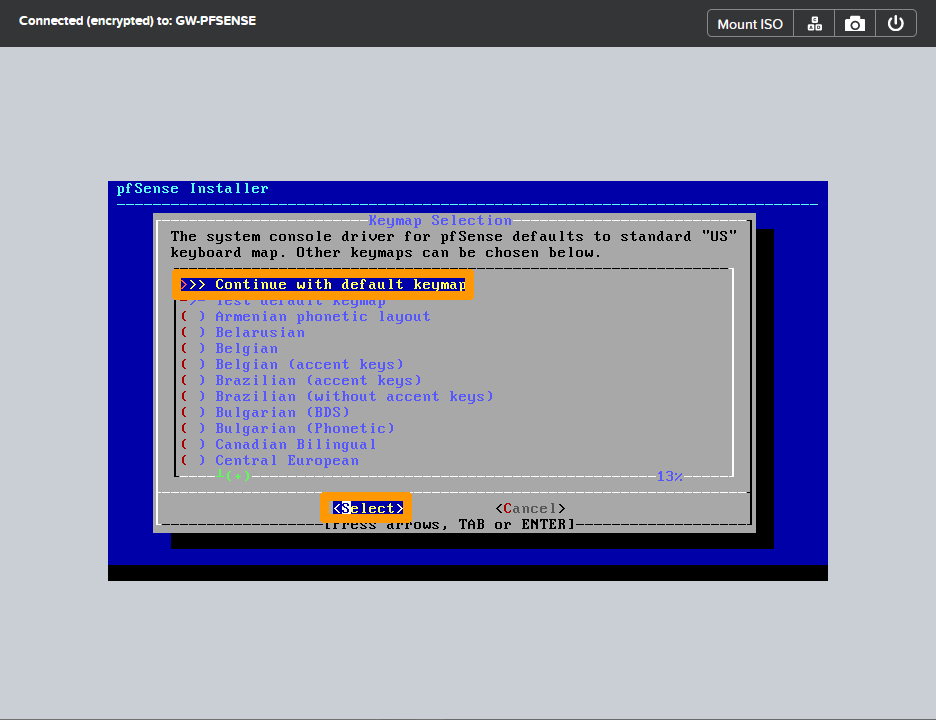

Select Continue with default keymap, go to Select with the Tab key, then press the Enter key.

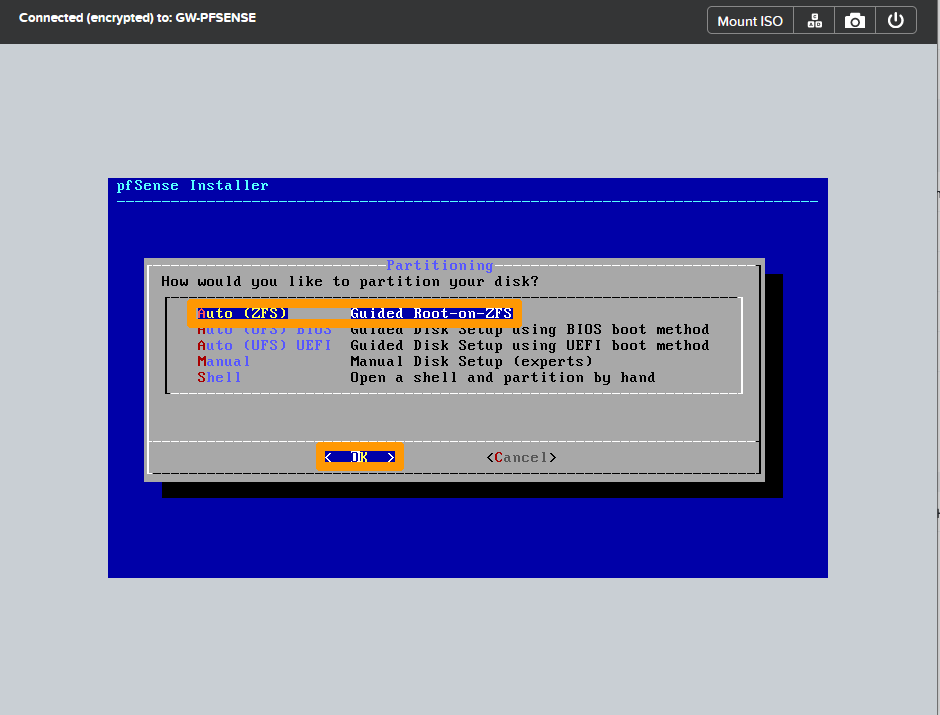

Select Auto (ZFS), switch to OK with the Tab key and then press the Enter key.

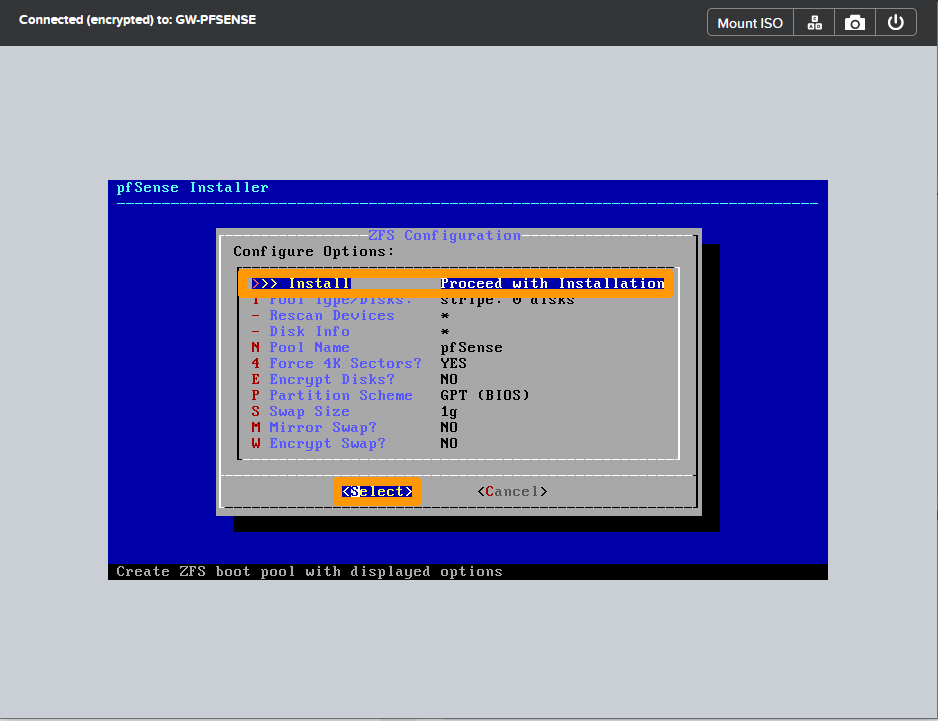

Go to Select with the Tab key and press Enter.

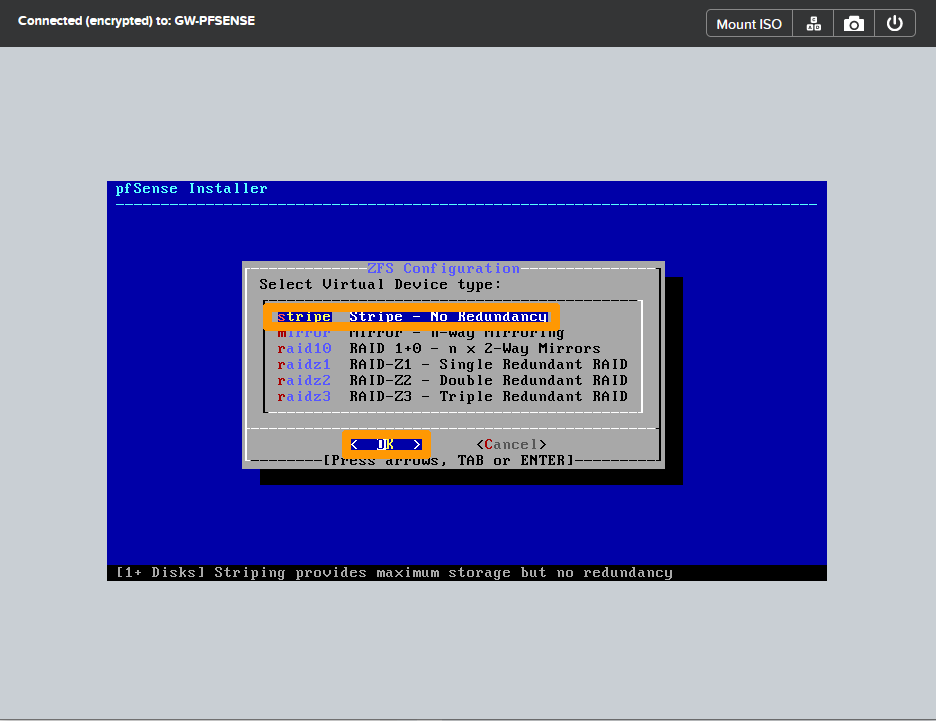

Select Stripe, switch to OK with the Tab key, and then press Enter.

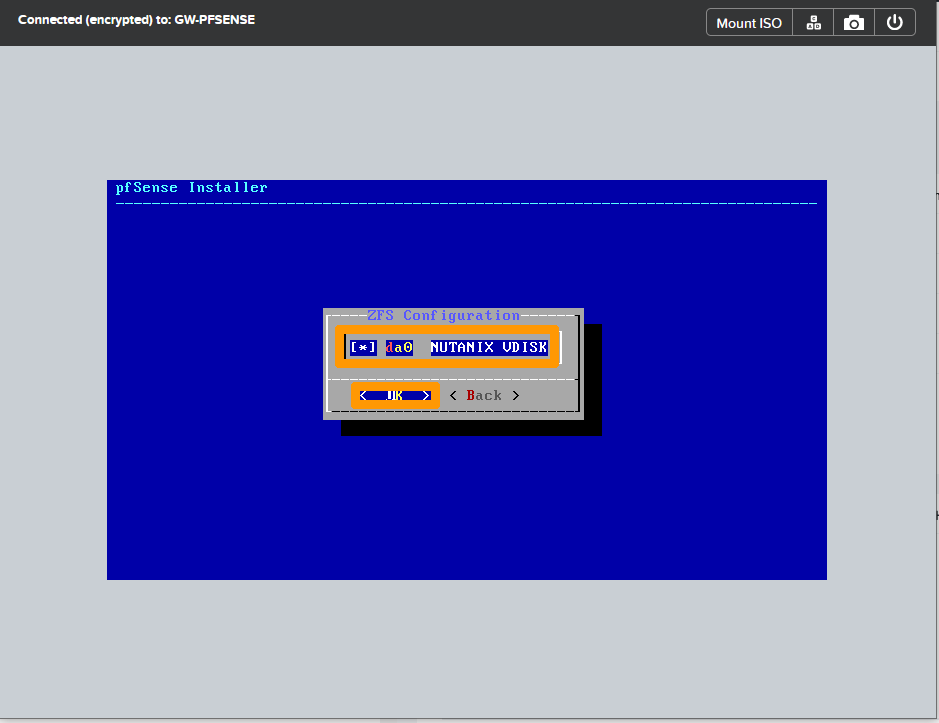

Select NUTANIX VDISK with the Space bar. Then go to OK with the Tab key and press Enter.

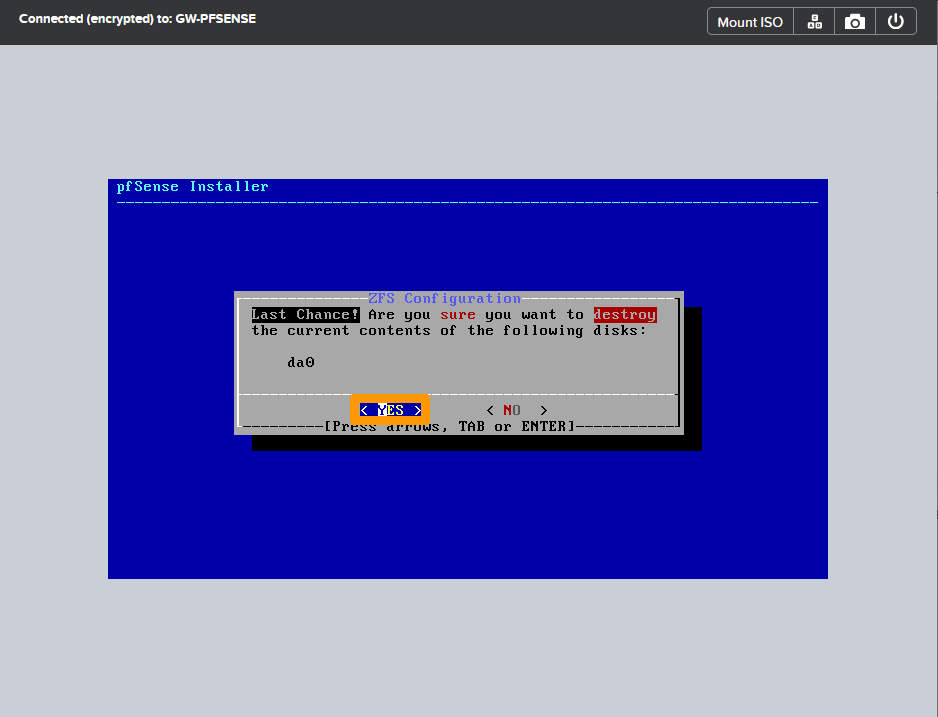

Go to YES with the Tab key and press the Enter key.

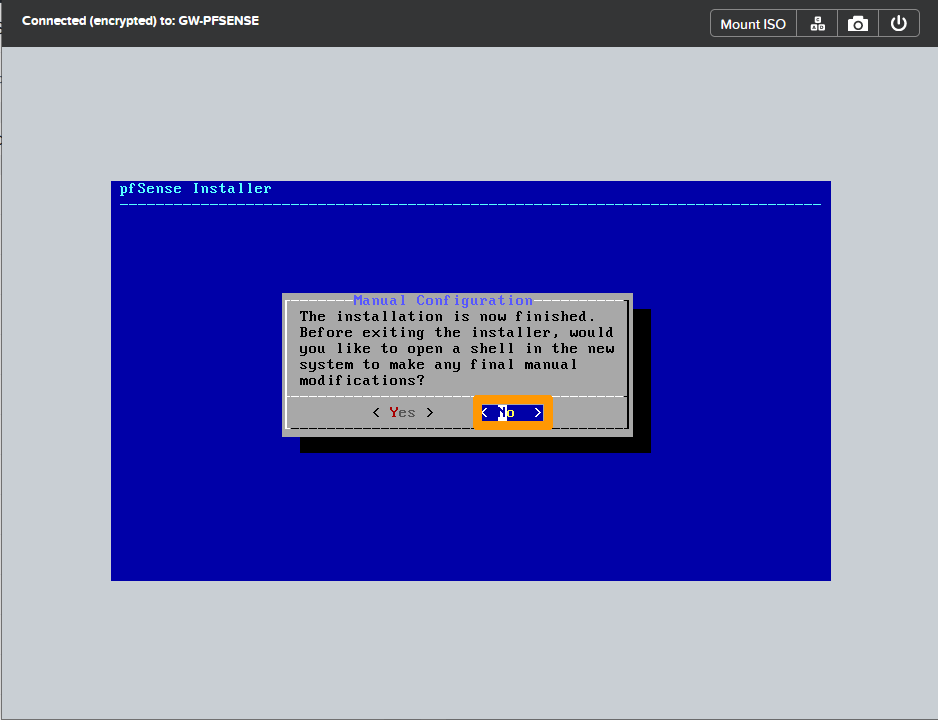

Choose NO with the Tab key and press the Enter key.

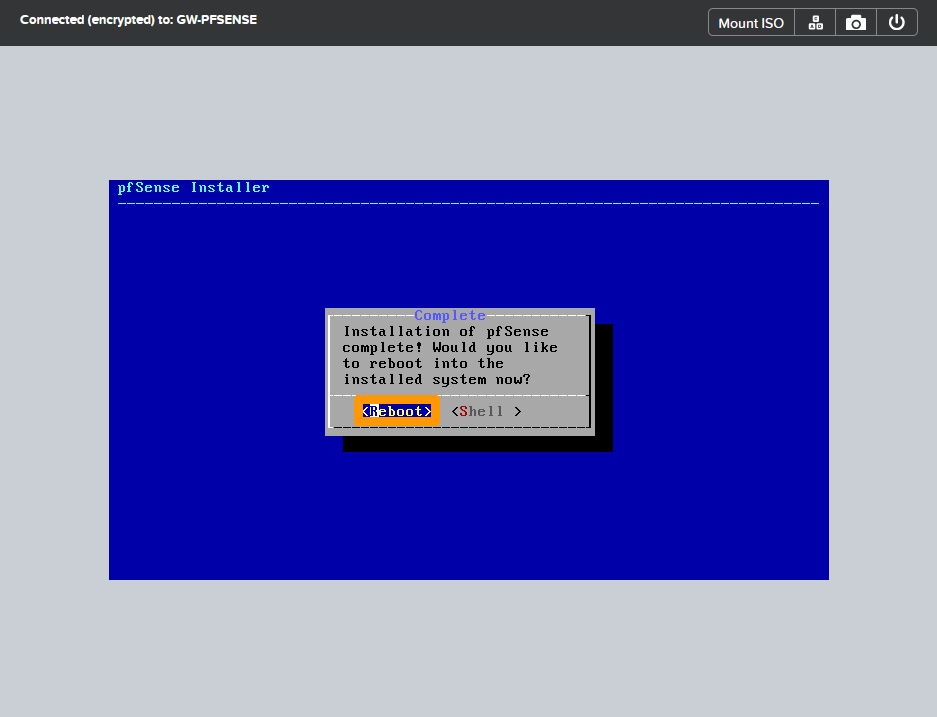

Select Reboot and press the Enter key.

Step 2.7 Eject the pfSense CDROM from the GW-PFSENSE virtual machine

From Prism Central, go back to GW-PFSENSE virtual machine management and perform the following steps to eject the CDROM.

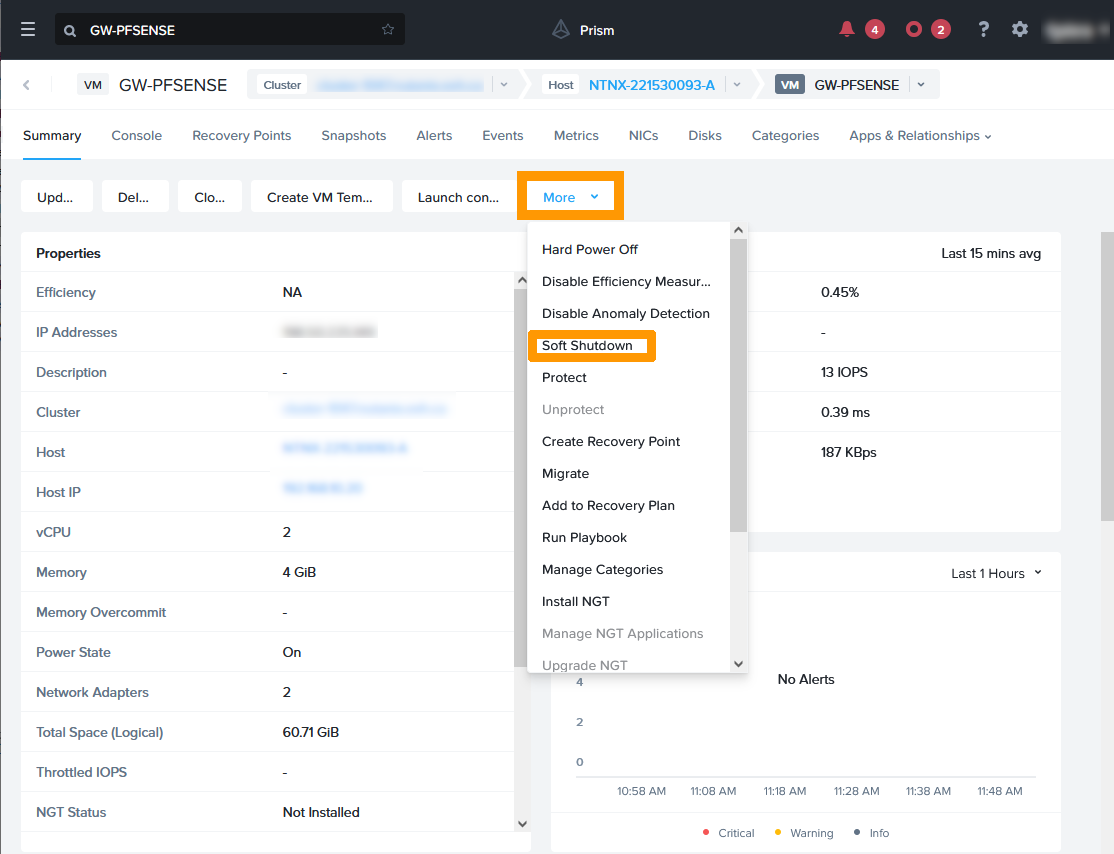

Click on Soft Shutdown in the More menu on the GW-PFSENSE virtual machine to stop this virtual machine.

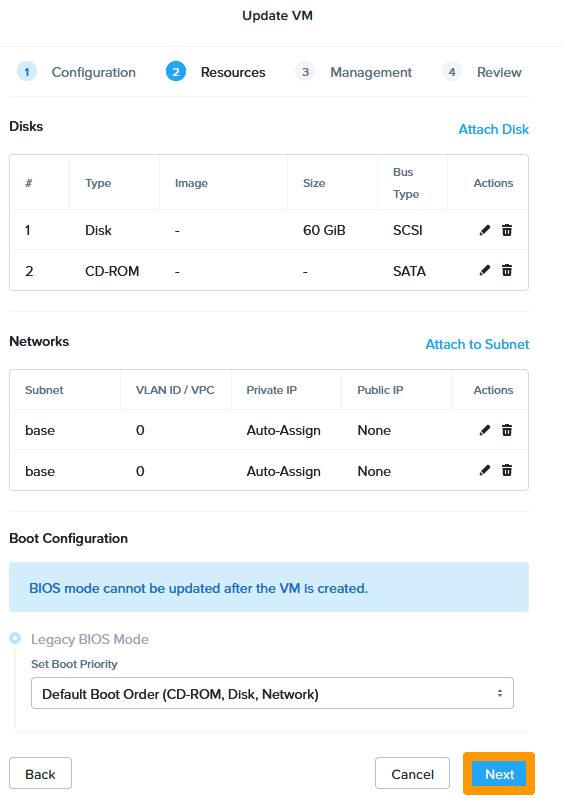

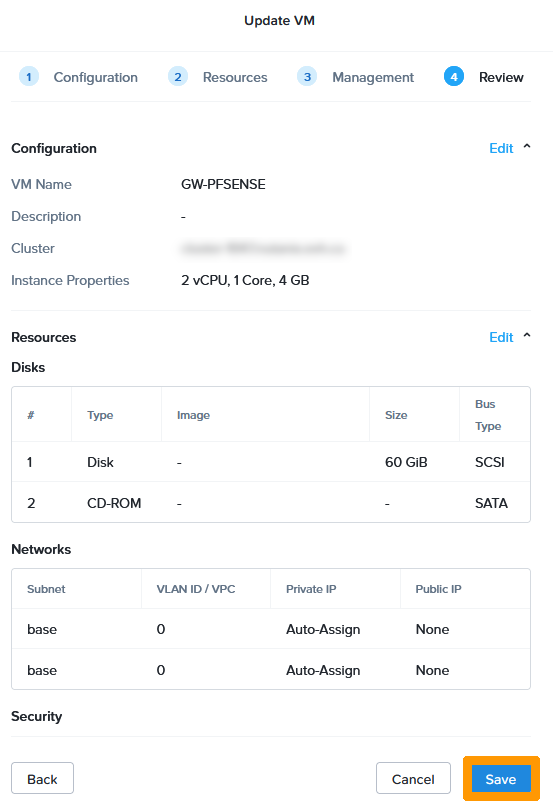

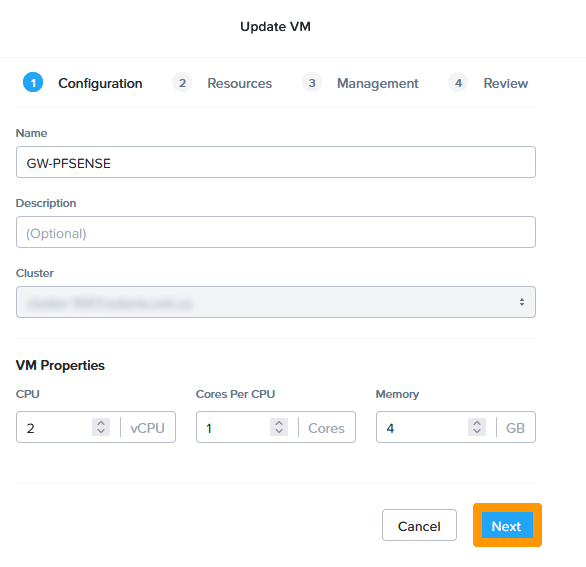

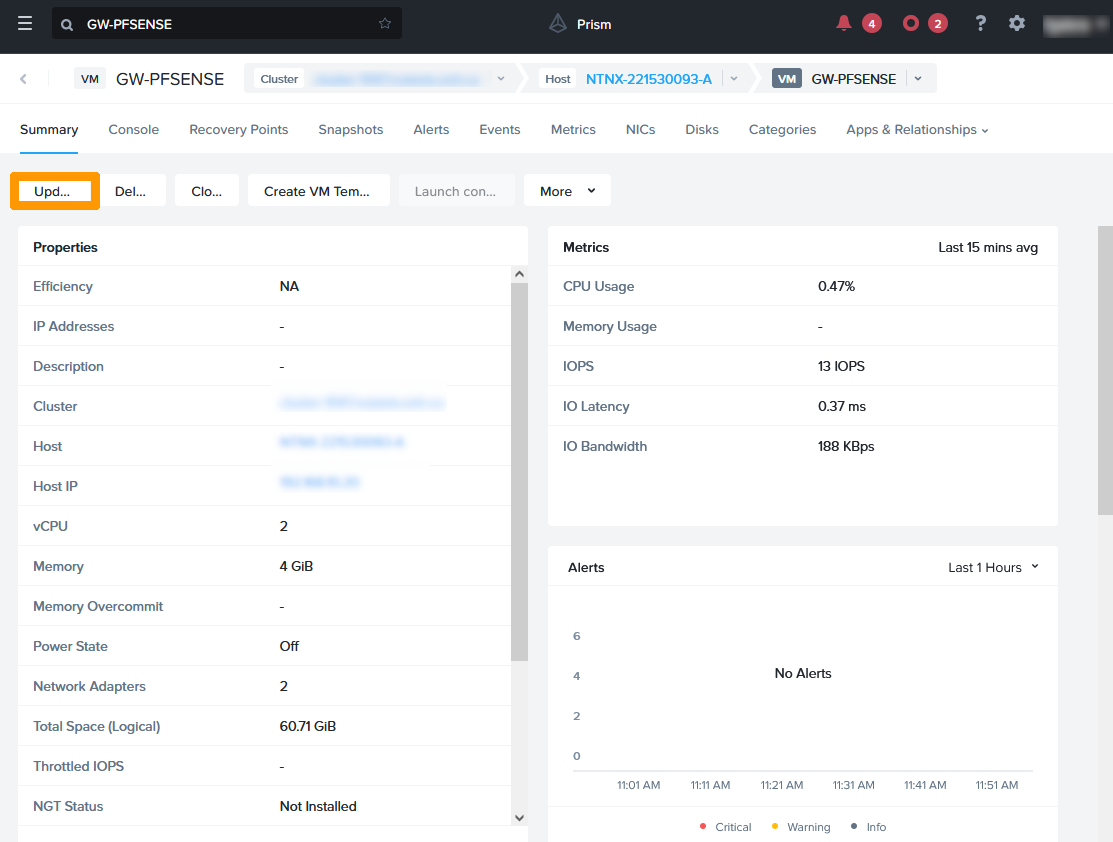

Click Update.

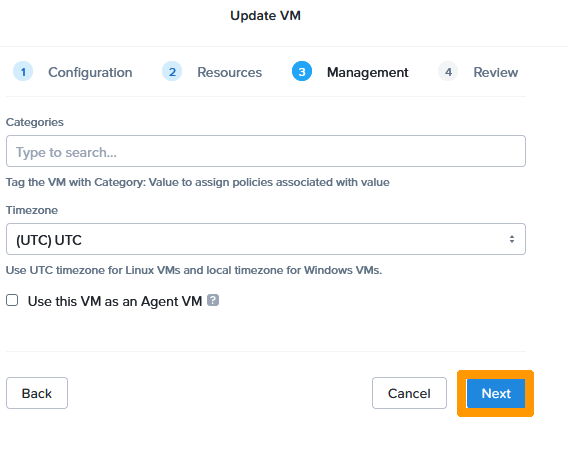

Click Next.

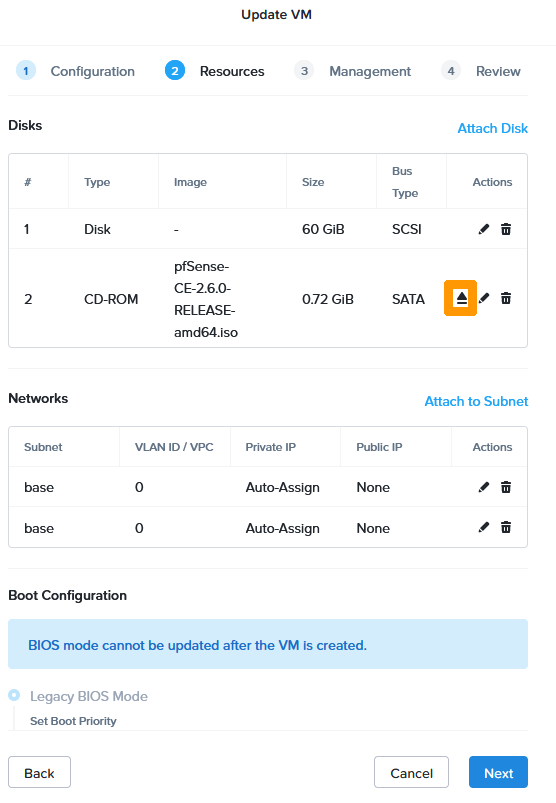

Click the Eject icon next to the CDROM.

Click Next.

Click Save.

Click Power On in the More menu.

Click Launch Console to continue the installation after startup.

Step 2.8 Configure pfSense IP Addresses Through the Console

We will configure the pfSense gateway IP addresses as follows:

WAN interface: Use this part of the guide “Retrieving a public address in the OVHcloud Control Panel” to assign the IP address and gateway on this interface.
LAN Interface: 192.168.10.254/24 which is the gateway address of the Nutanix cluster private network followed by the subnet mask.

Accept the license by pressing the Enter key.

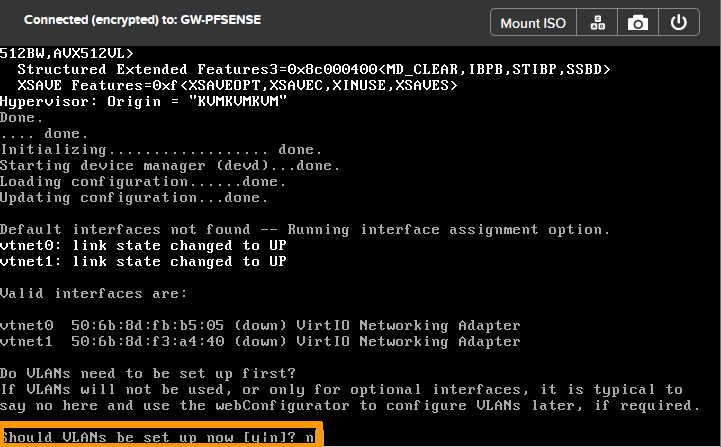

Type n and press the Enter key when asked if you need VLANs.

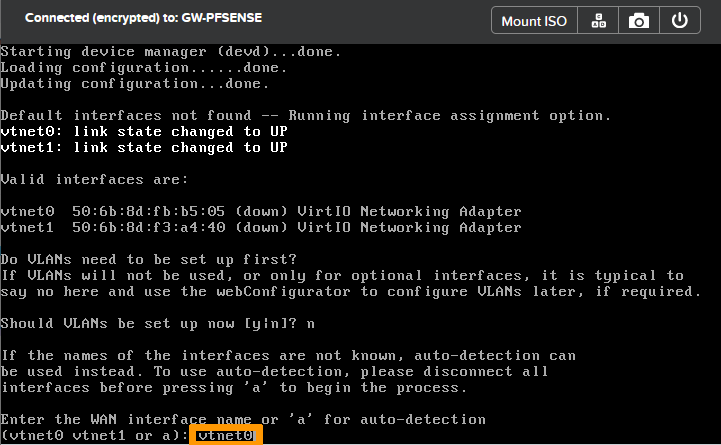

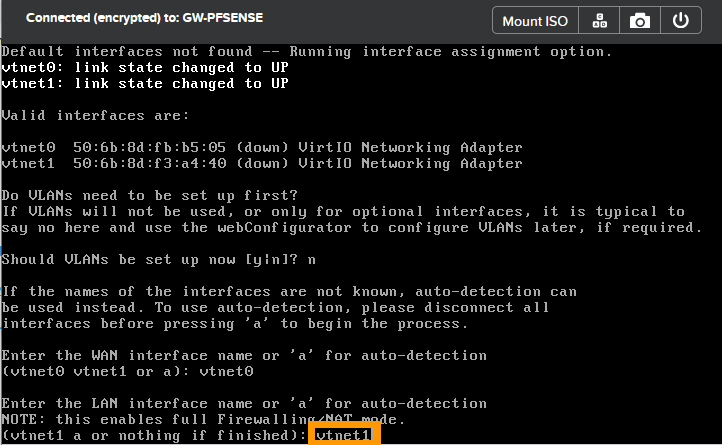

Type vtnet0 as the interface name for the WAN and press Enter.

Type vtnet1 as the interface name for the LAN and press Enter.

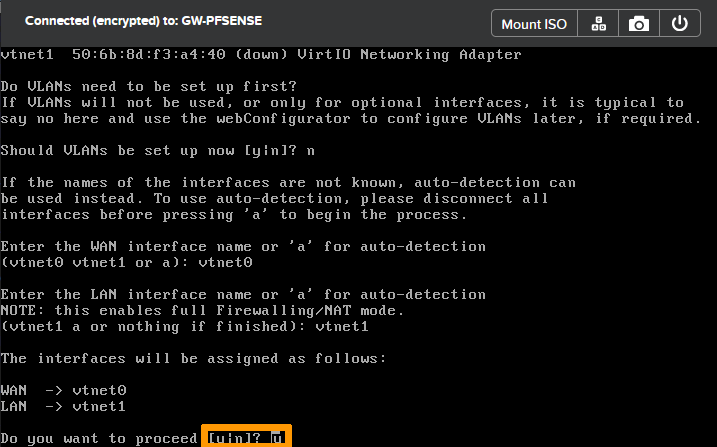

Confirm the changes by entering y, then press the Enter key.

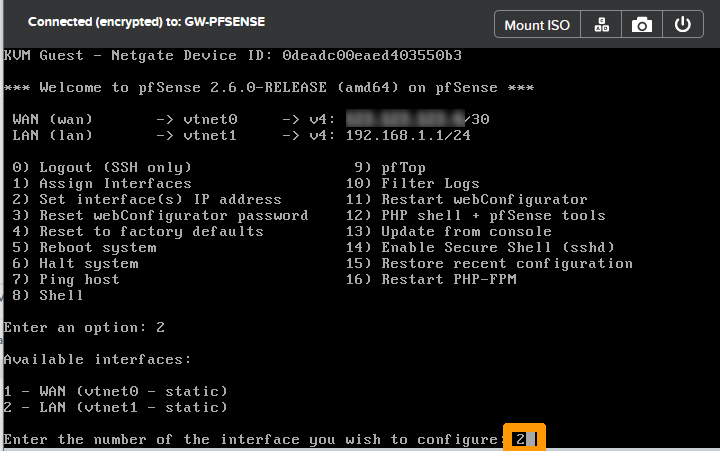

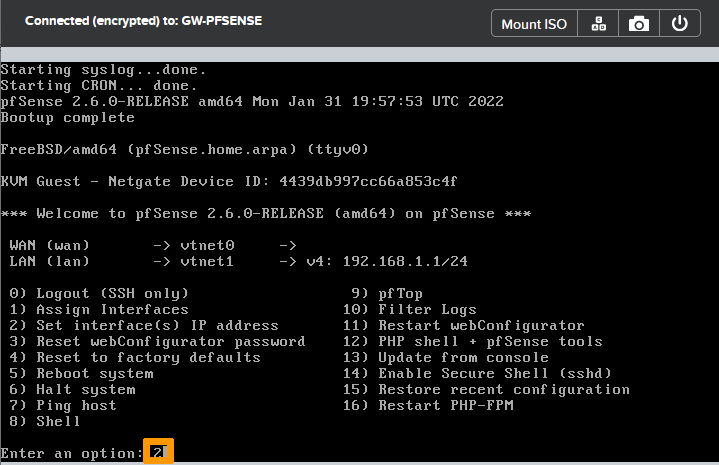

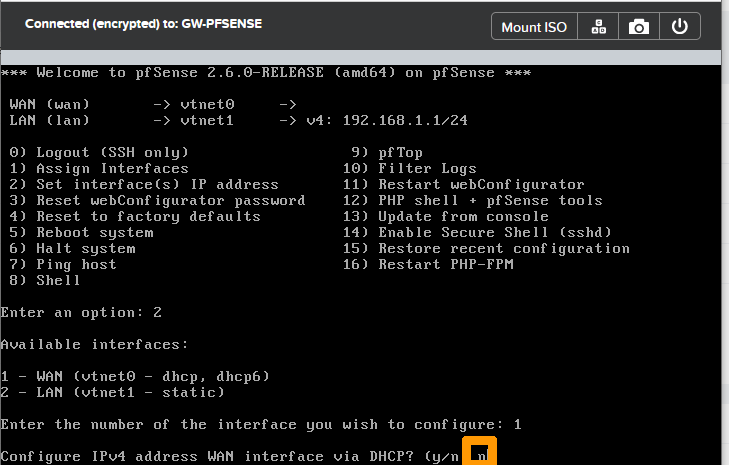

Type 2 to choose Set interface(s) IP address and press Enter.

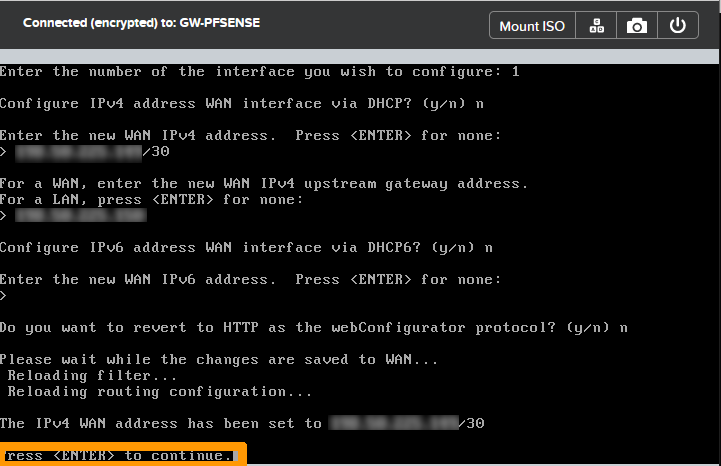

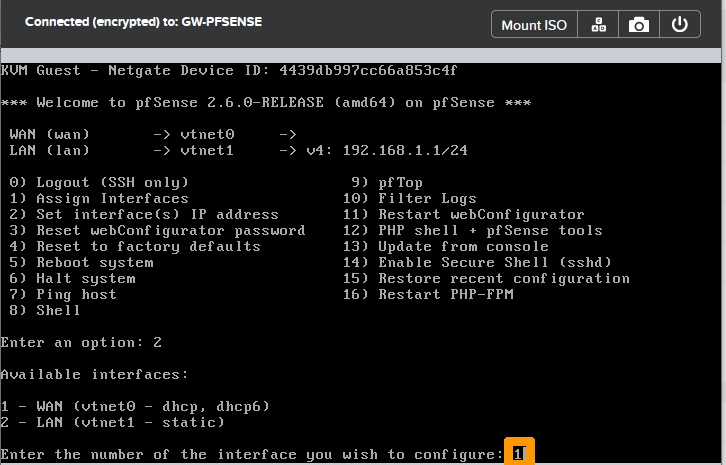

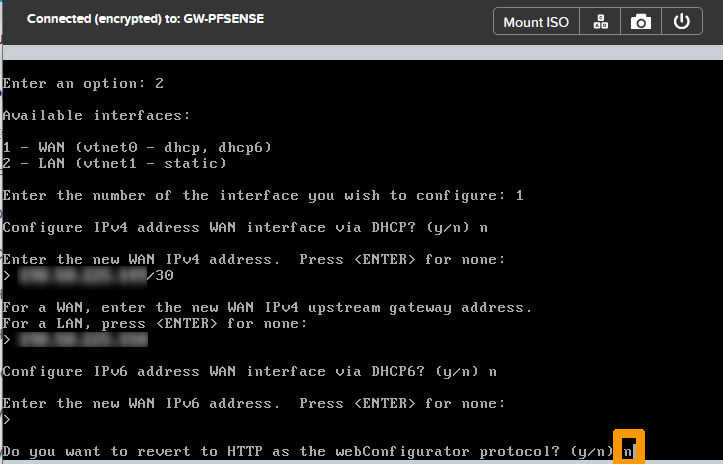

Select the WAN interface by typing 1 and pressing Enter.

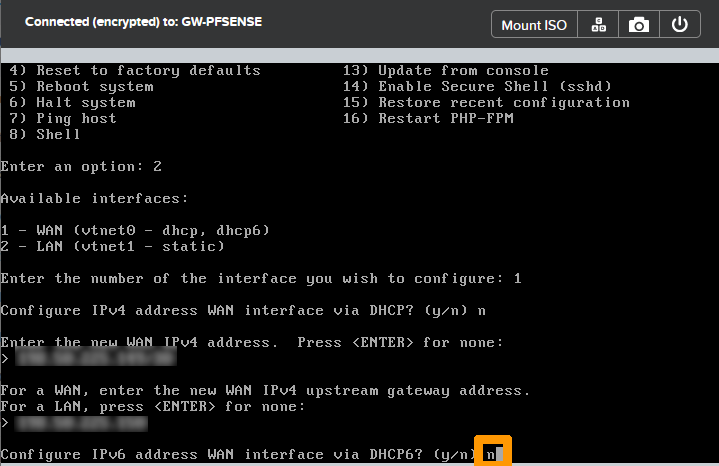

Type n and press Enter when prompted to configure the address by DHCP.

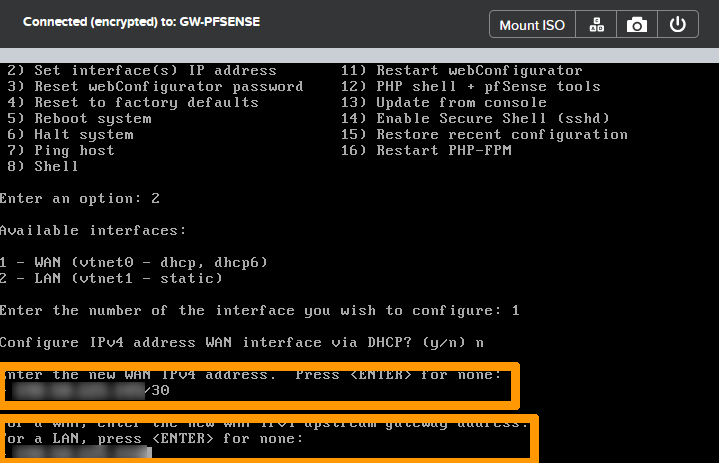

Type the public IP address with the mask and press the Enter key, for example, 123.123.123.5/30.

Then enter the public gateway IP address and press the Enter key, for example, 123.123.123.6.

Type n and press the Enter key when the wizard offers you the configuration of the IPv6 address WAN interface via DHCP6.

When requested to revert to HTTP as the webConfigurator protocol, type n, and press Enter.

Press Enter to validate the registration of the IP address of the WAN.

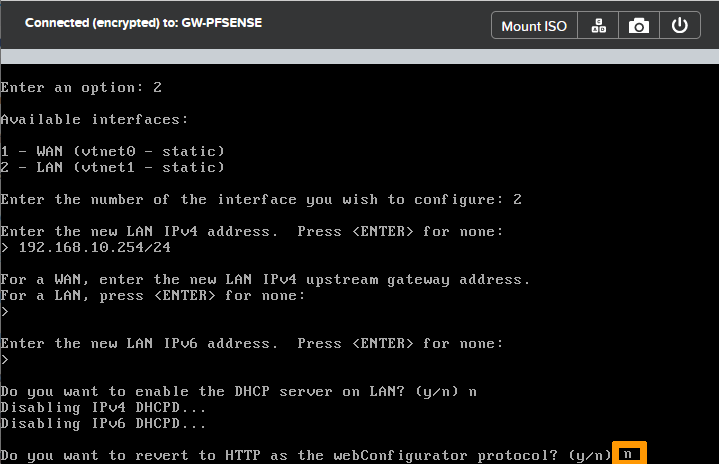

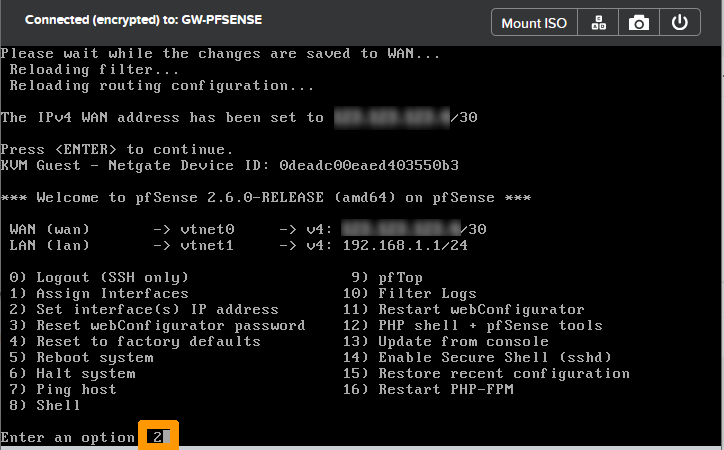

Type 2 and press the Enter key to configure IP addresses.

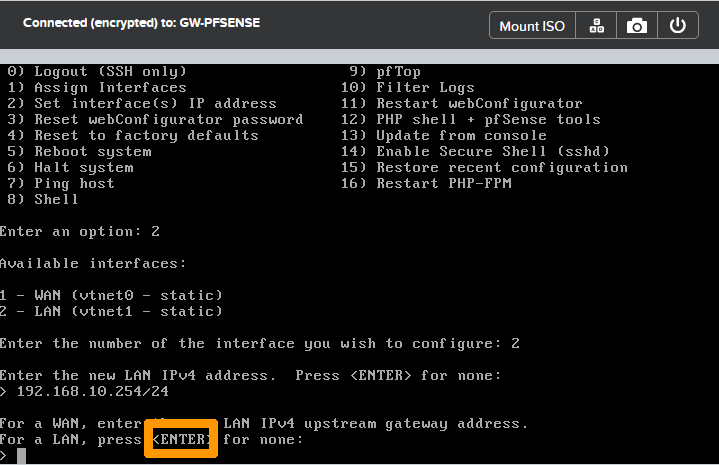

Take option 2 and press the Enter key to change the LAN IP address.

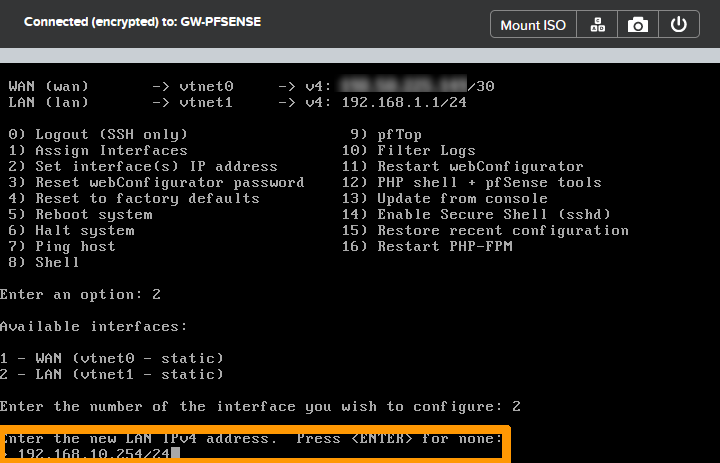

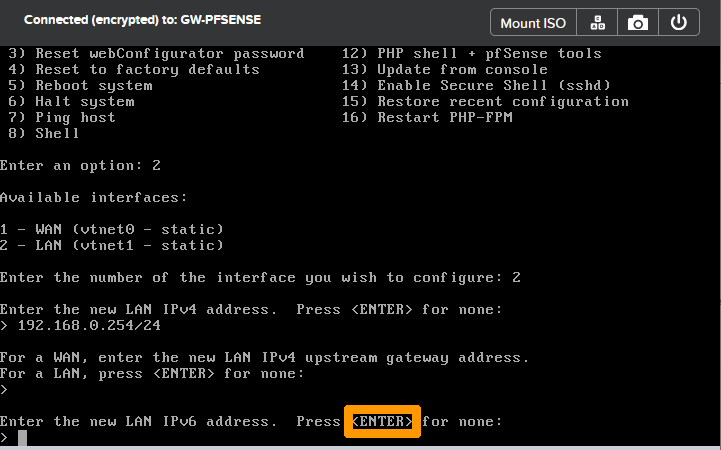

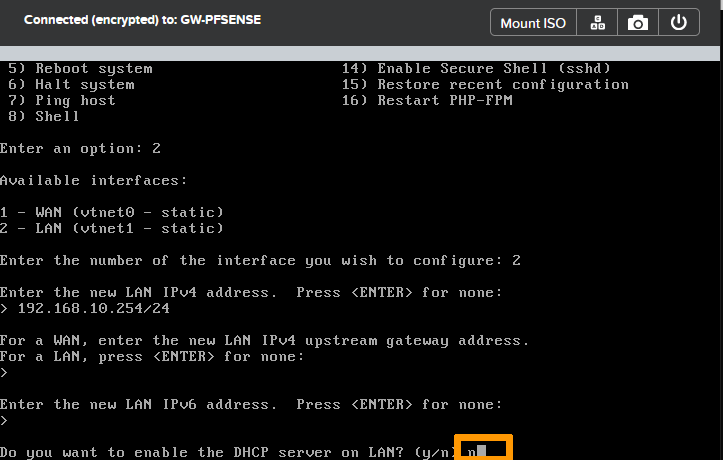

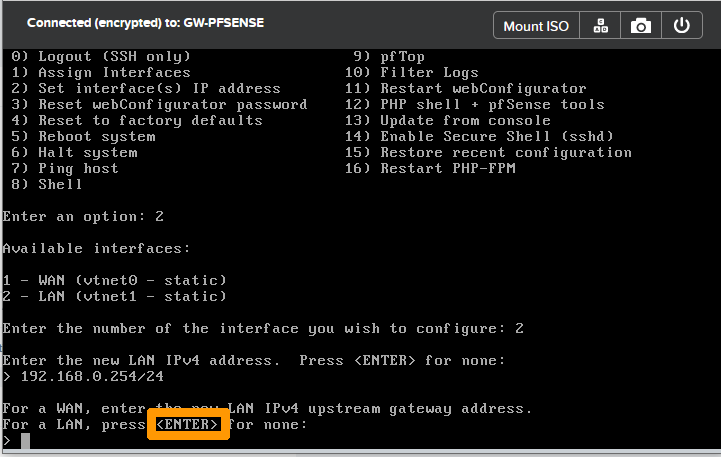

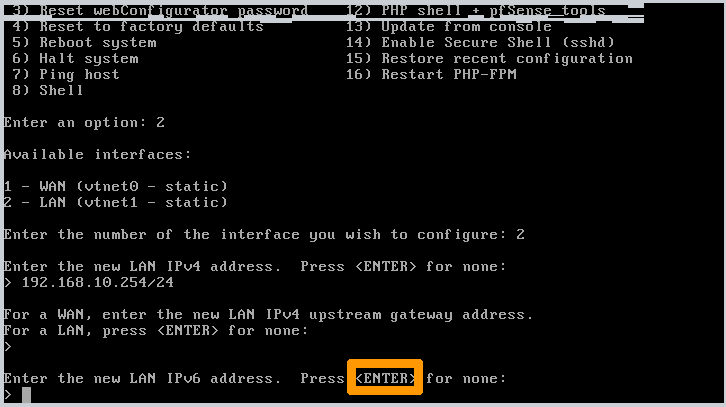

Type the private IP address followed by the mask 192.168.10.254/24 and press the Enter key.

Press the Enter key to not put a gateway on the LAN interface.

Press the Enter key to disable IPv6 usage.

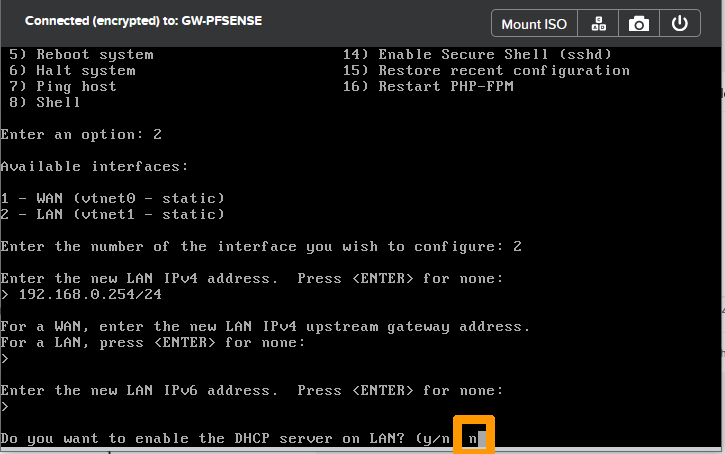

Type n and press the Enter key on the DHCP server activation request.

Answer n and press the Enter key when prompted to revert to HTTP as the webConfigurator protocol.

You can now manage the HTTPS gateway on the private network of the Nutanix cluster.

Press the Enter key to complete the command line configuration.

Step 2.9 Configure some options through the web interface

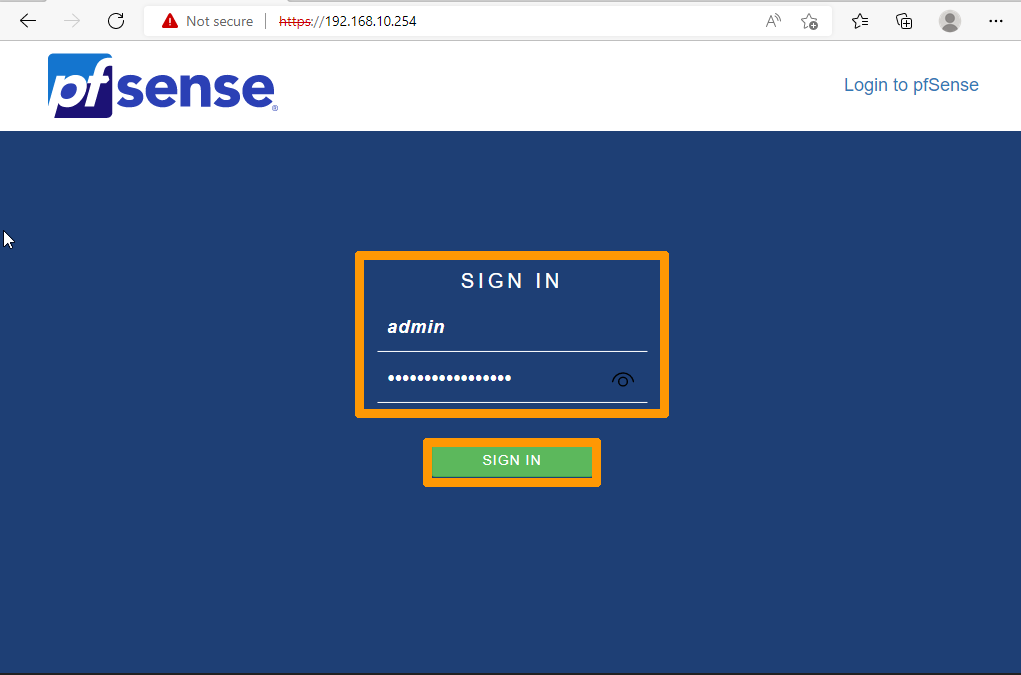

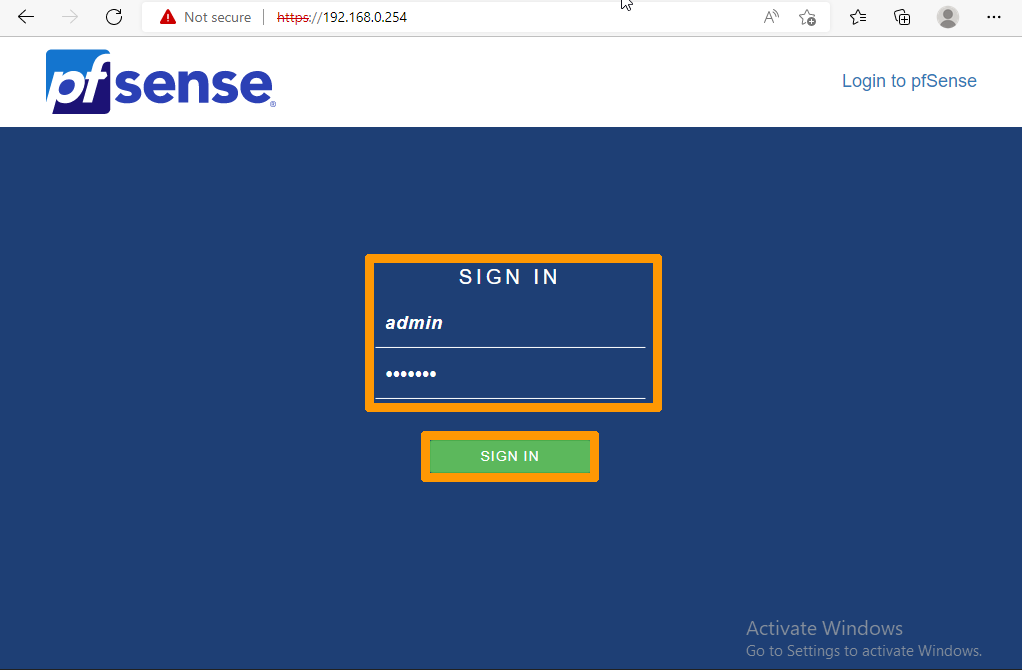

Connect to the pfSense Web Console with the URL https://192.168.10.254 from a cluster virtual machine on the AHV LAN: Base.

Enter the following information:

User account: admin
Default password: pfsense

Then click on SIGN IN.

Step 2.9.1 Change the pfSense default password

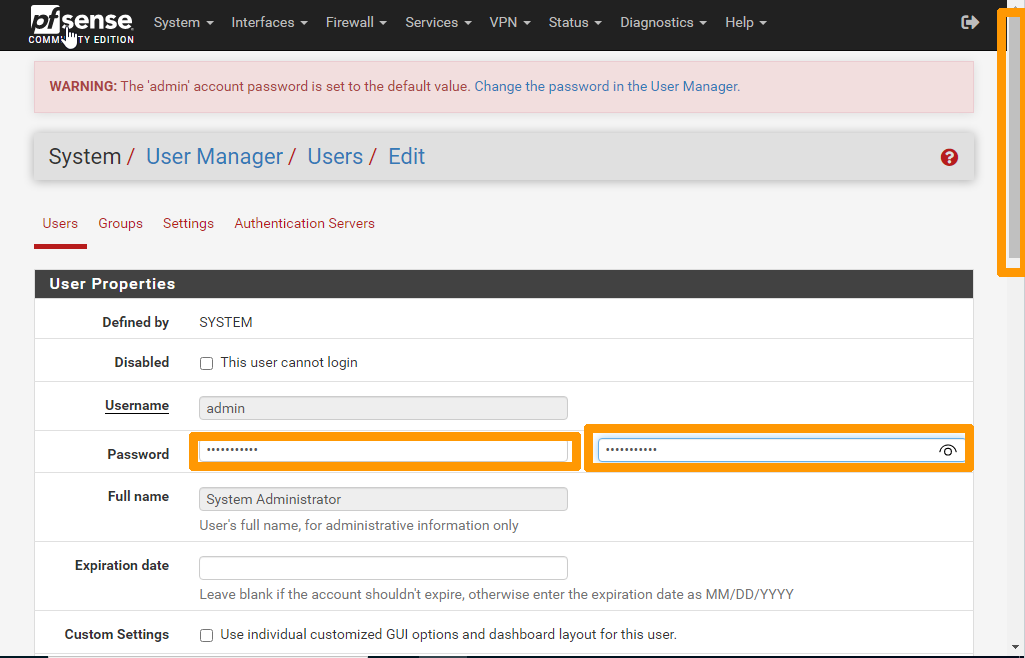

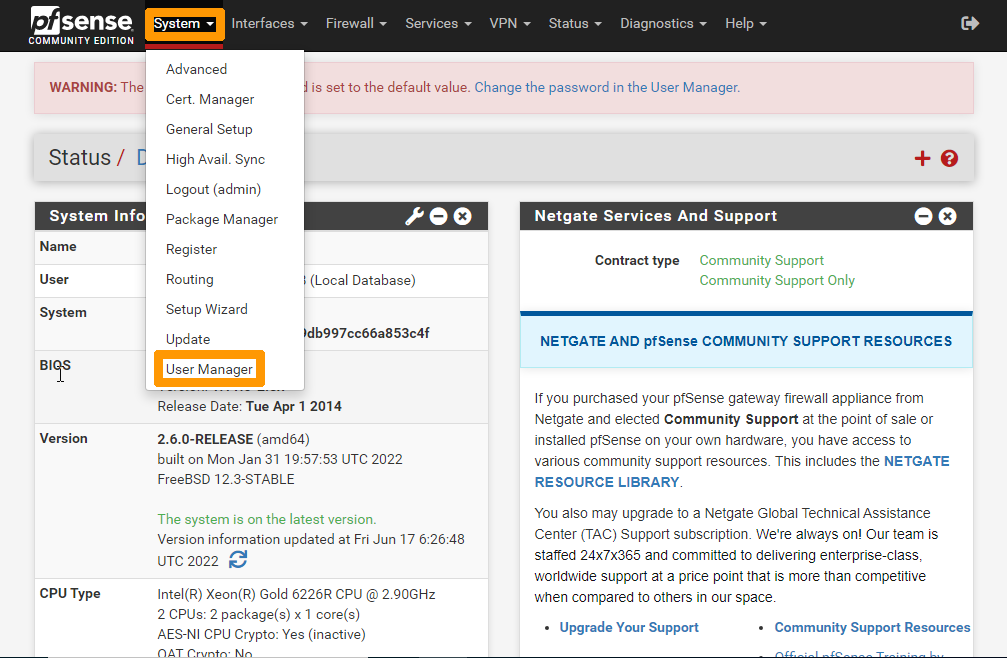

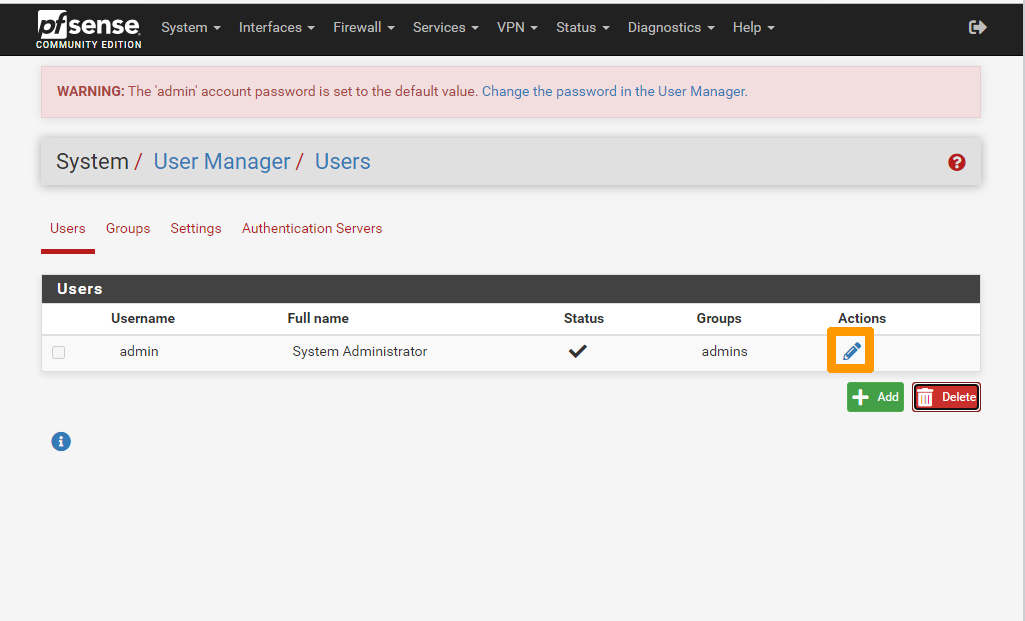

From the System menu, choose User Manager.

Click the Pen icon.

Enter and confirm the password to the right of Password.

Confirm the changes by clicking Save at the bottom of the menu.

Step 2.9.2 Add a rule to allow remote administration from a public address

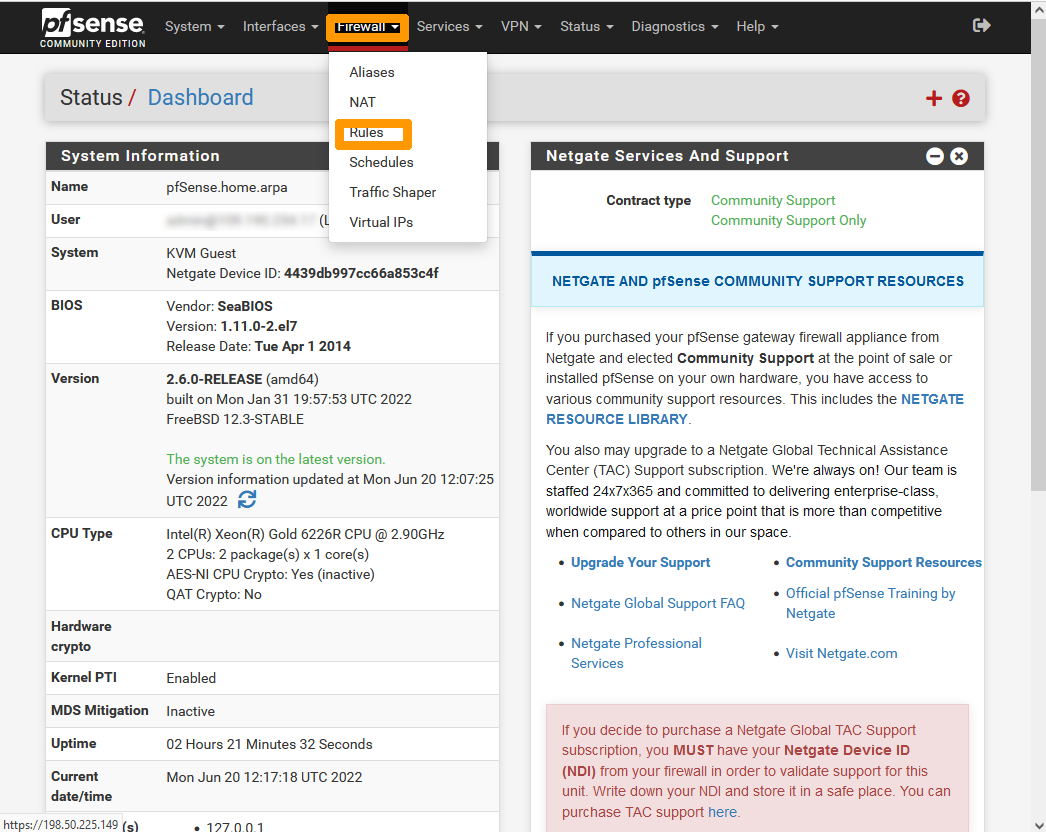

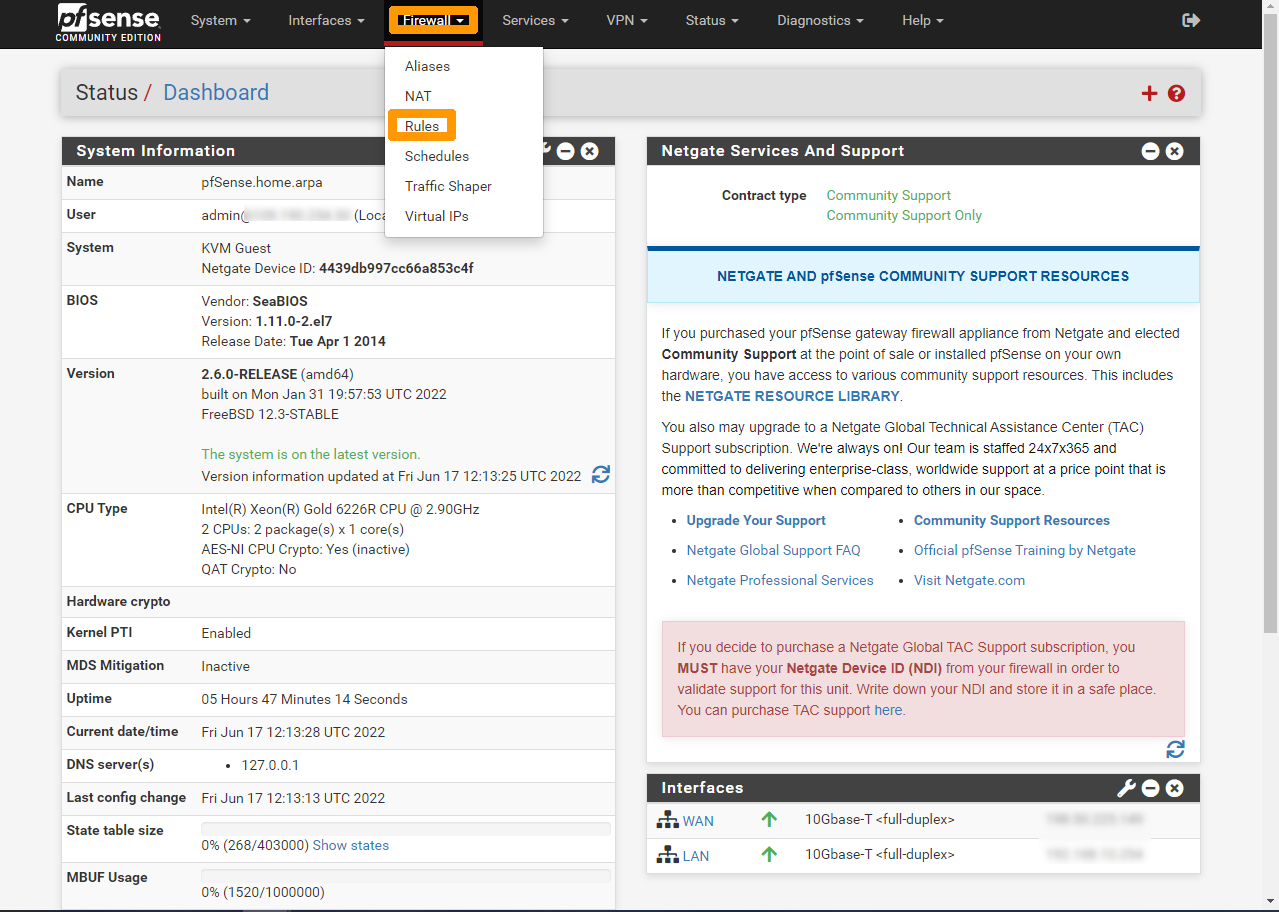

Go to the Firewall menu and choose Rules.

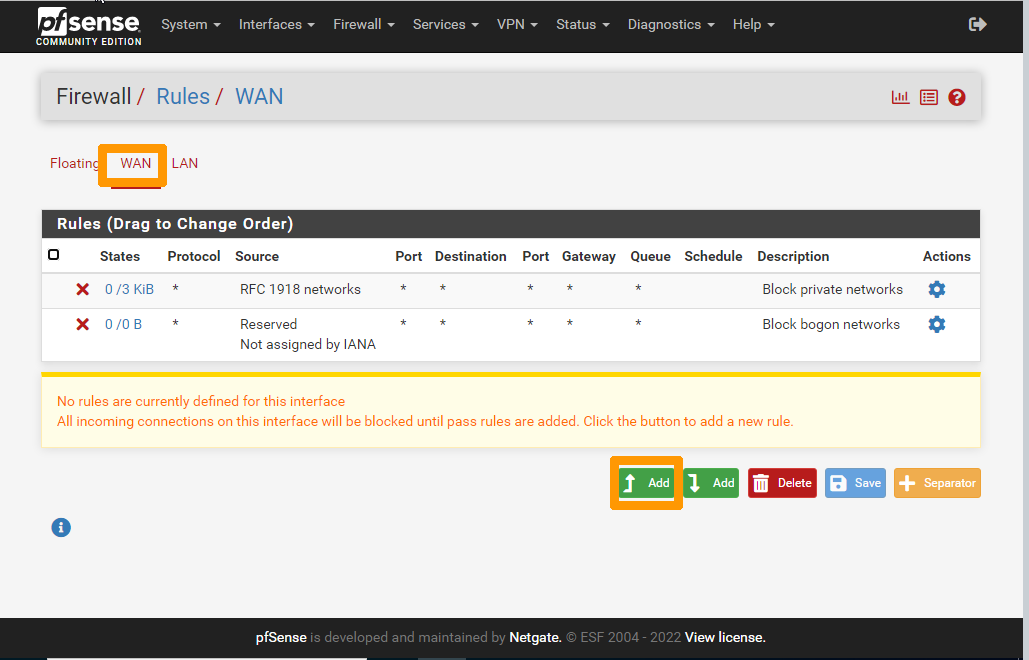

Check that you are on the WAN tab, then click the Add button (at the bottom with the up arrow) to create a firewall rule.

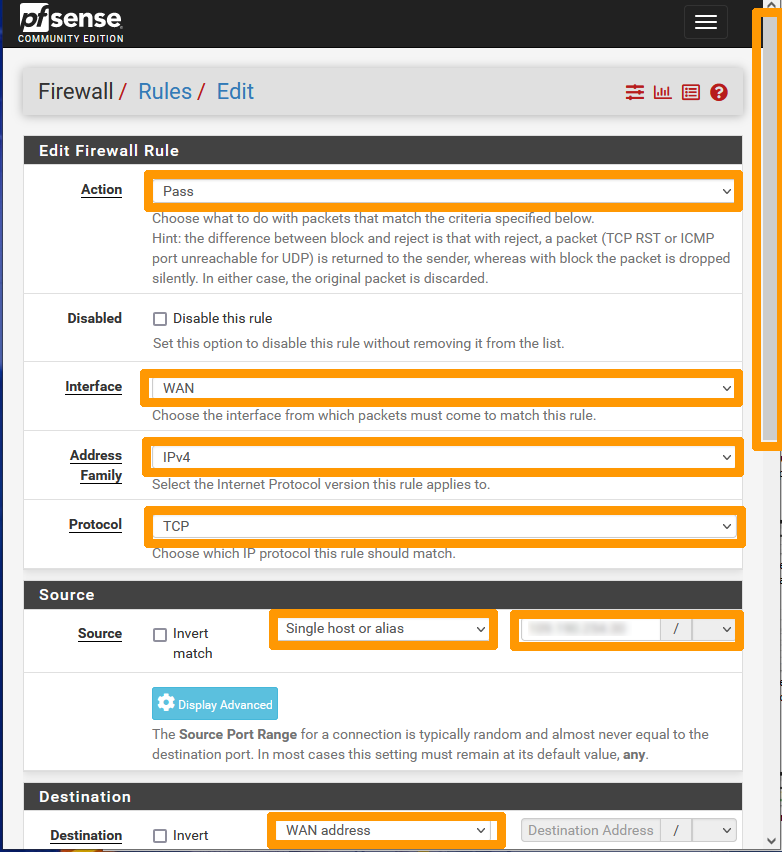

Set these options in the Edit Firewall Rule section:

Action: Pass
Interface: WAN
Address Family: IPv4
Protocol: TCP

Select Single host or alias from the Source drop-down menu and enter the public address that can connect to the pfSense firewall.

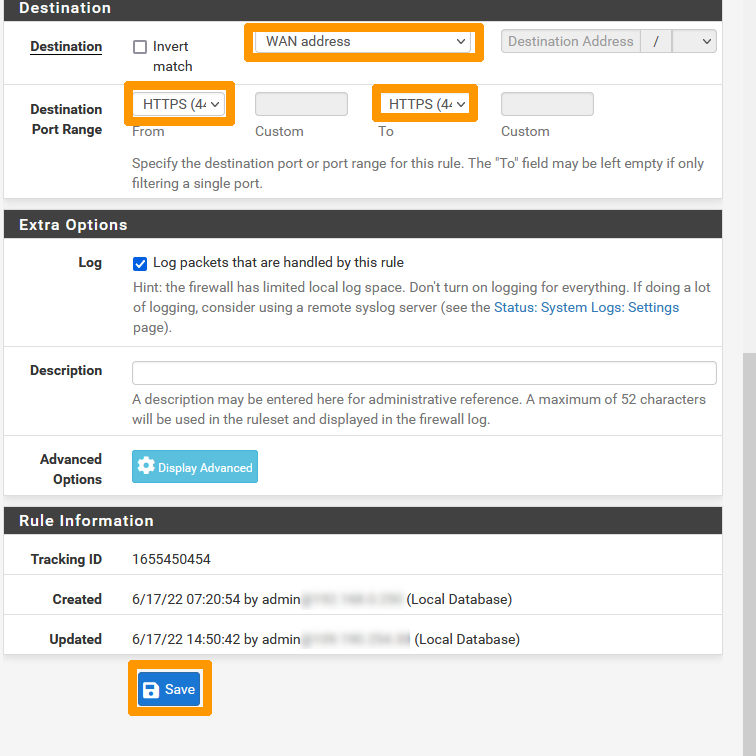

Then set these options in the Destination section:

Destination: WAN address
Destination Port Range From: HTTPS
Destination Port Range To: HTTPS

Click Save.

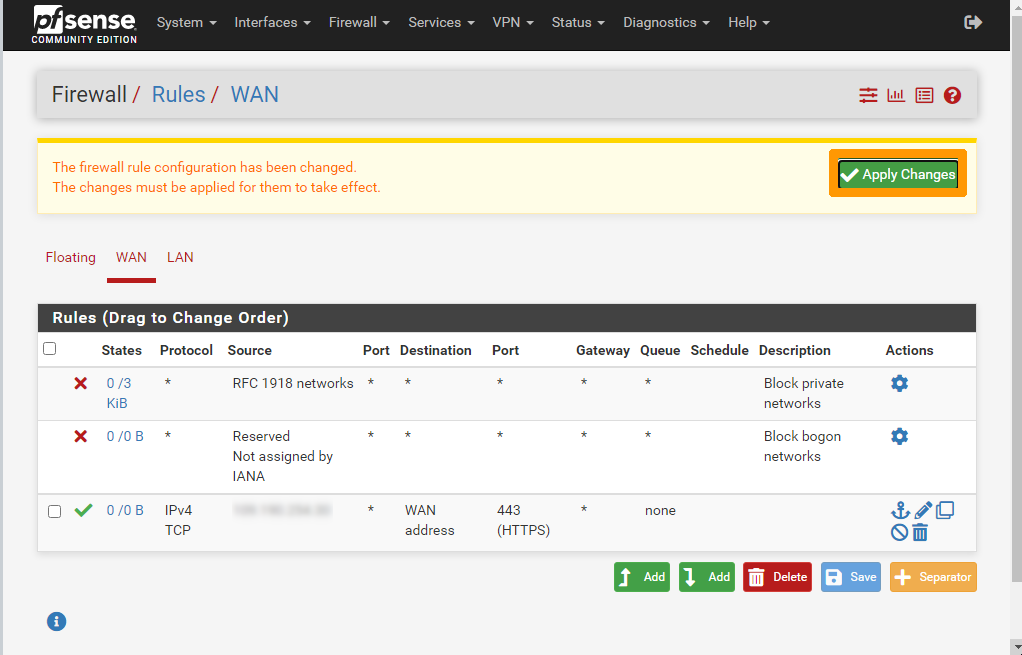

Click Apply Changes to activate the rule.

The pfSense administration interface is then accessible from the Internet, only from the authorized network in HTTPS, here https://123.123.123.5.

Step 3 Configuring the gateway in Datacenter 2

We will install the GW-PFSENSE gateway in Datacenter 2 on the IP plan 192.168.0.0/24.

Step 3.1 Downloading sources for pfSense installation

Download the ISO image for pfSense installation from this link: Downloading pfSense.

Using this documentation, add the pfSense ISO image to your Nutanix cluster.

Step 3.2 Creating the GW-PFSENSE virtual machine

Create a virtual machine with the settings below, then click Create VM.

Name: GW-PFSENSE
Storage1: 60 Go HDD
Storage2: DVD drive connected to pfSense ISO image
RAM: 4 GB
CPU: 2 vCPU
Network: two network cards on the AHV network: **Base**

You can use our guide on virtual machine management to create this virtual machine.

Step 3.3 Shutting down the OVH-GATEWAY virtual machine

To avoid duplicate IP addresses on the network, stop the OVHgateway virtual machine before starting the new virtual machine on pfSense.

Via Prism Central, click in the top left on the main menu.

Click VMs.

Click the OVHgateway virtual machine.

From the More menu at the top, click Soft Shutdown.

Step 3.4 Retrieving the public address in the OVHcloud Control Panel

Retrieve information about the OVHcloud gateway network settings.

What is called IPFO is a range of four addresses. The first and last are reserved, the third is on OVHcloud hardware and serves as an Internet gateway. The only usable IP address is the second address in the range.

During installation, we will reuse this information to assign it to the new GW-PFSENSE virtual machine

XX.XX.XX.N Reserved network address that appears on the OVHcloud client site.
XX.XX.XX.N+1 IP address to be assigned to the GW-PFSENSE virtual machine WAN interface.
XX.XX.XX.N+2 Address to be used as a gateway on the GW-PFSENSE virtual machine WAN interface.
XX.XX.XX.N+3 Reserved broadcast IP address.

For example, if the IPFO address displayed on the client site is 123.123.123.4/30, use:

123.123.123.5 for the WAN interface address;
123.123.123.6 for the gateway on the WAN interface.

Step 3.5 Start the GW-PFSENSE virtual machine

Go back to virtual machine management in Prism Central and click on GW-PFSENSE.

From the More menu, click Power On.

Click Launch console.

Step 3.6 Installing pfSense

Review the pfSense license information and press the Enter key to accept it.

Choose Install, click OK with the Tab key, and then press Enter.

Select Continue with default keymap, go to Select with the Tab key, and press the Enter key.

Select Auto (ZFS), click OK with the Tab key, and then press the Enter key.

Press Select with the Tab key and press Enter.

Select Stripe, press OK with the Tab key, and then press Enter.

Select NUTANIX VDISK with the Space bar. Then click OK with the Tab key and press Enter.

Go to YES with the Tab key and press the Enter key.

Choose NO with the Tab key and press the Enter key.

Select Reboot and press the Enter key.

Step 3.7 Eject the pfSense CDROM from the GW-PFSENSE virtual machine

From Prism Central, go back to GW-PFSENSE virtual machine management and perform the following steps to eject the CDROM.

Click Soft Shutdown via the More menu on the GW-PFSENSE virtual machine to stop this virtual machine.

Click Update.

Click Next.

Click the Eject icon next to the CDROM.

Click Next.

Click Save.

Click Power On in the More menu.

Click Launch Console to continue the installation after startup.

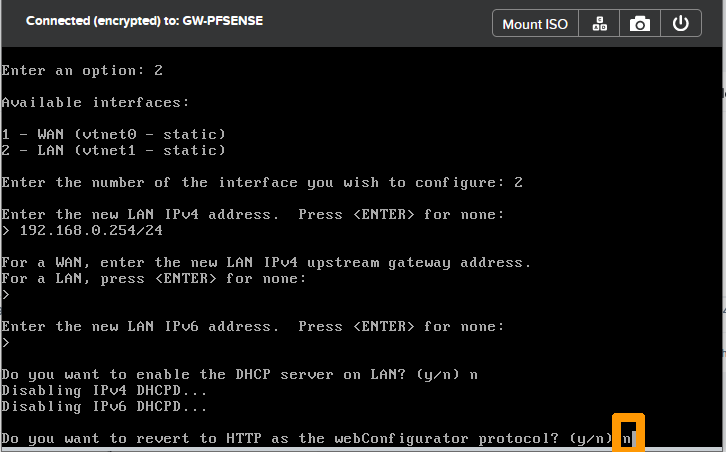

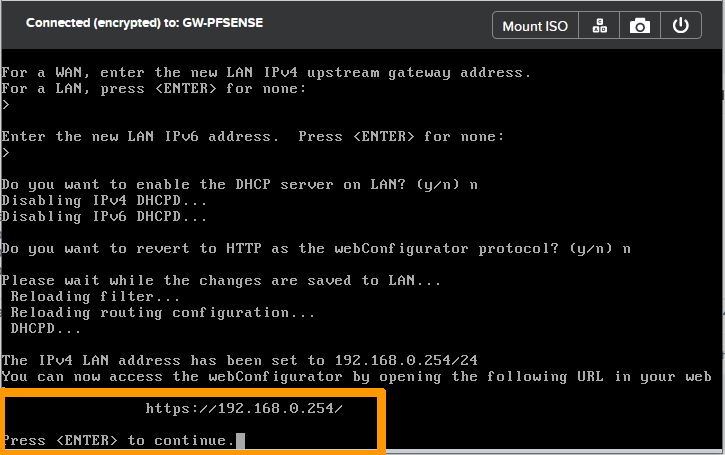

Step 3.8 Configure pfSense IP Addresses Through the Console

We will configure the pfSense gateway IP addresses as follows:

WAN interface: Use this part of the guide “Retrieving a public address in the OVHcloud Control Panel” to assign the IP address and gateway on this interface.

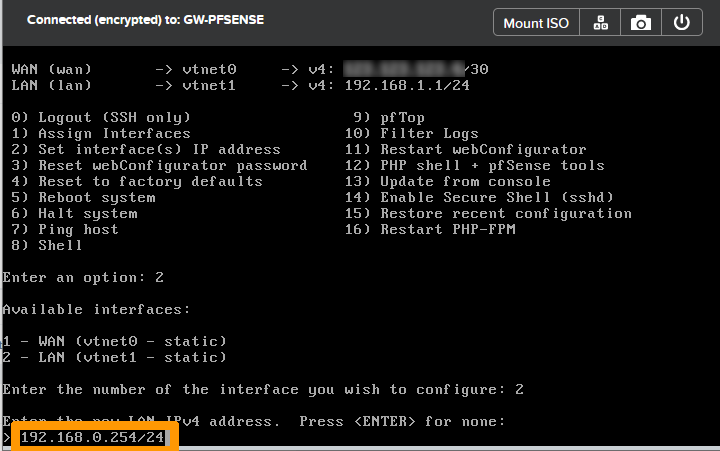

LAN interface: 192.168.0.254/24 which is the gateway address of the Nutanix private network followed by the subnet mask.

Accept the license by pressing the Enter key.

Type n and press the Enter key when querying for VLANs.

Type vtnet0 as the interface name for the WAN and press Enter.

Type vtnet1 as the interface name for the LAN and press Enter.

Confirm the changes by entering y then press the Enter key.

Type 2 to choose Set interface(s) IP address and press Enter.

Select the WAN interface by typing 1 then press Enter.

Type n and press Enter when prompted to configure the address by DHCP.

Type the public IP address with the mask and press the Enter key. For example, 123.123.123.5/30.

Then enter the public gateway IP address and press the Enter key. For example, 123.123.123.6.

Answer n and press the Enter key when prompted to configure the IPv6 address WAN interface via DHCP6.

When prompted to revert to HTTP as the webConfigurator protocol, type n, and press Enter.

Press Enter to validate the registration of the IP address of the WAN.

Type 2 and press the Enter key to configure IP addresses.

Take option 2 and press the Enter key to change the LAN IP address.

Type the private IP address followed by the mask 192.168.0.254/24 and press the Enter key.

Press the Enter key to avoid putting a gateway on the LAN interface.

Press the Enter key to disable IPv6 on the LAN interface.

Type n and press the Enter key on the DHCP server activation request.

Answer n and press the Enter key when prompted to revert to HTTP as the webConfigurator protocol.

You can now manage the gateway in HTTPS on the private network.

Press the Enter key to complete the command line configuration.

Step 3.9 Configure some options through the web interface

Connect to the pfSense Web Console with this URL https://192.168.0.254 from a virtual machine on the AHV LAN: Base.

Enter this information:

User account: admin
Default password: pfsense

Then click SIGN IN.

Step 3.9.1 Change the pfSense default password

From the System menu, choose User Manager.

Click the Pen icon.

Enter and confirm the password to the right of Password.

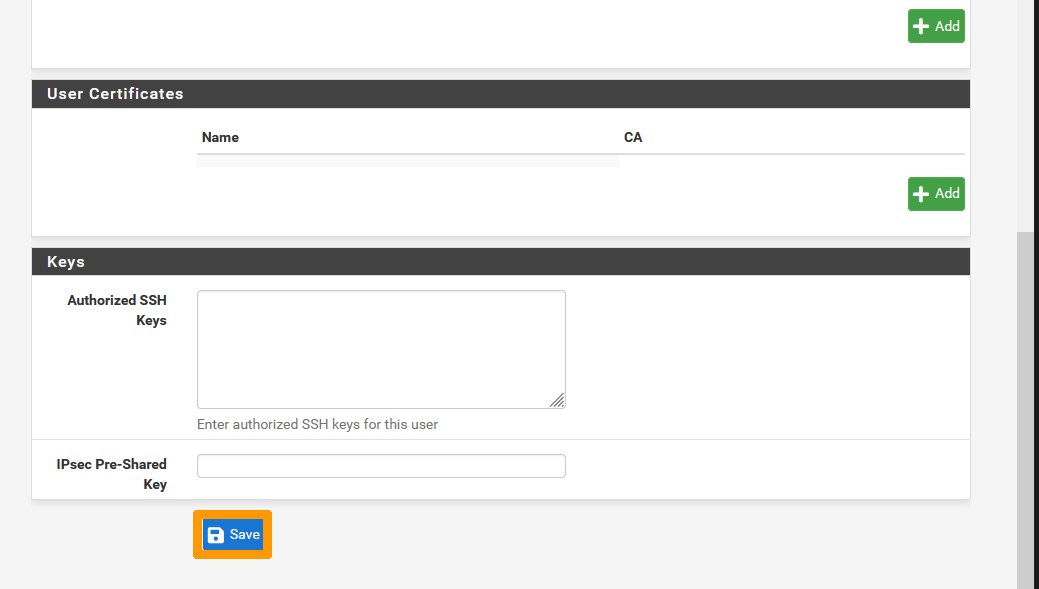

Confirm the changes by clicking Save at the bottom of the menu.

Step 3.9.2 Add a rule to allow remote administration from a public address.

Go to the Firewall menu and choose Rules.

Check that you are on the WAN tab, then click the Add button (at the bottom with the up arrow) to create a firewall rule.

Choose these options from Edit Firewall Rule:

Action: Pass
Interface: WAN
Address Family: IPv4
Protocol: TCP

Select Single host or alias from the Source drop-down menu and enter the public address that can connect to the pfSense firewall.

Add these options in Destination:

Destination: WAN address
Destination Port Range From: HTTPS
Destination Port Range To: HTTPS

Click Save.

Click Apply Changes to activate the rule.

The administration interface of pfSense is then accessible from the Internet, on the authorized network via this URL https://WANaddress, here https://123.123.123.5.

Step 4 Setting up the IPsec VPN

Now that the two gateways have been replaced, we will configure the IPsec VPN to allow communication between the two clusters.

Step 4.1 Setting Up the Site in Datacenter 1

Step 4.1.1 Set up IPsec VPN in Datacenter 2

Connect from an authorized network to Datacenter 1's public address in HTTPS with this URL https://publicaddress-pfsense-Datacenter1.

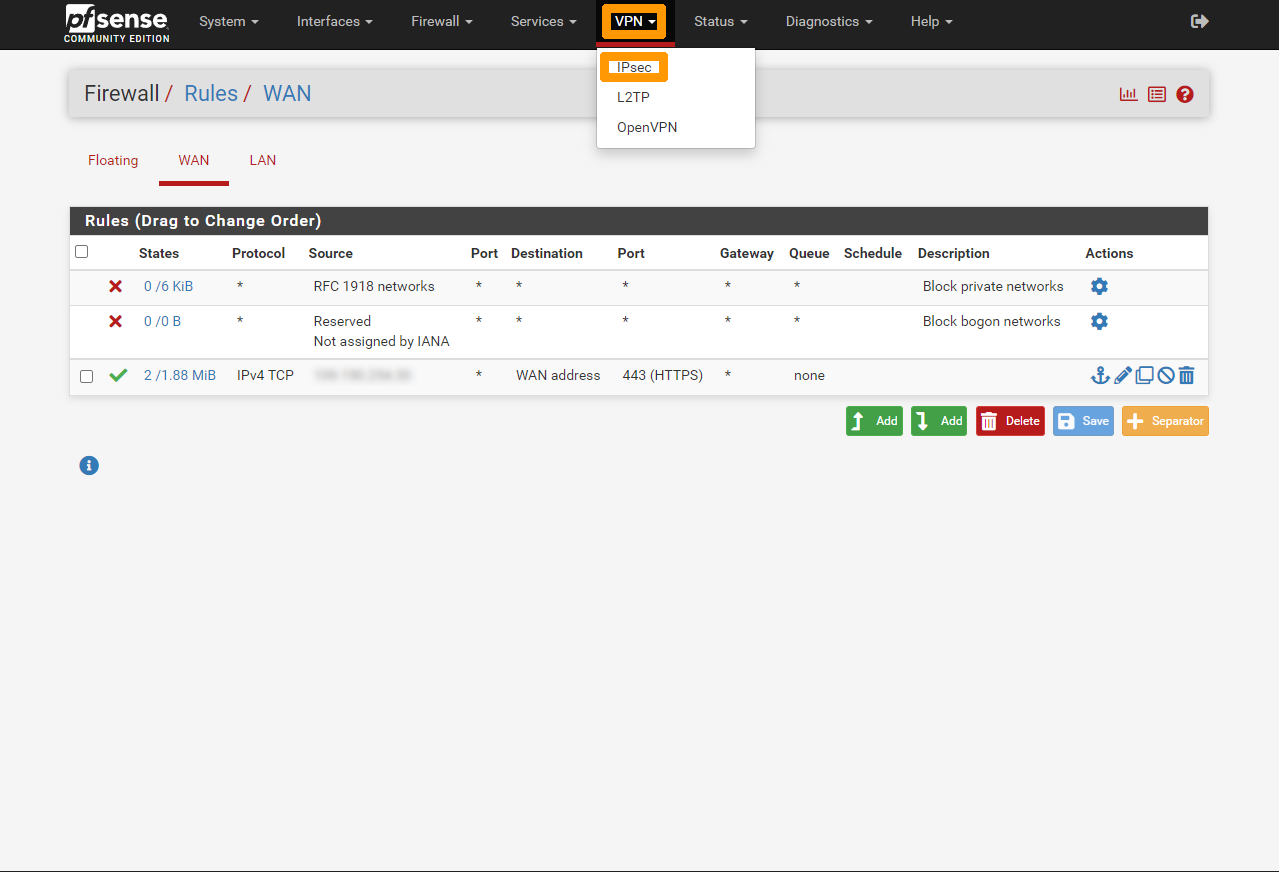

Go to the VPN menu and choose IPsec.

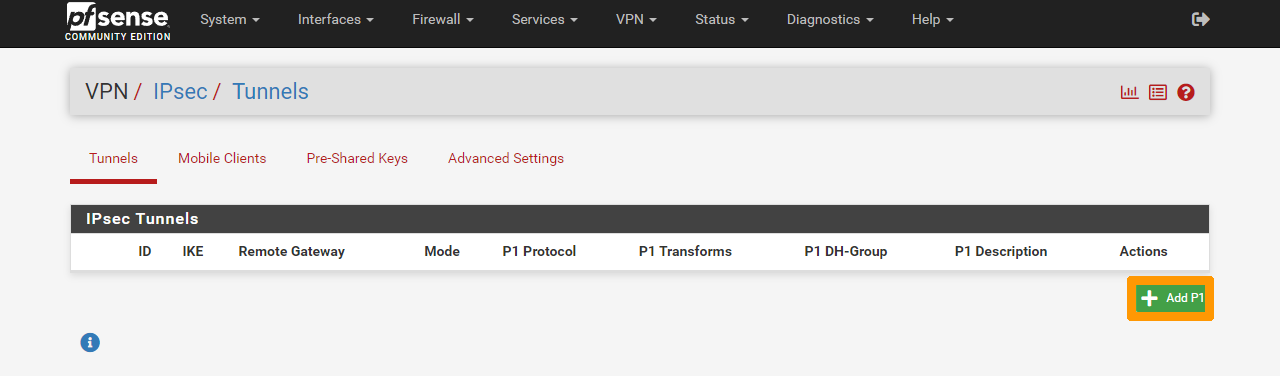

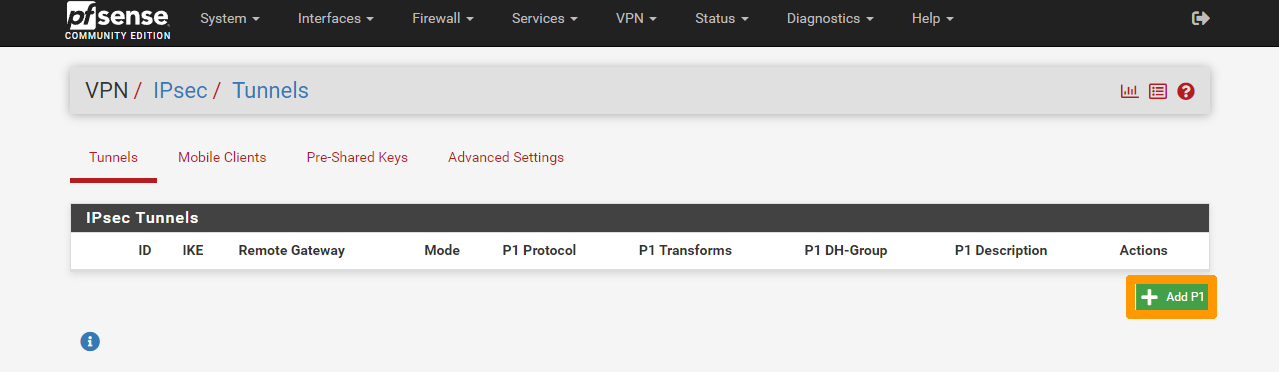

Click Add P1 to create IPsec VPN Phase 1.

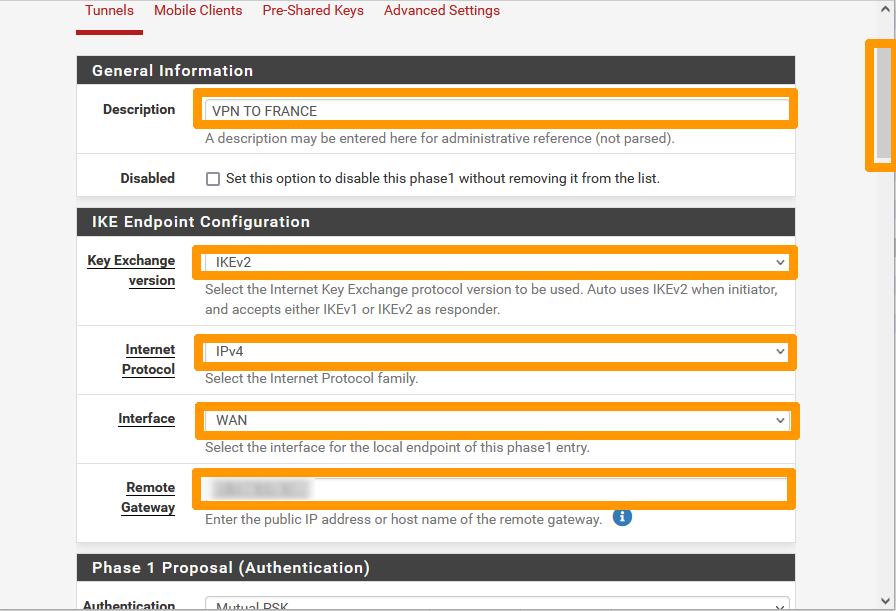

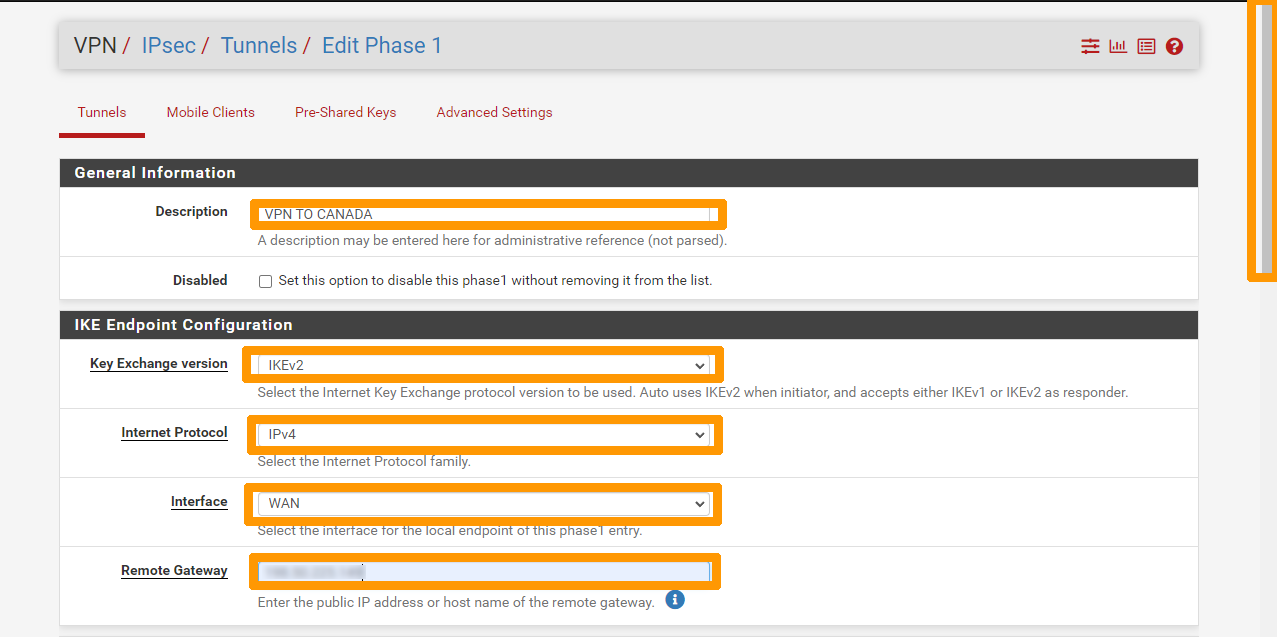

Enter this information:

Description: VPN TO DATACENTER 2
Key Exchange version: IKEv2
Internet Protocol: IPv4
Interface: WAN
Remote Gateway: Public address of the pfSense virtual machine in Datacenter 2

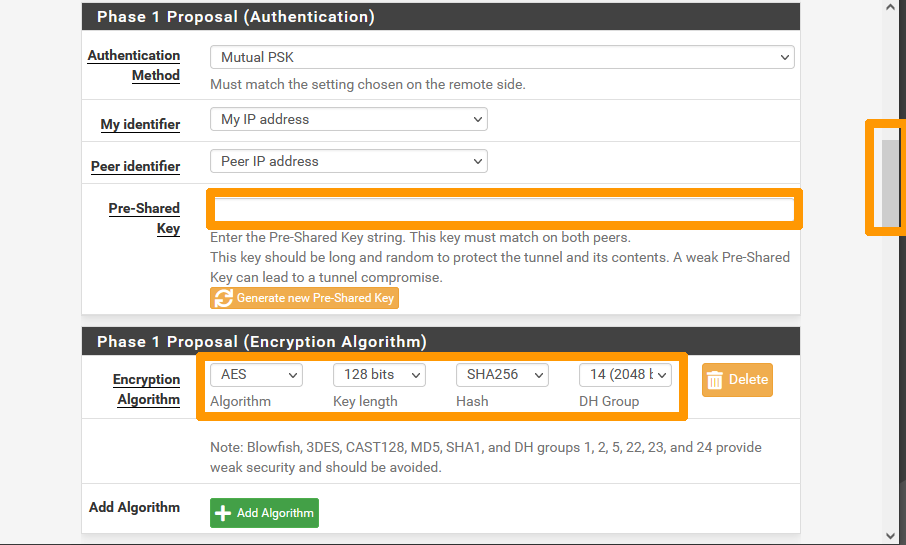

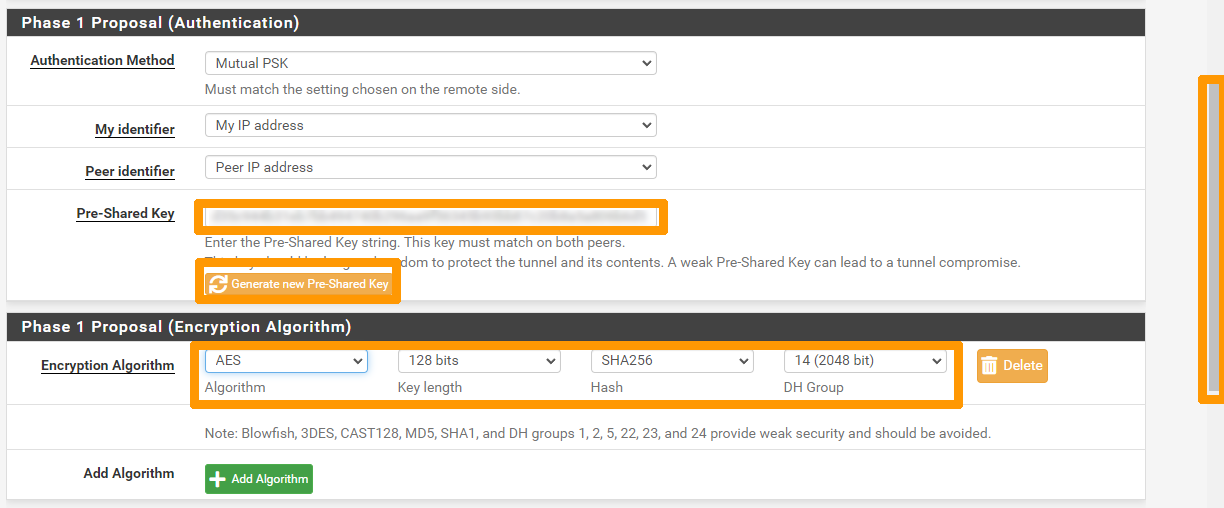

Click Generate new Pre-Shared Key to generate a pre-shared key in the Pre-Share Key field.

NOTE: Write down or copy the key, it will be used for the VPN configuration on the gateway in Datacenter 2.

Keep the information in Encryption Algorithm.

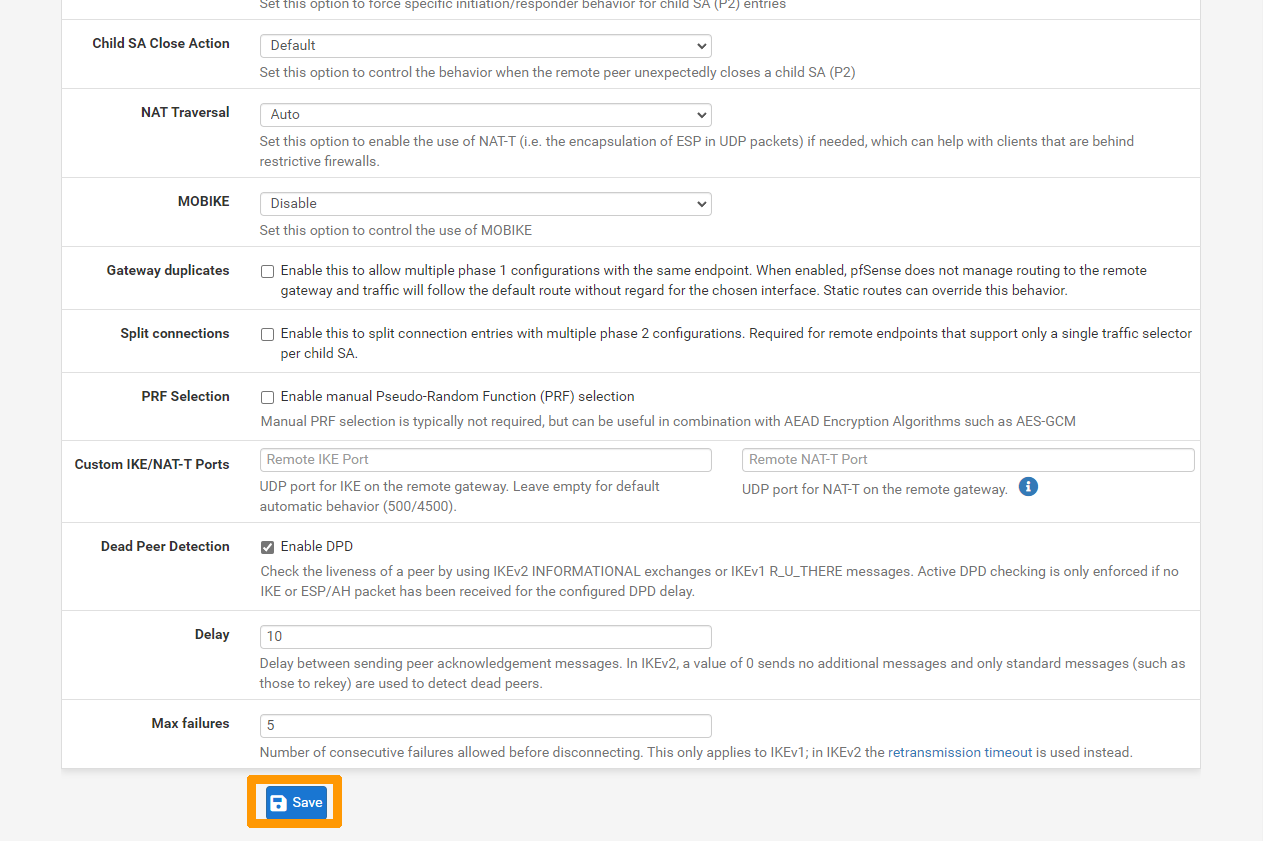

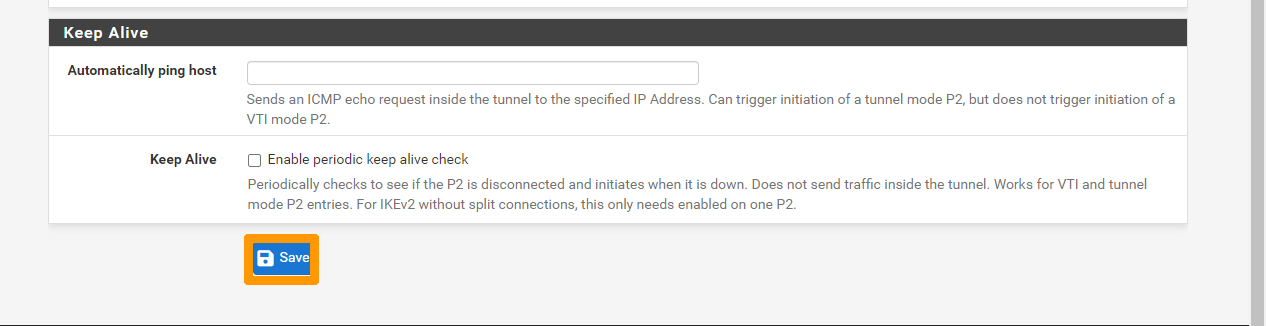

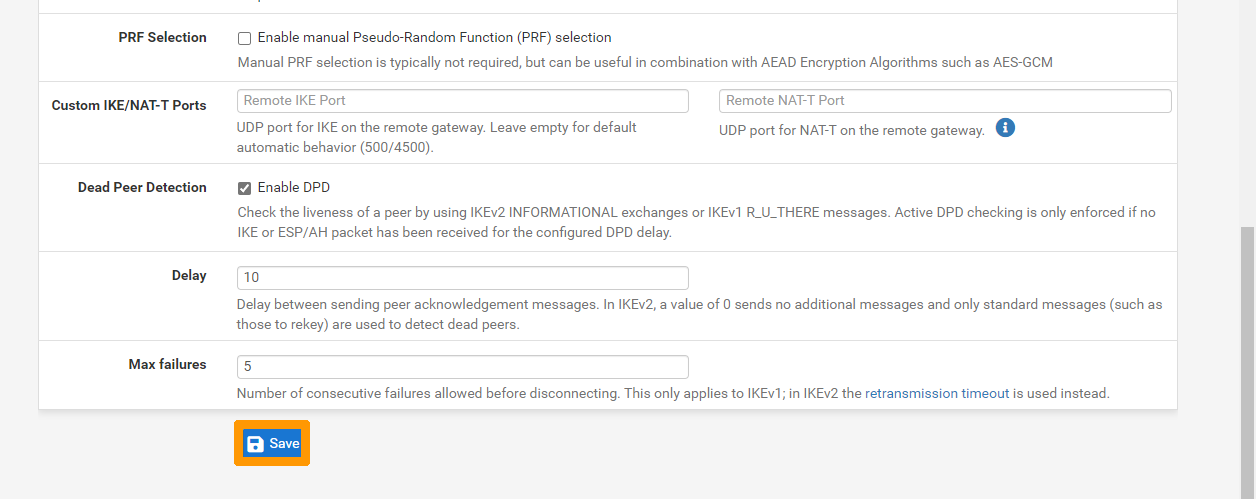

Click Save at the bottom of the menu.

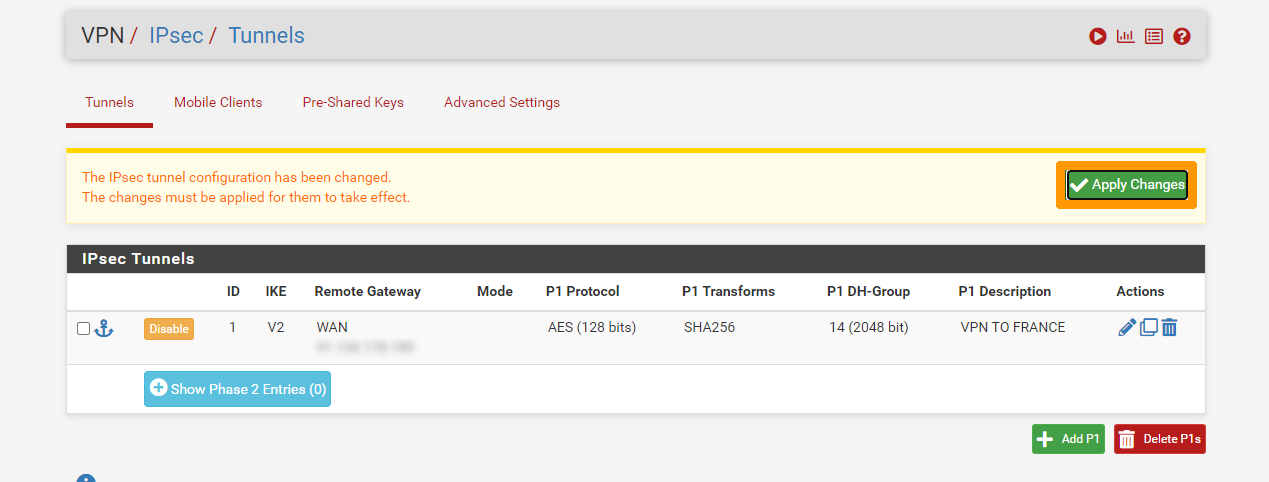

Click Apply Changes.

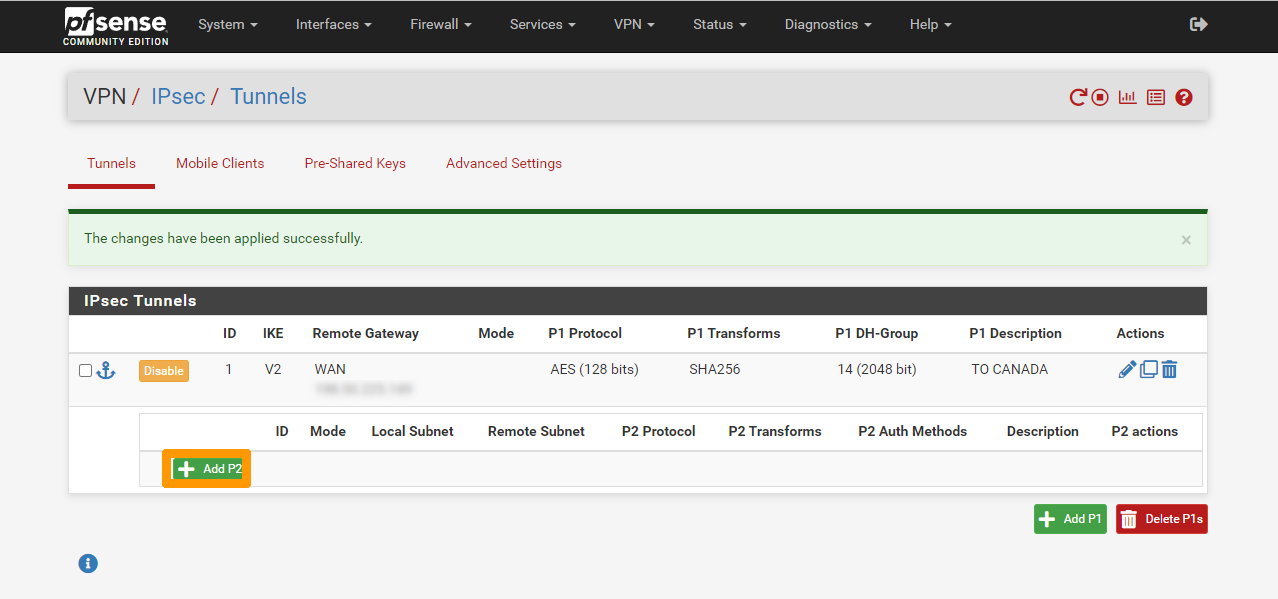

Click Show Phase 2 Entries.

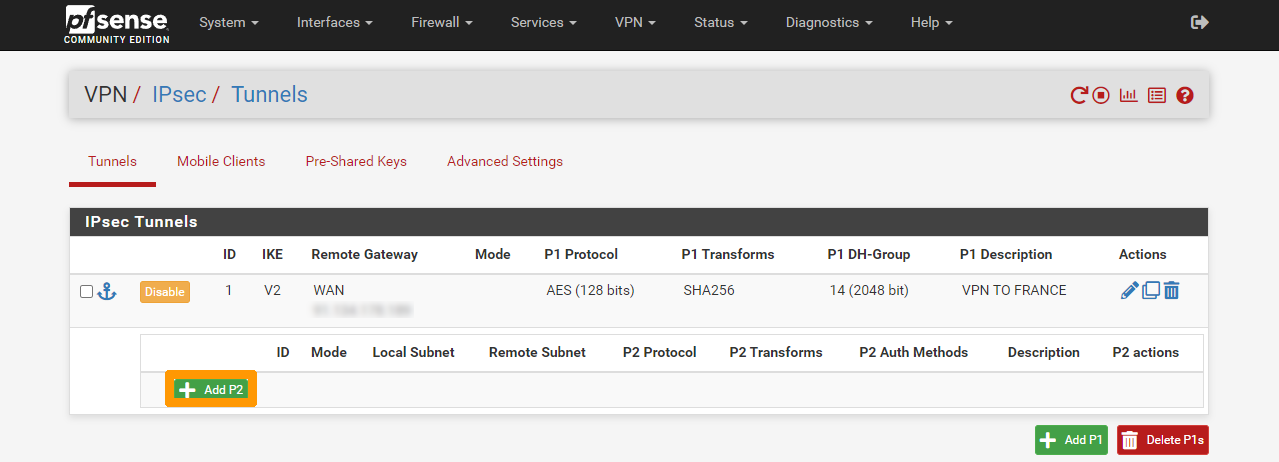

Click Add P2 to add IPsec VPN Phase 2.

Enter this information:

Description: TO LAN 192.168.0.0/24 Datacenter 2
Local Network: Subnet LAN
Remote Network: Type Network, Address 192.168.0.0/24

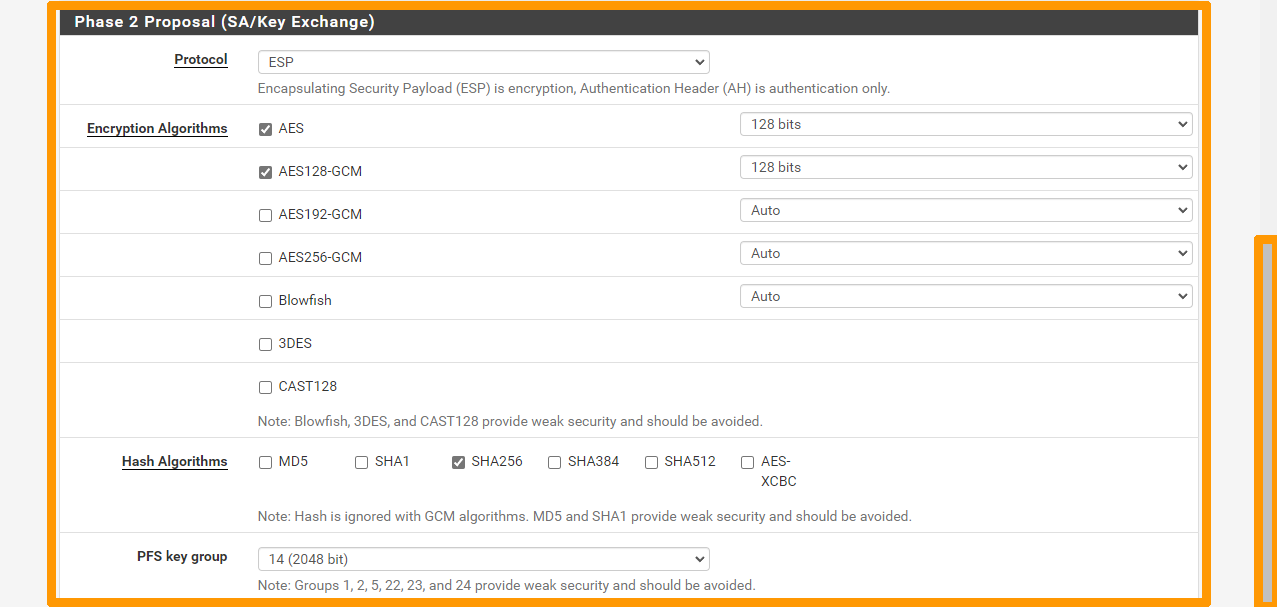

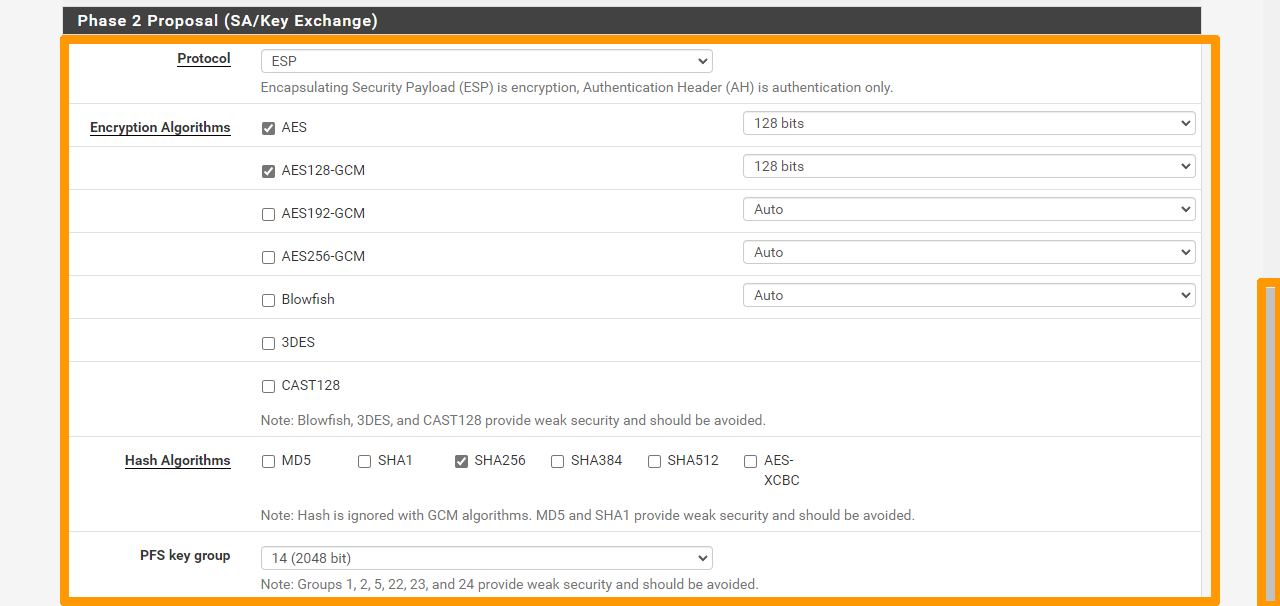

NOTE: Take note of the encryption settings.

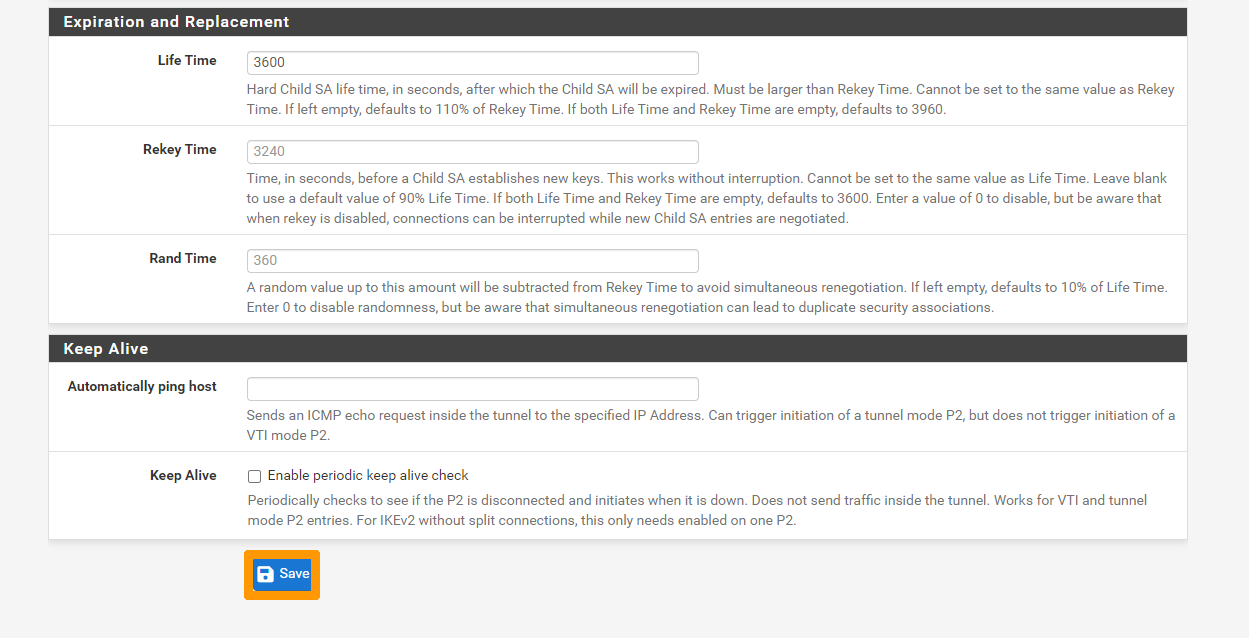

Click Save.

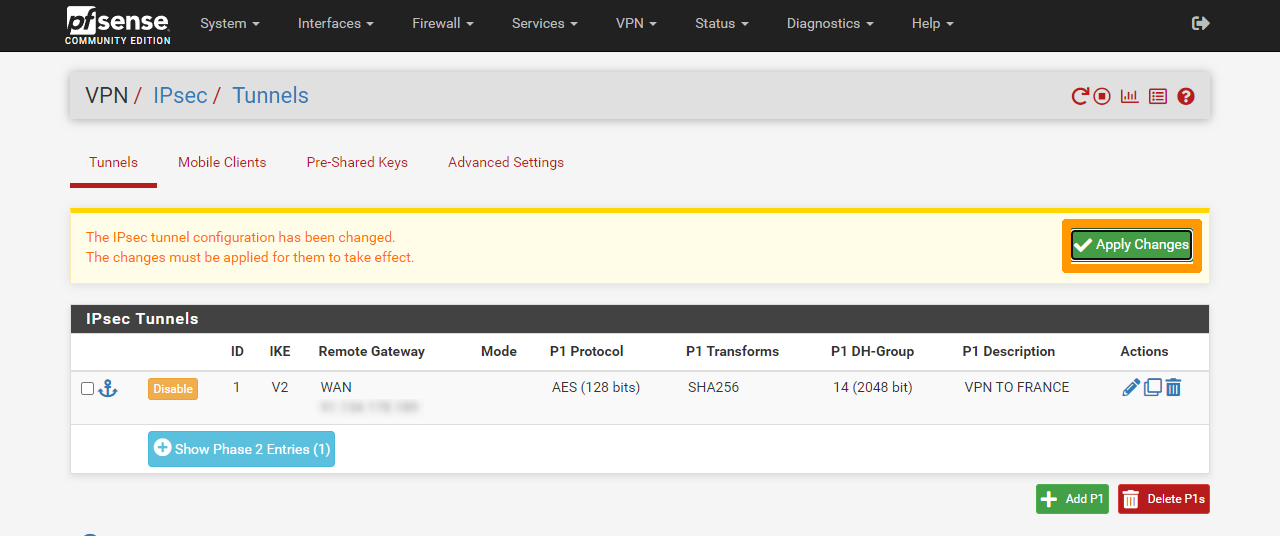

Click Apply Changes to complete the creation of the IPsec VPN on Datacenter 1's pfSense virtual machine.

Step 4.1.2 Adding a firewall rule to allow network flow through the IPsec VPN between Datacenter 1 and Datacenter 2

Click Rules in the Firewall menu.

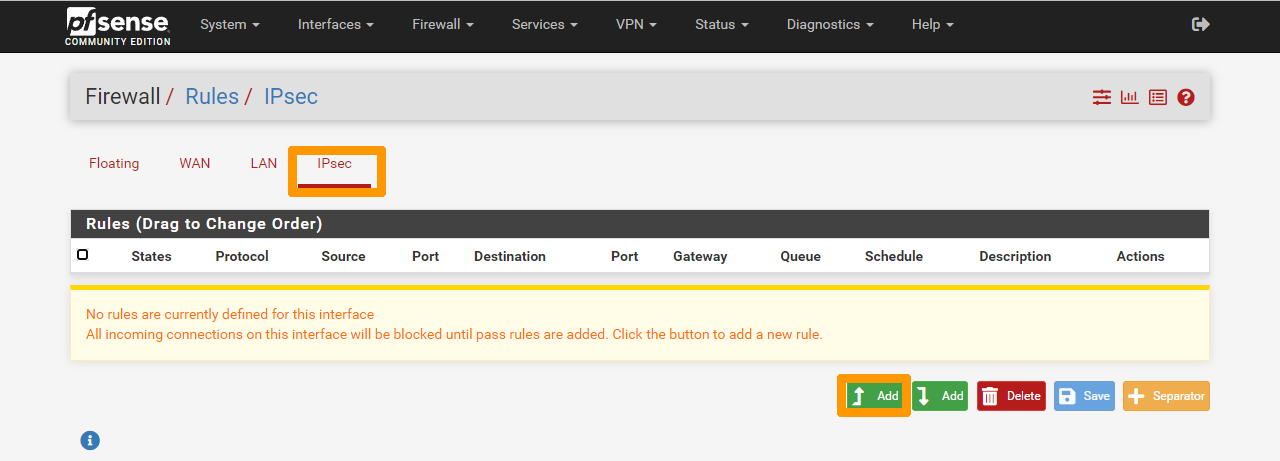

Go to the IPsec tab and click the Add button (at the bottom with the up arrow).

Modify these options:

Source: Net LAN
Destination: Network and 192.168.0.0/24

Then click Save.

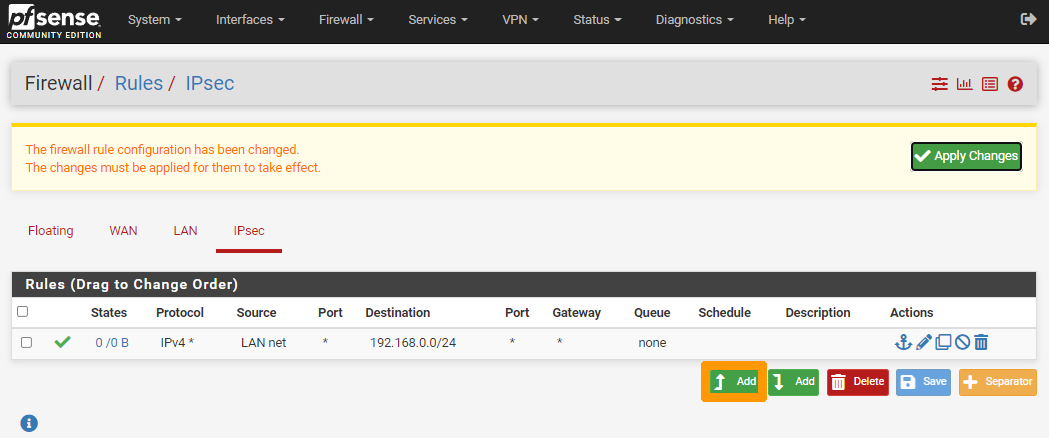

Click the same Add button again (at the bottom with the up arrow) to add a second rule.

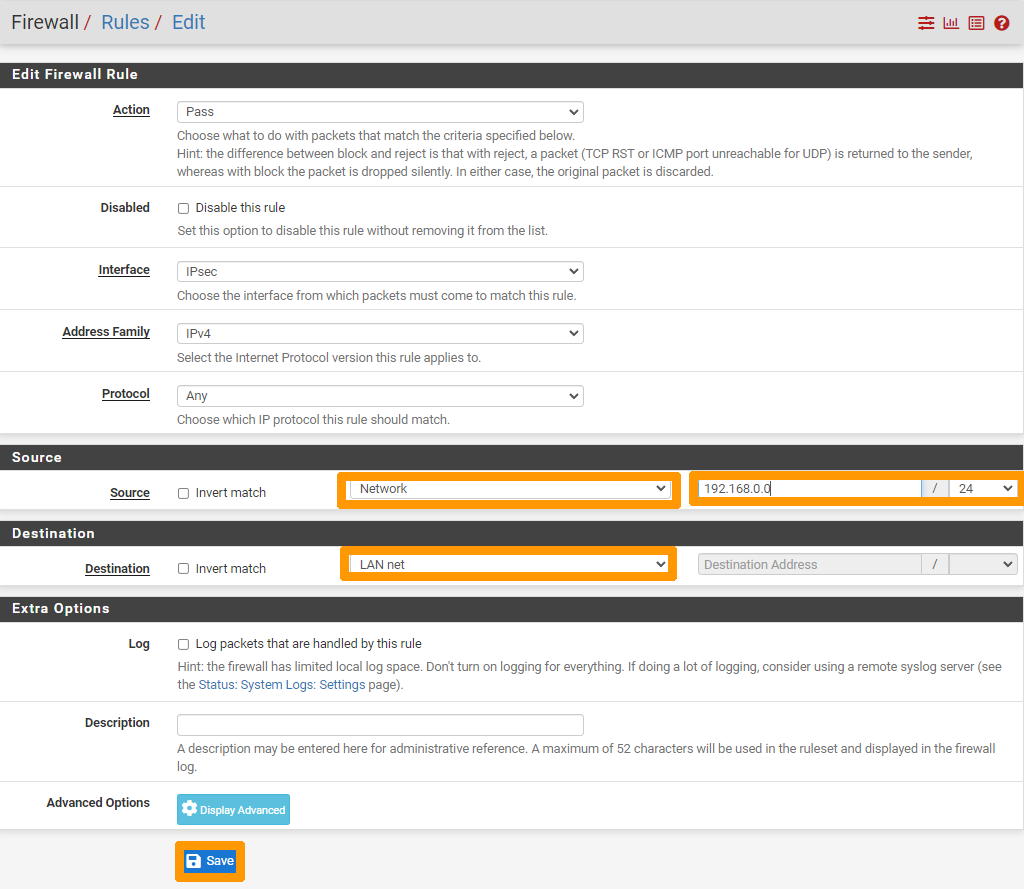

Modify these options:

Source: Network et 192.168.0.0/24
Destination: Net LAN

Click Save.

Click Apply Changes.

The setting on the bridge in Datacenter 1 is then completed.

Step 4.2 Website configuration in Datacenter 2

Step 4.2.1 Set up IPsec VPN to Datacenter 1

Go to the VPN menu and choose IPsec.

Click Add P1 to create IPsec VPN Phase 1.

Choose this information:

Description: VPN TO DATACENTER 1
Key Exchange version: IKEv2
Internet Protocol: IPv4
Interface: WAN
Remote Gateway: Public address of the pfSense virtual machine in Datacenter 1
