Setting up Multicloud Snapshot Technology (MST) on a Nutanix on OVHcloud infrastructure

Find out how to deploy and configure Multicloud Snapshot Technology (MST) on a Nutanix on OVHcloud infrastructure with OVHcloud object storage.

With MST, you can replicate snapshots (UVM/Volume Groups) to S3™*-compatible storage to optimize TCO, improve data mobility, and simplify disaster recovery (DR.) using a zero-compute model.

Overview & advantages

Main features:

• Periodic replication of snapshots to S3™ buckets (typical RPO: 1 hour via the Nutanix DR. infrastructure).
• Model Zero-Compute: No need to maintain compute standby nodes.
• Store recent snapshots on the main cluster; offload older snapshots to object storage.
• Restore anywhere Nutanix Cloud Platform (NCP): cloud, edge, on-prem.
• Native integration with Prism Central and existing DR. workflows.

Functional limits (Instance Small):

• Up to 2000 protected entities.
• 75 Recovery Points per entity.
• 300 TB of supported active data.

Benefits:

• Reduced TCO (reduced/no standby compute, less expensive object storage).
• Mobility: Retrieve workloads on different NCP environments.
• Manageability via Prism.

Requirements

• A Nutanix cluster in your OVHcloud account
  • If not done already, replace the OVHgateway on your cluster
• Access to the Prism Central interface (only an admin can deploy MST) with:
  • AOS 7.3 minimum (in Prism Central, Infrastructure > Hardware > Clusters)
  • Prism Central 7.5.1 minimum (in Prism Central, <User Name> in the top-right corner > About Nutanix)
• Verify that you have the following resources available in your environment:
  • 3 static IP addresses reserved (outside the DHCP range of the subnet MST).
  • 4 IP addresses from the DHCP range of the MST subnet (consumed by the 4 MST VMs).
  • 3 × Controller VMs: 10 vCPU / 24 GiB RAM each.
  • 1 × Load Balancer VM: 2 vCPU / 4 GiB RAM.

Instructions

Prepare the environment

Create the Object Storage container (Bucket)

To create the container, you first need to create a project: Create your first Public Cloud project - OVHcloud.

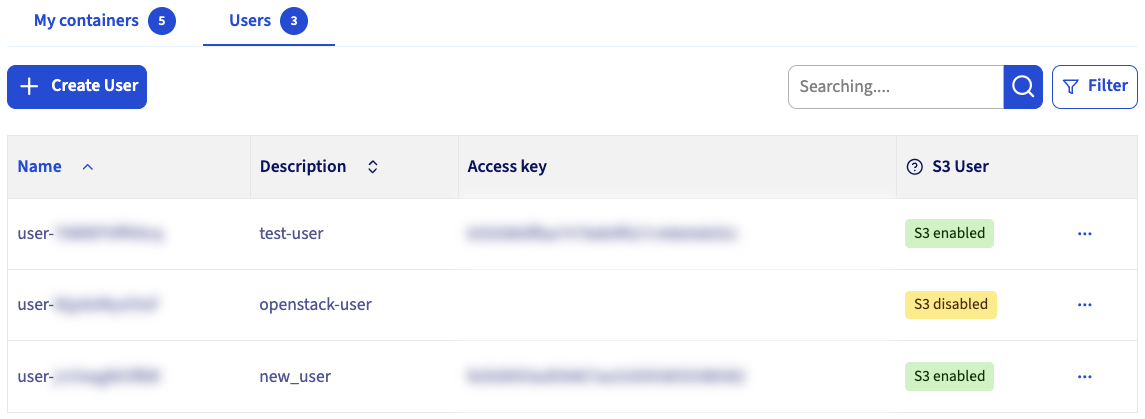

In the Public Cloud universe, navigate to the Object Storage section and choose the Users tab.

Create a user, e.g., admin-mst.

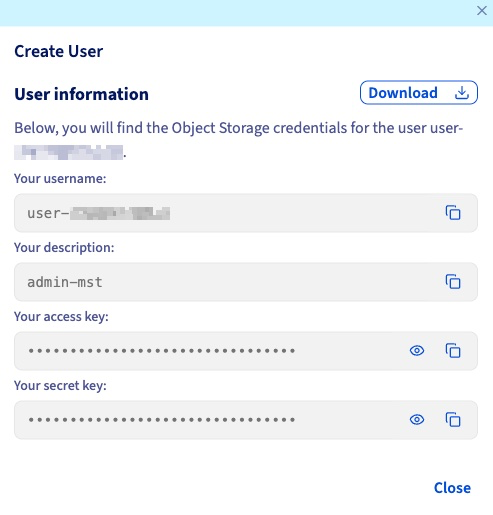

Please note the Access key and Secret key for that user:

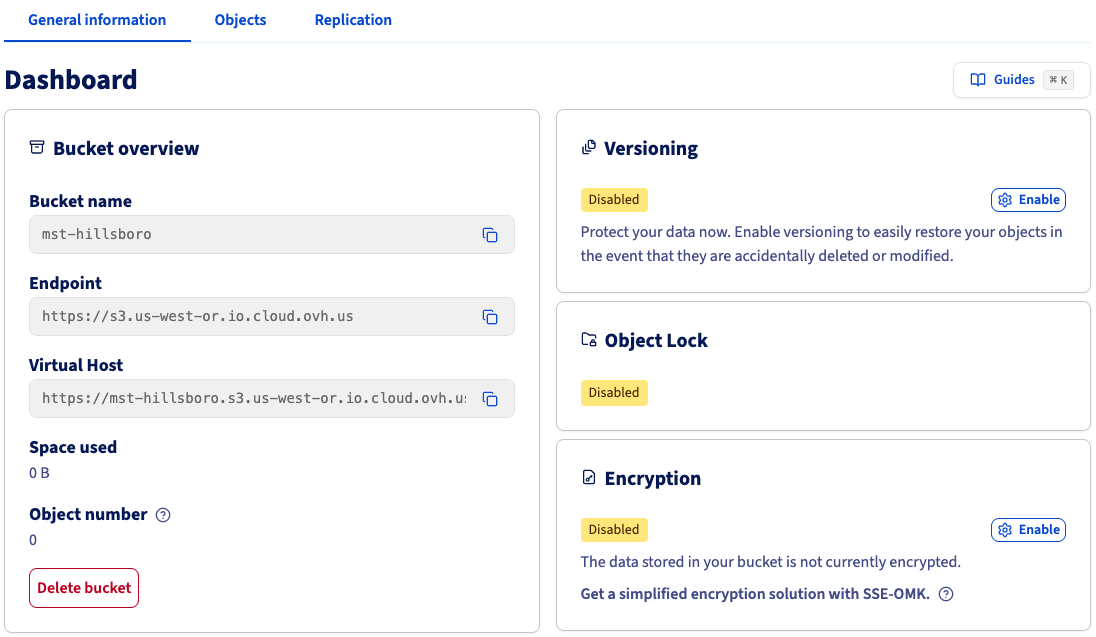

Then create a container (bucket). See our Getting started with Object Storage guide for full instructions.

In this example, a container was created in Hillsboro, since the Nutanix cluster is in Vint Hill. This improves data resilience.

Activate the Marketplace

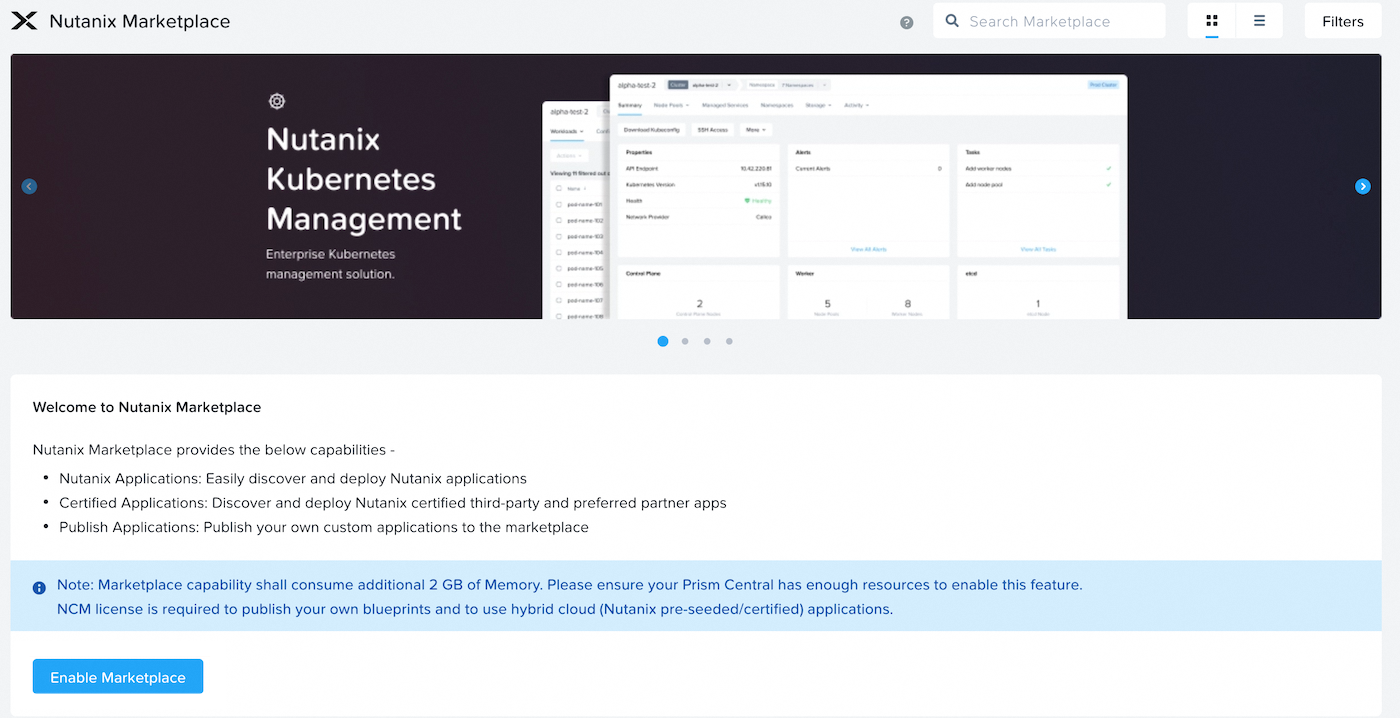

Log in to Prism Central, go to the admin center, then click Enable Marketplace.

Enable Network Controller

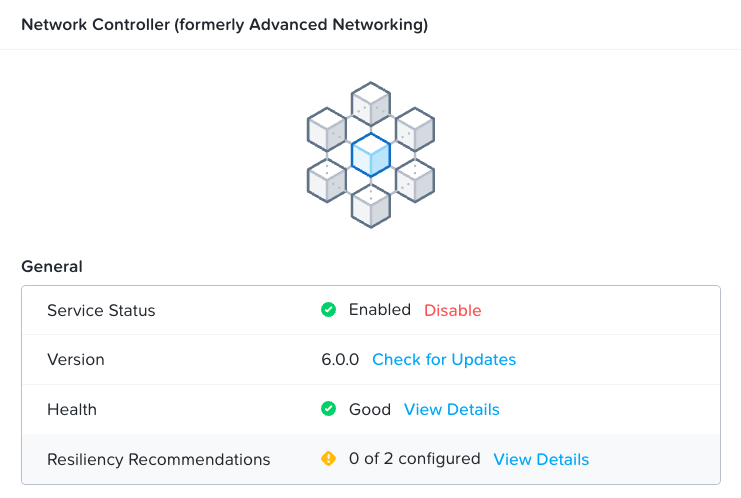

In Infrastructure go to Prism Central Settings, click Network Controller then Enable.

Create a subnet dedicated to MST

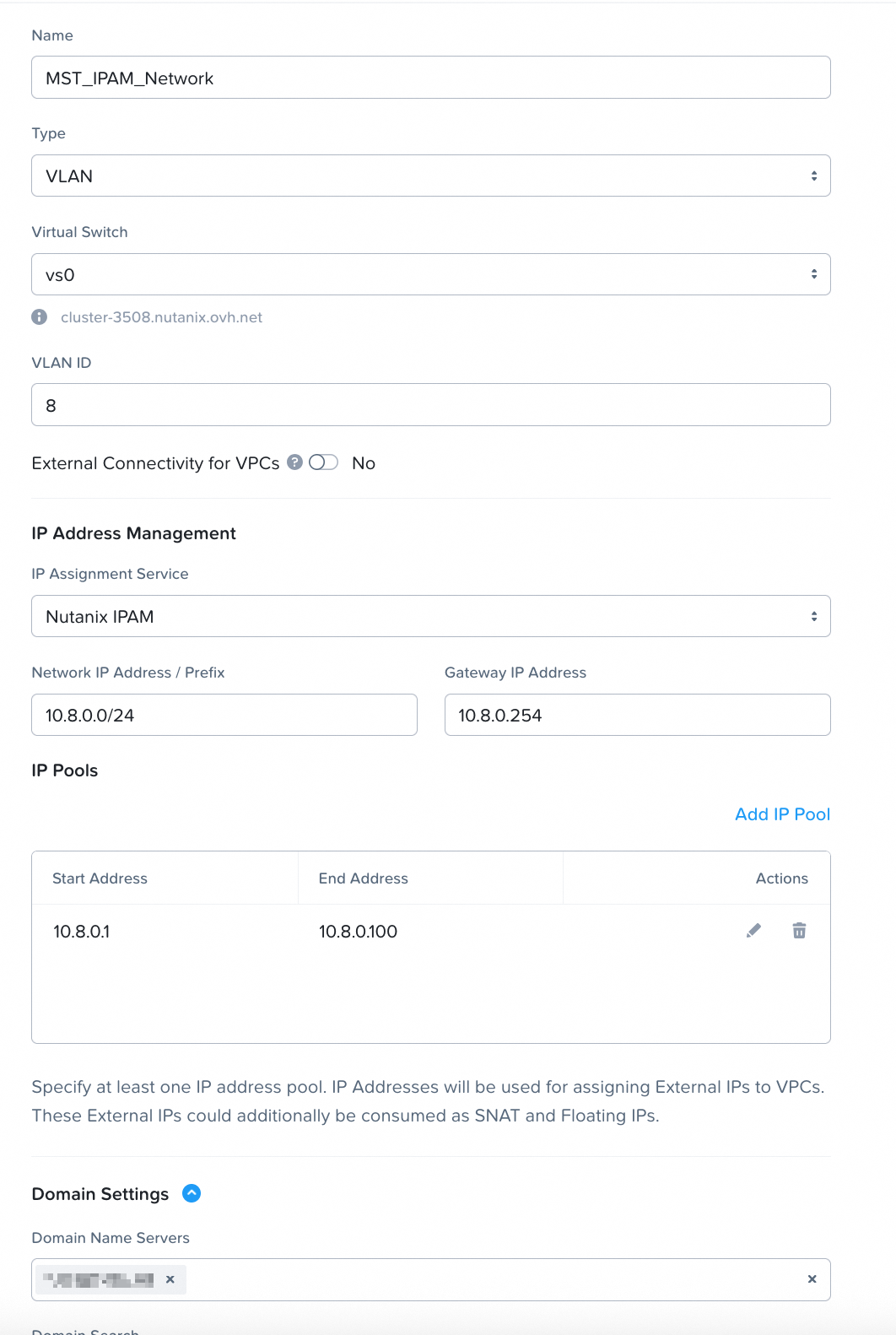

Navigate to Network & Security > Subnets > Create Subnet.

We will create an IPAM subnet with a DHCP for using MST.

Reconfigure the Gateway

Navigate to Compute > VMs > <your gateway VM>.

Select the NIC tab and click + Attach to Subnet.

You will need to reconfigure the gateway with the new network.

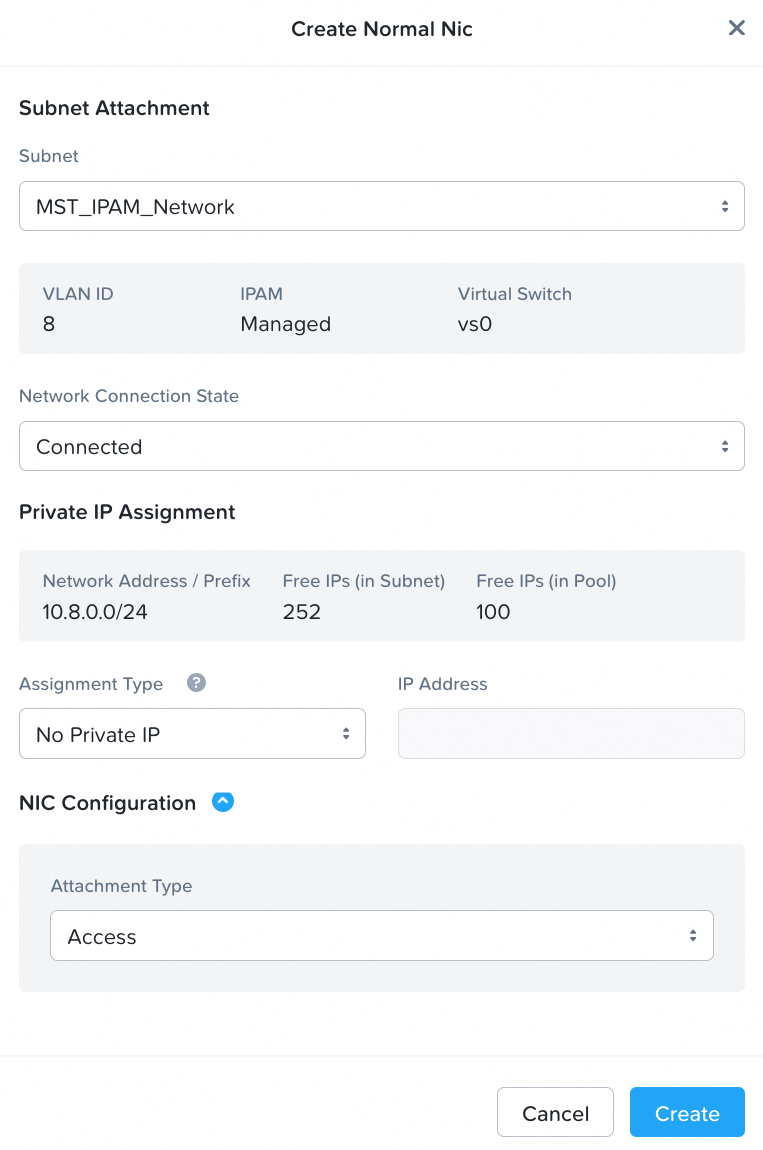

Add a NIC to your VM:

Then reconfigure your gateway with the IP defined in the IPAM network creation.

For example, on an Alpine VM:

We would add:

auto eth3
iface eth3 inet static
address 10.8.0.254
netmask 255.255.255.0

Restarting network services:

Deploy Multicloud Snapshot Technology

1. Log in to Prism Central as an administrator.
2. Go to Admin Center > Marketplace.

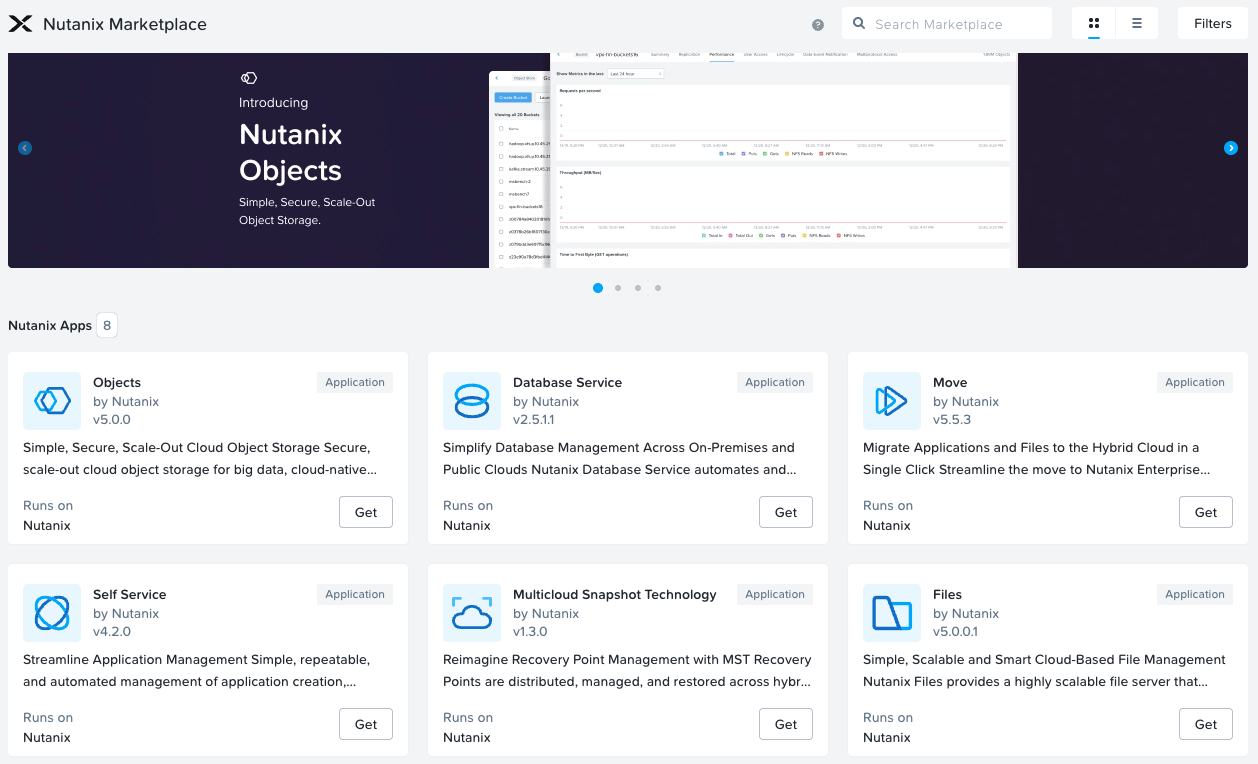

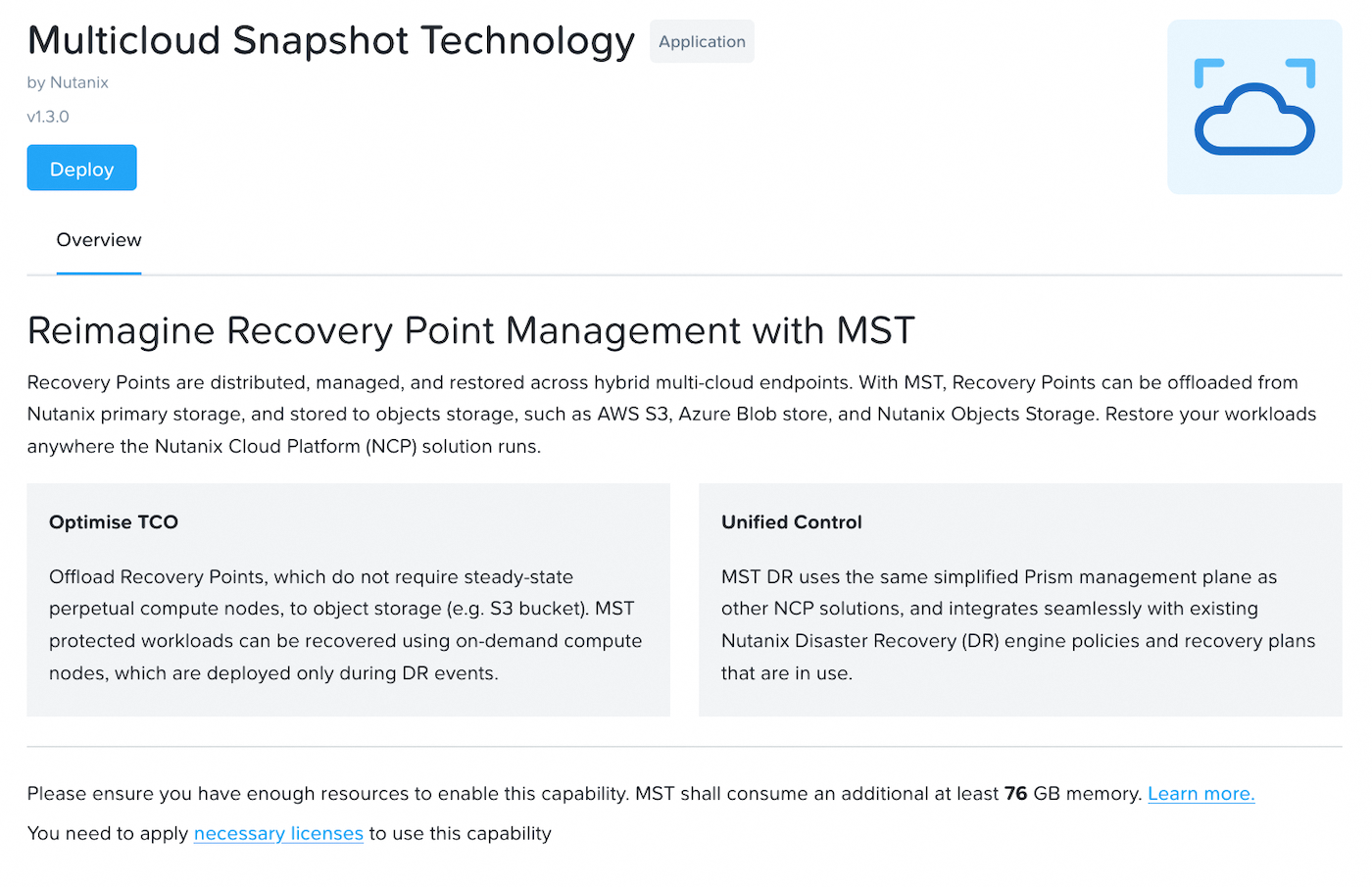

3. In Nutanix Apps, click Get for Multicloud Snapshot Technology.

On the introduction page, click Deploy.

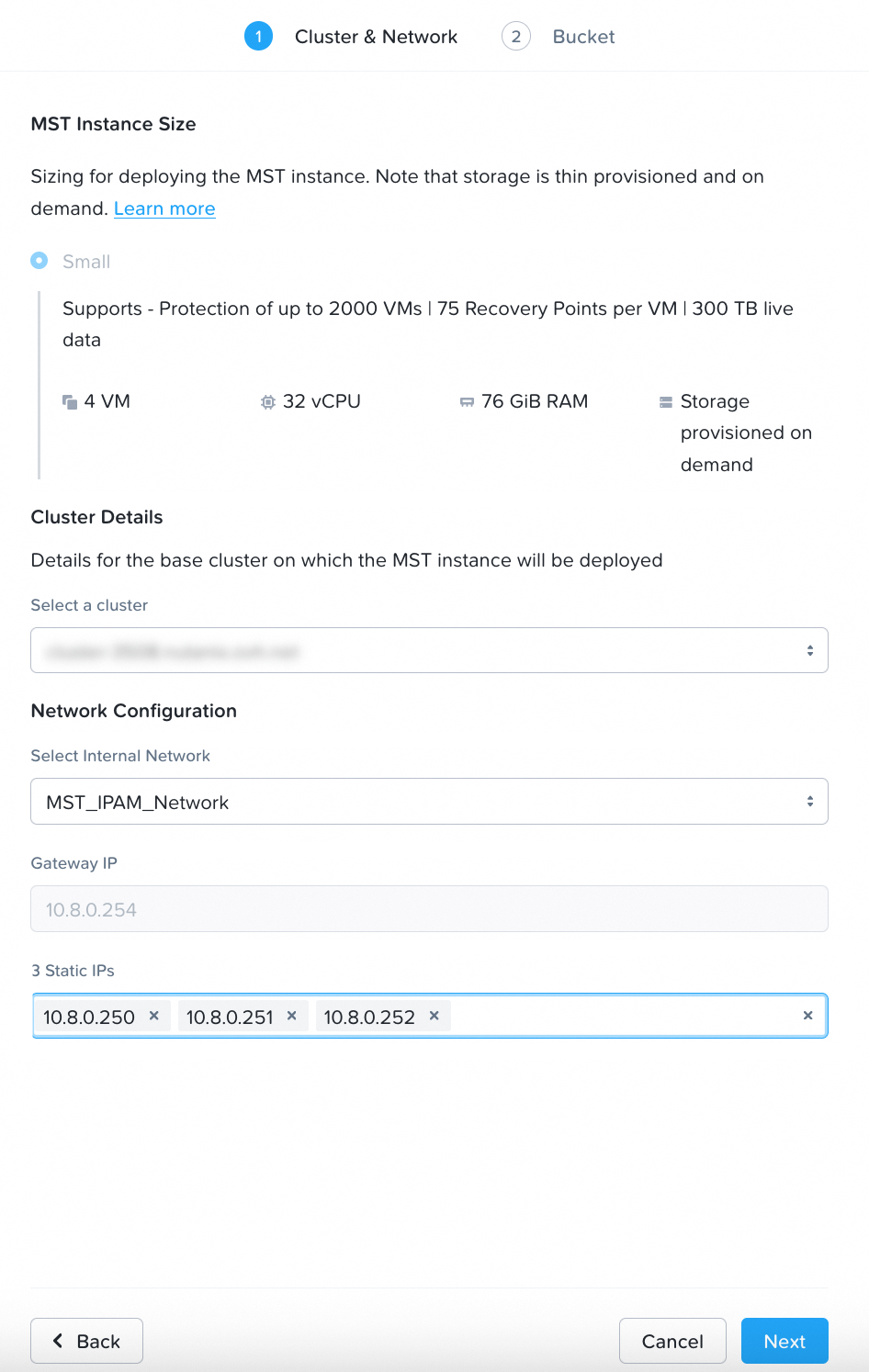

Then configure the MST instance:

• MST Instance Size: Select Small (or other size if available).
• Cluster Details: Choose the target Prism Element cluster.
• Network Configuration: Select the MST subnet created.
• Enter the 3 reserved static IPs (that are outside the DHCP range) in the expected fields.

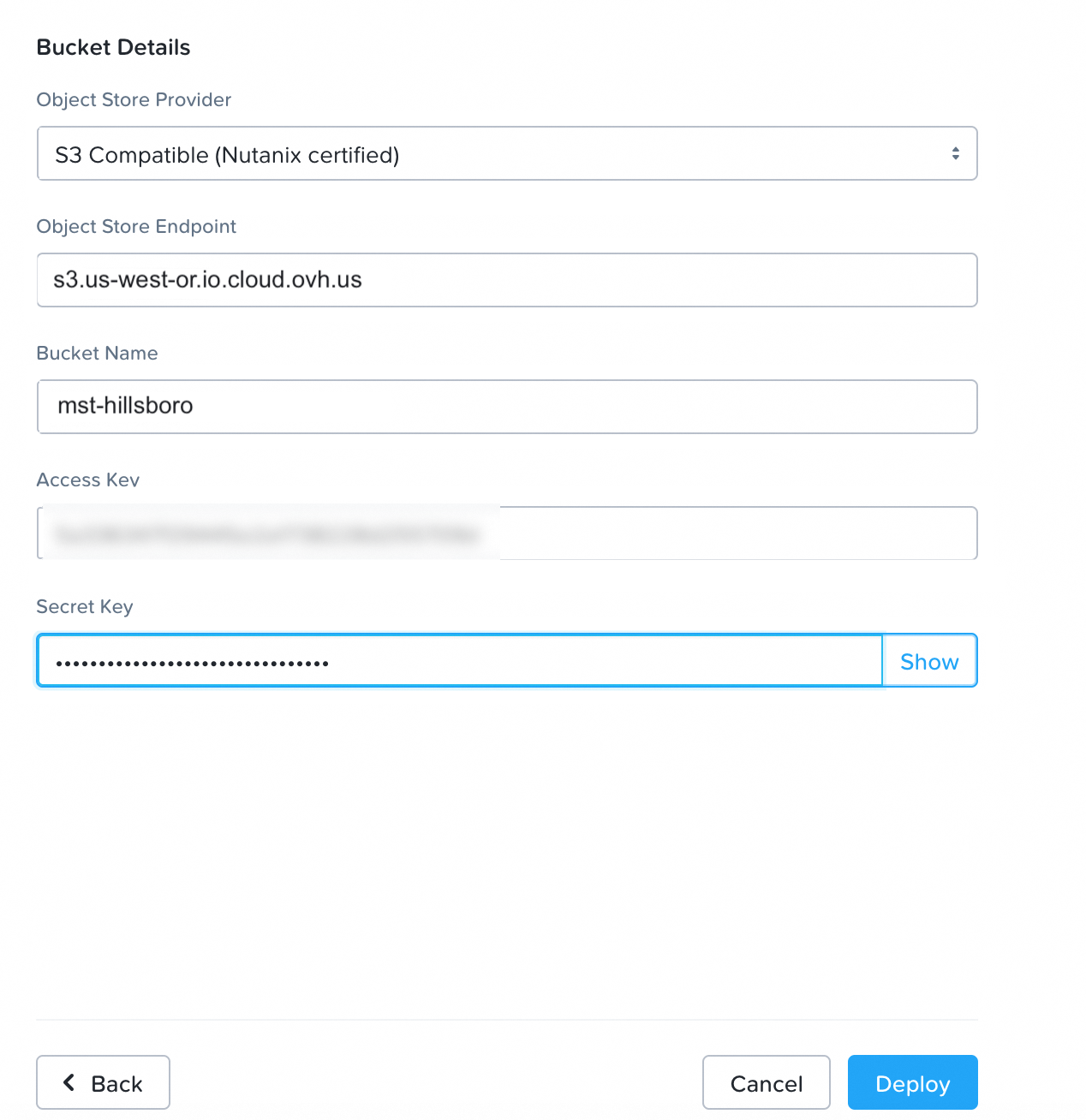

• Object Store Provider: Select S3 Compatible (Nutanix certified).
• Object Store Endpoint: Enter your container's endpoint URL, in our example s3.us-west-or.io.cloud.ovh.us.
• Bucket Name: Enter the name of your container. In our example, mst-hillsboro.
• Access Key: Enter your container’s Access Key.
• Secret Key: Enter the Secret Key of your container.

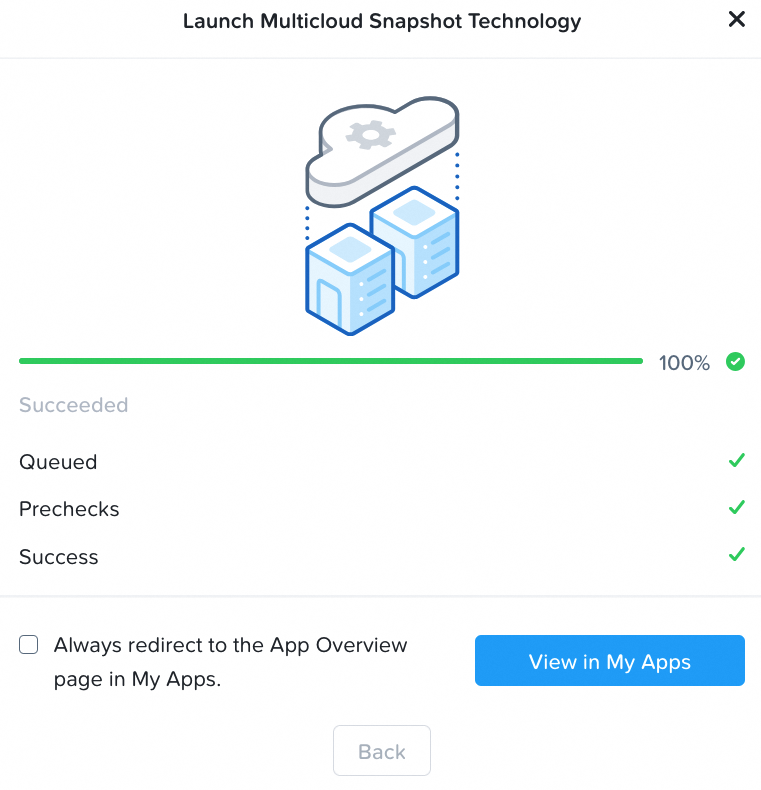

Launch the deployment.

Disaster Recovery: Use and configuration

Once you have deployed an MST and connected it to your Object Storage bucket, you can configure how your workloads are protected and restored.

Entity protection

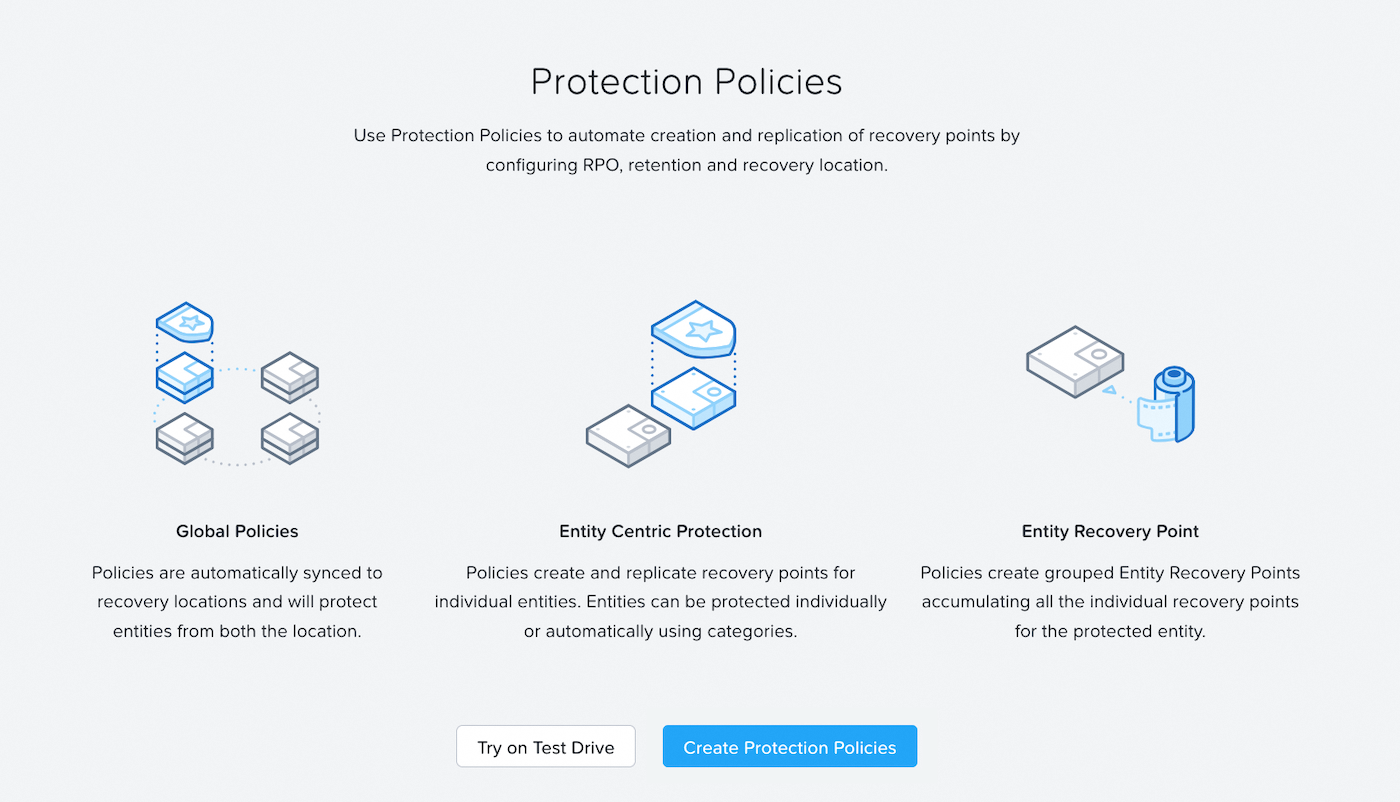

From Prism Central, go to Protection Policies and click Create Protection Policies.

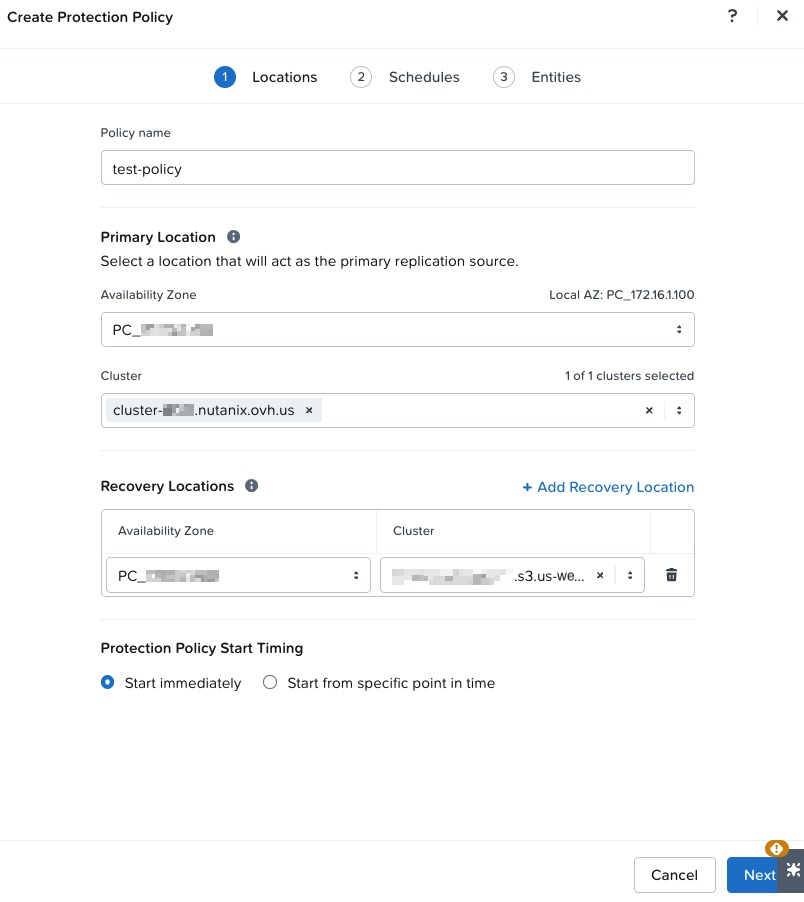

Define the Policy name and enter your cluster in the Primary location field.

In the Recovery Location box, keep Local AZ and select the container (Bucket) previously configured.

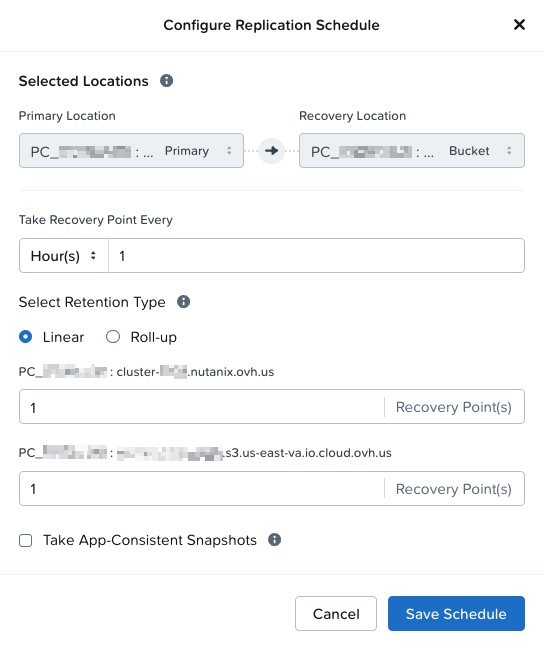

On the next screen, click Configure to the right of the replication rule.

Specify the following:

• The frequency of snapshots (every hour by default).
• The number of Recovery Points to keep locally.
• The number of Recovery Points to keep on the OVHcloud S3™ container.

From here, navigate to VMs to select the VMs you want to protect.

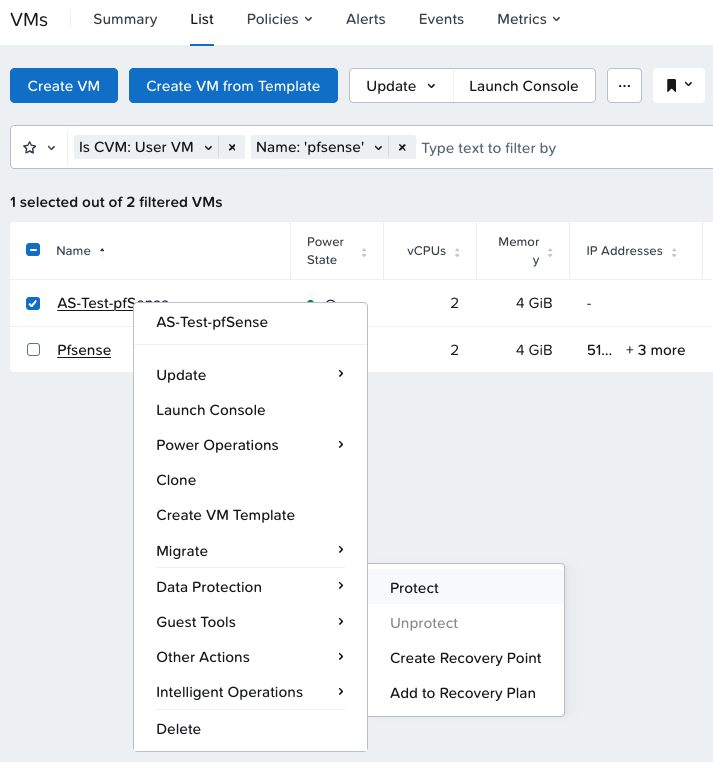

• If you are protecting a single VM: Right-click on the VM's name, choose Data Protection, and then Protect.
• If you are protecting multiple VMs: Choose the action ... menu from the toolbar, choose Data Protection, and then Protect.

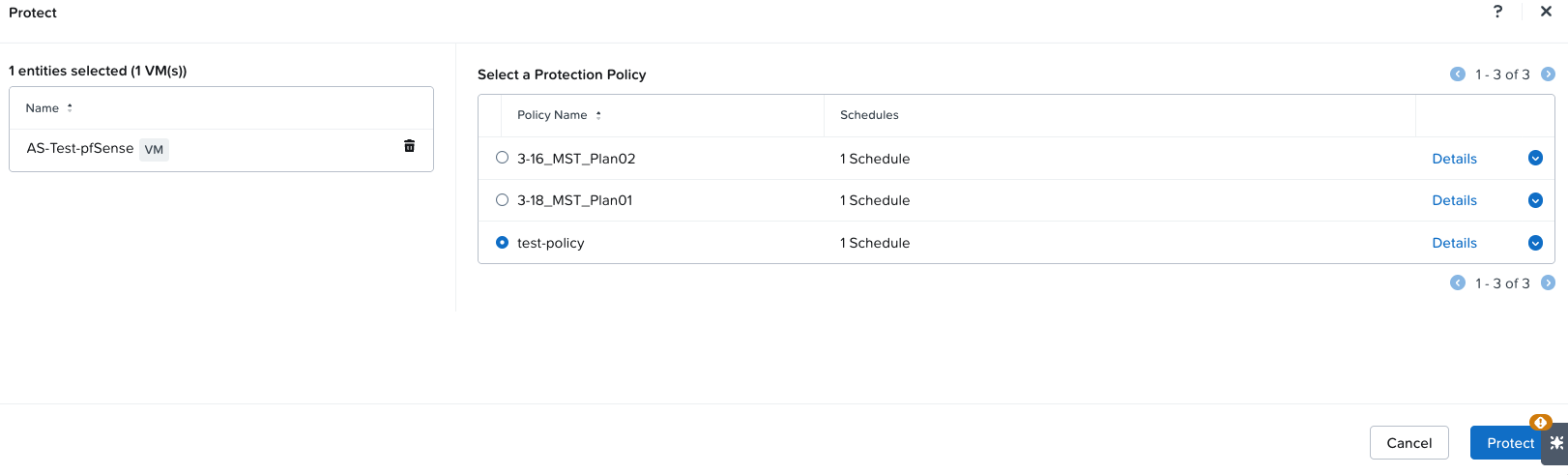

Then select the Protection Policy you created earlier:

Restoration

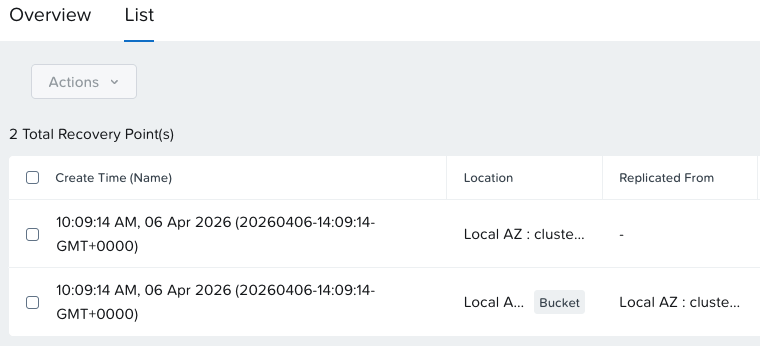

To restore a VM, navigate to Data Protection > VM Recovery Points and select a Recovery Point available in the bucket.

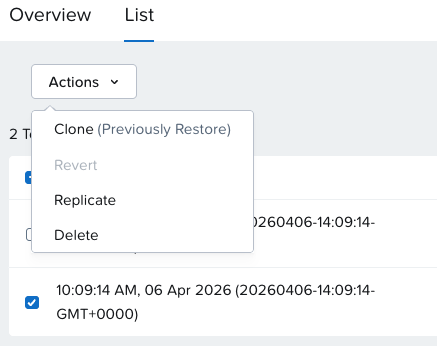

From here, use the Actions menu and choose Clone.

Typical use cases

• Disaster Recovery (DR): Total loss of the source cluster → deployment of VMs on another Nutanix cluster linked to the same OVHcloud bucket.
• Workloads migration: Move an application to another site (edge or cloud) by importing snapshots from the bucket.
