When you order a new Public VCF as-a-Service organization, a vRack and a block of public IP addresses are delivered. To assign those public IPs to workloads, you must declare the block’s gateway inside the target VCD Virtual Datacenter.
This guide shows how to retrieve the correct gateway and add it to your VDC.
Requirements
- A Public VCF as-a-Service organization with a delivered public IP block
- Technical administrator rights on VMware vSphere on OVHcloud
- You must have completed the steps in our Public VCF as-a-Service - Linking a public IP block with vRack guide
OVHcloud Control Panel Access
- Direct link: Public VCF as-a-Service
-
Navigation path:
Hosted Private Cloud>Public VCF as-a-Service> Select your organization
Instructions
NOTE: These instructions presume that you have already completed all steps in our Public VCF as-a-Service - Linking a public IP block with vRack guide.

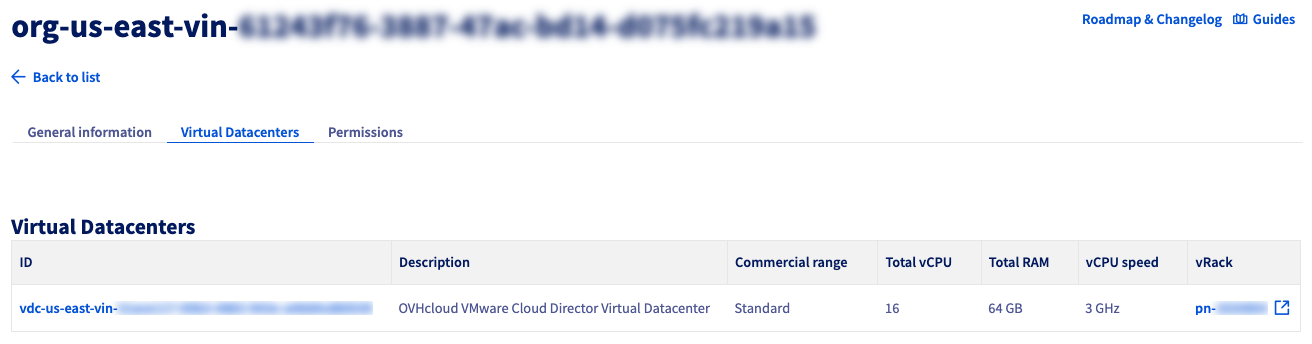

Once you have selected your Public VCF as-a-Service organization, select the Virtual Datacenters tab and click the ID of your virtual datacenter.

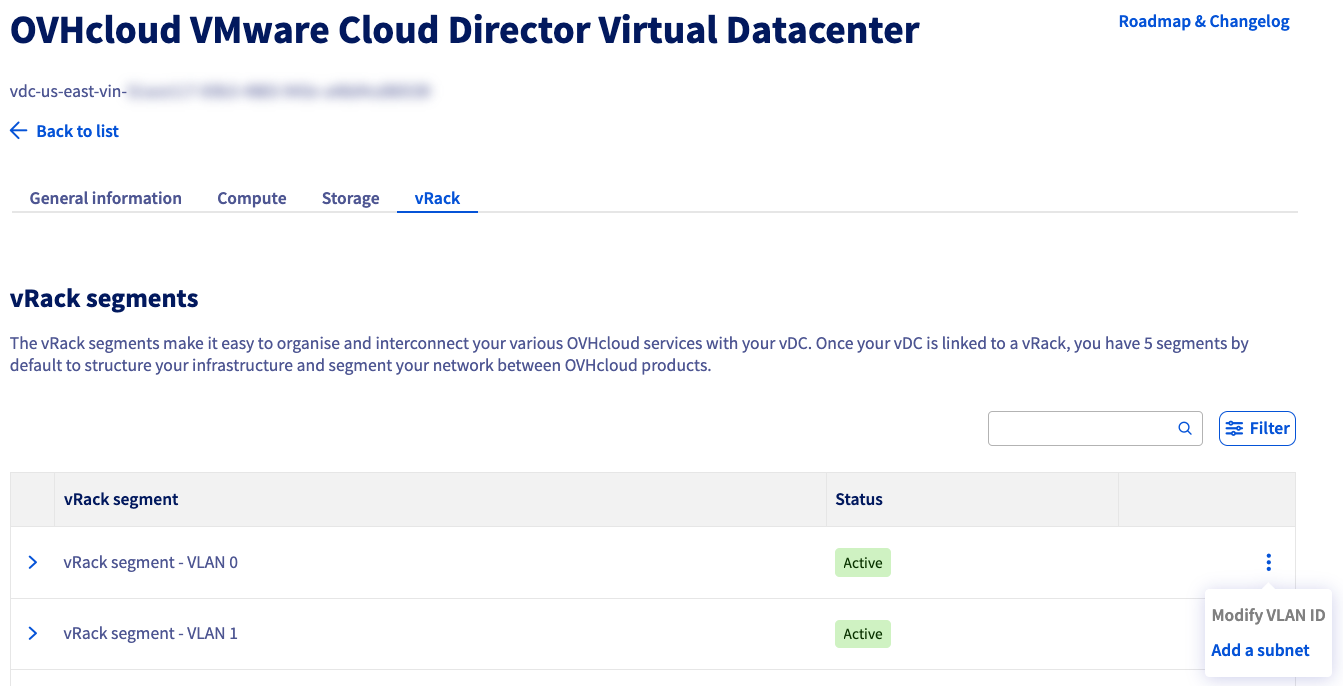

On the next page, select the vRack tab and locate the vRack segment named vRack segment - VLAN0 or vRack segment - PUBLIC.
You will see a placeholder subnet 192.168.1.1, which we will delete later.
Click the more options ⋮ button and select Add a subnet.
In the pop-up window, enter the gateway IP of your subnet in CIDR form for your public IP block, then confirm. The gateway is the last usable host of the block.
Example: For 203.0.113.0/29, the last usable host is 203.0.113.6, so enter 203.0.113.6/29. You can use any standard IP calculator to verify.

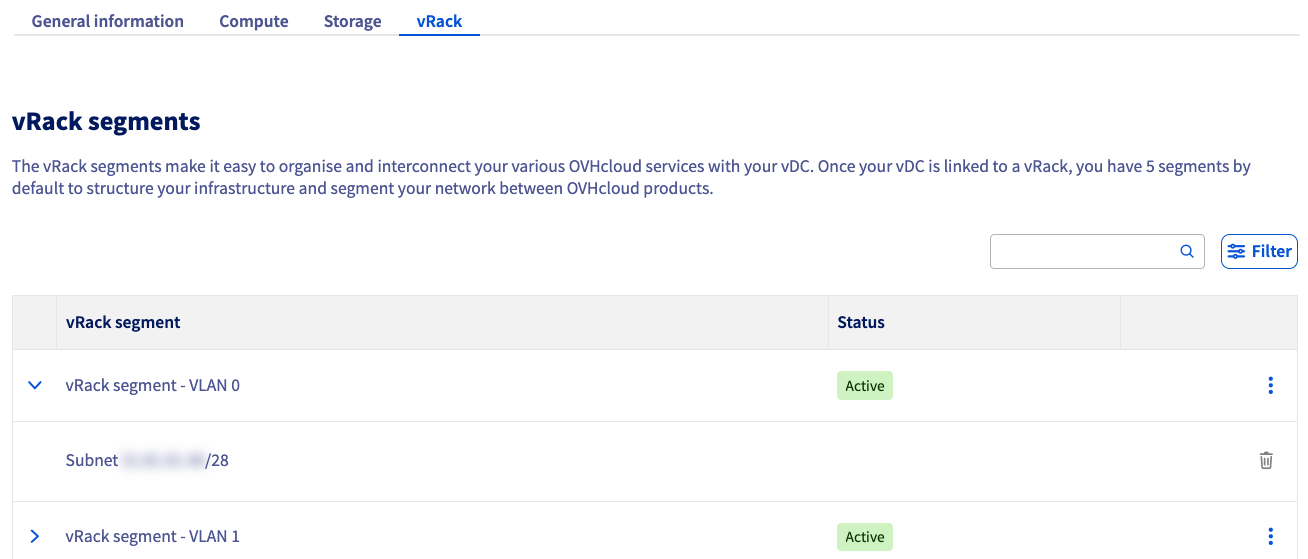

Wait a few seconds and refresh the page. The subnet gateway should now appear on the segment.
NOTE: After your entry has appeared, delete the placeholder subnet 192.168.1.1 from VLAN 0.
Use the gateway when creating workloads

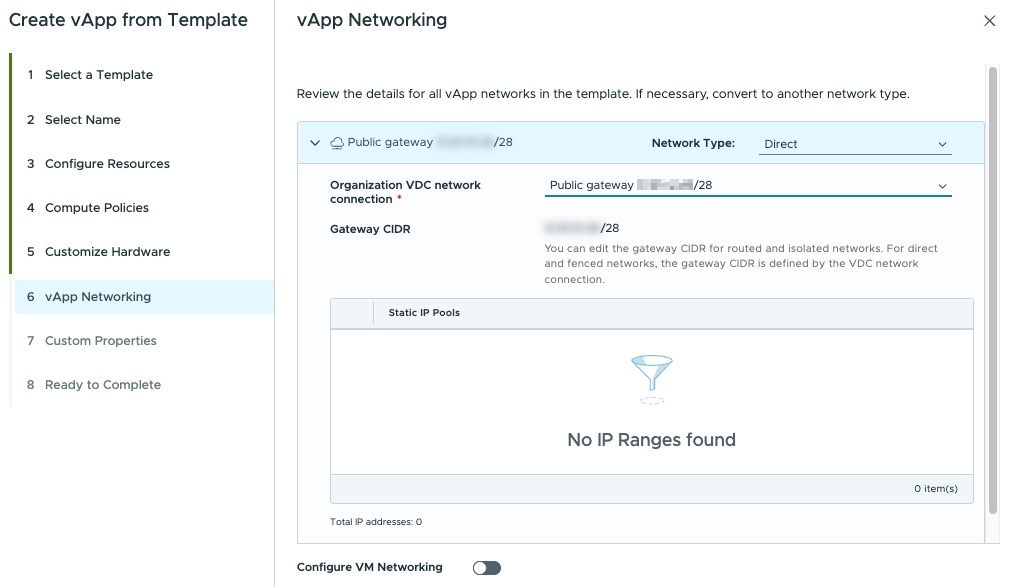

- When creating a vApp or VM in VCD, pick the corresponding Organization VDC network and choose a Direct network type to see the available public gateways.
Known limitation:
In the current VCF version, the Gateway CIDR field may display the first gateway declared on your VLAN0 segment, even if you selected another one. This is a visual-only issue and does not affect IP assignment. Use any address from the selected public block on your VM, consistent with the gateway you chose in Organization VDC network connection.
Troubleshooting
- If the gateway is rejected, recheck that you entered the last usable host with the correct CIDR mask for the block.
- Ensure the VDC is attached to the same vRack that you linked to the public IP block in the previous guide, Public VCF as-a-Service - Linking a public IP block with vRack.
