Learn how to link a block of public IP addresses delivered with your Public VCF as-a-Service organization and its vRack.
When you order a new Public VCF as-a-Service organization, a vRack and a block of public IP addresses are delivered to you. This IP block is not directly linked to your vRack. You will need to link it manually.
Requirements
- A Public VCF as-a-Service on OVHcloud solution
- Being the technical administrator of the managed VMware vSphere on OVHcloud infrastructure
OVHcloud Control Panel Access
- Direct link: Public VCF as-a-Service
-
Navigation path:
Hosted Private Cloud>Public VCF as-a-Service> Select your organization
Instructions
Retrieve the vRack ID

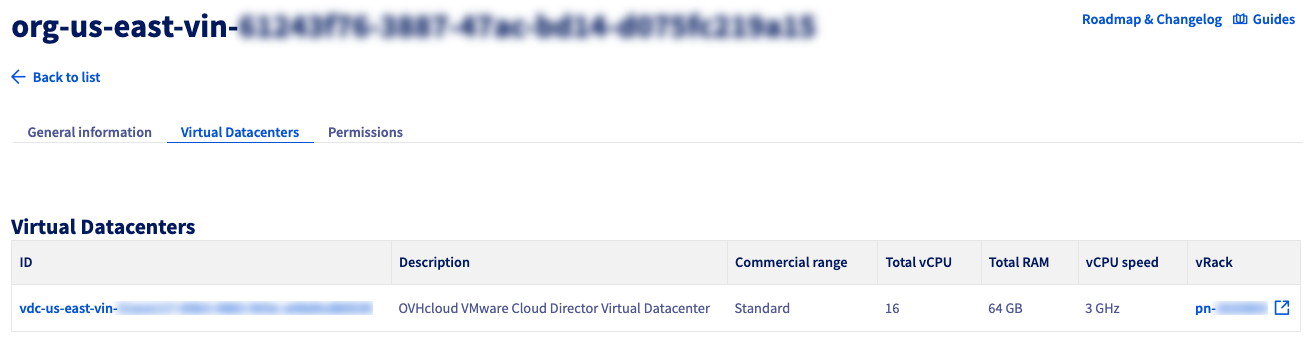

From your VCF as-a-Service organization, select the Virtual Datacenters tab. Locate the vRack associated with your organization; it will appear with an ID in the format pn-xxxxxxx.
Click the name of your vRack.
Add the IP block to the vRack

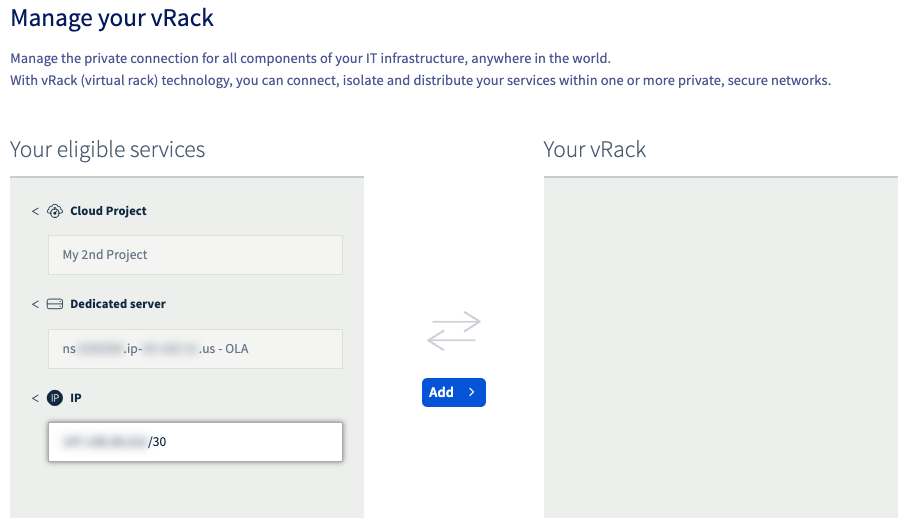

Select the vRack that you just identified.
Select the IP block to link to your vRack/organization and click Add.
The public IP block is now linked to your vRack.
To make these addresses usable inside your Public VCF as-a-Service environment, you also need to declare the public gateway in VMware Cloud Director (VCD).
Follow the guide Public VCF as-a-Service - Declare the public IP gateway in VCD to complete this step.
Go further
For more information and tutorials, please see our other Public VCF as-a-Service or Hosted Private Cloud guides. You can also explore the guides for other OVHcloud products and services.
If you need training or technical assistance to implement our solutions, contact your sales representative or click on this link to get a quote and ask our Professional Services experts for a custom analysis of your project.
