What is OVHcloud Connect?
OVHcloud Connect describes a connection between your vRack and an external network.
Benefits of OVHcloud Connect
Dedicated service
Dedicated Mode is a direct connection with OVHcloud devices. You can manage different configurations, from a single connection to multiple ones, using LACP (Layer 2) or BGP-ECMP (Layer 3) with port speed at 1 Gb or 10 Gb. Interface and bandwidth are not shared with other customers.
Private connection
Your traffic is isolated from the Internet. You manage your own VLANs (Layer 2) and/or your own IP addresses (Layer 3). Even BGP instances are private, and you can configure the ASN you want.
OVHcloud Connect is connected to your vRack with all compatible services.
Network extension
OVHcloud Connect can be connected either to your WAN or your data center network, allowing extension to the cloud or even easing your migration by keeping VLAN topology or IP addresses.
High availability
Using BGP, you can interconnect your network through several PoPs and reach several OVHcloud data centers. From your vRack, configure BGP to enable maximum resiliency with distributed services.
Components of OVHcloud Connect
PoP - EntryPoint
Points of presence are facilities like Equinix, Megaport, etc. OVHcloud Connect’s service entry PoP is called EntryPoint.
DC - EndPoint
The OVHcloud data center is the service EndPoint of OVHcloud Connect.
Cross-connect
A cross-connection is a physical link (monomode fiber) managed by the local facility team in the PoP. The cross-connection is established in the MMR (meet-me room) between the position given by OVHcloud and the position owned by the customer. The customer must order and manage the cross-connect for OVHcloud Connect Direct.
vRack
OVHcloud Private Network, available on compute resources between all OVHcloud data centers.
BGP
BGP is the routing protocol to use when using Layer 3 mode.

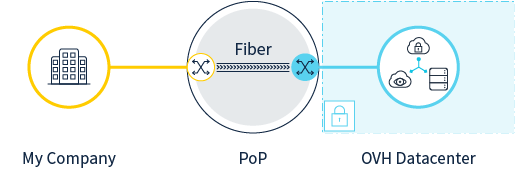

Principles of OVHcloud Connect
OVHcloud Connect is based on a virtual link between an EntryPoint and an EndPoint. The EntryPoint is where you want to make the interconnection with OVHcloud. The EndPoint is the OVHcloud data center with your services. You can choose any data center in the same region as the PoP.
Layer 2 Mode (L2)
The virtual link is an L2 tunnel for OVHcloud Connect L2. Only one PoP/EntryPoint with one DC/EndPoint can be configured.
Layer 3 Mode (L3)
The virtual link is a full mesh IP network between any PoP/EntryPoint and any DC/EndPoint of the same region.
Go further
For more information and tutorials, please see our other Network support guides or explore the guides for other OVHcloud products and services.
If you need training or technical assistance to implement our solutions, contact your sales representative or click on this link to get a quote and ask our Professional Services experts for a custom analysis of your project.
