Manage and secure your ESXi dedicated server from the outset – Support Guides

Learn how to optimize security for your ESXi system.

In particular, this guide explains how to:

Restrict access to your ESXi server to a specific IP address or network range.
Disable services that increase your server's attack surface.

We will do this using the on-board features offered by VMware, as well as those offered by OVHcloud.

Security best practices reminder

Update your ESXi systems regularly.
Restrict access to trusted IP addresses only.
Disable unused ports and services.
Ensure access to your servers or network equipment is limited, controlled and protected with strong passwords.
Back up your critical data to protected, isolated external disks and backup servers.

Optional:

Set up the necessary logging solutions to monitor events on your critical servers and network equipment.
Set up security packs for malicious action detection, intrusion detection (IPS/NIDS) and network traffic bandwidth control.

Requirements

Access to the OVHcloud Control Panel
A dedicated server with the ESXi solution deployed
An offer compatible with our Network Firewall feature, if you would like to use it for filtering

Instructions

Native intrusion protection

Reminder of its definition and operating principle:

The ESXi system includes a security mechanism linked to the administrator account. This is because, in the event of several incorrect access attempts, the administrator account is temporarily locked. This mechanism helps protect your system from malicious connection attempts.

If this system triggers and you want to log into your ESXi immediately, you will need to unlock the administrator account manually.

To do this, you will need to reboot your ESXi server via the OVHcloud Control Panel.

You can view the access log history in the following files via SSH:

/var/run/log/vobd.log contains the logs that can be used for monitoring and troubleshooting:

2023-02-13T16:22:22.897Z: [UserLevelCorrelator] 410535559us: [vob.user.account.locked] Remote access for ESXi local user account 'root' has been locked for 900 seconds after 6 failed login attempts.
2023-02-13T16:22:22.897Z: [GenericCorrelator] 410535559us: [vob.user.account.locked] Remote access for ESXi local user account 'root' has been locked for 900 seconds after 6 failed login attempts.
2023-02-13T16:22:22.897Z: [UserLevelCorrelator] 410535867us: [esx.audit.account.locked] Remote access for ESXi local user account 'root' has been locked for 900 seconds after 6 failed login attempts.

/var/run/log/hostd.log contains ESXi host logs (tasks, access to the web interface, etc.):

2023-02-21T08:44:19.711Z error hostd[2101004] [Originator@6876 sub=Default opID=esxui-d48c-26a4] [module:pam_lsass]pam_do_authenticate: error [login:root][error code:2]
2023-02-21T08:44:19.711Z error hostd[2101004] [Originator@6876 sub=Default opID=esxui-d48c-26a4] [module:pam_lsass]pam_sm_authenticate: failed [error code:2]
2023-02-21T08:44:19.712Z warning hostd[2101004] [Originator@6876 sub=Default opID=esxui-d48c-26a4] Rejected password for user root from xxx.xxx.xxx.xxx
2023-02-21T08:44:19.712Z info hostd[2101004] [Originator@6876 sub=Vimsvc.ha-eventmgr opID=esxui-d48c-26a4] Event 175 : Cannot login root@xxx.xxx.xxx.xxx

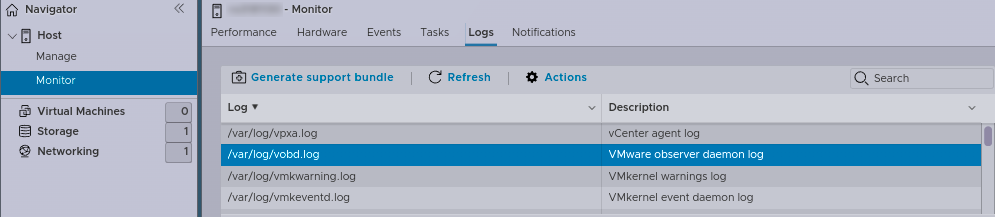

All this information is also available through the web administration interface. Click the Host menu and navigate to the Monitor section, and then click Logs.

The Network Firewall solution

As a reminder, the Network Firewall is not taken into account within the OVHcloud network. As a result, the configured rules do not affect connections from this internal network.

You can enable and use our Network Firewall filtering solution. This solution will allow you to manage legitimate access easily, in addition to the access you have set up through your ESXi system.

It will also prevent you from unexpectedly locking your administrator account in the event of an attack.

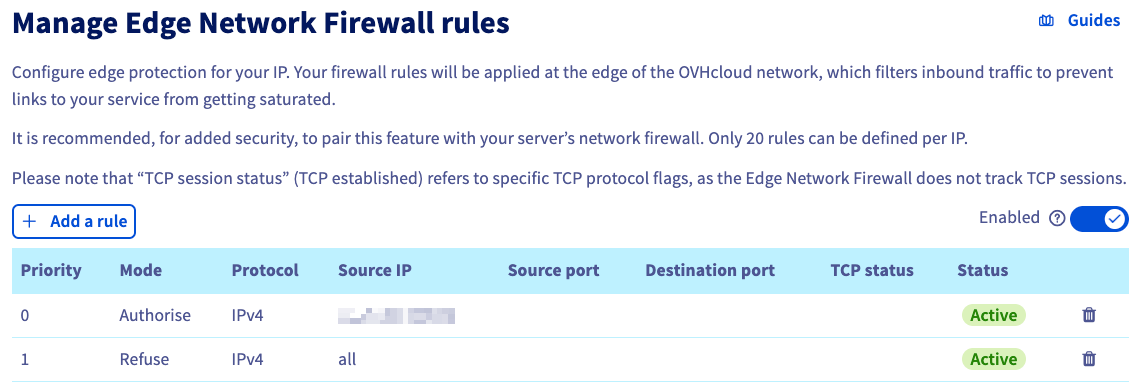

It is recommended that you filter legitimate access in this way:

Rule 1 (Priority 0) allows trusted external networks to access your ESXi system.
Rule 2 (Priority 1) blocks everything else.

Filtering in ESXi

You can also filter access to your ESXi system with the built-in firewall. You can also disable unnecessary services, depending on your usage.

NOTE: We strongly advise disabling SSH and SLP services. If you still use the SSH service, restrict its use and access as much as possible. This also applies to shell access. Prioritise only what is strictly necessary for each of your needs.

Manipulation via the graphical interface

In ESXi 8.0 GA and newer, the SLP service is hardened, disabled by default, and filtered by the ESXi firewall. This means that you no longer have to disable it manually. You can find more information on this official VMware blog post.

Services

Click the Host menu and navigate to the Manage section, then click Services.

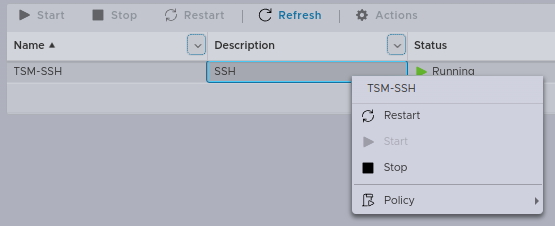

In the list, find the TSM-SSH service and right-click on the associated line.

Stop the service by clicking Stop:

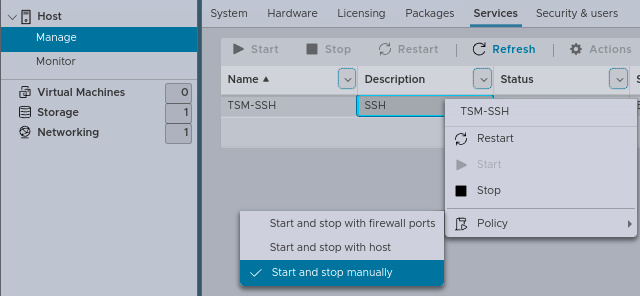

Select the Policy, then edit it as shown in the example.

Choose the Start and stop manually option to prevent the service from being active when the server starts.

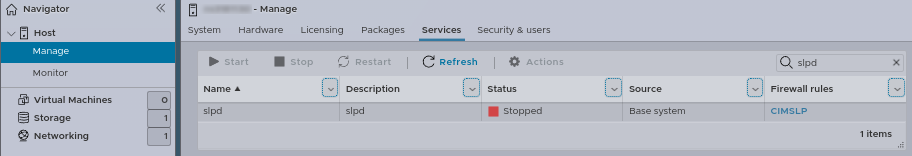

Apply the same settings for the slpd service:

Firewall rules

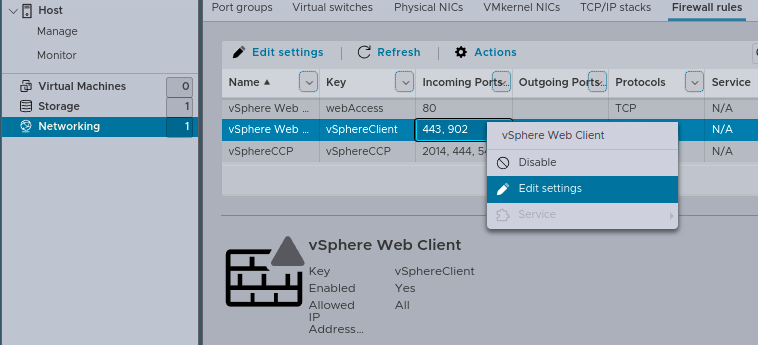

Click the Networking menu, then Firewall rules, and choose Edit settings for each service you want to protect:

Edit the rule to add only IP addresses or networks that need access to your ESXi system.

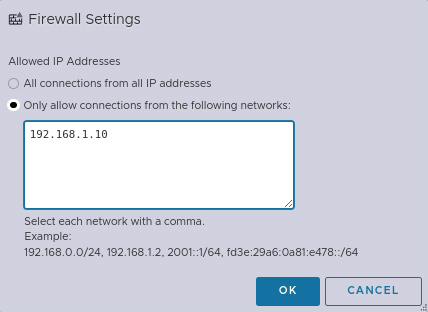

Example that only allows connections from IP 192.168.1.10:

Shell manipulation

Services

Disable unnecessary services:

SLP Service

/etc/init.d/slpd stop
esxcli network firewall ruleset set -r CIMSLP -e 0
chkconfig slpd off

SSH Service

/etc/init.d/SSH stop
esxcli network firewall ruleset set -r sshServer -e 0
chkconfig SSH off

Check all active services at startup:

chkconfig --list | grep on

Firewall rules

View existing firewall rules:

esxcli network firewall ruleset list
esxcli system account list

Explanations for changing/adapting access rules:

The vSphereClient service: This service corresponds to the web administration interface on port 443 (HTTPS).

The sshServer service: This service corresponds to SSH access on port 22.

Example with the vSphereClient service:

esxcli network firewall ruleset list --ruleset-id vSphereClient

Ensure that the firewall rule is active:

esxcli network firewall ruleset set --ruleset-id vSphereClient --enabled true

Display the list of authorised IPs for this rule:

esxcli network firewall ruleset allowedip list --ruleset-id vSphereClient

Result:

Ruleset        Allowed IP Addresses
-------------  --------------------
vSphereClient  All

Change the status of the tag by disabling it:

esxcli network firewall ruleset set --ruleset-id vSphereClient --allowed-all false

Authorize only the legitimate IP address 192.168.1.10:

esxcli network firewall ruleset allowedip add --ruleset-id vSphereClient --ip-address 192.168.1.10

Check the access list for the address:

esxcli network firewall ruleset allowedip list --ruleset-id vSphereClient

Result:

Ruleset        Allowed IP Addresses
-------------  --------------------
vSphereClient  192.168.1.10

If you still want to use the SSH service, we will explain here how to set up SSH key access.

Generate the keys on the machine that needs to connect to the ESXi server. The 521-bit ECDSA algorithm should be used for maximum security:

NOTE: Authentication works with a key pair: one public and one private. Do not share your private key, it must remain on the machine where it was generated.

Run the following command:

ssh-keygen -t ecdsa -b 521 -C "key-ecdsa-esxi-host" -f /path-to-my-key/key-ecdsa

Generating public/private ecdsa key pair.
Enter file in which to save the key (/path-to-my-key/key-ecdsa_rsa):

Enter a strong password:

Enter passphrase (empty for no passphrase):
Enter same passphrase again:

Only the public key (key-ecdsa.pub) must be sent or stored on the machines you want to connect to.

Your identification has been saved in /path-to-my-key/key-ecdsa.
Your public key has been saved in /path-to-my-key/key-ecdsa.pub.
The key fingerprint is:
SHA256:******************************************* key-ecdsa-esxi-host

Transfer the public key to your ESXi host so that it can be declared as trusted:

cat /path-to-my-key/key-ecdsa.pub | ssh root@esxi-host-ip 'cat >> /etc/ssh/keys-root/authorized_keys'

Go further

You can find even more details on security best practices in this VMware suggested guide.
