Configuring IPv6 on a VPS – Support Guides

Learn how to configure IPv6 on your OVHcloud VPS using various methods.

IPv6 is the latest version of the Internet Protocol. Each OVHcloud VPS server is delivered with an IPv4 address and an IPv6 address. However, only IPv4 is configured by default. If you need to configure IPv6, it has to be set up manually on your system.

[primary]This article is about Primary IPv6 configuration on a public interface. You can also configure Additional IP addresses on your VPS using this guide.

NOTE: OVHcloud provides services for which you are responsible for their configuration and management. You are therefore responsible for their proper functioning.

This tutorial is designed to help you as much as possible with common tasks. If you are having difficulty performing these actions, please contact a specialized service provider. OVHcloud can't provide you with technical support in this regard.

Requirements

A Virtual Private Server in your OVHcloud account
Administrative access (root) via SSH or remote desktop (Windows) to your server
A basic understanding of networking
Access to the OVHcloud Control Panel or OVHcloud API

Instructions

The following sections contain configurations for the distributions we currently offer, as well as the most commonly used distributions/operating systems. The first step is always to log in to your server via SSH or a GUI login session (RDP for a Windows VPS). The examples below presume you are logged in as a user with elevated permissions (Administrator/sudo).

NOTE: On the recent Linux operating systems we offer for VPS, the IPv6 address is configured by default. If this is the case, you don't need to configure it. Please check your operating system's configuration file before making any changes.

Please take note of the following terminology that will be used in code examples and instructions of the guide sections below:

Term	Description	Example
YOUR_IPV6	The IPv6 address assigned to your service	2001:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:yyyy
IPv6_PREFIX	The prefix (or netmask) of your IPv6 block, usually 128	2001:xxxx:xxxx:xxxx::/128
IPv6_GATEWAY	The gateway of your IPv6 block	2001:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:zzzz

Step 1: Retrieve the necessary network information

The first step is to identify the IPv6 address and the IPv6 gateway assigned to your server. There are two ways of doing this:

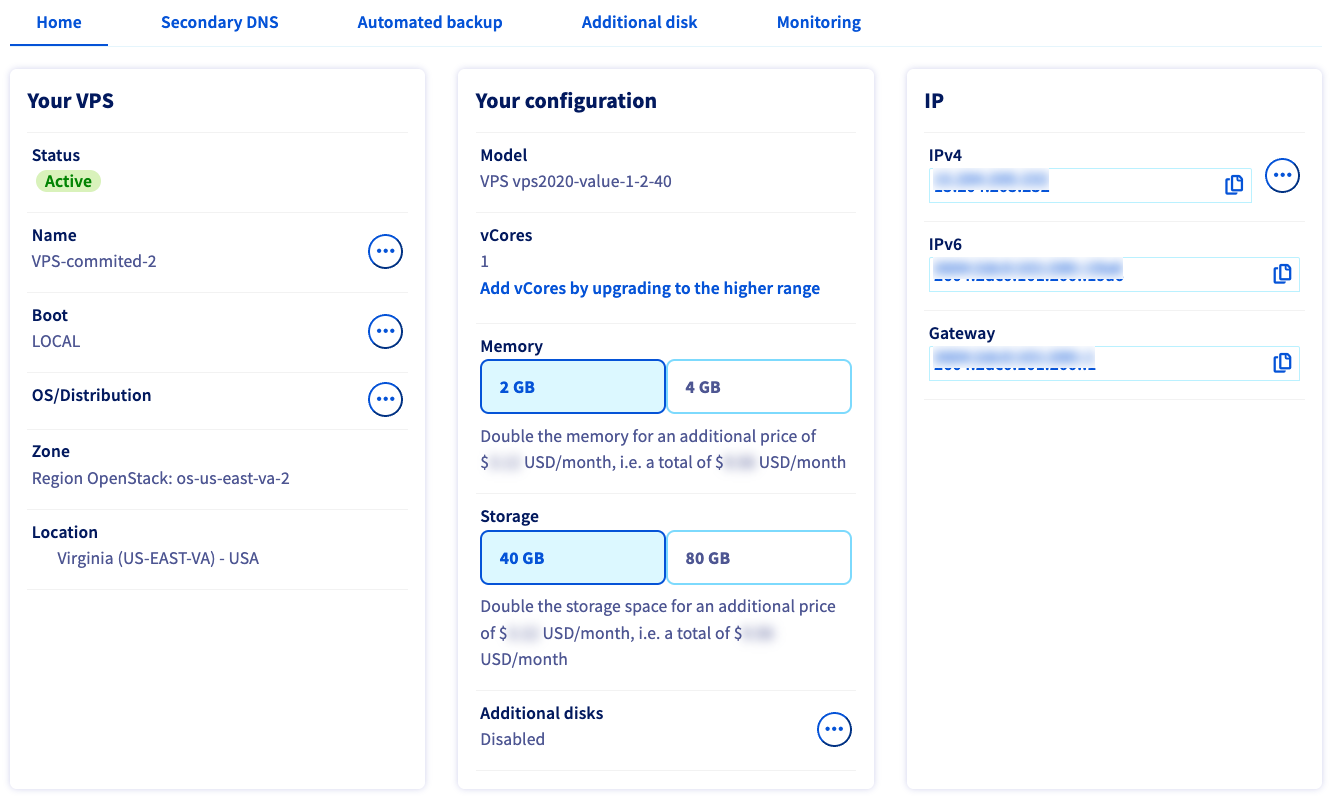

Log into the OVHcloud Control Panel and navigate to your VPS via the Bare Metal Cloud and Virtual private servers menus.

The IPv6 address and the IPv6 gateway assigned to your server will appear in the IP panel of the Home tab. Once you have copied them, continue with applying the IPv6 configuration.

From the OVHcloud API, click on Login in the top-right corner. On the following page, enter the credentials of your OVHcloud account.

Use this call to retrieve the IPv6 address assigned to your server:

GET /vps/{serviceName}/ips

The following call allows you to recover the IPv6 gateway assigned to your server:

GET /vps/{serviceName}/ips/{ipAddress}

Once you have retrieved these addresses, continue with applying the IPv6 configuration.

Step 2: Apply the IPv6 configuration

Once you have gathered the necessary information for the IPv6 configuration, log in to your VPS via SSH. If you require assistance, please refer to this guide: How to get started with SSH connections.

There are several ways to apply the IPv6 configuration. Use whichever method best suits your situation and requirements:

Non-persistent application
Persistent application on Debian and its derivatives
Persistent application on Red Hat and its derivatives
Persistent application on Fedora 42 and later
Persistent application on Windows Server

NOTE: VPS LE instances have two interfaces by default. The IPv6 configuration might need to be applied to a different interface, e.g., eth1. You can confirm which interface is used with the command: ip addr.

If this is the case for you, the command may look like this:

ip addr add YOUR_IPV6/IPV6_PREFIX dev eth1
ip -6 route add IPV6_GATEWAY dev eth1
ip -6 route add default via IPV6_GATEWAY dev eth1

Non-persistent application

NOTE: This configuration will be lost after a restart of your VPS (non-persistent configuration).

Connect to your server via SSH and enter the following commands. Take care to tailor these with:

the network information, retrieved in the previous step (YOUR_IPV6, IPV6_PREFIX, and IPV6_GATEWAY)
the network interface (if your server is not using eth0)

ip addr add YOUR_IPV6/IPV6_PREFIX dev eth0
ip -6 route add IPV6_GATEWAY dev eth0
ip -6 route add default via IPV6_GATEWAY dev eth0

Persistent application on Debian and its derivatives (Ubuntu, Crunchbang, etc.)

NOTE: Before modifying a configuration file, always create a backup of the original.

There are two ways to configure your network, depending on the operating system installed on your server:

For Debian 11: use the method based on the interfaces files
For Debian 12, Ubuntu 22.04 and later: use the method based on the Netplan configuration

In some cases, the appropriate method may not be the one specified above. To make sure, browse your system to check which one is active. Visit https://netplan.io/ for more information, if necessary.

Moreover, keep in mind that the exact file names may vary.

Configuration of interfaces files

By default, the configuration files are located in /etc/network/interfaces.d/.

The best practice is to create a separate configuration file in the /etc/network/interfaces.d/ directory to configure the IPv6 address. In our example, the file is called 51-cloud-init-ipv6.

sudo nano /etc/network/interfaces.d/51-cloud-init-ipv6

This allows you to separate the IPv6 configuration and easily revert the changes in case of an error.

Add the following lines to the file. Replace the generic elements (i.e. YOUR_IPV6, IPV6_PREFIX and IPV6_GATEWAY) as well as the network interface (if your server is not using eth0) with your specific values.

auto eth0
iface eth0 inet6 static
mtu 1500
address YOUR_IPV6
netmask IPV6_PREFIX
post-up /sbin/ip -6 route add IPV6_GATEWAY dev eth0
post-up /sbin/ip -6 route add default via IPV6_GATEWAY dev eth0
pre-down /sbin/ip -6 route del default via IPV6_GATEWAY dev eth0
pre-down /sbin/ip -6 route del IPV6_GATEWAY dev eth0

Configuration example:

auto eth0
iface eth0 inet6 static
mtu 1500
address 2607:5300:201:abcd::7c5
netmask 128
post-up /sbin/ip -6 route add 2607:5300:201:abcd::1 dev eth0
post-up /sbin/ip -6 route add default via 2607:5300:201:abcd::1 dev eth0
pre-down /sbin/ip -6 route del default via 2607:5300:201:abcd::1 dev eth0
pre-down /sbin/ip -6 route del 2607:5300:201:abcd::1 dev eth0

Then, restart your network service with one of the following commands:

sudo service networking restart

sudo systemctl restart networking

Alternatively, you can add the configuration above to one of the following files (with sudo privileges), depending on the generation of the operating system installed on the server:

the /etc/network/interfaces file
the /etc/network/interfaces.d/50-cloud-init.cfg file

We recommend that you back up the relevant configuration file. For example, use the following command:

sudo cp /etc/network/interfaces /etc/network/interfaces.bak

You will then be able to revert the changes, using the commands below:

sudo rm -f /etc/network/interfaces
sudo cp /etc/network/interfaces.back /etc/network/interfaces

Configuration using Netplan

The network configuration files are located in the /etc/netplan/ directory. By default, the main configuration file is called 50-cloud-init.yaml. Before continuing, first check this file to see if the IPv6 address has already been configured. If so, you don't need to configure the IPv6 address again, as you only have one IPv6 address with your VPS server.

If the IPv6 address has not been configured, the best approach is to create a separate configuration file to set up the IPv6 address in the /etc/netplan/ directory. This way, you can easily revert the changes in case of an error.

In addition, we recommend that you adjust the permissions for the newly created file. For more information about file permissions, consult the official documentation of Ubuntu.

In our example, our file is named 51-cloud-init-ipv6.yaml:

sudo nano /etc/netplan/51-cloud-init-ipv6.yaml

Then edit the 51-cloud-init-ipv6.yaml file, adding the IPv6 configuration of your server. Replace the generic elements (i.e. YOUR_IPV6, IPV6_PREFIX and IPV6_GATEWAY) as well as the network interface (if your server is not using eth0) with your specific values.

network:
    version: 2
    ethernets:
        eth0:
            dhcp6: false
            match:
              name: eth0
            addresses:
              - YOUR_IPV6/IPv6_PREFIX
            routes:
# If IPV6_PREFIX is 128 then add link route to gateway
#              - to: IPv6_GATEWAY
#                scope: link
              - to: ::/0
                via: IPv6_GATEWAY

Configuration example (with prefix /128):

network:
    version: 2
    ethernets:
        eth0:
            dhcp6: false
            match:
              name: eth0
            addresses:
              - 2607:5300:201:abcd::7c5/128
            routes:
              - to: 2607:5300:201:abcd::1
                scope: link
              - to: ::/0
                via: 2607:5300:201:abcd::1

NOTE: It is important to respect the alignment of each element in this file as represented in the example above. Do not use the tab key to create your spacing. Only the space key is needed.

You can test your configuration using this command:

sudo netplan try

If it is correct, apply it using the following command:

sudo netplan apply

Persistent application on Red Hat and its derivatives (CentOS, Rocky Linux, Alma Linux, etc.)

The network configuration files are located in the /etc/sysconfig/network-scripts/ directory. We recommend that you start by backing up the relevant configuration file. For example, copy the ifcfg-eth0 file using the following commands. Remember to replace eth0 with your actual interface if necessary.

cd /etc/sysconfig/network-scripts/
sudo mkdir backup
sudo cp ifcfg-eth0 backup/ifcfg-eth0

You will then be able to revert the changes, using the commands below:

sudo rm -f /etc/sysconfig/network-scripts/ifcfg-eth0
sudo cp /etc/sysconfig/network-scripts/backup/ifcfg-eth0 /etc/sysconfig/network-scripts/ifcfg-eth0

Then edit the ifcfg-eth0 file, adding the IPv6 configuration of your server. Replace the generic elements (i.e. YOUR_IPV6, IPV6_PREFIX and IPV6_GATEWAY) with your specific values. Also, we have omitted the IPv4 configuration to avoid confusion, but the IPv6 configuration is made in the same configuration file.

IPV6INIT=yes
IPV6ADDR=YOUR_IPV6/IPV6_PREFIX
IPV6_DEFAULTGW=IPV6_GATEWAY

Configuration example:

IPV6INIT=yes
IPV6ADDR=2607:5300:201:abcd::7c5/128
IPV6_DEFAULTGW=2607:5300:201:abcd::1

On CentOS 7, you have to create a routing file in addition to the steps above:

Create a file (with sudo privileges), indicating the default IPv6 routes:
```
sudo touch /etc/sysconfig/network-scripts/route6-eth0
```

Edit the file and add the lines below. Replace the generic elements (IPV6_GATEWAY and eth0 interface, if necessary) with your specific values.
```
IPV6_GATEWAY dev eth0
default via IPV6_GATEWAY
```

Example:

2607:5300:201:abcd::1 dev eth0
default via 2607:5300:201:abcd::1

Finally, restart your network service to allow the system to apply the new configuration with one of the following commands:

sudo service networking restart

sudo systemctl restart networking

Persistent application on Fedora 42 and later

The network configuration file is located in the /etc/NetworkManager/system-connections/. We recommend that you start by backing up the relevant configuration file. In our example, our file is called cloud-init-eth0.nmconnection, so we copy the cloud-init-eth0.nmconnection file using the following commands. Remember to replace eth0 with your actual interface if necessary.

cd /etc/NetworkManager/system-connections/
sudo mkdir backup
sudo cp cloud-init-eth0.nmconnection backup/cloud-init-eth0.nmconnection

Then we edit the cloud-init-eth0.nmconnection file, adding only the lines for the IPv6 configuration of the server. Replace the generic elements (i.e. YOUR_IPV6, IPV6_PREFIX, and IPV6_GATEWAY) with your specific values.

If we assume that your interface is eth0, the configuration should look like this:

[ipv6]
method=auto
may-fail=true
address1=YOUR_IPV6/IPV6_PREFIX
route1=::/0,IPV6_GATEWAY

We have omitted the IPv4 configuration to avoid confusion, but the IPv6 configuration is made in the same configuration file.

Example:

[ipv6]
method=auto
may-fail=true
address1=2607:5300:201:abcd::7c5/128
route1=::/0,2607:5300:201:abcd::1

Persistent application on Windows Server

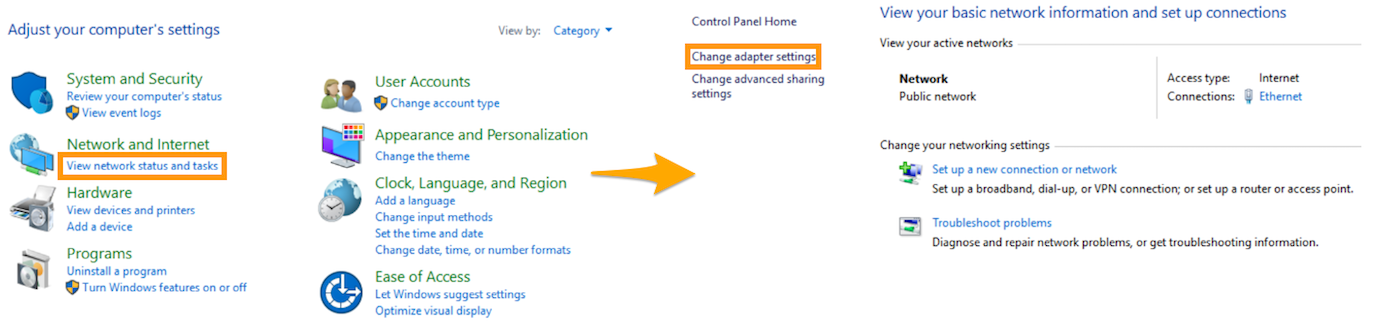

By default, IPv6 is not configured on Windows Servers. To enable it, open the Control Panel and click on View network status and tasks, then on Change adapter settings.

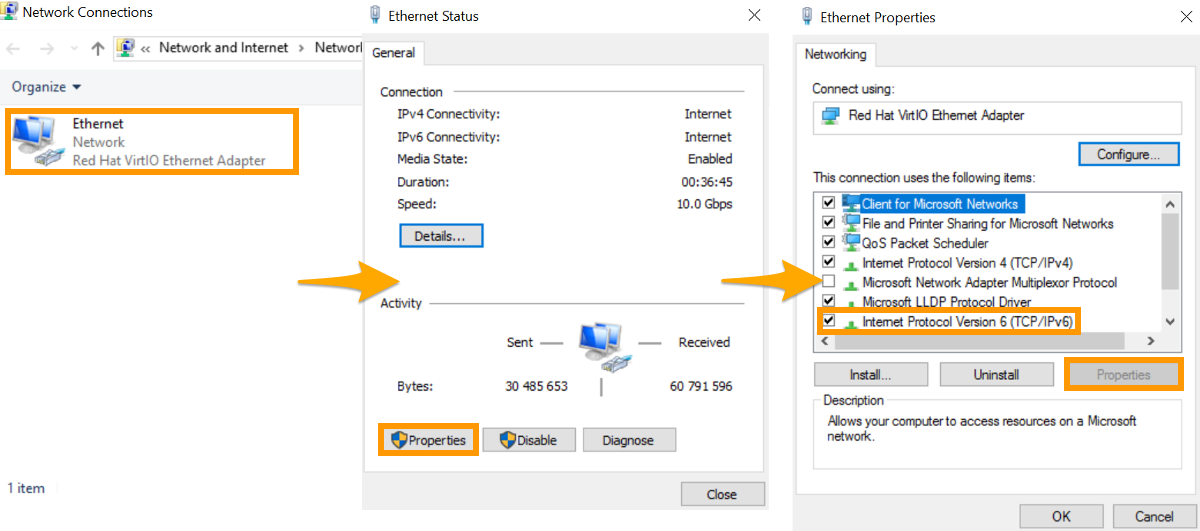

Click on Ethernet to open the settings and click on the Properties button to view the Ethernet Properties.

Select Internet Protocol Version 6 (TCP/IPv6), then click on the Properties button.

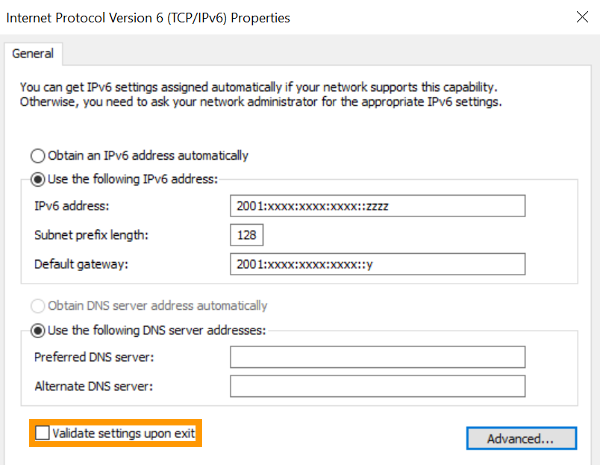

In the IPv6 Properties window, select Use the following IPv6 address. Enter the IP addresses that you have retrieved in the first step.

You also have the option of entering the IPv6 DNS resolvers of your choice under Use the following DNS server addresses. This is not mandatory if the DNS resolvers of the IPv4 configuration are already functional.

Finally, tick the Validate settings upon exit box and click the OK button to validate your changes. An error message may appear if the specified gateway is not on the same IPv6 subnet (/128 and /64 for example). You can ignore this message and continue to the next step regardless.

Step 3: Verify the configuration and test the connection

To verify that the configuration is functional, there are several possible commands, depending on the operating system.

For a GNU/Linux-based system, here are two examples for the eth0 interface (to be adapted if necessary):

ip -6 addr show eth0
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qlen 1000
    inet6 2001:xxxx:xxxx:xxxx:xxxx:xxxx:zzzz/128 scope global
       valid_lft forever preferred_lft forever
    inet6 fe80::f816:3eff:fec0:c336/64 scope link
       valid_lft forever preferred_lft forever

ifconfig eth0
eth0      Link encap:Ethernet  HWaddr ab:cd:ef:gf:ij:kl
          inet addr:aa.bb.cc.dd  Bcast:aa.bb.cc.ee  Mask:255.255.255.255
          inet6 addr: 2001:xxxx:xxxx:xxxx:xxxx:xxxx:zzzz/128 Scope:Global
          inet6 addr: fe80::f816:3eff:fec0:c336/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          [...]

To test the connection, you can use the following command:

ping6 proof.ovh.us

For a Windows-based system, use the following command:

ipconfig

Windows IP Configuration

Ethernet adapter Ethernet:

   Connection-specific DNS Suffix  . : openstacklocal
   IPv6 Address. . . . . . . . . . . : 2001:xxxx:xxxx:xxxx::zzzz
   Link-local IPv6 Address . . . . . : fe80::d928:7a00:5ba6:951b%3
   IPv4 Address. . . . . . . . . . . : 51.xxx.xxx.xxx
   Subnet Mask . . . . . . . . . . . : 255.255.255.255
   Default Gateway . . . . . . . . . : 2001:xxxx:xxxx:xxxx::y
                                       51.xxx.xxx.y

To test the connection, you can use the following command:

ping -6 proof.ovh.us

You can also test the connection to another remote server. However, it is necessary for IPv6 to be active on the remote server for this operation to work.

If, despite these changes, IPv6 does not seem to work on your server, it is possible (in rare cases) that you will have to carry out additional modifications. In such cases, try the following steps:

Depending on the operating system, try to change the prefix (or netmask) of your IP address from /128 to /64. This will include the IPv6 gateway in your subnet.
In addition to restarting the network service, it may be necessary to reboot your server to finalize your IPv6 configuration.
In Windows, verify that the firewall allows ICMP requests for IPv6.

Step 4: Disable Cloud-init network management (optional)

This step does not apply to Windows-based systems.

Cloud-init is a package installed by default on a VPS. It functions as a framework to run a script after initially creating your server or rebooting it. The mechanics in place allow the underlying OpenStack infrastructure to inject scripts into the Cloud-init environment and, therefore, the server configuration.

Depending on the operating system, Cloud-init will manage: the network, the hostname, the resolv.conf file, or the automatic partitioning of the hard disk, in case of an upgrade.

In the case of newer distributions (such as CentOS, Debian 9, Ubuntu 16.x, and later), the default configuration of Cloud-init might sometimes automatically reset the network configuration when the server starts up.

This is relevant for specific use cases in which it is recommended to avoid the reset by disabling automatic network management in Cloud-init. To do this, use the following command to create a file /etc/cloud/cloud.cfg.d/98-disable-network-config.cfg with the value network: {config: disabled}:

sudo echo "network: {config: disabled}" > /etc/cloud/cloud.cfg.d/98-disable-network-config.cfg

NOTE: It might be necessary to reboot the server for the change to take effect.

To return to automatic management of your network by Cloud-init, delete the newly created file or move it to another directory.
