This tutorial explains the following Load Balancer configurations:
- Deploying a basic HTTP Load Balancer Private → Private
- Deploying a basic HTTP Load Balancer Public → Private
Requirements
- a Public Cloud project in your OVHcloud account
- a private network configured in your project
- prepare the environment to use the OpenStack API
- set OpenStack environment variables
- OpenStack Octavia client installed
Instructions
Load Balancer within your Private Network (Private → Private)
When you create a Load Balancer, by default it gets a private IP in the private network selected during its creation.
We want to balance the load between the two backends: backend--1 and backend--2.
(os_client) ~ openstack server list +--------------------------------------+------------+--------+-----------------------------------------------------------------------+--------------+--------+ | ID | Name | Status | Networks | Image | Flavor | +--------------------------------------+------------+--------+-----------------------------------------------------------------------+--------------+--------+ | 5b8c722b-57d0-460a-b2c0-b0a681bf4e52 | backend--2 | ACTIVE | priv-net=10.0.111.243 | Ubuntu 20.04 | d2-4 | | 9a43ce4c-e0fe-4a54-81f5-aad3ac6f8e88 | backend--1 | ACTIVE | priv-net=10.0.112.172 | Ubuntu 20.04 | d2-4 | | 67b9372e-bf08-4c57-9945-42b07dbfcd36 | bastion | ACTIVE | Ext-Net=2001:48f0:163:100::1662, 169.254.10.150; priv-net=10.0.109.243 | Ubuntu 20.04 | d2-8 | +--------------------------------------+------------+--------+-----------------------------------------------------------------------+--------------+--------+
Step 1: Create the Load Balancer
openstack loadbalancer create --name loadbalancer_private_to_private --vip-subnet-id <private_subnet_id> +---------------------+--------------------------------------+ | Field | Value | +---------------------+--------------------------------------+ | admin_state_up | True | | availability_zone | None | | created_at | 2022-06-29T12:24:35 | | description | | | flavor_id | 2d4bc92c-38fc-4b50-9484-8351ab0c4e69 | | id | 4db76fce-f8f7-435f-8031-716f82a7f1dc | | listeners | | | name | loadbalancer_private_to_private | | operating_status | OFFLINE | | pools | | | project_id | 96575fa614c14aa7b001c7e121d772f2 | | provider | amphora | | provisioning_status | PENDING_CREATE | | updated_at | None | | vip_address | 10.0.3.50 | | vip_network_id | d20943ed-5159-4805-b48a-2375dd93e480 | | vip_port_id | 631f240c-16f7-483f-b1c4-6eff7a8adcf4 | | vip_qos_policy_id | None | | vip_subnet_id | 4ecfca39-6e87-496a-8692-2e7f43bf7767 | | tags | | +---------------------+--------------------------------------+
NOTE: If you do not provide the parameter
--flavor during the creation, the Load Balancer will be of a small size.Use the following command to display the Octavia flavors in OpenStack:
❯ openstack loadbalancer flavor list +--------------------------------------+--------+--------------------------------------+---------+ | id | name | flavor_profile_id | enabled | +--------------------------------------+--------+--------------------------------------+---------+ | 2d4bc92c-38fc-4b50-9484-8351ab0c4e69 | small | e9970d43-695e-4947-8005-38be80bc966a | True | | 4d6a92af-d4c8-4e81-8596-e3b14159e232 | medium | 24559467-a4dd-4712-9981-93276400fa17 | True | | fd43698c-0a2f-4124-9695-478f9114a07c | large | 3ded4565-7bc7-40b3-9a2c-83077035b134 | True | +--------------------------------------+--------+--------------------------------------+---------+
NOTE: The Octavia Load Balancer creation will take some time, mainly to create the instance and configure the network.
For the next configuration, you will have to wait until the
For the next configuration, you will have to wait until the
provisioning_status becomes ACTIVE.You can already see when creating our Load Balancer that it is associated with a Virtual IP address (VIP).
| vip_address | 10.0.3.50 |
This will be our Load Balancer IP inside our Private Network.
Step 2: Create a listener
openstack loadbalancer listener create --protocol-port 80 --protocol HTTP --name listener <loadbalancer_id> +-----------------------------+--------------------------------------+ | Field | Value | +-----------------------------+--------------------------------------+ | admin_state_up | True | | connection_limit | -1 | | created_at | 2022-06-29T12:34:37 | | default_pool_id | None | | default_tls_container_ref | None | | description | | | id | e2e67b80-61e6-43bd-b1f1-703ab1abc7af | | insert_headers | None | | l7policies | | | loadbalancers | 4db76fce-f8f7-435f-8031-716f82a7f1dc | | name | listener | | operating_status | OFFLINE | | project_id | 96575fa614c14aa7b001c7e121d772f2 | | protocol | HTTP | | protocol_port | 80 | | provisioning_status | PENDING_CREATE | | sni_container_refs | [] | | timeout_client_data | 50000 | | timeout_member_connect | 5000 | | timeout_member_data | 50000 | | timeout_tcp_inspect | 0 | | updated_at | None | | client_ca_tls_container_ref | None | | client_authentication | NONE | | client_crl_container_ref | None | | allowed_cidrs | None | | tls_ciphers | None | | tls_versions | None | | alpn_protocols | None | | tags | | +-----------------------------+--------------------------------------+
Step 3: Create the pool
❯ openstack loadbalancer pool create --name pool --lb-algorithm ROUND_ROBIN --listener <listener_id> --protocol HTTP +----------------------+--------------------------------------+ | Field | Value | +----------------------+--------------------------------------+ | admin_state_up | True | | created_at | 2022-06-29T12:41:52 | | description | | | healthmonitor_id | | | id | f0c833f7-53bb-46b7-8818-637d89a68089 | | lb_algorithm | ROUND_ROBIN | | listeners | e2e67b80-61e6-43bd-b1f1-703ab1abc7af | | loadbalancers | 4db76fce-f8f7-435f-8031-716f82a7f1dc | | members | | | name | pool | | operating_status | OFFLINE | | project_id | 96575fa614c14aa7b001c7e121d772f2 | | protocol | HTTP | | provisioning_status | PENDING_CREATE | | session_persistence | None | | updated_at | None | | tls_container_ref | None | | ca_tls_container_ref | None | | crl_container_ref | None | | tls_enabled | False | | tls_ciphers | None | | tls_versions | None | | tags | | | alpn_protocols | None | +----------------------+--------------------------------------+
Step 4: Add the servers
❯ openstack loadbalancer member create --subnet-id <private_subnet_id> --address <server_ip_address> --protocol-port 80 <pool_id> +---------------------+--------------------------------------+ | Field | Value | +---------------------+--------------------------------------+ | address | 10.0.3.123 | | admin_state_up | True | | created_at | 2022-06-29T12:48:55 | | id | fbe34622-2538-4896-bda3-d92ca66f7a30 | | name | | | operating_status | NO_MONITOR | | project_id | 96575fa614c14aa7b001c7e121d772f2 | | protocol_port | 80 | | provisioning_status | PENDING_CREATE | | subnet_id | 4ecfca39-6e87-496a-8692-2e7f43bf7767 | | updated_at | None | | weight | 1 | | monitor_port | None | | monitor_address | None | | backup | False | | tags | | +---------------------+--------------------------------------+
Step 5: Use your Load Balancer
root@bastion:~# curl http://10.0.3.50/backend.txt Backend 1 root@bastion:~# curl http://10.0.3.50/backend.txt Backend 2
Load Balancer with a public IP (Public → Private)
We will be using the Octavia Load Balancer previously deployed in a private network and an OpenStack Floating IP.
We will need to create a Floating IP address on the public network (Ext-Net), and then associate it to the Load Balancer's VIP port.
In order to use a Floating IP, we will need to create an L3 router and configure an external Gateway on it.
What is the role of a Floating IP?
Floating IP addresses are used in the OpenStack universe to expose resources (Neutron port) to the Internet. You can associate a Floating IP to a private network port only.
You can expose two types of resources:
- An instance with a private port
- An Octavia Load Balancer Virtual IP address (VIP)
Floating IP currently does not support IPv6.
You can read more about it in our dedicated Concepts - Additional IP or Floating IP guide.
Step 1: Create the router
openstack router create <router_name>
Step 2: Add an external Gateway on your router
openstack router set --external-gateway Ext-Net <router_name>
Step 3: Attach the router to your Private Network
openstack router add subnet <router_id> <subnet_id>
Step 4: Create a Floating IP on the public network: Ext-Net
openstack floating ip create Ext-Net +---------------------+--------------------------------------+ | Field | Value | +---------------------+--------------------------------------+ | created_at | 2022-06-29T13:19:10Z | | description | | | dns_domain | None | | dns_name | None | | fixed_ip_address | None | | floating_ip_address | 169.254.10.250 | | floating_network_id | b2c02fdc-ffdf-40f6-9722-533bd7058c06 | | id | 5f1ad04e-f341-457b-a174-a1204ee4feef | | name | 169.254.10.250 | | port_details | None | | port_id | None | | project_id | 96575fa614c14aa7b001c7e121d772f2 | | qos_policy_id | None | | revision_number | 0 | | router_id | None | | status | DOWN | | subnet_id | None | | tags | [] | | updated_at | 2022-06-29T13:19:10Z | +---------------------+--------------------------------------+
Step 5: Associate its ID to the Load Balancer's VIP address
openstack floating ip set --port <load_balancer_vip_port_id> <floating_ip_id>
Step 6: Using your Load Balancer with its public IP
❯ curl http://169.254.10.250/backend.txt Backend 2 ❯ curl http://169.254.10.250/backend.txt Backend 1 ❯ curl http://169.254.10.250/backend.txt Backend 2 ❯ curl http://169.254.10.250/backend.txt Backend 1 ❯ curl http://169.254.10.250/backend.txt Backend 2

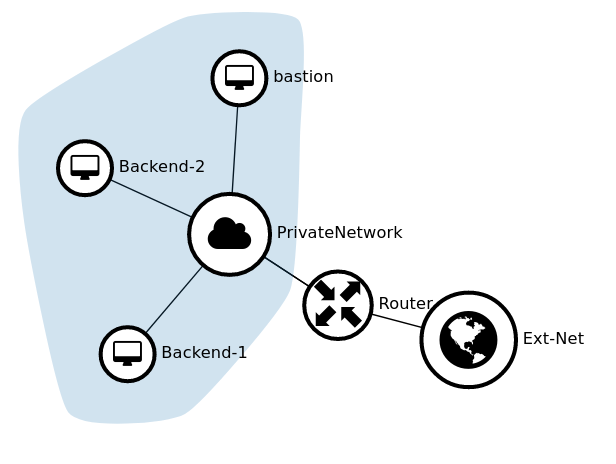

Where to place the public Gateway
The public Gateway is defined by an L3 router attached to a private network with an external Gateway.
Go further
For more information and tutorials, please see our other Public Cloud Networking support guides or explore the guides for other OVHcloud products and services.
