Learn how to add Additional IP addresses to your network configuration.
Since October 6th, 2022 our service "Failover IP" is named Additional IP. This renaming does not affect its technical features. |
You may need to configure Additional IP addresses on your instances, for example, if you are hosting multiple websites or international services. OVHcloud Additional IPs allow you to associate multiple IP addresses with a single network interface.
Requirements
- a Public Cloud instance in your OVHcloud account
- an Additional IP address or an Additional IP block
- administrative access (root) via SSH or GUI to your instance
- basic networking and administration knowledge
Instructions
The following sections contain the configurations for the most commonly used distributions/operating systems. The first step is always to log in to your instance via SSH or a GUI login session (VNC for a Windows instance). The examples below presume you are logged in as a user with elevated permissions (Administrator/sudo).
Please take note of the following terminology that will be used in code examples and instructions of the guide sections below:
Term | Description | Examples |
ADDITIONAL_IP | An Additional IP address assigned to your service | 169.254.10.254 |
NETWORK_INTERFACE | The name of the network interface | eth0, ens3 |
ID | ID of the IP alias, starting with 0 (depending on the number of additional IPs there are to configure) | 0, 1 |
Debian 11
Step 1: Disable automatic network configuration
Open the following file path with a text editor:
sudo nano /etc/cloud/cloud.cfg.d/99-disable-network-config.cfg
Enter the following line, then save and exit the editor.
network: {config: disabled}
Creating this configuration file will prevent changes to your network configuration from being made automatically.
Step 2: Edit the network configuration file
You can verify your network interface name with this command:
ip a
Open the network configuration file for editing with the following command:
sudo nano /etc/network/interfaces.d/50-cloud-init
Then add the following lines:
auto NETWORK_INTERFACE:ID iface NETWORK_INTERFACE:ID inet static address ADDITIONAL_IP netmask 255.255.255.255
Step 3: Restart the interface
Apply the changes with the following command:
sudo systemctl restart networking
Ubuntu 22.04 & Debian 12
The configuration file for your Additional IP addresses is located in /etc/netplan/
. In this example, it is called "50-cloud-init.yaml". Before making changes, verify the actual file name in this folder. Each Additional IP address will need its own line within the file.
Step 1: Disable automatic network configuration
Open the following file path with a text editor:
sudo nano /etc/cloud/cloud.cfg.d/99-disable-network-config.cfg
Enter the following line, then save and exit the editor.
network: {config: disabled}
Creating this configuration file will prevent changes to your network configuration from being made automatically.
Step 2: Edit the configuration file
You can verify your network interface name with this command:
ip a
Open the network configuration file for editing with the following command:
sudo nano /etc/netplan/50-cloud-init.yaml
Do not change the existing lines in the file; add your Additional IP address according to the example below:
network: version: 2 ethernets: NETWORK_INTERFACE: dhcp4: true match: macaddress: fa:xx:xx:xx:xx:63 set-name: NETWORK_INTERFACE addresses: - ADDITIONAL_IP/32
Save and close the file.
Step 3: Apply the new network configuration
You can test your configuration using this command:
sudo netplan try
If it is correct, apply it using the following command:
sudo netplan apply
Repeat this procedure for each Additional IP address.
Windows Server (2016)
Log in to the OVHcloud Control Panel, go to the Public Cloud
section, and select the Public Cloud project concerned.
Open Instances
in the left-hand menu and click on the name of your instance. Switch to the tab VNC console
.
Step 1: Verify the network configuration

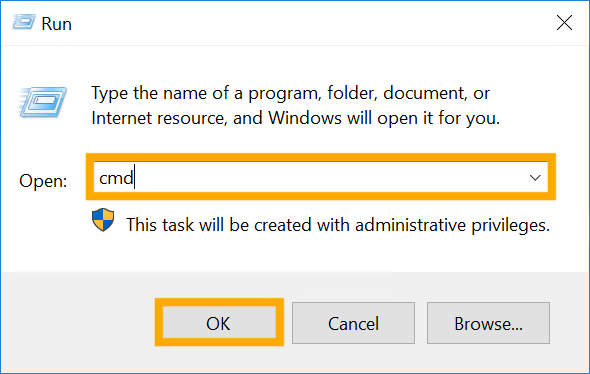

Right-click on the Start Menu
button and open Run
.
Type cmd
and click OK
to open the command line application.

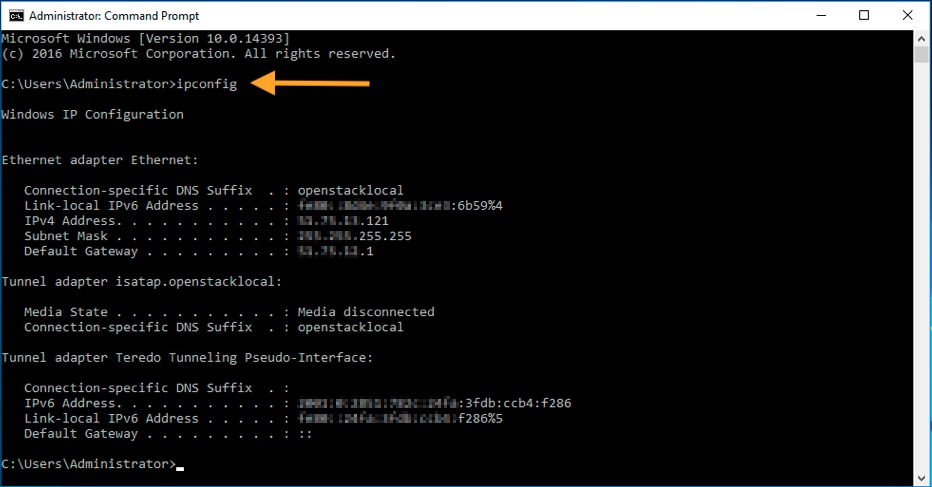

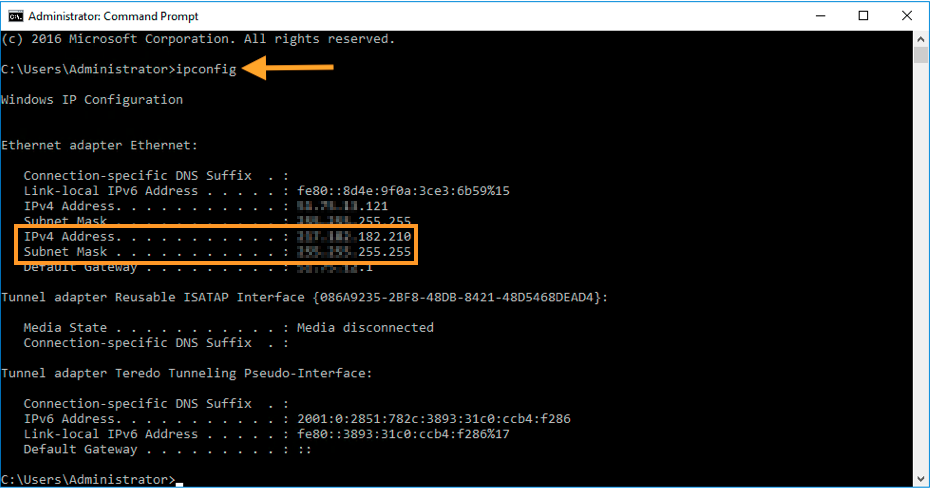

To retrieve the current IP configuration, enter ipconfig
at the command prompt.
Step 2: Change the IPv4 Properties
Now you need to change the IP properties to a static configuration.
Open the adapter settings in the Windows control panel and then open the Properties
of Internet Protocol Version 4 (TCP/IPv4)
.

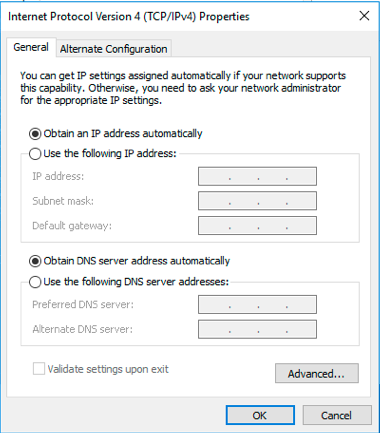

In the IPv4 Properties window, select Use the following IP address
. Enter the IP address which you have retrieved in the first step, then click on Advanced
.

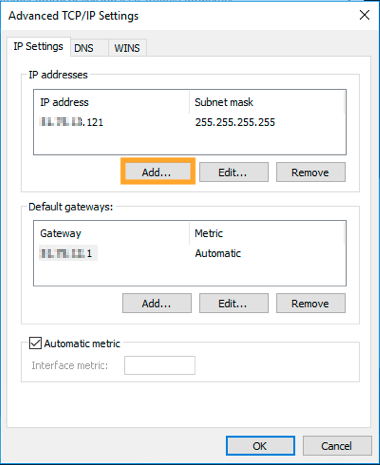

Step 3: Add the Additional IP in the "Advanced TCP/IP Settings"

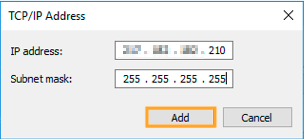

In the new window, click on Add...
under IP addresses. Enter your Additional IP address and the subnet mask (255.255.255.255).
Confirm by clicking on Add
.
Step 4: Restart the network interface

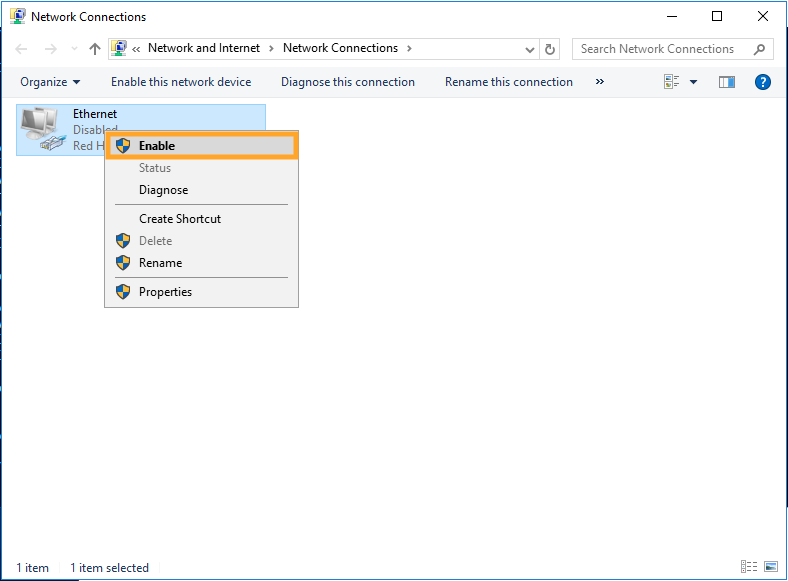

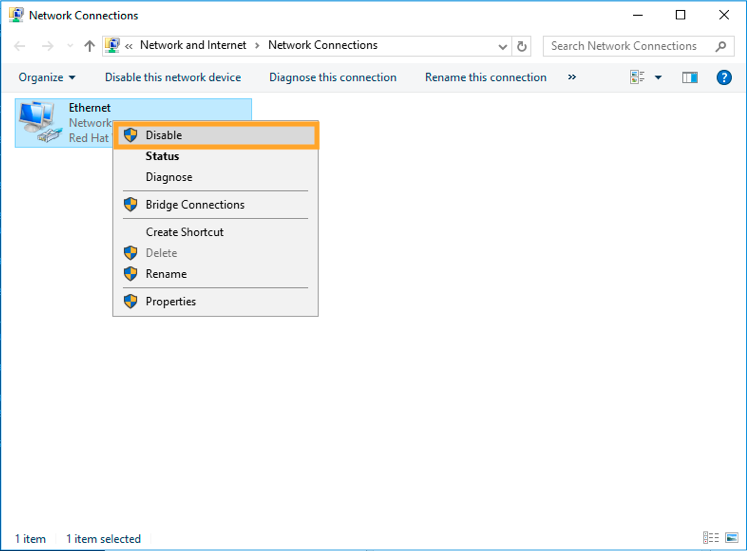

Back in the control panel (under the Network Connections menu), right-click on your network interface and then select Disable
.
To restart it, right-click on it again and then select Enable
.
Step 5: Check the new network configuration
Open the command prompt (cmd) and enter ipconfig
. The configuration should now include the new Additional IP address.
cPanel (CentOS 7) / Red Hat derivatives
Step 1: Edit the network configuration file
You can verify your network interface name with this command:
ip a
Open the network configuration file for editing:
sudo nano /etc/sysconfig/network-scripts/ifcfg-NETWORK_INTERFACE:ID
Then add these lines:
DEVICE=NETWORK_INTERFACE:ID BOOTPROTO=static IPADDR=ADDITIONAL_IP NETMASK=255.255.255.255 BROADCAST=ADDITIONAL_IP ONBOOT=yes
Step 2: Restart the interface
Apply the changes with the following command:
sudo systemctl restart networking
Plesk
Step 1: Access the Plesk IP management section

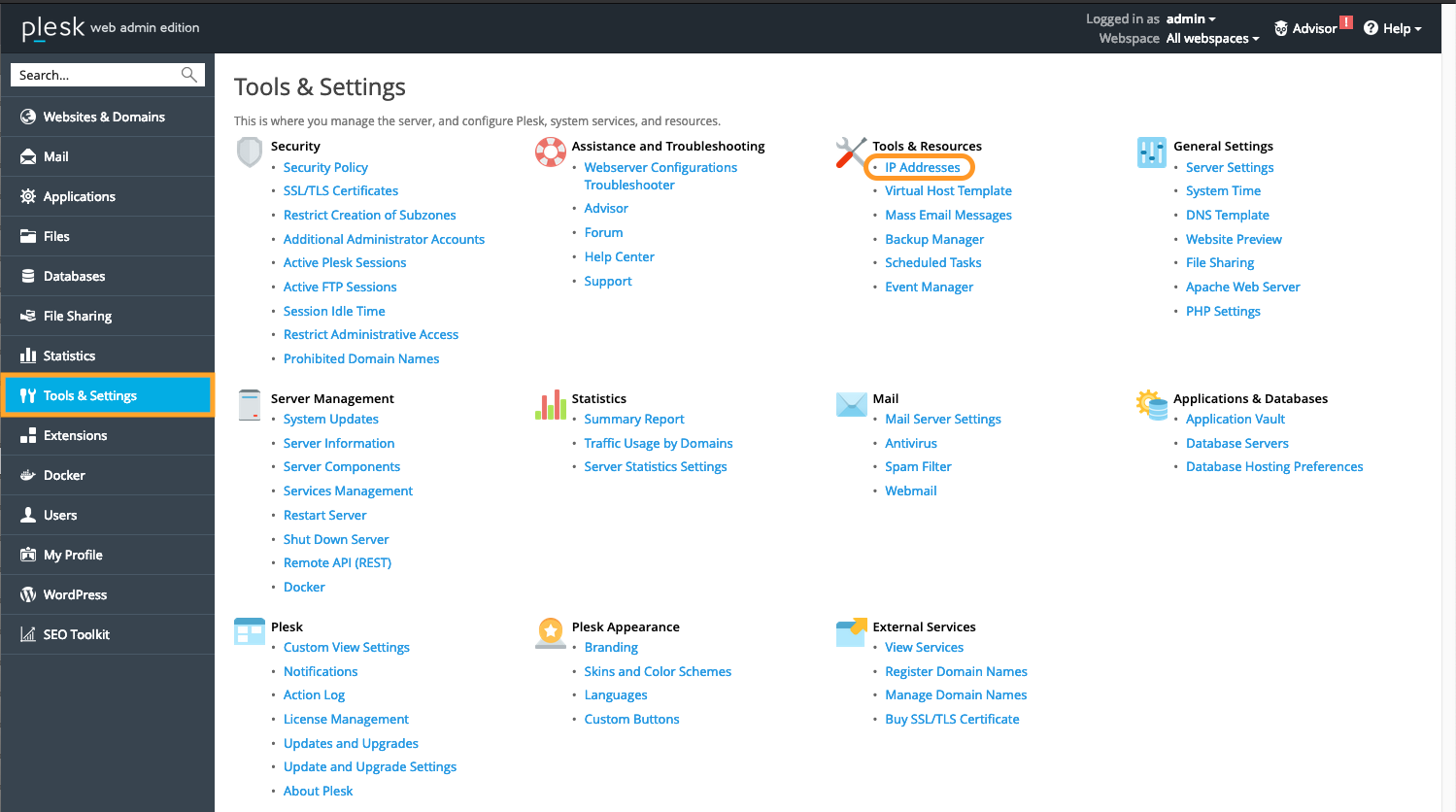

In the Plesk control panel, choose Tools & Settings
from the left-hand sidebar.
Click on IP Addresses
under Tools & Resources.
Step 2: Add the additional IP information

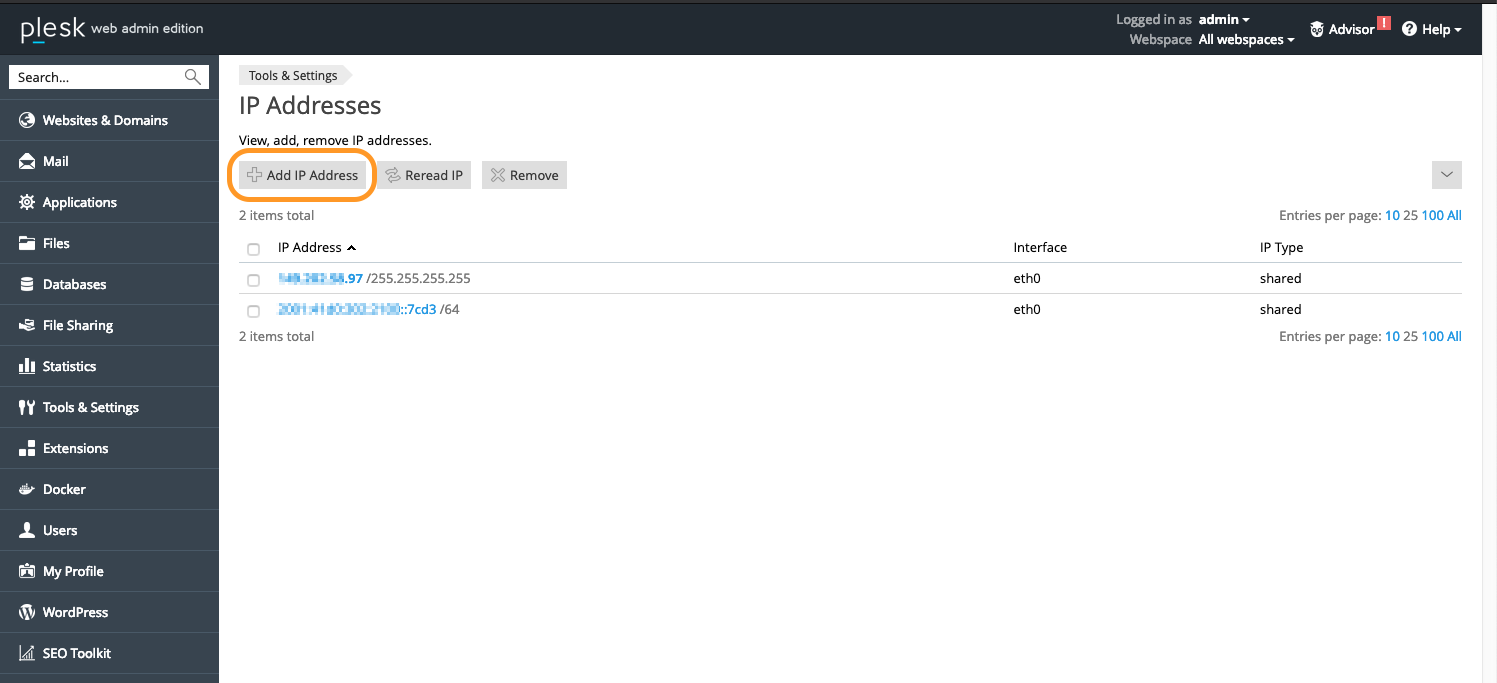

In this section, click on the button Add IP Address
.
Enter your Additional IP in the form xxx.xxx.xxx.xxx/32
into the IP address and subnet mask field, then click on OK
.
Step 3: Check the current IP configuration

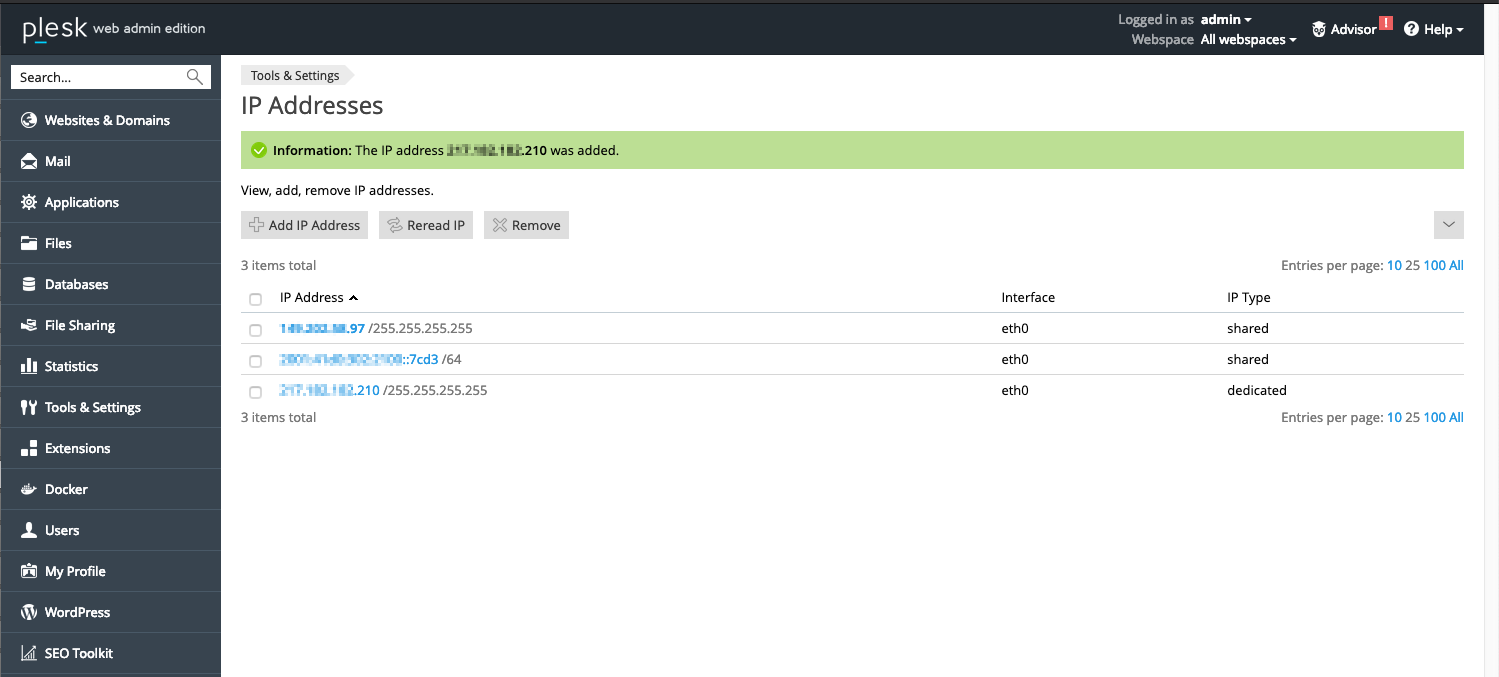

Back in the IP Addresses section, verify that the Additional IP address was added correctly.
Troubleshooting
First, soft-reboot your instance via the instance's OS or from the OVHcloud Control Panel. If you are still unable to establish a connection from the public network to your Additional IP and suspect a network problem, you need to reboot the instance in rescue mode. Then you can set up the Additional IP address directly on the instance.
Once you are connected in rescue mode via SSH, enter the following command:
ifconfig ens3:0 ADDITIONAL_IP netmask 255.255.255.255 broadcast ADDITIONAL_IP up
To test the connection, simply ping your Additional IP from the outside. If it responds in rescue mode, that probably means that there is a configuration error. If, however, the IP is still not working, please inform our support teams by creating a support request in your OVHcloud Control Panel for further investigations.
