Learn how to manage Helm charts in the OVHcloud Managed Private Registry service: how to upload charts and use them.
OVHcloud Managed Private Registry service is a composite cloud-native registry that supports both container image management and Helm chart management.
Before you begin
This tutorial assumes that you already have a working OVHcloud Managed Kubernetes cluster and some basic knowledge of how to operate it. If you want to know more about those topics, please look at the deploying a Hello World application documentation. You will need to have Helm installed on your cluster (see the installing Helm guide for more information).
You also need to have a working OVHcloud Managed Private Registry and have followed the guides on creating a private registry, connecting to the UI, managing users and projects, creating and using private images, and using Private Registry with OVHcloud Managed Kubernetes.
Prerequisites
Install Helm v3.8+
Check if the required version of Helm is installed:
$ helm version
version.BuildInfo{Version:"v3.12.0", GitCommit:"c9f554d75773799f72ceef38c51210f1842a1dea", GitTreeState:"clean", GoVersion:"go1.20.3"}
If the version is less than v3.8.0, follow the official instructions to install the latest version of Helm.
Instructions
Preparing a Helm chart
In order to do this tutorial, you will need a Helm chart to upload to your OVHcloud Managed Private Registry.
If you already have a Helm chart in your filesystem, you can use it for the example, but in this section, we are supposing you do not have one. We are using a well-known Helm chart often employed as an example: the WordPress chart.
Download the chart
The first step is downloading the WordPress chart using helm
:
helm fetch bitnami/wordpress
The WordPress Helm chart is downloaded as a tgz
file.
$ helm fetch bitnami/wordpress $ ls wordpress-13.1.4.tgz
Inspect the chart (optional)
The file you have downloaded is a packaged Helm chart, useful for downloading and uploading it to your OVHcloud Private Registry. We'll unpack it to have a peek inside it and get a better understanding of its structure.
An unpackaged chart is organized as a collection of files inside a directory. The directory name is the name of the chart (without versioning information). Thus, the chart describing WordPress should be stored in a 'wordpress/' folder.
Inside of this directory, Helm will expect a structure that matches this:
wordpress/ Chart.yaml # A YAML file containing information about the chart LICENSE # OPTIONAL: A plain text file containing the license for the chart README.md # OPTIONAL: A human-readable README file values.yaml # The default configuration values for this chart values.schema.json # OPTIONAL: A JSON Schema for imposing a structure on the values.yaml file charts/ # A directory containing any charts upon which this chart depends. crds/ # Custom Resource Definitions templates/ # A directory of templates that, when combined with values, # will generate valid Kubernetes manifest files. templates/NOTES.txt # OPTIONAL: A plain text file containing short usage notes
Let's uncompress the helm chart:
tar zxf wordpress-13.1.4.tgz
As expected, the file is uncompressed into a 'wordpress/' folder, with the required files and folders inside it:
$ tar zxf wordpress-13.1.4.tgz $ ls -l total 132
drwxr-xr-x 4 avache staff 4096 Nov 14 19:07 wordpress
-rw-r--r-- 1 avache staff 130981 Nov 14 19:07 wordpress-18.1.14.tgz $ ls -l wordpress total 148
-rw-r--r-- 1 avache staff 405 Nov 14 01:02 Chart.lock
drwxr-xr-x 5 avache staff 4096 Nov 14 19:07 charts
-rw-r--r-- 1 avache staff 1287 Nov 14 01:02 Chart.yaml
-rw-r--r-- 1 avache staff 73911 Nov 14 01:02 README.md
drwxr-xr-x 2 avache staff 4096 Nov 14 19:07 templates
-rw-r--r-- 1 avache staff 5706 Nov 14 01:02 values.schema.json
-rw-r--r-- 1 avache staff 48675 Nov 14 01:02 values.yaml
You can now remove the tgz
file, as we are recreating it.
To package a chart from a chart directory, you can use helm package
:
helm package wordpress
It creates the packaged chart, with the version appended to the filename:
$ helm package wordpress Successfully packaged chart and saved it to: /Users/avache/tmp/test-doc-k8s/helm/wordpress-18.1.14.tgz
Manage Helm Charts via the Helm CLI
Login
Before being able to pull or push Helm charts, login to Harbor:
helm registry login <registry url>
For example:
helm registry login https://8xghzr01.c1.va1.container-registry.ovh.us
Push Helm chart
Upload a chart to a registry:
helm push <chart name>-<version>.tgz oci://<registry url>/<project>
For example, to push the Helm chart WordPress in the version "18.1.14" in the Harbor project named private:
helm push wordpress-18.1.14.tgz oci://8xghzr01.c1.va1.container-registry.ovh.us/private
Pull Helm Chart
Download a chart from a registry:
helm pull oci://<registry url>/<project>/<chart name> --version <version>
For example, to pull the Helm Chart WordPress in version "18.1.14" from the Harbor project named private:
helm pull oci://8xghzr01.c1.va1.container-registry.ovh.us/private/wordpress --version 18.1.14
You should see a new file:
$ ls -l
-rw-r--r-- 1 avache staff 130981 Nov 14 19:11 wordpress-18.1.14.tgz
Install Helm Chart
Install a chart to a Kubernetes cluster:
helm install myrelease oci://<registry url>/<project>/<chart name> --version <version>
For example, to install the Helm chart WordPress in the version "18.1.14" from the harbor project named private:
helm install myrelease oci://8xghzr01.c1.va1.container-registry.ovh.us/private/wordpress --version 18.1.14
Manage Helm Charts via the Harbor UI
The charts pushed to the OCI-compatible registry of Harbor are treated like any other type of artifact.
We can list, copy, delete, update labels, get details, and add or remove tags for them just like we can for container images.
In the following example, we pushed the WordPress Helm chart in version 18.1.14 and the WordPress Docker image in version 6.4.1.

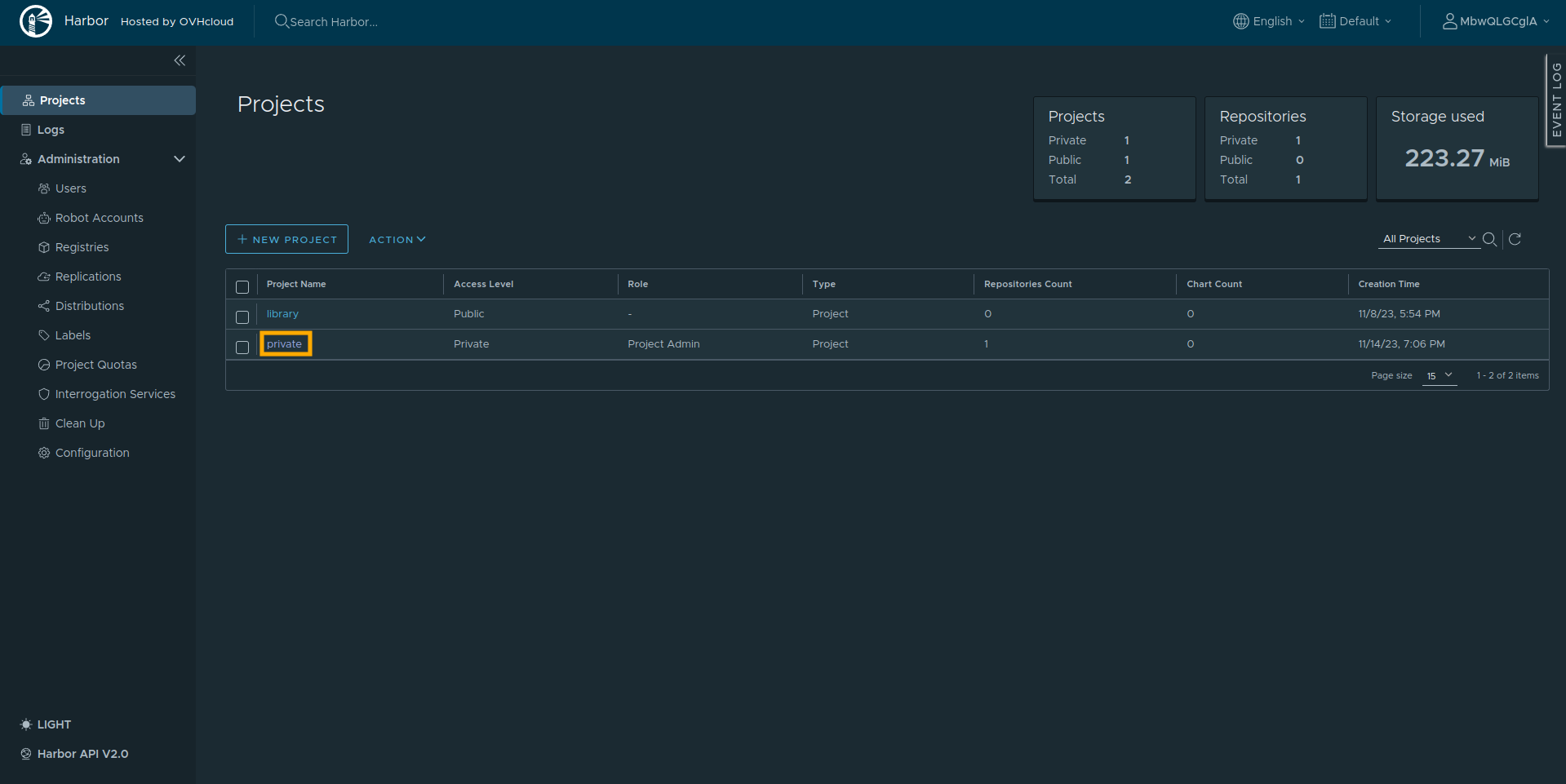

Click on the project private
to list its repositories:

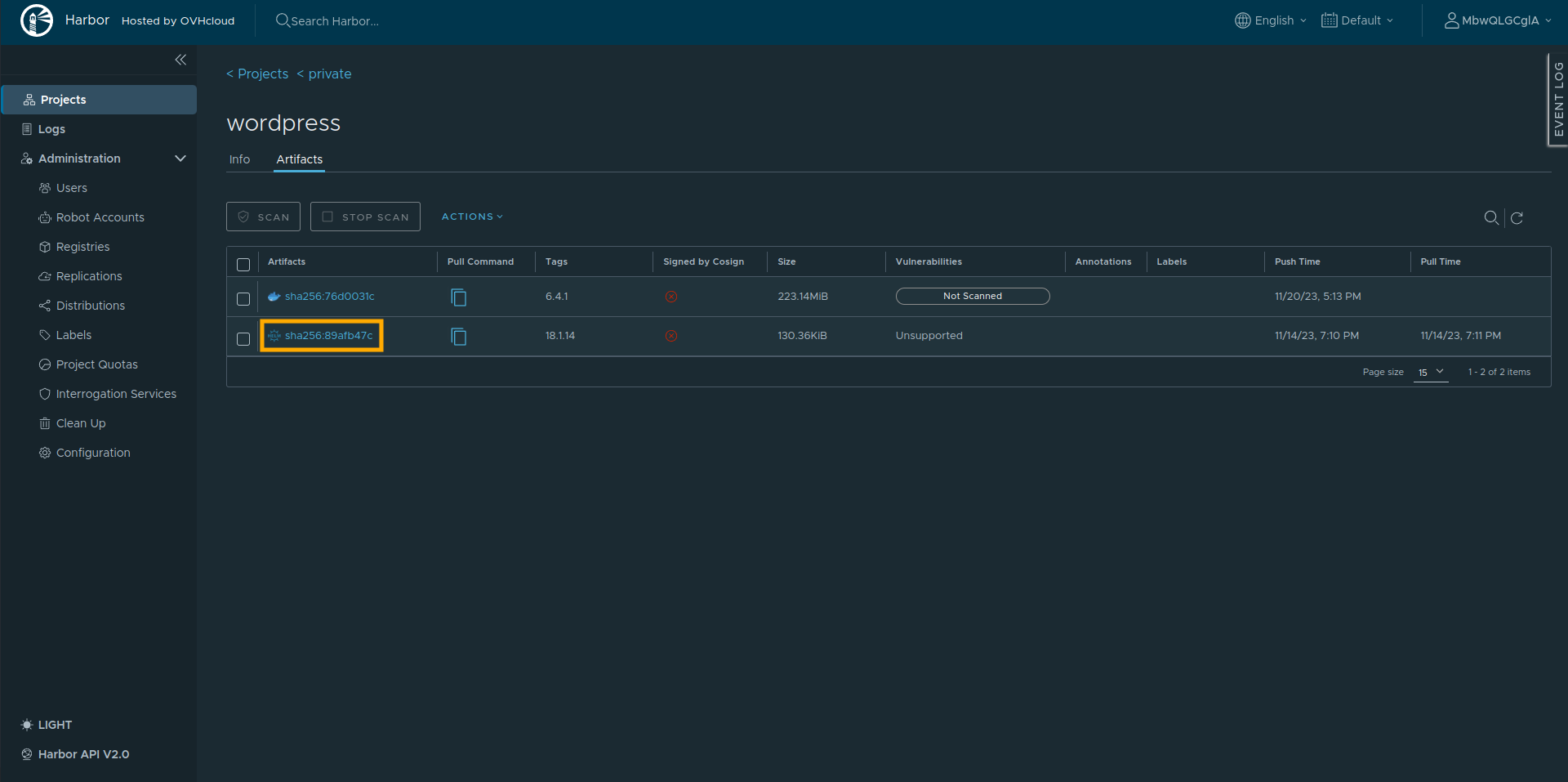

Then click on the private/wordpress
repository to see its two artifacts: the Docker image and the Helm Chart. The logo on the left of the artifact hash allows you to differentiate them:
Finally, click on the hash of the second artifact to see the Helm chart details:
Go further
For more information and tutorials, please see our other Managed Private Registry support guides or explore the guides for other OVHcloud products and services.
