Creating a Private Registry (Harbor) through Terraform – Articles

Learn how to deploy a private registry with Terraform.

Terraform

Terraform is an open-source infrastructure as code (IaC) tool created by Hashicorp in 2014, and written in Go. It aims to build, change and version control your infrastructure. You can define and provision your infrastructure by writing the definition of your resources in Hashicorp Configuration Language (HCL).

This tool has a powerful and very intuitive command line interface (CLI). If you are interested in leveraging your knowledge about Terraform CLI, a Cheat Sheet exists.

Requirements

a Public Cloud project in your OVHcloud account
how to use Terraform (for more information, you can use our guide and/or Terraform's official documentation)
Terraform CLI installed

OVHcloud Terraform provider

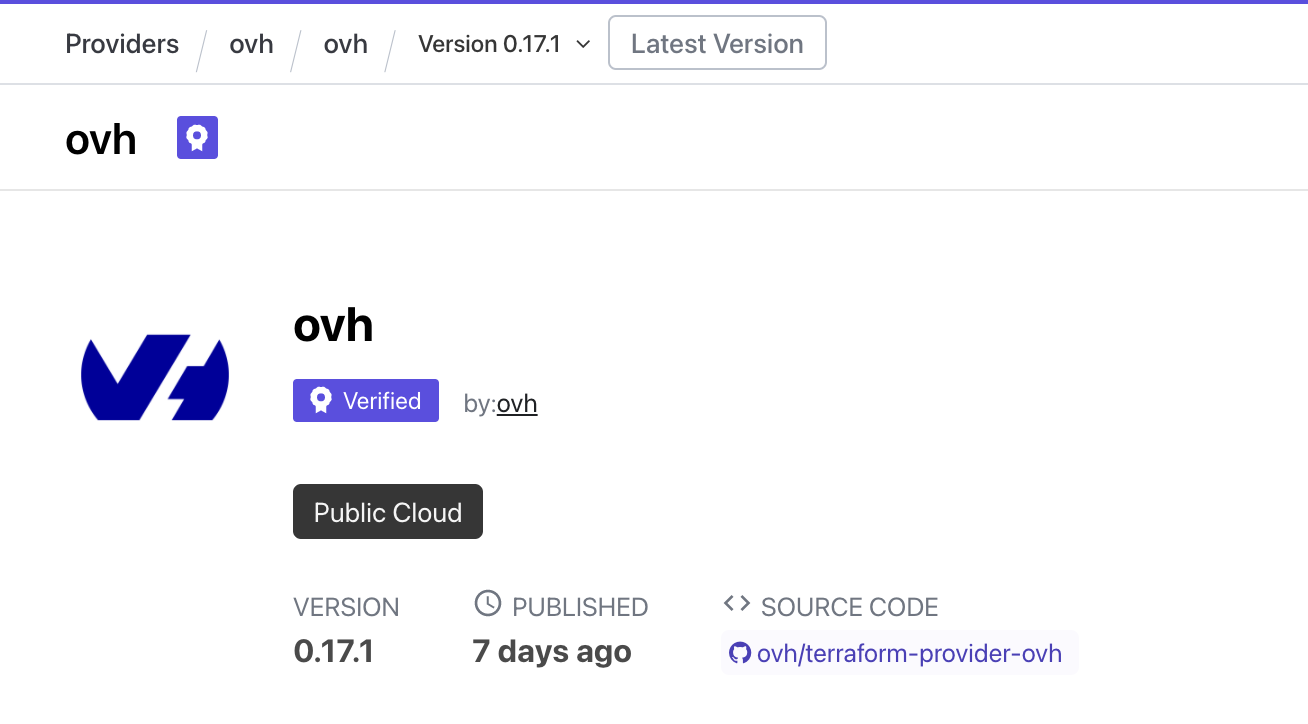

To create a private registry and other resources, OVHcloud offers a Terraform provider which is available in the official Terraform registry.

All available resources and data sources have their definition and documentation.

In this guide, we will create two resources:

a ovh_cloud_project_containerregistry, that represents an OVHcloud managed private registry
and a ovh_cloud_project_containerregistry_user, which represents a user associated with a private registry

Getting your cluster/API tokens information

The "OVH provider" needs to be configured with a set of credentials:

an application_key
an application_secret
a consumer_key

Why?

Because, behind the scenes, the "OVH Terraform provider" is doing requests to OVHcloud APIs.

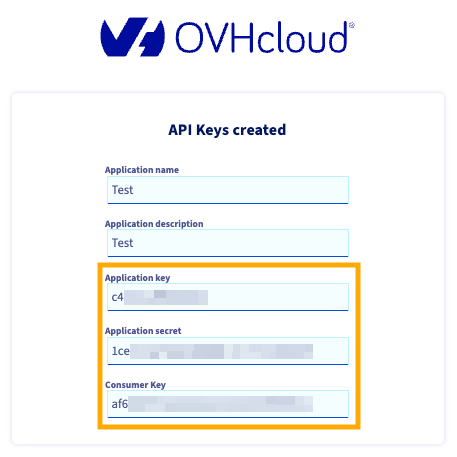

To retrieve this necessary information, please follow the First Steps with the OVHcloud API tutorial.

When you have successfully generated your OVH tokens, please keep them. You'll have to define them in the coming minutes.


The last needed information is the service_name: the ID of your Public Cloud project.

How to get it?

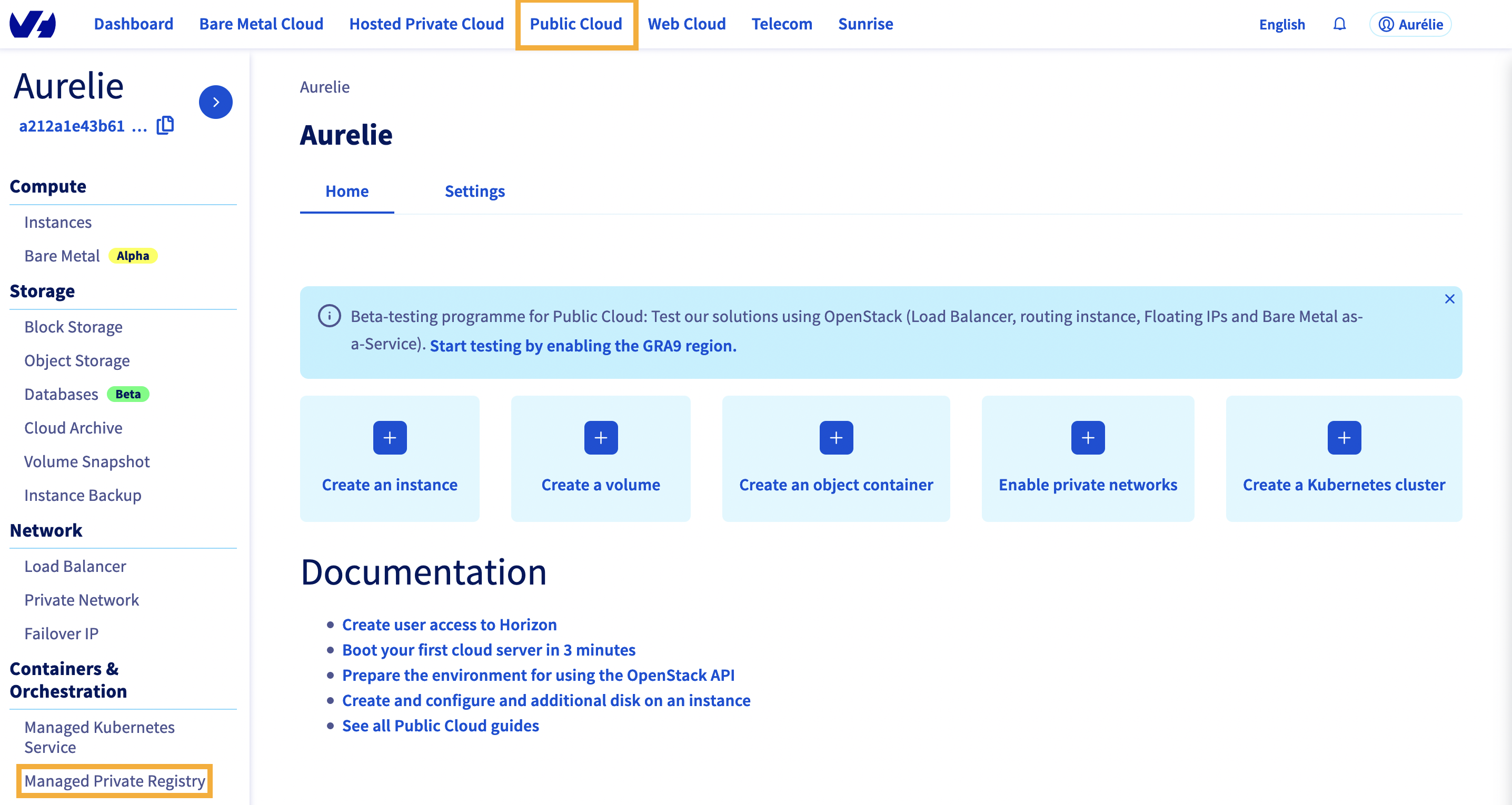

In the Public Cloud section, you can retrieve your service name ID thanks to the Copy to clipboard button.

You will also use this information in Terraform resources definition files.

Instructions

When you want to manage (create, modify, and remove) your infrastructure, getting started with Terraform is easy. Just create files ending with .tf containing the description of the resources you want to have.

In our case, we want to create:

an OVHcloud Managed Private Registry
a user attached to the registry

So, let's start!

Resources definition

First, create a provider.tf file with the minimum version, US endpoint ("ovh-us"), and keys you previously got in this guide.

Terraform 0.13 and later:

terraform {
  required_providers {
    ovh = {
      source  = "ovh/ovh"
    }
  }
}

provider "ovh" {
  endpoint           = "ovh-us"
  application_key    = "<your_access_key>"
  application_secret = "<your_application_secret>"
  consumer_key       = "<your_consumer_key>"
}

Terraform 0.12 and earlier:

# Configure the OVHcloud Provider
provider "ovh" {
  endpoint           = "ovh-us"
  application_key    = "<your_access_key>"
  application_secret = "<your_application_secret>"
  consumer_key       = "<your_consumer_key>"
}

If you don't want to define your secrets in the Terraform configuration file, you can also define them in environment variables as shown below. Replace the actual keys/secret with the variables in the above file if the variables are defined separately (i.e. application_key = $OVH_APPLICATION_KEY).

$ export OVH_ENDPOINT=ovh-us
$ export OVH_APPLICATION_KEY=Your_key_application_OVH(or_AK)
$ export OVH_APPLICATION_SECRET=Your_secret_application_key_OVH(or_AS)
$ export OVH_CONSUMER_KEY=Your_token(or_CK)

This later method (or a similar alternative) is recommended to avoid storing secret data in a source repository.

Here, we defined the ovh-us endpoint because we want to call the OVHcloud US API, but other endpoints exist, depending on your needs:

ovh-us for OVHcloud US API
ovh-eu for OVHcloud Europe API
ovh-ca for OVHcloud North-America API

Then, create a variables.tf with service_name:

variable service_name {
  type        = string
  default     = "<your_service_name>"
}

Define the resources you want to create in a new file called ovh_private_registry.tf:

data "ovh_cloud_project_capabilities_containerregistry_filter" "capabilities" {
  service_name = var.service_name
  plan_name    = "SMALL"
  region       = "US-EAST-VA"
}

resource "ovh_cloud_project_containerregistry" "myregistry" {
  service_name = data.ovh_cloud_project_capabilities_containerregistry_filter.capabilities.service_name
  plan_id      = data.ovh_cloud_project_capabilities_containerregistry_filter.capabilities.id
  region       = data.ovh_cloud_project_capabilities_containerregistry_filter.capabilities.region
  name         = "my-docker-private-registry"
}

resource "ovh_cloud_project_containerregistry_user" "myuser" {
    service_name = ovh_cloud_project_containerregistry.myregistry.service_name
    registry_id  = ovh_cloud_project_containerregistry.myregistry.id
    email        = "my.user@mycompany.com"
    login        = "myuser"
}

In this resource configuration, we ask Terraform to create a private registry, in the US-EAST-VA region and with the small plan and we tell Terraform to create a user attached to the registry.

Finally, create an output.tf file with the following content:

output "registry-url" {
  value = ovh_cloud_project_containerregistry.myregistry.url
}

output "user" {
  value = ovh_cloud_project_containerregistry_user.myuser.user
}

output "password" {
  value = ovh_cloud_project_containerregistry_user.myuser.password
  sensitive = true
}

We specified that the password output is sensitive data, so it will be censored during the terraform apply but you can retrieve it with the terraform output command as we will show you in this guide.

With this output, we tell Terraform to retrieve the URL of this registry to access it, moreover the user login and the generated password.

For your information, outputs are useful to retrieve and display specific information after the resource creation.

Your code organization should be like this:

.
├── output.tf
├── ovh_private_registry.tf
├── provider.tf
└── variables.tf

Create our private registry through Terraform

Now we need to initialize Terraform, generate a plan, and apply it.

$ terraform init

Initializing the backend...

Initializing provider plugins...
- Reusing previous version of ovh/ovh from the dependency lock file
- Using previously-installed ovh/ovh v0.17.1

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

The init command will initialize your working directory which contains .tf configuration files.

It’s the first command to execute for a new configuration, or after doing a checkout of an existing configuration in a given Git repository for example.

The init command will:

Download and install Terraform providers/plugins
Initialize backend (if defined)
Download and install modules (if defined)

To see what will be added, created, or deleted in your infrastructure, you can execute:

terraform plan

To apply the changes:

$ terraform apply
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # ovh_cloud_project_containerregistry.myregistry will be created
  + resource "ovh_cloud_project_containerregistry" "myregistry" {
      + created_at   = (known after apply)
      + id           = (known after apply)
      + name         = "my-docker-private-registry"
      + plan         = (known after apply)
      + plan_id      = "9f728ba5-xxxx-xxxx-xxxx-497cd8bc6a89"
      + project_id   = (known after apply)
      + region       = "US-EAST-VA"
      + service_name = "xxxxxxxxxxxxxxxx"
      + size         = (known after apply)
      + status       = (known after apply)
      + updated_at   = (known after apply)
      + url          = (known after apply)
      + version      = (known after apply)
    }

  # ovh_cloud_project_containerregistry_user.myuser will be created
  + resource "ovh_cloud_project_containerregistry_user" "myuser" {
      + email        = "my.user@mycompany.com"
      + id           = (known after apply)
      + login        = "myuser"
      + password     = (sensitive value)
      + registry_id  = (known after apply)
      + service_name = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
      + user         = (known after apply)
    }

Plan: 2 to add, 0 to change, 0 to destroy.

Changes to Outputs:
  + password     = (sensitive value)
  + registry-url = (known after apply)
  + user         = (known after apply)

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

Now you can accept this plan and enter the yes command to execute it.

  Enter a value: yes

ovh_cloud_project_containerregistry.myregistry: Creating...
ovh_cloud_project_containerregistry.myregistry: Still creating... [10s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [20s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [30s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [40s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [50s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [1m0s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [1m10s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [1m20s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [1m30s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [1m40s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [1m50s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [2m0s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [2m10s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [2m20s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [2m30s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [2m40s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [2m50s elapsed]
ovh_cloud_project_containerregistry.myregistry: Still creating... [3m0s elapsed]
ovh_cloud_project_containerregistry.myregistry: Creation complete after 3m6s [id=xxxxxxx-xxxx-xxxx-xxxx-xxxxxxxx]
ovh_cloud_project_containerregistry_user.myuser: Creating...
ovh_cloud_project_containerregistry_user.myuser: Creation complete after 2s [id=3]

Apply complete! Resources: 2 added, 0 changed, 0 destroyed.

Outputs:

password = <sensitive>
registry-url = "https://1ab234c5.c1.va1.container-registry.ovh.us"
user = "myuser"

If after running the terraform apply command, you get the error message Error: Your query returned no results. Please change your search criteria and try again, it means you have entered an incorrect region.

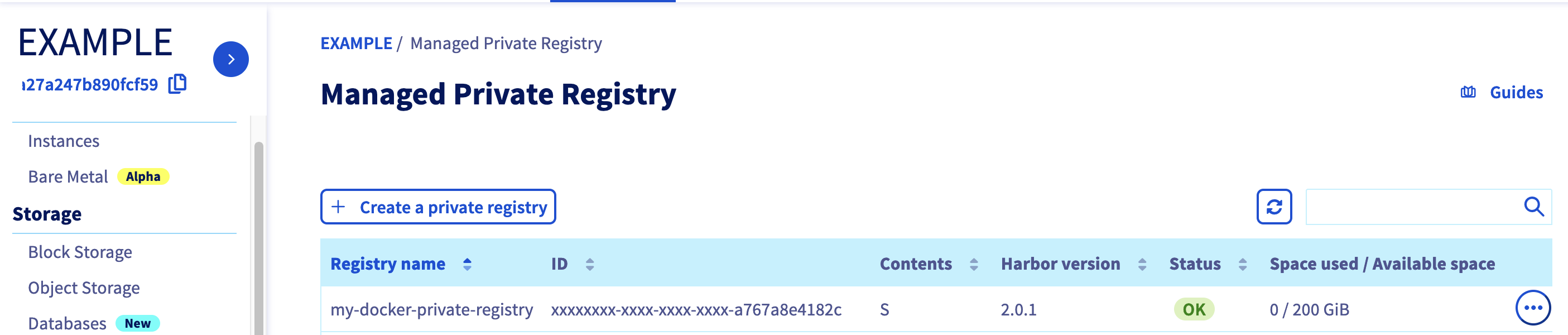

Now, log in to the OVHcloud Control Panel, go to the Public Cloud section, and click on Managed Private Registry.

As you can see, your registry has been successfully created:

Connect to the private registry

Our registry has been created, and now we can access and see the interface/UI of your managed Harbor.

To do this, retrieve the necessary information locally:

terraform output registry-url
terraform output user
terraform output password

You should see the following:

$ terraform output registry-url
"https://1ab234c5.c1.va1.container-registry.ovh.us"

$ terraform output user
"myuser"

$ terraform output password
"mygeneratedpassword"

Now go to the private registry URL and log in with the credentials you have retrieved.

Destroy (cleanup)

If you want to easily destroy created resources, you can use terraform destroy command.

$ terraform destroy
ovh_cloud_project_containerregistry.myregistry: Refreshing state... [id=xxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxx]
ovh_cloud_project_containerregistry_user.myuser: Refreshing state... [id=3]

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  - destroy

Terraform will perform the following actions:

  # ovh_cloud_project_containerregistry.myregistry will be destroyed
  - resource "ovh_cloud_project_containerregistry" "myregistry" {
      - created_at   = "2022-04-12T12:34:30.161619Z" -> null
      - id           = "xxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxx" -> null
      - name         = "my-docker-private-registry" -> null
      - plan         = [
          - {
              - code            = "registry.s-plan-equivalent.hour.consumption"
              - created_at      = "2019-09-13T15:53:33.599585Z"
              - features        = [
                  - {
                      - vulnerability = false
                    },
                ]
              - id              = "xxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxx"
              - name            = "SMALL"
              - registry_limits = [
                  - {
                      - image_storage    = 214748364800
                      - parallel_request = 15
                    },
                ]
              - updated_at      = "2021-03-29T10:09:03.960847Z"
            },
        ] -> null
      - plan_id      = "xxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxx" -> null
      - region       = "US-EAST-VA" -> null
      - service_name = "<your_service_name>" -> null
      - size         = 0 -> null
      - status       = "READY" -> null
      - updated_at   = "2022-04-12T12:38:14.564559Z" -> null
      - url          = "https://1ab234c5.c1.va1.container-registry.ovh.us" -> null
      - version      = "2.0.1" -> null
    }

  # ovh_cloud_project_containerregistry_user.myuser will be destroyed
  - resource "ovh_cloud_project_containerregistry_user" "myuser" {
      - email        = "my.user@mycompany.com" -> null
      - id           = "3" -> null
      - login        = "myuser" -> null
      - password     = (sensitive value)
      - registry_id  = "xxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxx" -> null
      - service_name = "<your_service_name>" -> null
      - user         = "myuser" -> null
    }

Plan: 0 to add, 0 to change, 2 to destroy.

Changes to Outputs:
  - password     = (sensitive value)
  - registry-url = "https://1ab234c5.c1.va1.container-registry.ovh.us" -> null
  - user         = "myuser" -> null

Do you really want to destroy all resources?
  Terraform will destroy all your managed infrastructure, as shown above.
  There is no undo. Only 'yes' will be accepted to confirm.

  Enter a value: yes

ovh_cloud_project_containerregistry_user.myuser: Destroying... [id=3]
ovh_cloud_project_containerregistry_user.myuser: Destruction complete after 1s
ovh_cloud_project_containerregistry.myregistry: Destroying... [id=xxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxx]
ovh_cloud_project_containerregistry.myregistry: Still destroying... [id=xxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxx, 10s elapsed]
ovh_cloud_project_containerregistry.myregistry: Destruction complete after 11s

Destroy complete! Resources: 2 destroyed.

Your private registry and the user have been destroyed.

Go further

For more information and tutorials, please see our other Managed Private Registry support guides or explore the guides for other OVHcloud products and services.

Articles in this section
