AI Deploy - Tutorial - Create and deploy a Speech to Text application using Streamlit

Stephanie R.
Updated

Learn how to deploy the Speech to Text Application created in this blog article using Streamlit and pre-trained models.

Deploying your app will allow you to benefit from very powerful resources, which will make the speech-to-text application extremely fast. It can also be easily shared, unlike a local application.

Here, the use case is English Speech Recognition, but you can choose another model as explained in our blog article. Some models work with Chinese, French, German, Japanese, Russian, etc.

AI Deploy is covered by OVHcloud Public Cloud Special Conditions.

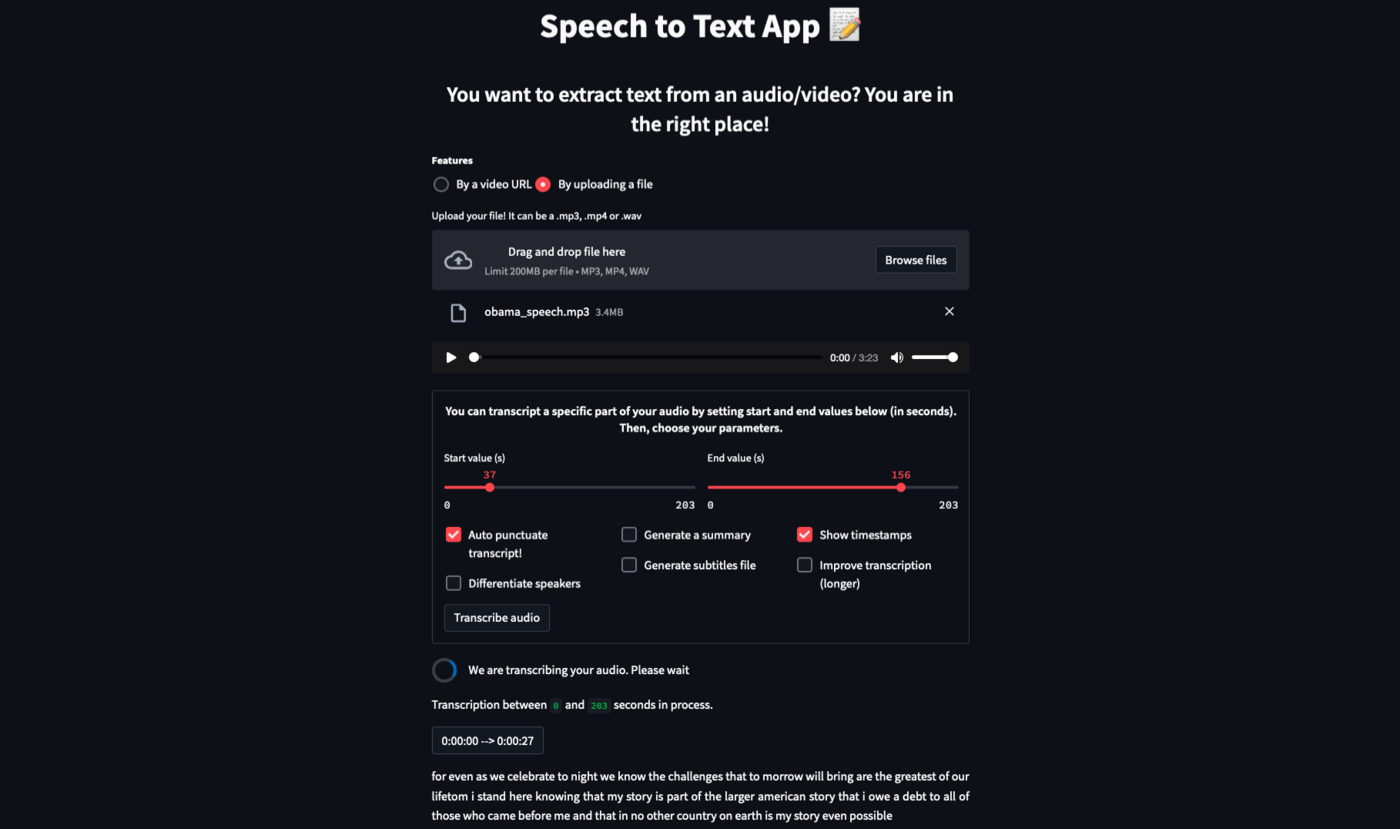

Overview of the Speech-to-Text app:




Requirements

To deploy your app, you need:

  • Access to the OVHcloud Control Panel
  • An AI Deploy Project created inside a Public Cloud project in your OVHcloud account
  • A user for AI Deploy
  • The OVHcloud AI CLI and Docker installed on your local computer, or only access to a Debian Docker Instance on the Public Cloud
  • To deploy your app, you must have the full code of the application, either by cloning the GitHub repository or by following our blog article that taught you how to build this app step by step
  • If you want the diarization option (speaker differentiation), you will need an access token. This token will be requested at the launch of the application. To create your token, follow the steps indicated on the model page. If the token is not specified, the application will be launched without this feature.



Instructions

You are going to follow different steps to deploy your Streamlit Speech to Text application:

  • Write & Install the libraries and packages in our environment so that our application can work.
  • Write the Dockerfile that contains all the commands to launch our speech-to-text app.
  • Build the Docker image from the Dockerfile
  • (Optional) - Import the models and save them locally in an Object Storage (volume) to speed up the initialization of the app.
  • Deploy your app.

If you have cloned the GitHub repository, you will not need to rewrite the files (requirements.txt and Dockerfile) since you already have them. In this case, you can go directly to the "Build the Docker image" step, even if it is better to understand the global operation.



Write the requirements.txt file for the application

The requirements.txt file will allow us to write all the modules needed by our application. This file will be useful for the Dockerfile. Put this file (and the next ones) in the same directory as your Python scripts.

librosa==0.9.1
youtube_dl==2021.12.17
numba==0.56.4
streamlit==1.9.0
transformers==4.18.0
httplib2==0.20.2
torch==1.11.0
torchtext==0.12.0
torchaudio==0.11.0
sentencepiece==0.1.96
tokenizers==0.12.1
pyannote.audio==2.1.1
pyannote.core==4.4
pydub==0.25.1
altair==4.2.2



Write the Dockerfile for the application

A Dockerfile is a text document that contains all the commands a user could call on the command line to build an image.

This file should start with the FROM instruction, indicating the parent image to use. In our case, we choose to start from the official python:3.8 image:

FROM python:3.8

We recommend that you do not downgrade the version of Python. Indeed, according to pyannote.audio's documentation, only python 3.8+ is officially supported for the moment.

Then, define the home directory and add all your files (python scripts, requirements.txt, and the Dockerfile) to it thanks to the following commands:

WORKDIR /workspace
ADD . /workspace

With AI Deploy, workspace will be your home directory.

We can now install our needed system packages. To do this, use apt-get, which is a command-line tool that helps in handling packages:

RUN apt-get update && apt-get install -y ffmpeg libsndfile1-dev

Use a pip install ... command to install our needed python modules that are in the requirements.txt file:

RUN pip install -r requirements.txt

Once your environment is set up, define your default launching command to start the application:

CMD [ "streamlit" , "run" , "/workspace/main.py", "--server.address=0.0.0.0" ]

Finally, create a data folder which will temporarily store users' audio files until they are transcribed. Then, give the correct access rights to the OVHcloud user (42420:42420):

RUN mkdir /data ; chown -R 42420:42420 /workspace /data
ENV HOME=/workspace



Build the Docker image from the Dockerfile

From the directory containing your Dockerfile, run one of the following commands to build your application image:

# Build the image using your machine's default architecture
docker build . -t streamlit_app:latest

# Build image targeting the linux/amd64 architecture
docker buildx build --platform linux/amd64 -t streamlit_app:latest .

  • The first command builds the image using your system’s default architecture. This may work if your machine already uses the linux/amd64 architecture, which is required to run containers with our AI products. However, on systems with a different architecture (e.g. ARM64 on Apple Silicon), the resulting image will not be compatible and cannot be deployed.

  • The second command explicitly targets the linux/AMD64 architecture to ensure compatibility with our AI services. This requires buildx, which is not installed by default. If you haven’t used buildx before, you can install it by running: docker buildx install

The dot argument . indicates that your build context (place of the Dockerfile and other needed files) is the current directory.

The -t argument allows you to choose the identifier to give to your image. Usually, image identifiers are composed of a name and a version tag <name>:<version>. For this example, we chose streamlit_app:latest.



Push the image into the shared registry

NOTE: The shared registry should only be used for testing purposes. Please consider creating and attaching your own registry. More information about this can be found here. The images pushed to this registry are for AI Tools workloads only and will not be accessible for external uses.

Find the address of your shared registry by launching this command:

ovhai registry list

Log in on your shared registry with your usual AI Platform user credentials:

docker login -u <user> -p <password> <shared-registry-address>

Tag the compiled image and push it into your shared registry:

docker tag streamlit_app:latest <shared-registry-address>/streamlit_app:latest
docker push <shared-registry-address>/streamlit_app:latest



Import the models and save them locally (Optional)

As we explained in the blog article, you will considerably reduce the initialization time of the app if you download the models and store them in a local folder. This will allow you not to have to download them again every time you relaunch the application.

To do this, we will use AI Training. This will allow us to launch a Python script from GitHub that will download the models and store them in an OVHcloud volume named speech_to_text_app_models. When the models will be downloaded and added to this volume, the status of the job will automatically switch from Running to Done and the job will be immediately stopped. This operation should be quite fast.

Unfortunately, the diarization model can't be saved anymore since pyannote.audio v2. The application will load it in the classical way, by using your model access token, which will be requested by the application once launched.

To launch this AI Training job and download the models, use the following OVHcloud's CLI command:

ovhai job run <shared-registry-address>/streamlit_app:latest \
    --cpu 12 \
    --volume speech_to_text_app_models@US-EAST-VA/:/workspace/speech_to_text_app_models:RW \
    --volume https://github.com/ovh/ai-training-examples.git:/workspace/github_repo:rw \
    -- bash -c 'python /workspace/github_repo/apps/streamlit/speech-to-text/download_models.py'

streamlit_app:latest corresponds to the name of your Docker image.

--volume allows you to specify what volume you want to add to your job. As mentioned, we add the volume speech_to_text_app_models and we put it in RW (read and write) mode since we want to add our models to this volume. If you do not have this volume in your Object Storage list, do not worry, it will be created automatically. As you can see, the --volume parameter also allows you to get files from a GitHub repository, which in our case contains the script to download the models.

--bash allows you to provide commands through which you install the libraries mentioned in your requirements.txt file, and run the Python script.

When you run this command, an Info url will appear. Opening it will allow you to track the status of the job. Once the GitHub repository is recovered, the Python script will be launched and the job status will switch to Running. Then, you just have to wait for the job to end.

We advise you to turn on the auto-refresh option (Running status automatically disables it). This will allow you to see when the job will end (job status switches to Done). Otherwise, you can refresh the page manually.

Once the models have been uploaded and the status is Done, you can continue.



Launch the app on AI Deploy

If you followed the optional part Import the models and save them locally, you can load the volume where your models are stored with the --volume parameter. This time, we put this volume in read-only (RO) mode because we only need to have access to the models so we can use them. We don't need to write or delete anything in this Object Storage container.

Otherwise, you can remove the --volume line, since it will not bring anything to your app.

The following command starts a new app running your Streamlit application:

ovhai app run \
      --default-http-port 8501 \
      --cpu 6 \
      --volume speech_to_text_app_models@US-EAST-VA/:/workspace/models:RO \
      <shared-registry-address>/streamlit_app:latest

default-http-port 8501 indicates that the port to reach on the app URL is the 8501.

--cpu 6 indicates that we request 6 CPUs for our app. If you would like to deploy with GPUs, certain changes will need to be made in your app.py file to ensure driver compatibility.

If you want your app to be accessible without the need to authenticate, specify it as follows:

Consider adding the --unsecure-http attribute if you want your application to be reachable without any authentication.



Go further

For more information and tutorials, please see our other AI & Machine Learning support guides or explore the guides for other OVHcloud products and services.

If you need training or technical assistance to implement our solutions, contact your sales representative or click on this link to get a quote and ask our Professional Services experts for a custom analysis of your project.
