Getting Started with Veeam Backup & Replication (Enterprise)

Avatar
Stephanie R.
  • Updated

Learn how to set up a Veeam Backup & Replication server, then register it with an OVHcloud Veeam Enterprise license server.

Veeam Backup & Replication is a data protection software. It offers its users a wide range of options for backing up, replicating, and restoring their data.



Requirements

  • a Veeam Enterprise solution
  • Windows Server 2012 or a newer version
  • For Hosted Private Cloud customers willing to use their private infrastructure: outbound/established TCP traffic must be allowed towards the service IP and the port range 950-999
    Example: For the service pcc-1.2.3.4.ovh.us with IP 1.2.3.4, the customer's network appliance should have an outbound rule allowing TCP traffic against port range 950-999 and IP 1.2.3.4 to allow NFC communication to the ESXi hosts.



Instructions

Setting up Veeam Backup & Replication

Download and install the Veeam Backup & Replication 12.0 solution from the Veeam website.

The files will appear in ISO disk image format. Double-click the ISO image and run the installation setup.

On the server, you can then launch the installation wizard. Select Install Veeam Backup & Replication.

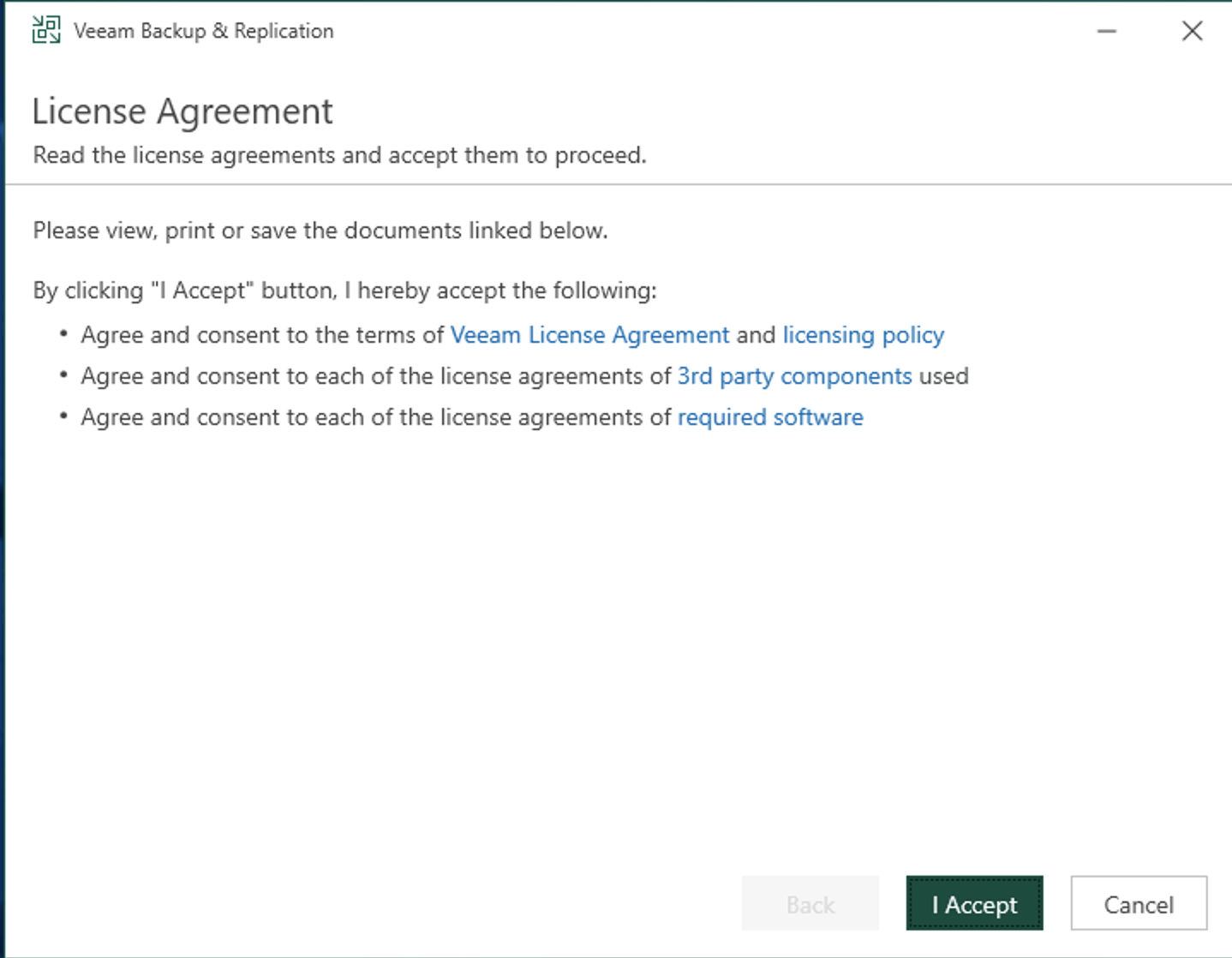

After you have read the license agreement, click I Accept.



Click Next to skip the step of opening a license file.



Review the installation settings and click Install.



Next, wait for the installation to complete.



Once it is complete, exit the installation wizard by clicking Finish.



Creating a Veeam Enterprise service account

Step 1: Launch a service account

You will need to generate a complex password.

To begin, launch Windows Powershell as an administrator.

Next, create a service account, entering these lines of command:

New-LocalUser "OVHVeeamEnterprise" -Password (ConvertTo-SecureString -AsPlainText "P@ssword01" -Force)-Description "OVHcloud Service Account for Veeam Enterprise" -PasswordNeverExpires:$true -UserMayNotChangePassword:$true -AccountNeverExpires:$true

Please note that the account name and password shown here are examples, and must be replaced with your own details:

  • Account name: OVHVeeamEnterprise
  • Password: P@ssword01



Step 2: Define the service account authorizations

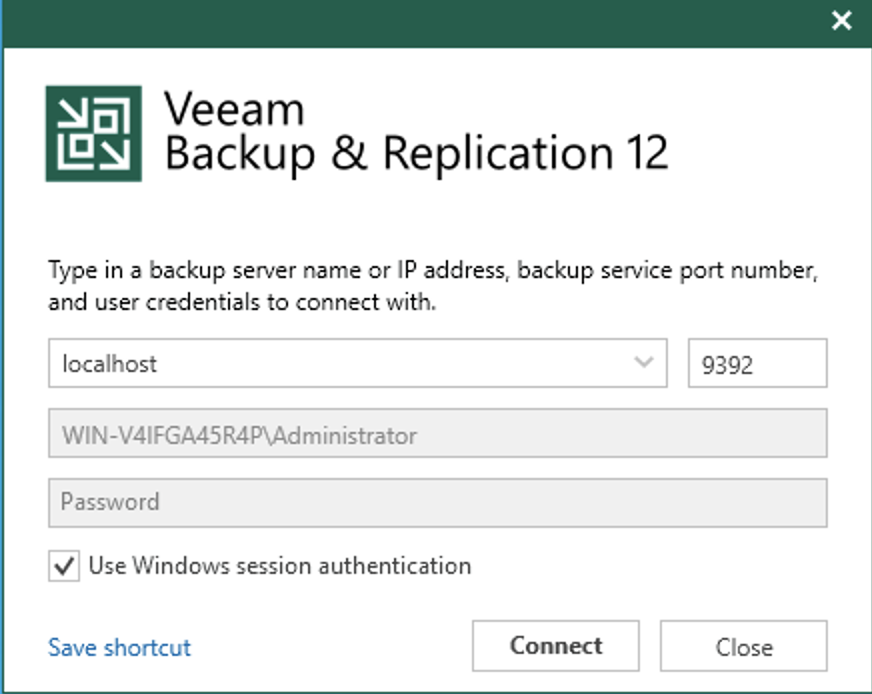

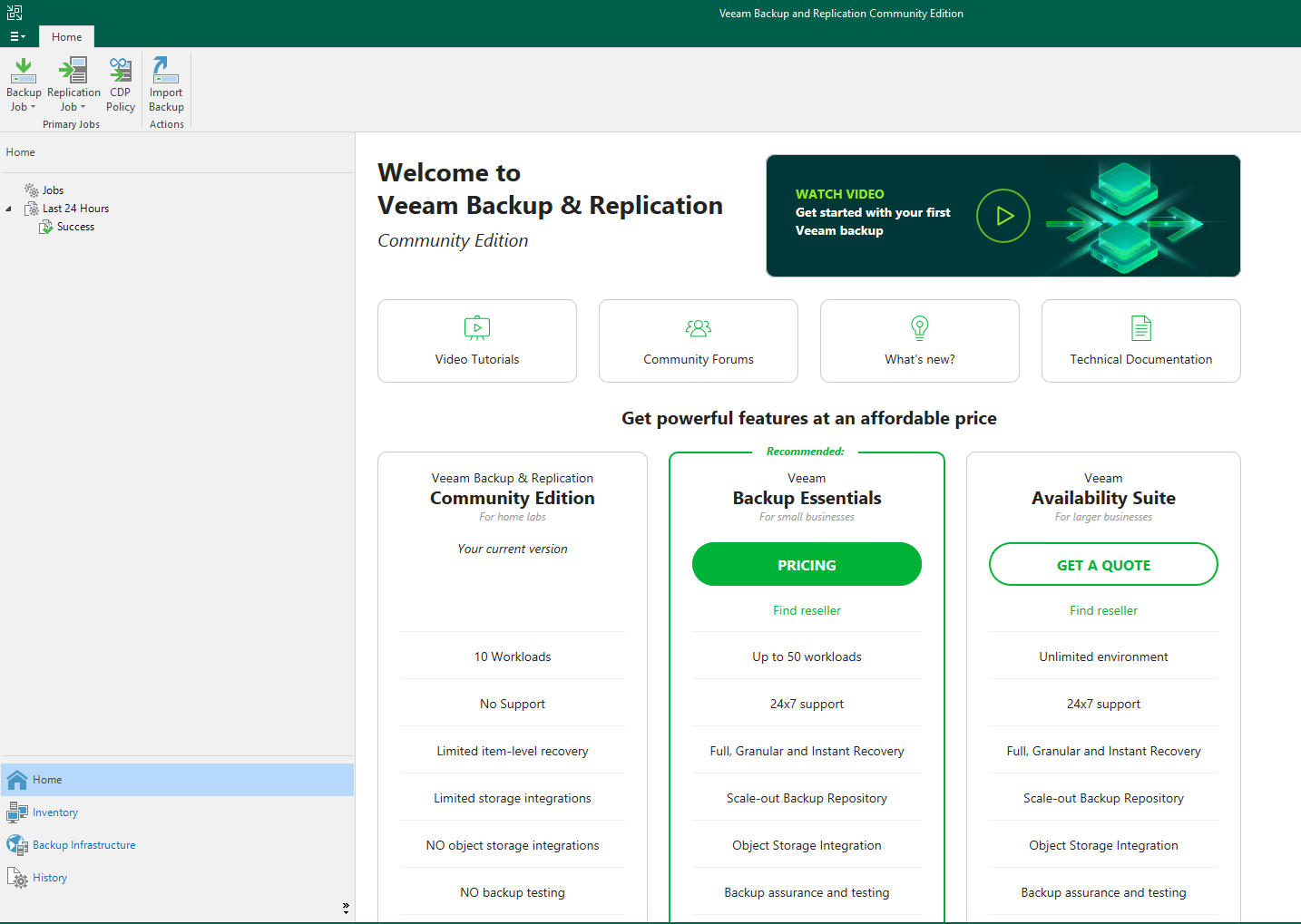

Launch the Veeam console.



Check that it is in Community Edition mode.

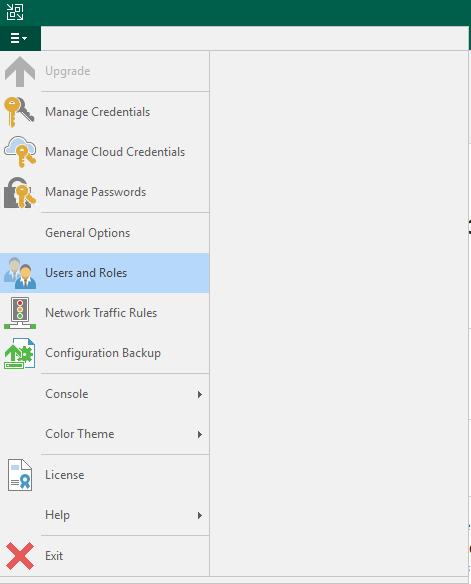

Go to the menu, and click Users and Roles.

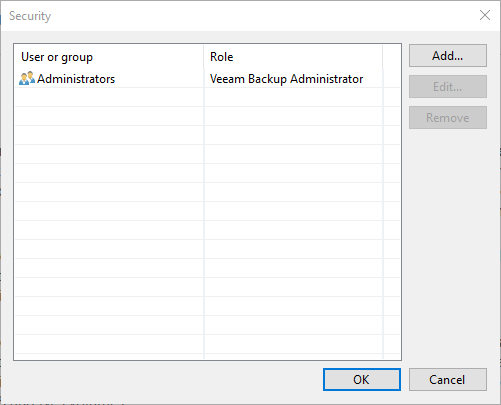

In the Security window, select Add....

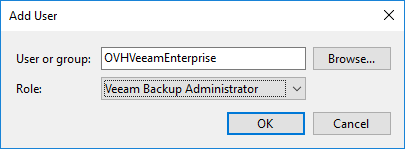

Then, in the “Add User” window, enter the service account name you have created. Select the Veeam Backup Administrator role and confirm by clicking OK.

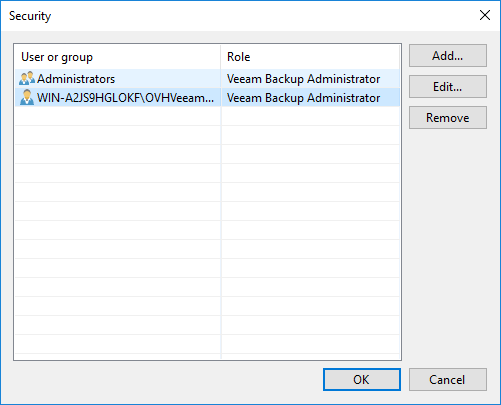

If you go back to the Security window, you can check that the account has been defined properly.




Launch and Activation Permissions

The OVHVeeamEnterprise user is only accessible locally, so it is necessary to add permissions in the Windows graphical user interface to enable the remote connection.

In your Windows search bar, type "Component Services" and launch the service.

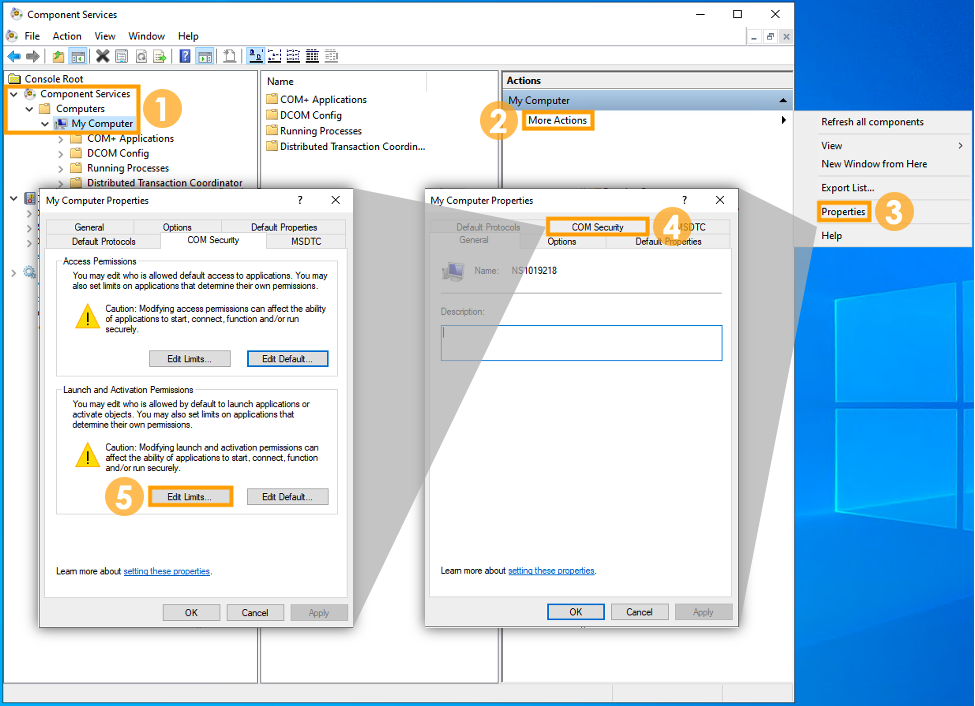

  1. On the left menu and following the tree structure, click on Component Services, Computers, and then My Computer.
  2. Under the Actions tab, click on More Actions.
  3. Select Properties.
  4. Go to COM Security.
  5. In the Launch and Activation Permissions section, click Edit Limits.




  1. Click on Add....
  2. Click on Advanced.
  3. Click on Find Now, select the OVHVeeamEnterprise user from the list below, and then click OK to confirm the selection.

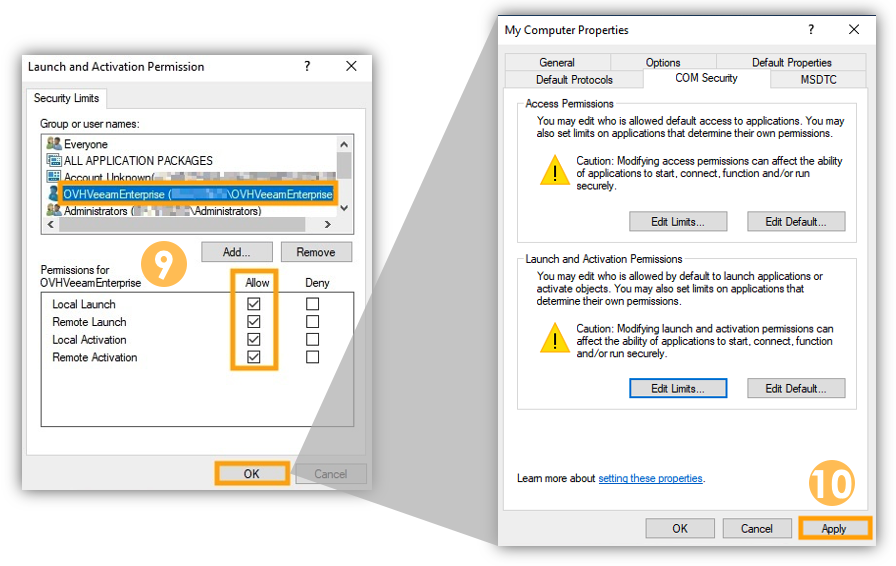

  1. Select the OVHVeeamEnterprise user from the list, Allow ☑ all permissions, and click OK.
  2. Click Apply to validate the changes.


SUCCESS! Your OVHVeeamEnterprise user is now accessible locally and remotely.



Step 3: Register the Veeam Backup & Replication server

Using the OVHcloud Control Panel

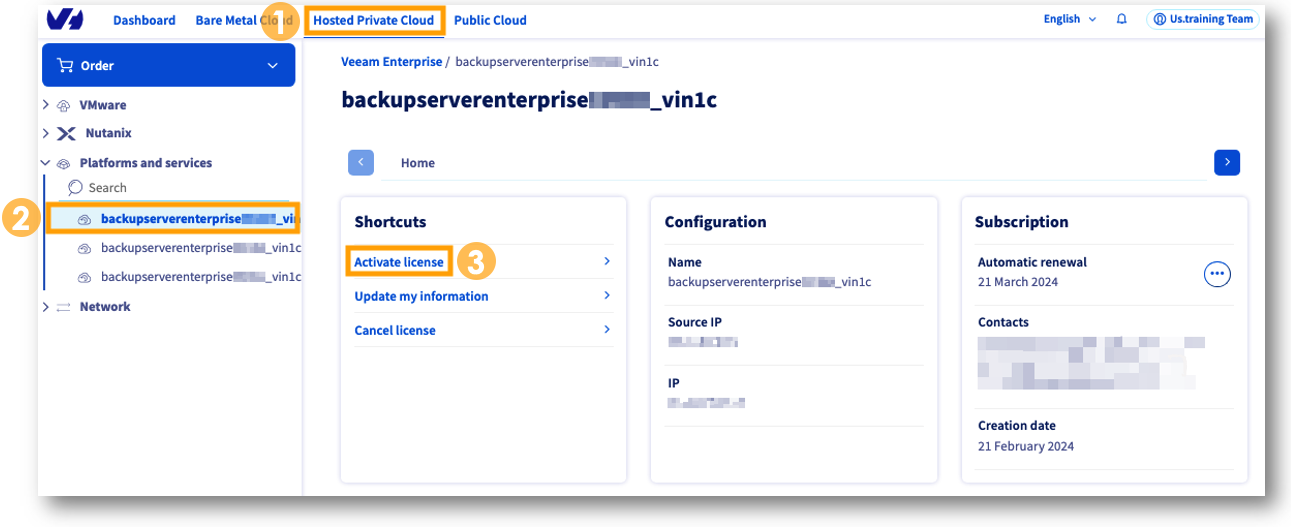

In the OVHcloud Control Panel:

  1. Click Hosted Private Cloud tab in the top navigation menu.
  2. Select your backupserverenterprise... service in the Platforms and services section.
  3. Click Activate license in the Shortcuts box.

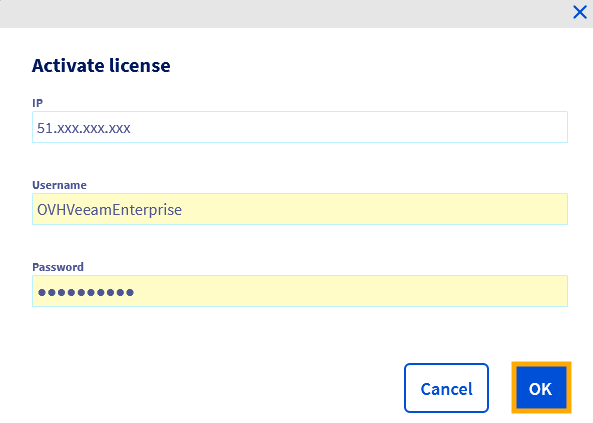

In the new window, enter the following information:

  • The public IP address through which your Veeam Backup & Replication server can be reached.
  • The login credentials you previously created (user name and password).

Validate by clicking OK.




NOTE: Activation can take up to an hour.

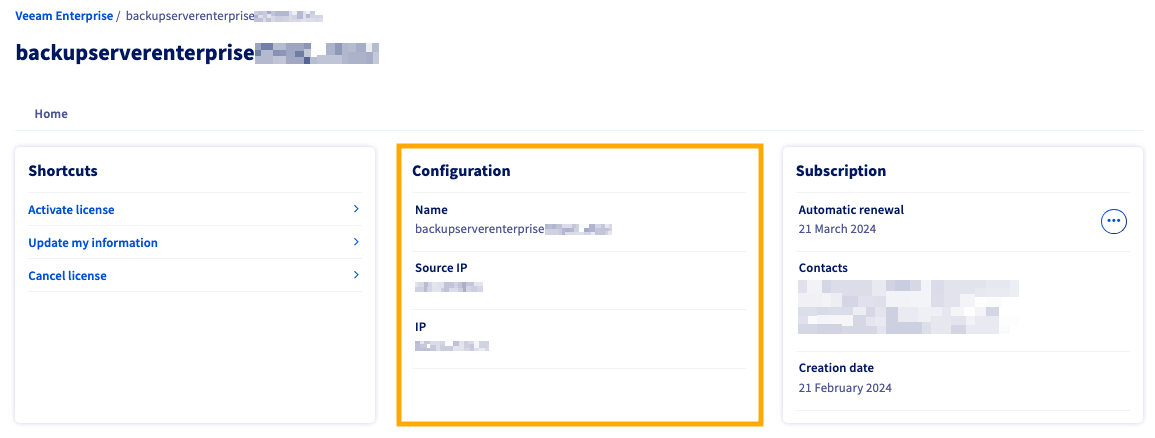

Once the activation is complete, you will find the configuration information on the service page.


Using the OVHcloud API

You can also accomplish this via the OVHcloud API.

First, retrieve your serviceName:

GET /veeam/veeamEnterprise

Then register it:

POST /veeam/veeamEnterprise/{serviceName}/register

You will need the following information:

  • the public IP address that can be used to contact your Veeam Backup & Replication server
  • your server’s Veeam Backup & Replication port (usually 9392/TCP)
  • the login for the account you have just created
  • the password for your service account

You can retrieve the public IP used by Veeam Enterprise to contact your Veeam Backup & Replication server via:

GET /veeam/veeamEnterprise/{serviceName}

When your license activation has finished, the result of this API call will show activationStatus: "done".



Step 4: Verify the registration

Launch the Veeam console.

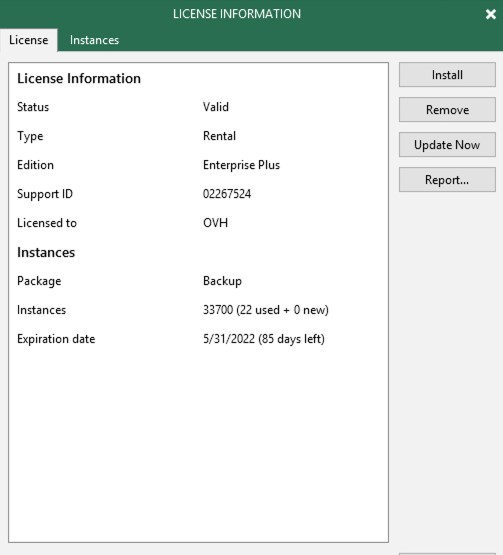

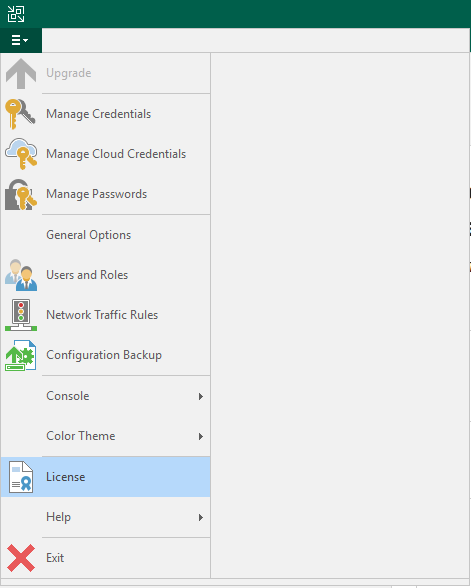

Go to the menu, then click License.




Check that the information displayed is definitely for your OVHcloud license.




Go further

For more information and tutorials, please see our other Hosted Private Cloud support guides or explore the guides for other OVHcloud products and services.
