Managing Hosts and Storage

Stephanie R.
Updated

Learn how to add and remove hosts and datastores via the OVHcloud Control Panel and vSphere for a Hosted Private Cloud environment.

Resources will be billed monthly if added through the OVHcloud Control Panel. Resources added through vSphere will need to be modified in OVHcloud Control Panel to monthly billing.



Instructions

Adding a Host

Click each tab across the top to view all content.

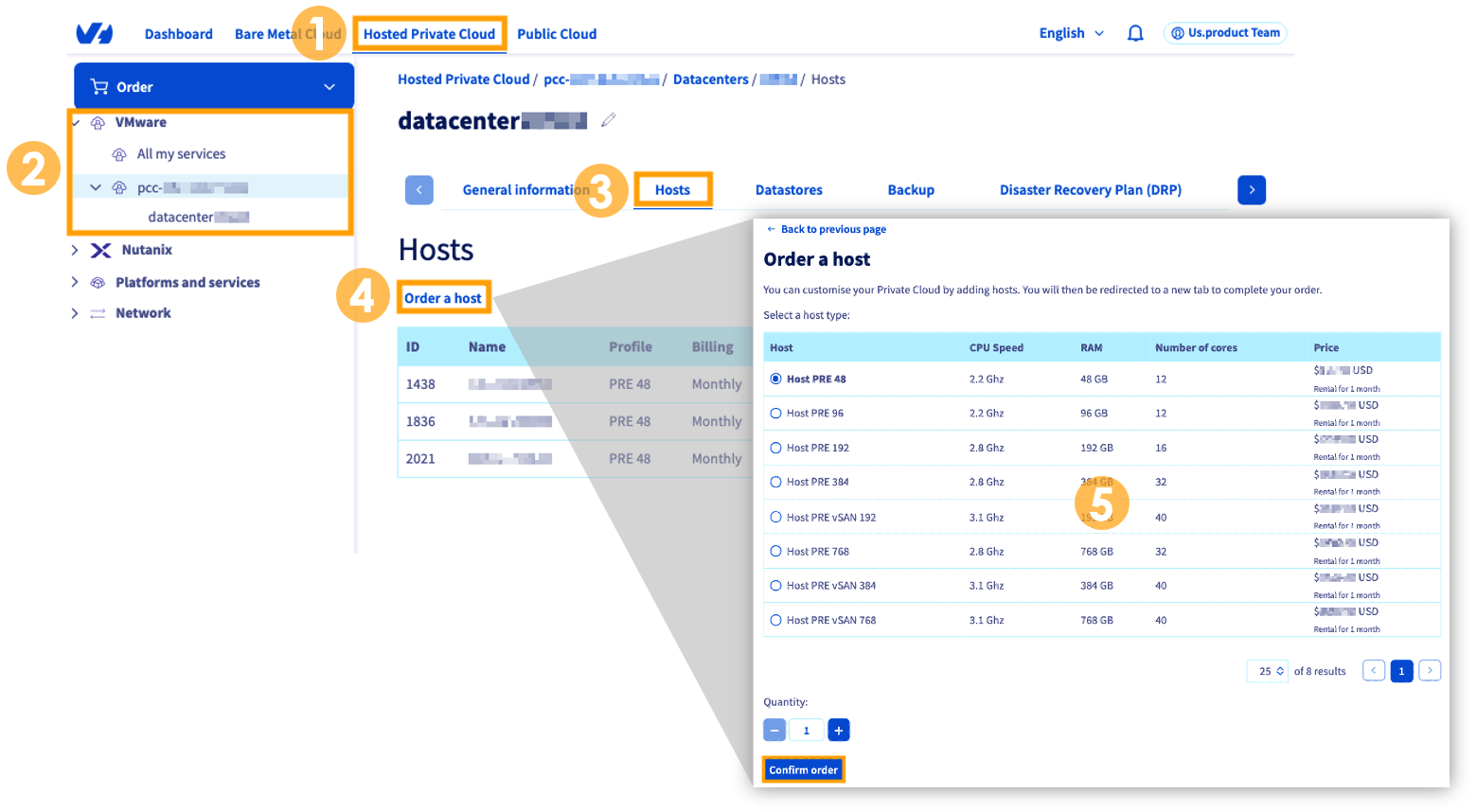

To add a host in the OVHcloud Control Panel:

  1. Select Hosted Private Cloud from the top navigation bar.
  2. In the left-hand menu, select VMware, your PCC, and then the datacenter to which you want to add a host.
  3. On the next screen, choose the Hosts tab.
  4. Click the Order a host button.
  5. Select your host and quantity, and click Confirm order.


NOTE: When a host is added to your HPC environment via vSphere, it will be billed hourly. You must switch the billing from hourly to monthly by going to your datacenter in the OVHcloud Control Panel and selecting the Hosts tab. Click the more options ... button next to the host and select Switch to monthly subscription.

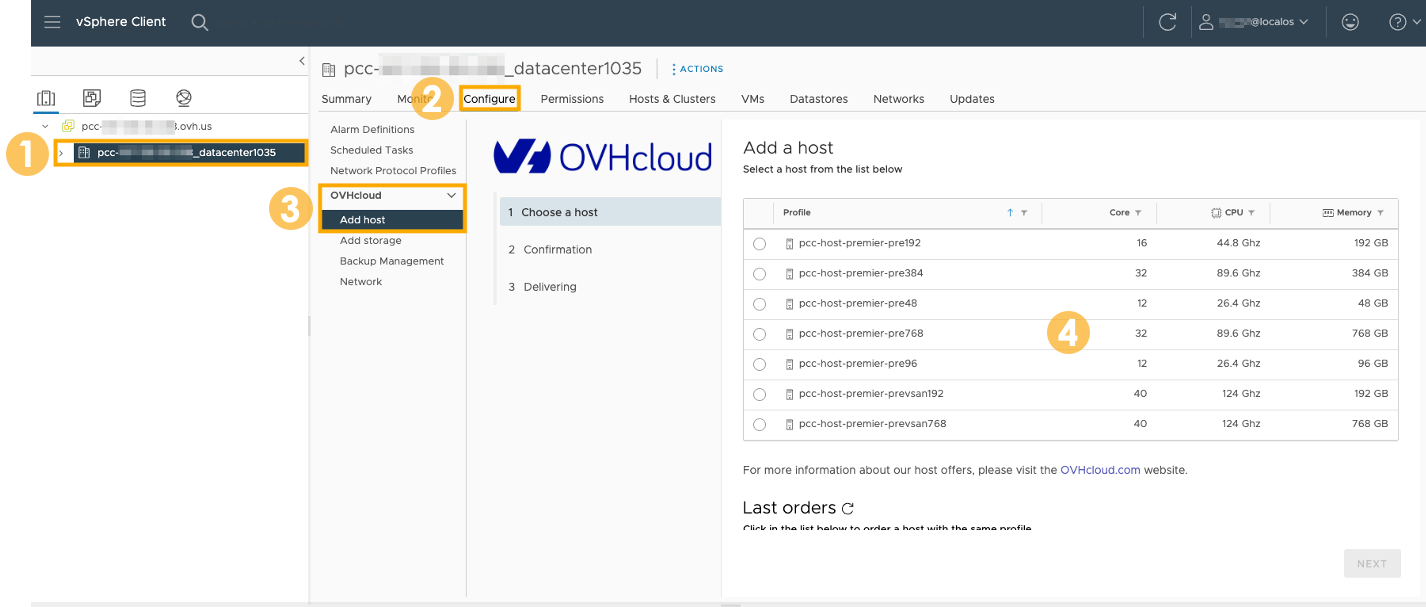

To start, log in to your vSphere Web Client. From the left-hand menu:

  1. Click the arrow next to your PCC name and then select the datacenter on which you wish to add a host.
  2. Click the Configure tab.
  3. Click Add host under the OVHcloud heading.
  4. Choose the host you wish to add and then click Next. On the following page, confirm the details are correct and press Next again.


If you already have a host with the specifications that you desire, you can quickly order more of that host. To do so, on the Navigator panel, right-click the host with the configurations you wish to add, select the OVHcloud, and click More of this Host....

This will bring up an order funnel. Confirm the host and it will be delivered.




Adding a Datastore

Click each tab across the top to view all content.

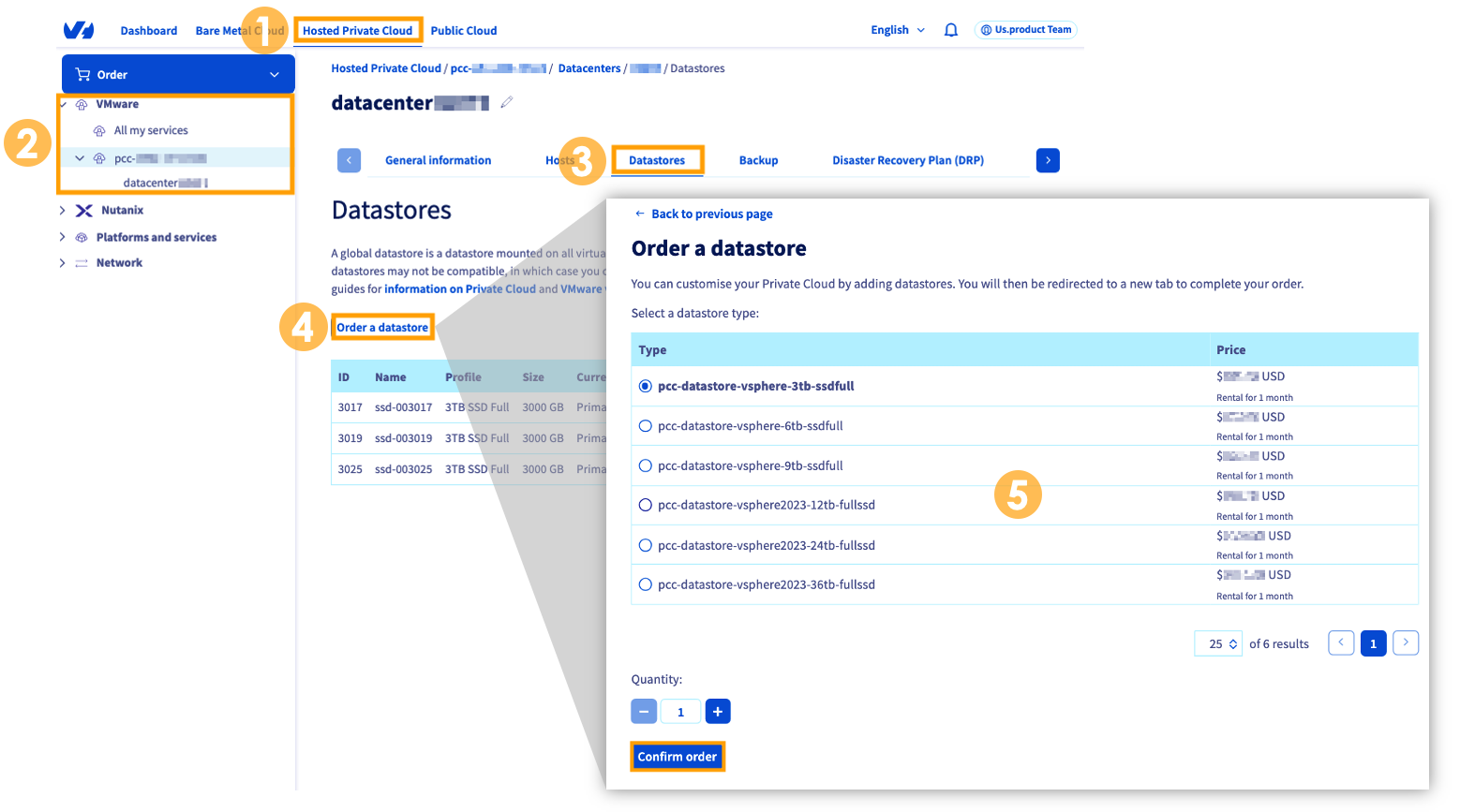

To add a datastore in the OVHcloud Control Panel:

  1. Select Hosted Private Cloud from the top navigation bar.
  2. In the left-hand menu, select VMware, your PCC, and then the datacenter to which you want to add a host.
  3. On the next screen, choose the Datastores tab.
  4. Click the Order a datastore button.
  5. Select your type and quantity, and click Confirm order.

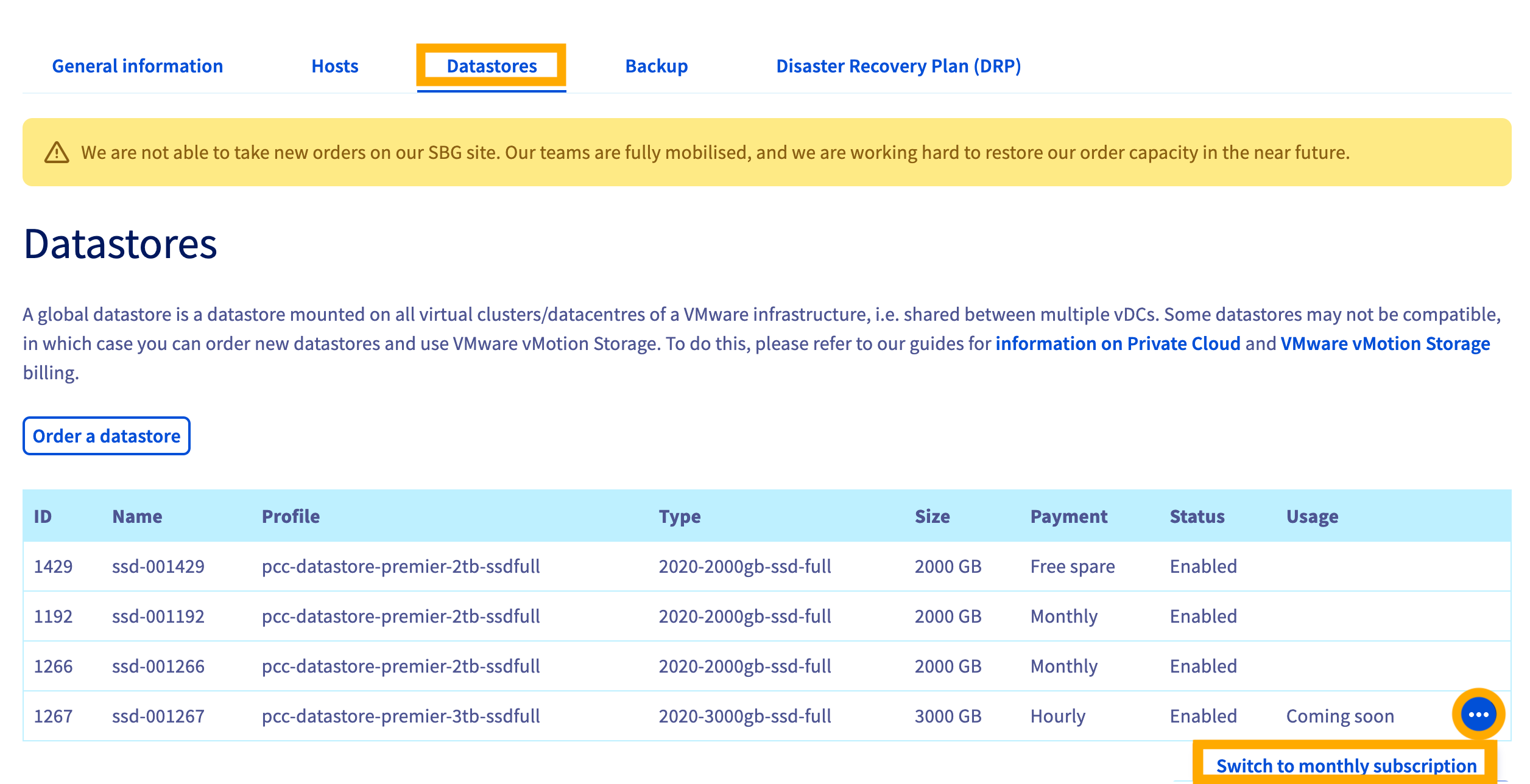

NOTE: When a datastore is added to your HPC environment via vSphere, it will be billed hourly. You must switch the billing from hourly to monthly by going to your datacenter in the OVHcloud Control Panel and selecting the Datastores tab. Click the more options ... button next to the host and select Switch to monthly subscription.

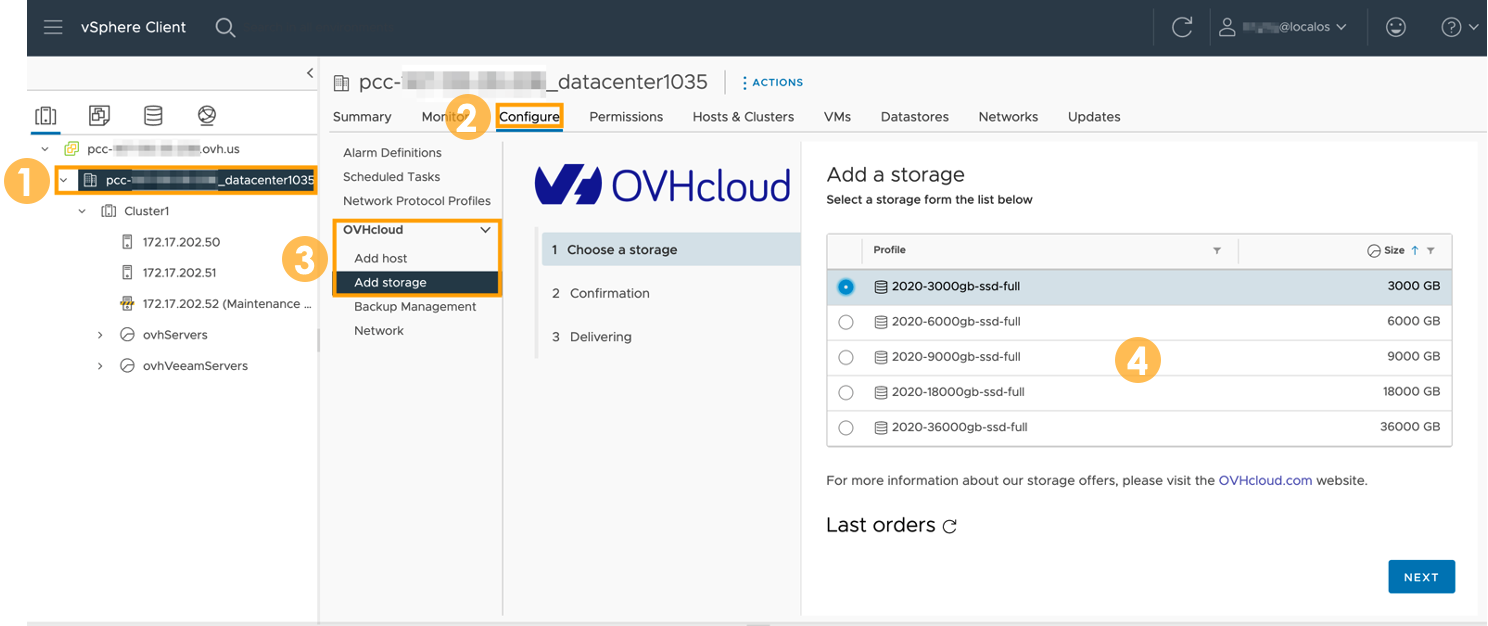

To start, log in to your vSphere Web Client. From the left-hand menu:

  1. Click the arrow next to your PCC name and then select the datacenter on which you wish to add a datastore.
  2. Click the Configure tab.
  3. Click Add storage under the OVHcloud heading.
  4. Choose the datastore you wish to add and then click Next. On the following page, confirm the details are correct and press Next again.

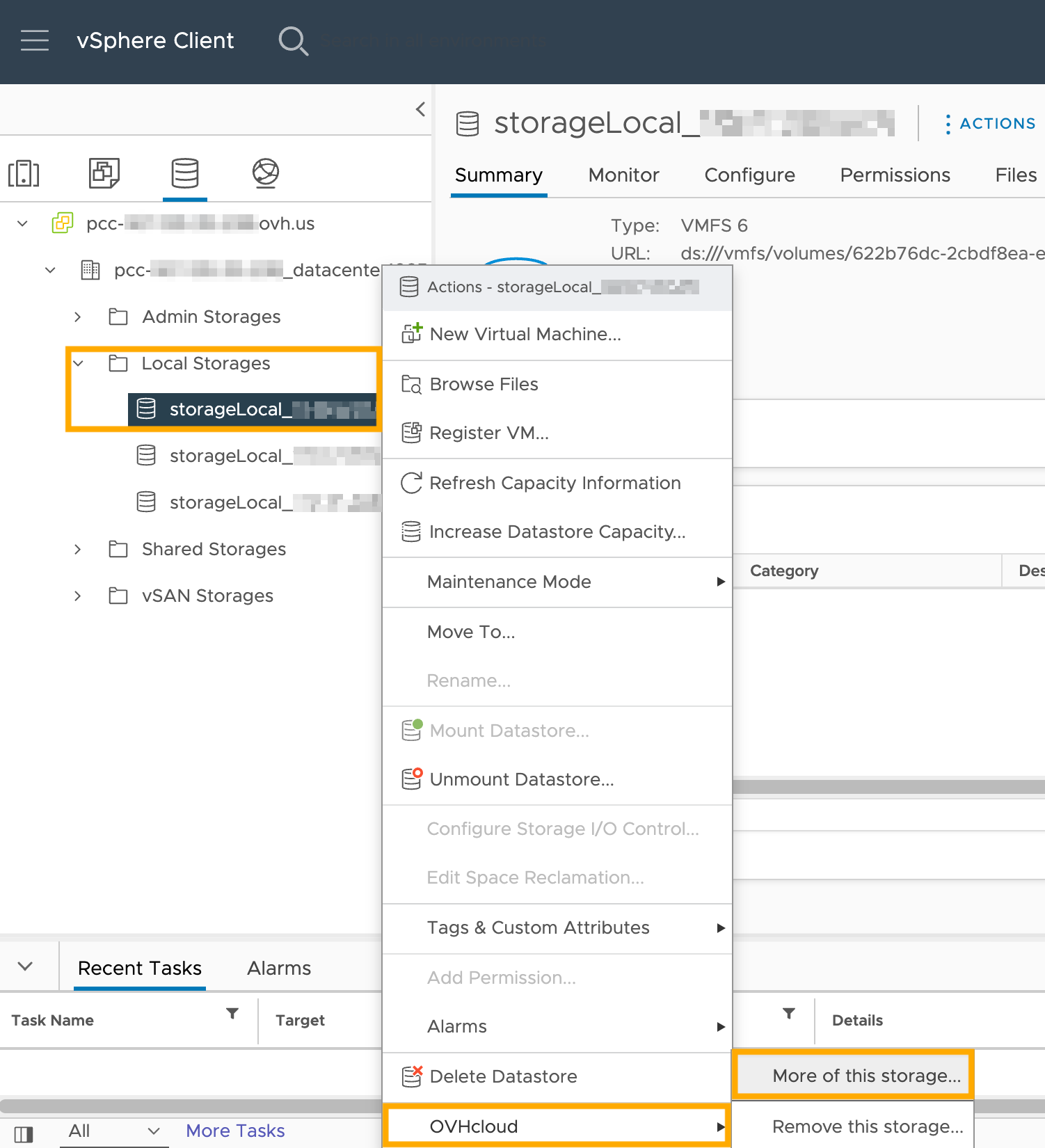

If you already have a datastore with the storage specifications that you desire, you can quickly order more of that datastore. To do so, select the storage icon on the left-hand sidebar, right-click the datastore you wish to add more of, select OVHcloud, and click More of this storage....

This will bring up an order funnel. Confirm the datastore and it will be delivered.




Removing a Host

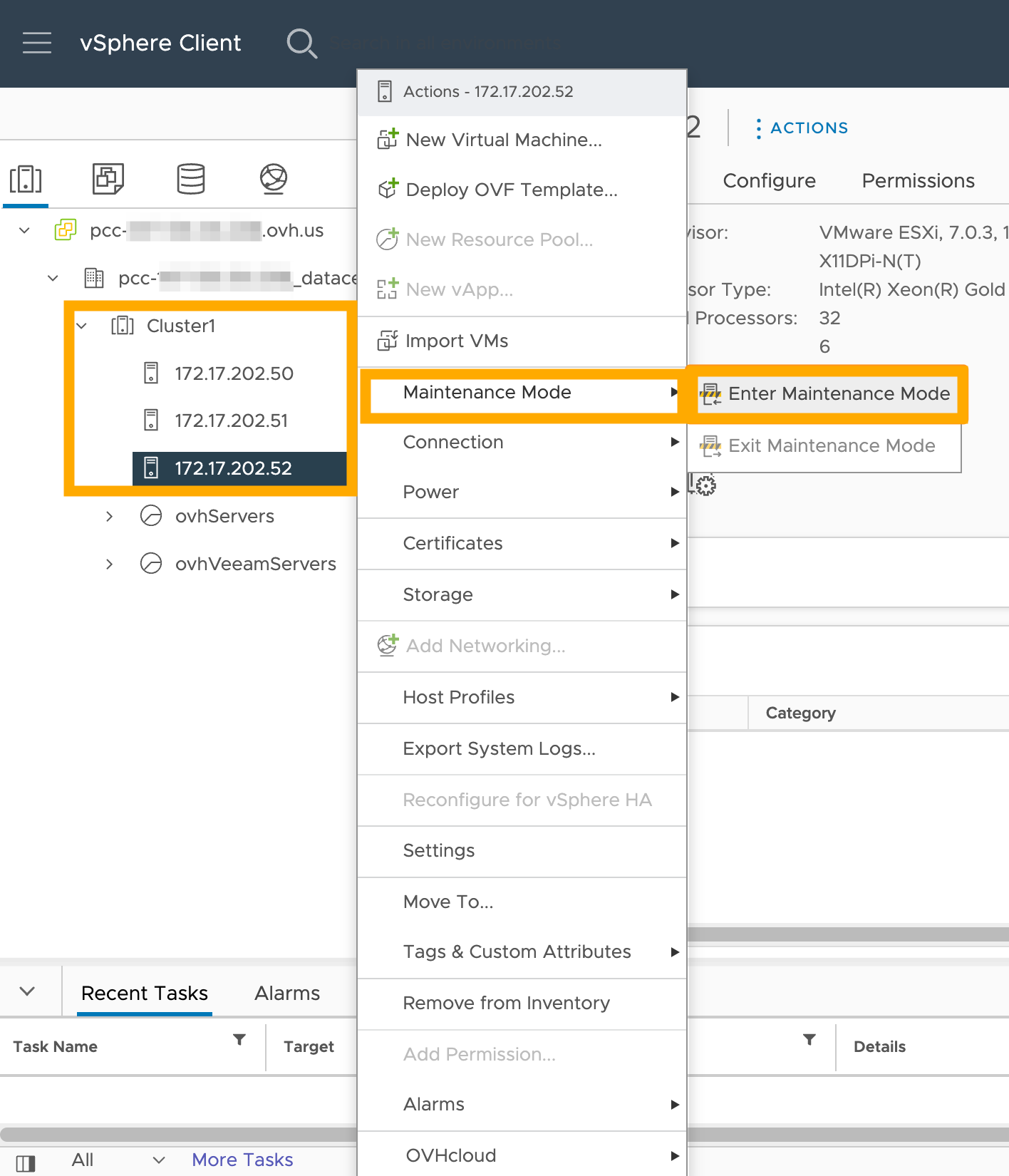

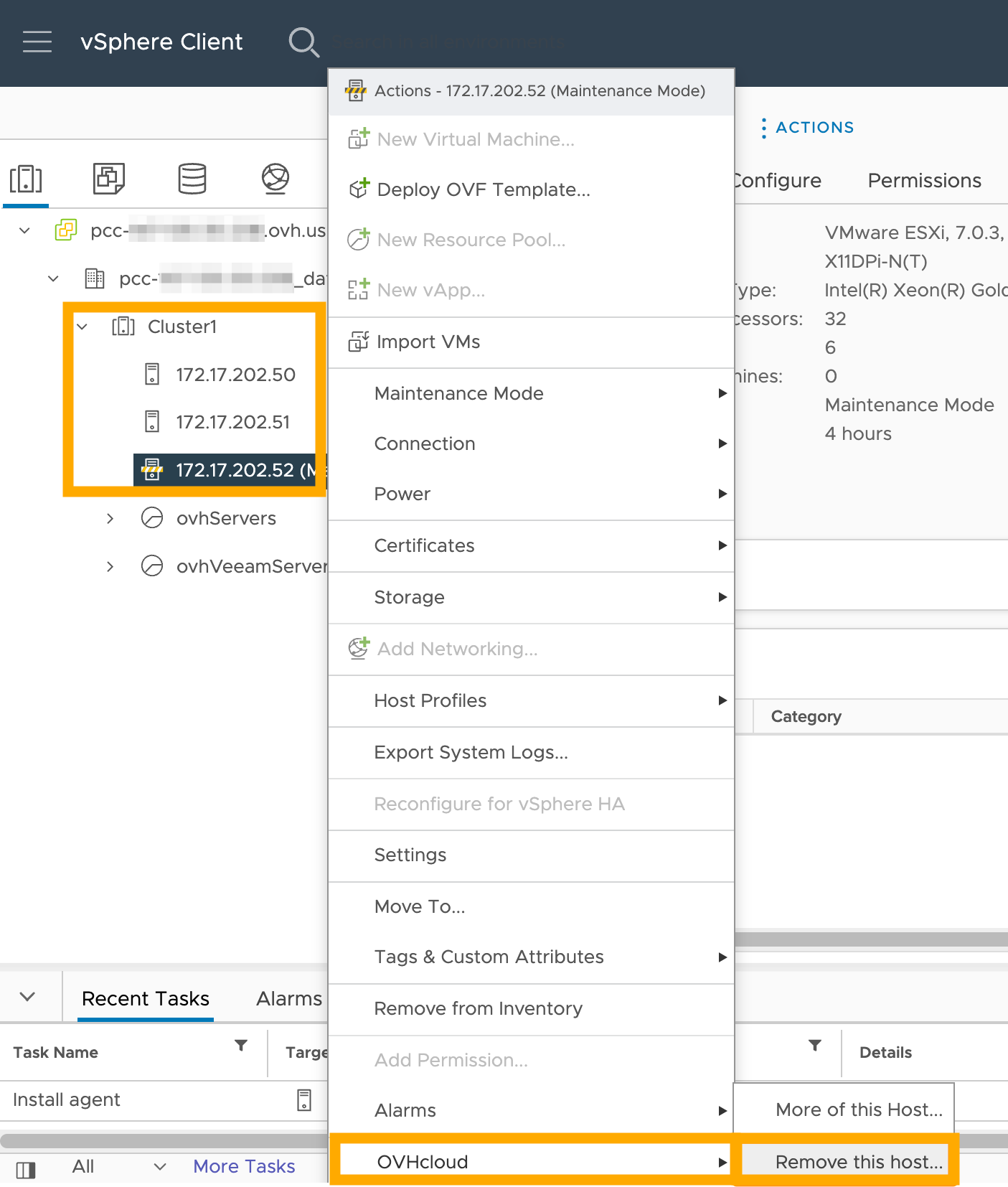

On the Host and Clusters screen, right-click the host you would like to remove. Choose Maintenance Mode and select Enter Maintenance Mode.


Once in maintenance mode, right-click the host again, choose OVHcloud, and select Remove this host....

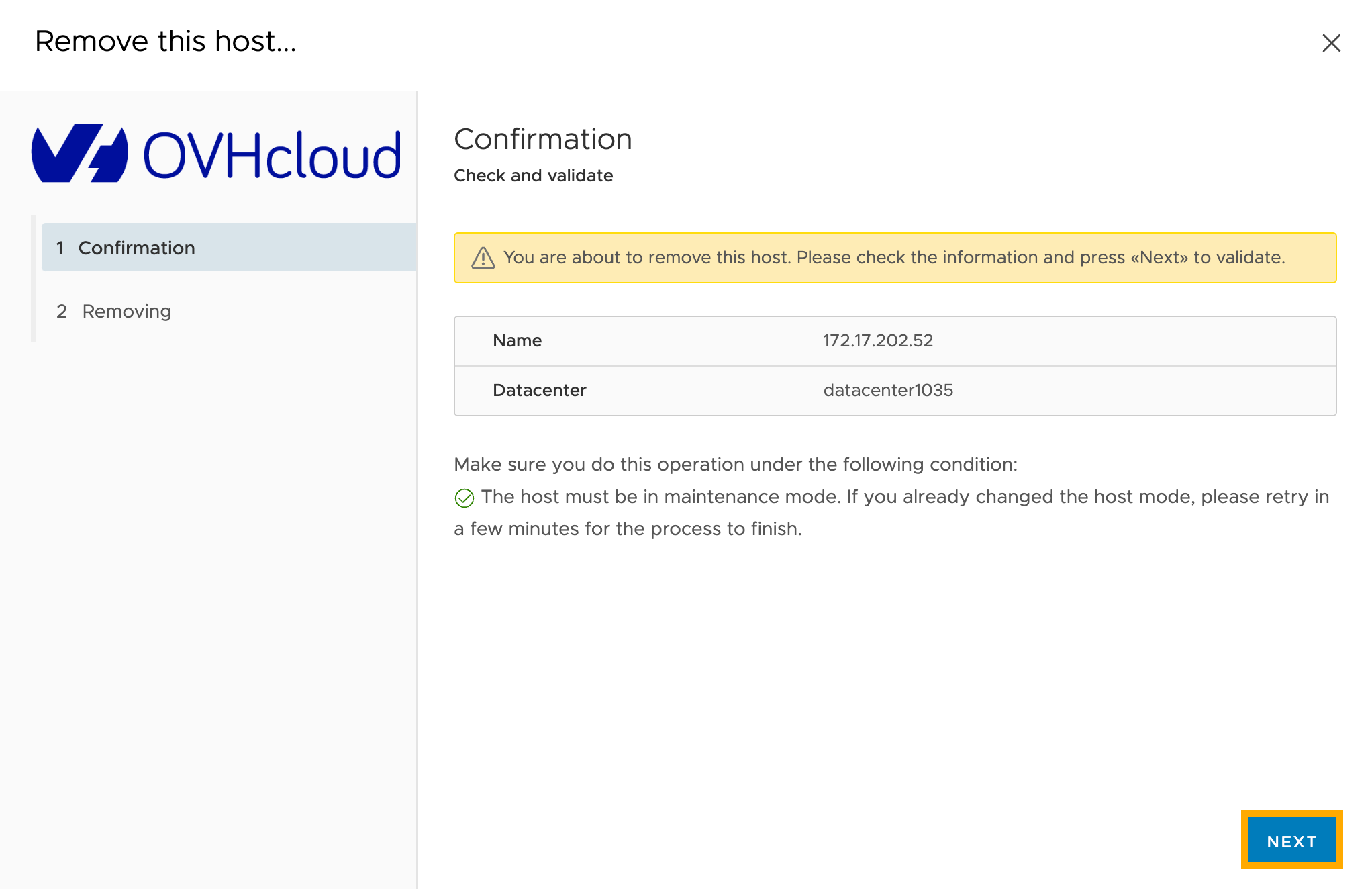

Once the task is completed, you will see a confirmation page. Confirm that this is indeed the host you wish to remove and click NEXT to remove it.




Removing a Datastore

WARNING: Do not select Unmount Datastore... when attempting to remove storage. The datastore will no longer be accessible in your HPC environment but will still appear in your OVHcloud Control Panel and will still be billed.

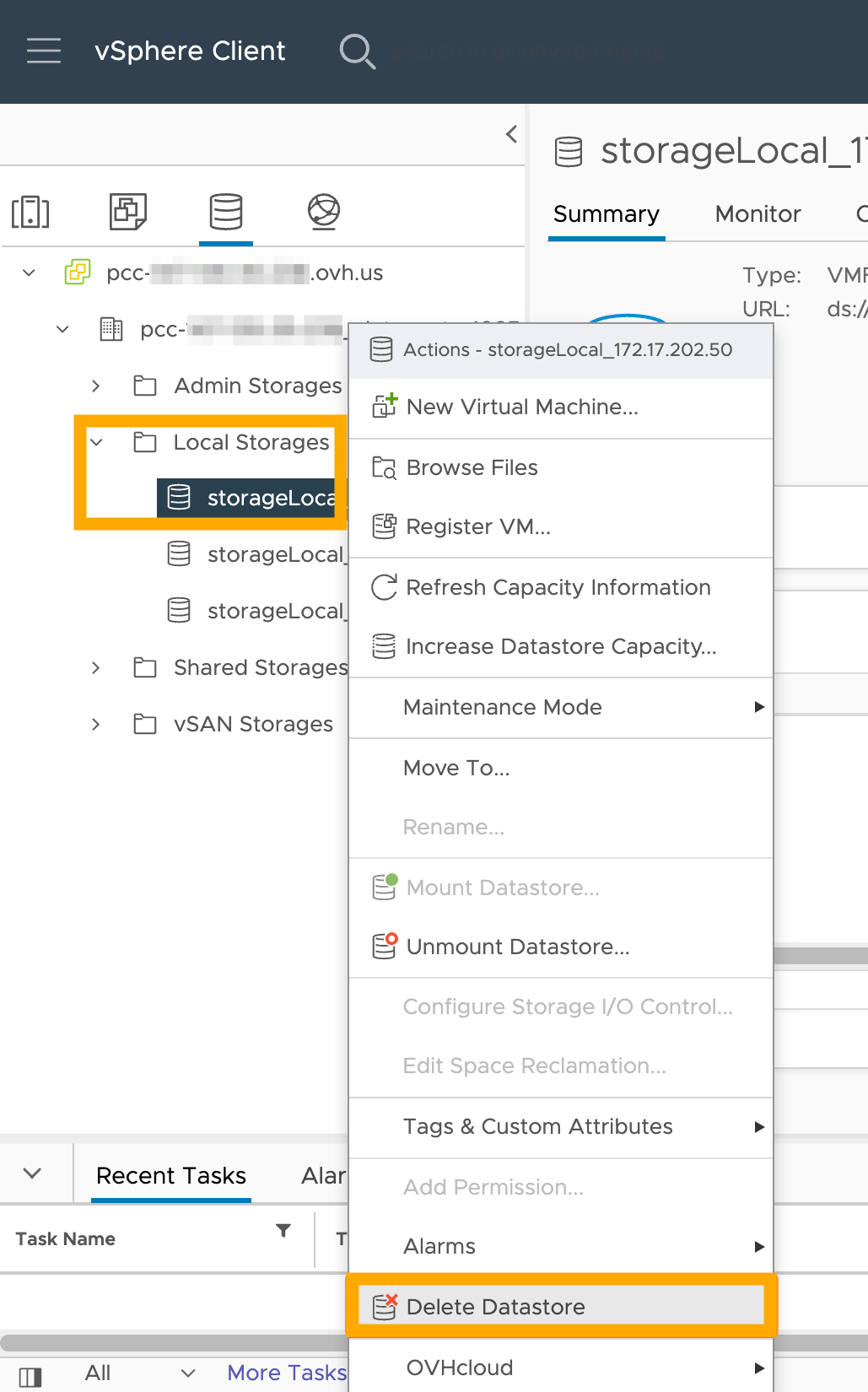

To remove a datastore, navigate to the Datastores tab. Next, right-click the datastore you would like to remove and click Delete Datastore.

On the pop-up window, confirm that the datastore has no VMs attached to it and select the NEXT button. Your datastore will be removed in a few moments.




Go further

For more information and tutorials, explore our other VMware guides, our Hosted Private Cloud guides, or explore our guides for other OVHcloud products and services.
