Working with Redirections

Avatar
Stephanie R.
  • Updated

Learn how to integrate your web services behind an OVHcloud Load Balancer with redirections.

The OVHcloud Load Balancer acts by default as a proxy. It can also be configured to redirect your customers to a third-party website, which is useful if you are changing your domain name, or want to redirect your customers to your website’s HTTPS version, for example. This is known as HTTP redirection.



Requirements



Instructions

Presentation

An HTTP redirection is presented as follows:

HTTP/1.1 301 Moved Permanently
Location: http://www.example.org/
Content-Type: text/html
Content-Length: 174

Custom redirections should have the following form: <scheme>://<net_loc>/<path>;<params>?<query>#<fragment>. You can only specify one redirection per front-end.

Custom redirections can be specified via the OVHcloud Control Panel and API, both on new and existing front-ends.



Add a custom redirection via the OVHcloud Control Panel

You can define custom redirections from the OVHcloud Control Panel by going to the Cloud section, then Load Balancer.

You can either do this on a new front-end as you create it or on an existing front-end.

You can follow these instructions to create a new front-end, but take note of the following during the creation:

In the editing page for a front-end, select HTTP or HTTPS protocol. Configure the information as requested. However, please note that there is no need to set a Default farm, as it will not be used.

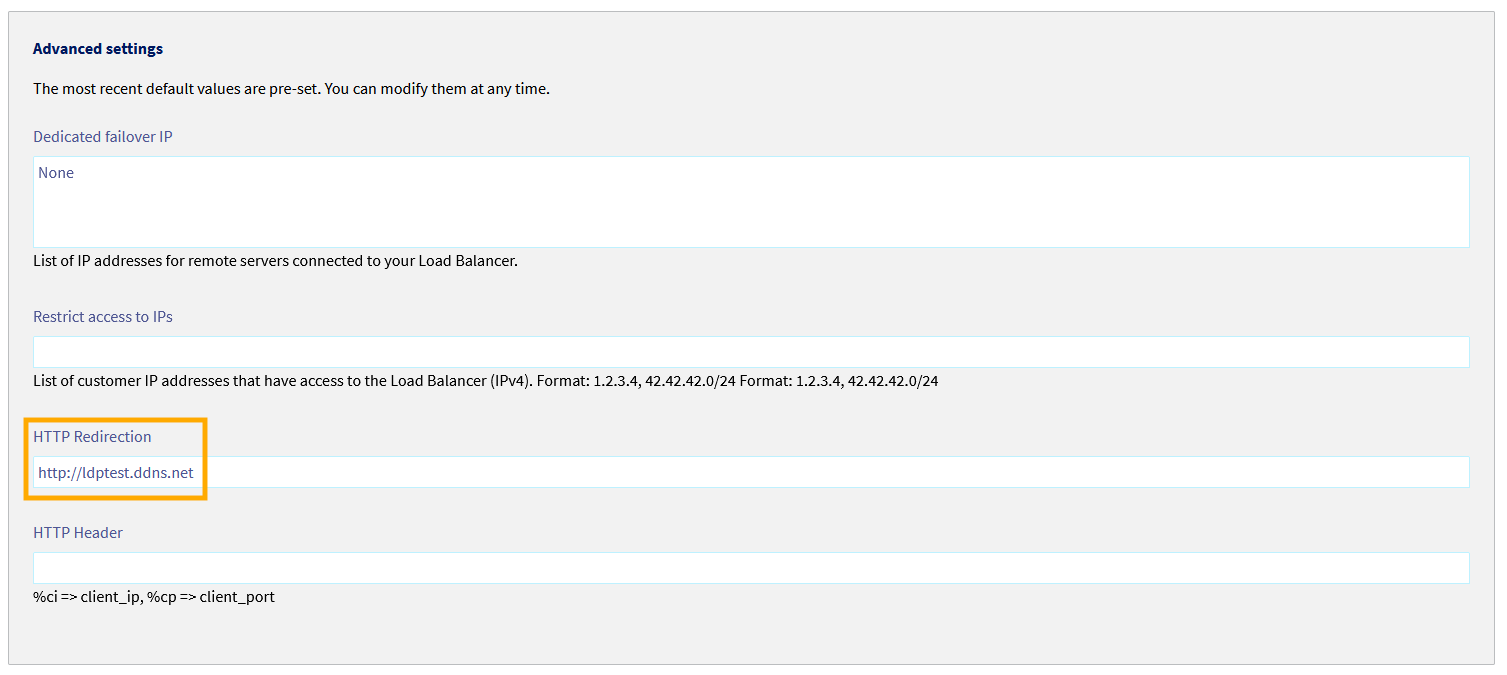

In the advanced settings, enter the HTTP redirection.

Once the front-end has been configured, click Add. Please remember to deploy the configuration. There are two ways of doing this:

  • via the Status section of the OVHcloud Control Panel, by clicking on your Load Balancer’s ... button, then selecting Apply configuration

  • via the reminder box in the OVHcloud Control Panel, notifying you that the configuration has not been applied, by clicking Apply configuration


In the Front-ends section of the OVHcloud Control Panel, select the front-end you would like to edit. To do this, click the more options ... button, then select Edit in the menu that appears. Please ensure that the front-end you have chosen uses either HTTP or HTTPS protocol.

In the editing page for the front-end, complete the configuration if needed. However, please note that there is no need to set a Default farm, as it will not be used.

In the advanced settings, enter the HTTP redirection.


Once the front-end has been configured, click Modify. Please remember to deploy the configuration. There are two ways of doing this:

  • via the Status section of the OVHcloud Control Panel, by clicking on your Load Balancer’s ... button, then selecting Apply configuration

  • via the reminder box in the OVHcloud Control Panel, notifying you that the configuration has not been applied, by clicking Apply configuration




Add a custom redirection via the API

In the OVHcloud API, redirections are specified in the redirectLocation character chain.

  • If you are creating a new front-end:

POST /ipLoadbalancing/{serviceName}/http/frontend

Setting Meaning
serviceName Your Load Balancer service ID
port Front-end listening ports
zone Front-end deployment zones
redirectLocation HTTP redirection URL
  • If you are updating an existing front-end:

PUT /ipLoadbalancing/{serviceName}/http/frontend/{frontendId}

Setting Meaning
serviceName Your Load Balancer service ID
frontendId ID of the front-end to be updated
redirectLocation HTTP redirection URL
  • Then apply the modifications:

POST /ipLoadbalancing/{serviceName}/refresh

Setting Meaning
serviceName Your Load Balancer service ID
zone Front-end deployment zones



Go further

For more information and tutorials, please see our other OVHcloud Load Balancer guides or explore the guides for other OVHcloud products and services.
