Object Storage - Optimizing Performance

Learn about the different methods to optimize the performance of your buckets on Object Storage.

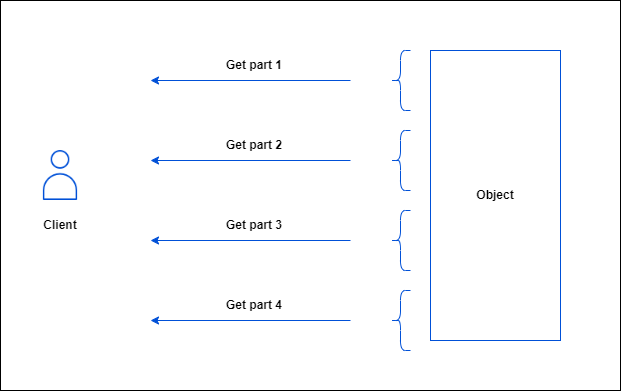

Using byte range fetch

OVHcloud Object Storage supports byte range fetch. The idea is to retrieve an object chunk by chunk, each defined by a range of bytes. The main advantage is that it allows you to parallelize GET requests to download an object, with each GET requesting a specific range of bytes: typical sizes for byte range requests are 8 MB or 16 MB, but you can specify any size.

To download part of an object, you must use additional parameters to specify which part of the object you want to retrieve. The following example downloads the first part, between 0 and 500 bytes, of an object named "filename" stored in the "test-bucket" bucket and writes the output to a file named "object_part":

user@host:~$ aws s3api get-object --bucket test-bucket --key filename --range bytes=0-500 object_part

Using MPUs

Using multipart upload, you can upload a single object as a collection of parts. These parts are yours to upload separately and in any sequence. You can retransmit a part without affecting the others if the transmission of a part fails. Once you have downloaded all the parts, OVHcloud Object Storage assembles them and rebuilds the object.

The benefits of using multipart upload are as follows:

• Increased throughput: each part can be uploaded concurrently.
• Fast recovery from network problems: since each part can be uploaded separately and independently, you can re-upload the missing part without restarting the whole upload.

Instructions

Using the AWS CLI

You will need the following:

• An OVHcloud bucket created
• The AWS CLI installed and configured
• A large file split into multiple parts

The following section explains how to perform a multipart upload using the low-level commands of the AWS CLI.

First, you need to initiate a multipart upload:

user@host:~$ aws s3api create-multipart-upload --bucket test-bucket --key filename
{
 "Bucket": "test-bucket",
 "Key": "filename",
 "UploadId": "YjgxYmRmODItOWRiMi00YmI2LTk1NTMtODBhYWYwYmFjZGYx"
}

For each part, you need to create an upload-part command in which you specify the bucket, the key, and the upload ID:

user@host:~$ aws s3api upload-part --bucket test-bucket --key filename --part-number 1 --body filename_part1 --upload-id "YjgxYmRmODItOWRiMi00YmI2LTk1NTMtODBhYWYwYmFjZGYx"
{
 "ETag": "\"6769849e543eeb257675b65e7a199aa2\""
}

Once all the parts have been uploaded, you need to call the complete-multipart-upload command to complete the process and for OVHcloud Object Storage to rebuild the final object:

user@host:~$ aws s3api complete-multipart-upload --bucket test-bucket --key filename --upload-id "YjgxYmRmODItOWRiMi00YmI2LTk1NTMtODBhYWYwYmFjZGYx" --multipart-upload file://mpu.json

Where mpu.json is:

{
    "Parts": [
        {
                "ETag": "6769849e543eeb257675b65e7a199aa2",
                "PartNumber": 1
        },
        {
                "ETag": "3617fbc52bcc2cc8a6cbfe81457c01c4",
                "PartNumber": 2
        },
        {
                "ETag": "4f8c06e93b407f1f2d6fb1614d73906d",
                "PartNumber": 3
        },
        {
                "ETag": "739213d60193c2154e74cc9895f17132",
                "PartNumber": 4
        },
        {
                "ETag": "f7551c4f2eef8b4f431ea9b89a106e66",
                "PartNumber": 5
        },
        {
                "ETag": "d1ee8ef1735cc647537dc27745a4d78f",
                "PartNumber": 6
        },
        {
                "ETag": "083560bc5d313203969979347e530816",
                "PartNumber": 7
        },
        {
                "ETag": "14614d7b76b64e455c8e53661067e2c8",
                "PartNumber": 8
        },
        {
                "ETag": "aa9bcb39247074216c7e26f90b21a71b",
                "PartNumber": 9
        },
        {
                "ETag": "9617fc9e0efb944fa3e4ba970b3ebe62",
                "PartNumber": 10
        }
    ]
}

Using other third-party tools

The following list describes the options to perform multipart uploads using other tools. The list is not exhaustive, and you might want to check the relevant documentation of the tool you are using.

s3cmd

Size of each chunk of a multipart upload:

$ multipart-chunk-size-mb=SIZE_

Files bigger than SIZE are automatically uploaded as multithreaded-multipart, smaller files are uploaded using the traditional method.
SIZE is in megabytes (MB). The default chunk size is 15MB, with a minimum allowed chunk size of 5MB and a maximum of 5 GB.

Example:

$ s3cmd put --multipart-chunk-size-mb=500 big-file.zip s3://some-bucket/

For more information on s3cmd, consult the official documentation here.

rclone

Size threshold at which point rclone switches from single file upload to multipart upload:

$ s3-upload-cutoff=SIZE

Size of each chunk used in multipart uploads:

$ s3-chunk-size=SIZE

Number of chunks uploaded concurrently.

$ s3-upload-concurrency

Example:

$ rclone copy --s3-upload-concurrency 300 --s3-chunk-size 100M --s3-upload-cutoff 100M testfile s3:test-bucket

For more information on rclone, consult the official documentation here.

Increasing the number of concurrent requests

Another way to improve throughput is to increase the number of concurrent requests.

To customize the default value on the AWS CLI, consult this guide.

For other tools, you should check the relevant documentation of the software you are using.

I/O optimization

It is also possible to significantly optimize performance by adopting good practices to distribute the I/Os as widely as possible in the object storage cluster, taking advantage of the sharding mechanism.

What is sharding

OpenIO is a software-defined storage solution on which OVHcloud Object Storage is based.

In OpenIO, a container is an internal logical entity that contains all the objects for a given bucket. Each container is associated with an internal metadata database that lists all the addresses in the cluster of the objects contained in it. By default, an S3 bucket is associated with one container, but this can change with the sharding mechanism.

Sharding is the mechanism by which a container is split into two new sub-containers (and thus its associated metadata database is also split into two) when it reaches a critical number of objects called shards.

Sharding enables:

• optimizing read/write operations by distributing them evenly over several servers (shards).
• distributing data storage over the whole cluster to increase resilience.

We use the object keys (prefix/name) to determine which objects are pushed into which sub-container using the following logic:

• Create two new shards.
• Find the median value of an alphabetically sorted list of all object keys.
• Copy the content of the root container to the shards.
• In the first shard, keep only the first half of the objects (from the object with the first key in the list to the object with a key equal to the median value) and clean up the second half.
• In the second shard, keep only the second half of the objects and clean up the first half.
• The root container then only lists references to the shards, i.e., which range of objects in which shard.

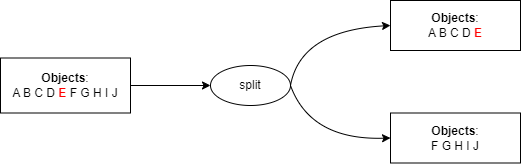

This logic can be summed up as follows:

Prefix good practices

You can optimize the I/Os on the cluster by taking advantage of the sharding mechanisms described above.

The main strategy is to keep the cardinality of object keys to the left, i.e. to use prefixes that allow sharding to divide incoming objects as evenly as possible.

Let's consider a use case where you would want to store logs in an OVHcloud Object Storage.

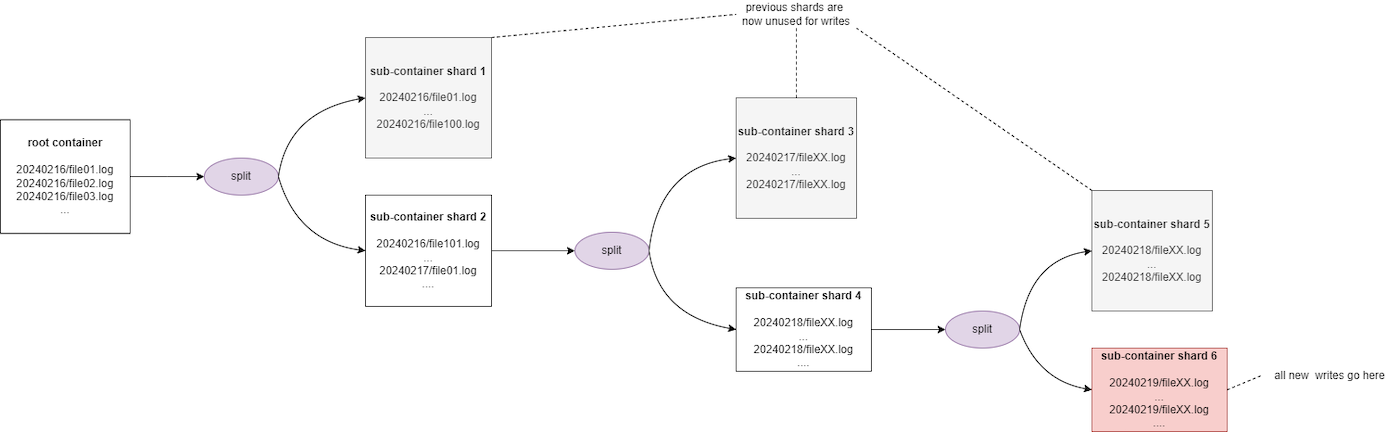

Scenario 1: Bad practice by using the date as the prefix

List of objects:

• 20240216/file01.log
• 20240216/file02.log
• 20240216/file03.log
• ...
• 20240217/file01.log
• 20240217/file02.log
• ...

Assuming a threshold of 100, after the 100th object is uploaded, the sharding is triggered to divide the objects into two shards:

• from 20240216/file01.log to 20240216/file100.log in the first shard
• from 20240216/file101.log and beyond to a second shard

This solution is not optimal because, since dates are incremental by nature, all new downloads will always be carried out on the second shard, which will be split again when it reaches a critical size. Thus, all future write operations will always be performed on the latest shard created and the previous shards will rarely be accessed. Furthermore, you may experience some throttling during the sharding process.

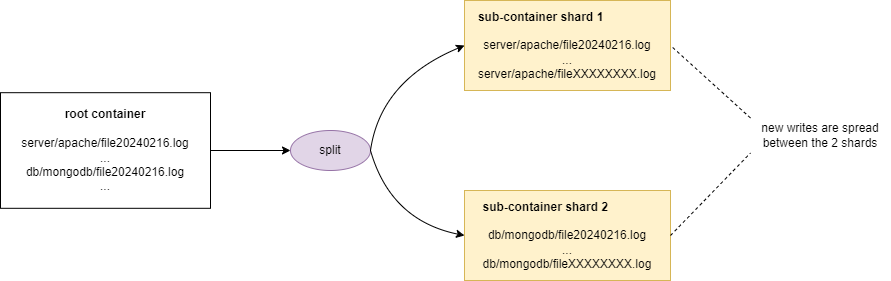

Scenario 2: Good practice by keeping the cardinality to the right

List of objects:

• server/apache/file20240216.log
• server/apache/file20240217.log
• server/apache/file20240218.log
• ...
• db/mongodb/file20240216.log
• db/mongodb/file20240217.log
• ...

Assuming a threshold of 100, after the 100th object is uploaded, the sharding is triggered to split the objects into two shards. This second scenario is optimal because all new uploads will be spread on the two shards.

Optimize ramp-up time

When you upload a very large number of objects at once, you trigger the sharding mechanism. As the sharding process occurs, you may experience some throttling.

To avoid reduced performance (503 SLOWDOWN errors), we recommend that you optimize your uploads by spreading your requests over time. This spread does not have to be linear, but it does have to give us enough time to balance your workload.

A simple way to achieve that lies in better 503 slowdown errors management and error recovery: ramp up your uploads until you hit 503 errors, modulate your workload to accommodate the throttling until sharding is complete, and then ramp up again.

Increase object sizes

Objects are considered small if they are less than 1 MB in size. When it comes to large volumes of data (PB scale), the total number of objects quickly reaches billions or even trillions. Managing metadata administration on this scale and the number of I/O operations poses a major challenge: how to provide a quality service without losing information or compromising performance?

When applicable, we recommend that you increase the object/part size as much as possible to reduce the number of objects.

Go further

For more information and tutorials, please see our other Object Storage support guides or explore the guides for other OVHcloud products and services.

If you need training or technical assistance to implement our solutions, contact your sales representative or click on this link to get a quote and ask our Professional Services experts for a custom analysis of your project.
