Learn about partitioning on a Dedicated Server through the OVHcloud API.
With OVHcloud Dedicated Servers, you can configure Partitions, software RAID, LVM, ZFS, etc. during OS installation from the OVHcloud API as well as the OVHcloud Control Panel. In this article, we will focus on the OVHcloud API. This will give us more details about the engine that is running in the background in order to create the partitioning on the dedicated server from the input data passed on to the OVHcloud API.
Providing in-depth details about partitioning can help customers understand why:
- their custom partitioning could not be applied on their dedicated server.
- the actual partitioning on the dedicated server slightly differs from what the customer requested.
Requirements
- a dedicated server ready to be installed/re-installed in your OVHcloud account
- access to the OVHcloud API
Instructions
During the default OS installation, the user is interactively prompted by the OS installer (provided by the software editor) to specify on which disks the Operating System will be installed, the partitioning layout, etc. Once the OS is installed, it is possible to change the partitioning layout but it can be very tricky and risky, especially for partitions that are currently used by the system. For that reason, server partitioning is a very important subject that needs to be considered before installing an Operating System.
Apart from the simplicity offered by an API, the main advantage is the possibility to fully customize the disks and partitions on which the OS will be installed.
Partitioning Overview
When we talk about partitioning layout, we are talking about how your data will be organized on the disks, i.e everything that comes on top of your disk, up to the filesystem that is mounted and visible to the OS: from lowest to highest layers:
- disk (physical disk, PD),
- partition (physical partition, PP),
- ZFS: vdev (zgroup, ZG), zpool (ZP), ZFS dataset (ZD), ZFS volume (ZV),
- software RAID (SR),
- LVM: physical volume (PV), volume group (VG), logical volume (LV),
- filesystem with a mountpoint (FS)

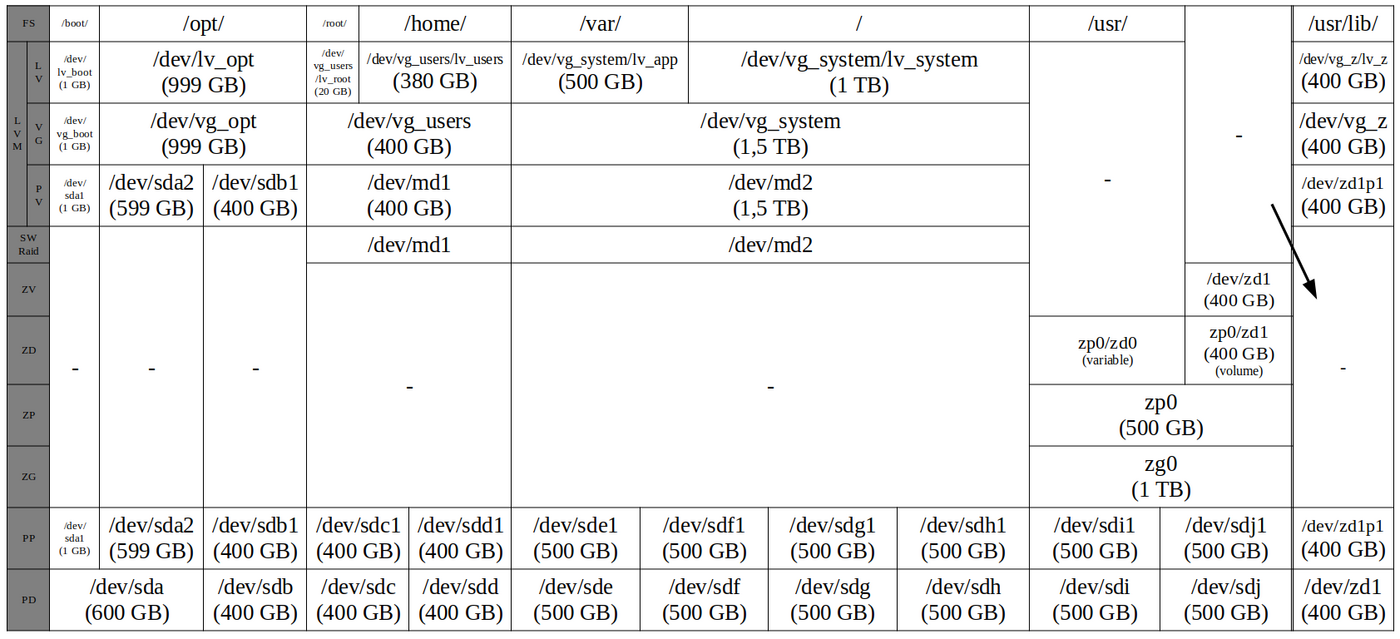

The following table provides an overview of the different partitioning components and how these layers interact with each other:
/dev/zd1 represents a ZFS volume (also known as zvol). This is a virtual disk on top of ZFS dataset (ZD) and a zpool (ZP), that is seen as a normal physical disk (PD) by the Operating System. This feature is not available on the OVHcloud API and we do not plan on implementing it.
Partitioning using the API
Template Concepts
When triggering an OS installation, the customer can either choose between several OVHcloud templates or choose between one of their personal templates (based on an OVHcloud template).
POST /dedicated/server/{serviceName}/install/start
An OVHcloud template is an official template that is nearly identical to the official software editor/vendor cloud-ready image.
To list available templates (depending on your server's hardware), use the following API call:
GET /dedicated/installationTemplate
You can get the details such as LVM compatibility and filesystem availability of a specific OVHcloud template with the following API call:
GET /dedicated/installationTemplate/{templateName}
Example:
{
"templateName": "debian11_64",
"filesystems": [
"ext3",
"ext4",
"swap",
"xfs"
],
...
"lvmReady": true
}
The partitioning layout defined within an OVHcloud template cannot be changed: this is called the "default" partitioning scheme layout.
GET /dedicated/installationTemplate/{templateName}/partitionScheme/{schemeName}/partition
Customer Templates
Users can create custom installation templates based on OVHcloud templates in order to be able to create custom partitioning layouts:
Once created, the template inherits the default partitioning layout and partitions can be listed on the "default" scheme:
GET /me/installationTemplate/{templateName}/partitionScheme/{schemeName}/partition
A partition can be altered, deleted, or added and then displayed:
PUT /me/installationTemplate/{templateName}/partitionScheme/{schemeName}/partition/{mountpoint}
DELETE /me/installationTemplate/{templateName}/partitionScheme/{schemeName}/partition/{mountpoint}
POST /me/installationTemplate/{templateName}/partitionScheme/{schemeName}/partition
GET /me/installationTemplate/{templateName}/partitionScheme/{schemeName}/partition/{mountpoint}
API Partition Layout
Structure
A partition layout is a list of partitions. Here is an example of a partition structure:
{
"raid": "1",
"filesystem": "ext4",
"volumeName": "data",
"size": 0,
"order": 4,
"type": "lv",
"mountpoint": "/var/lib/vz",
}
type: is one of primary, logical, lv
- lv: means that LVM layers will be added on top of the software RAID device (or the physical partition if RAID level is 0)
- primary: only makes sense for MBR partition tables (a few old non-UEFI servers still don't support GPT)
- logical: if you don't know what to choose
volumeName: two use cases
- type lv is set: logical volume name (mandatory)
- filesystem is zfs: custom zpool name and its dataset prefixes (optional, zpool name will be automatically generated if not specified)
Filesystems & LVM + RAID levels Compatibility Matrix
The following table provides an overview of filesystem compatibility with RAID levels as well as LVM within the context of OVHcloud:
| Filesystem | LVM | RAID 0 | RAID 1 | RAID 5 | RAID 6 | RAID 7 | RAID 10 |
|---|---|---|---|---|---|---|---|
| Btrfs, ext4, XFS | ✅ | ✅ | ✅ | ✅ | ✅ | ❌ | ✅ |
| ZFS¹ | ❌ | ✅ | ✅ | ✅ | ✅ | ✅ | ❌ |
| swap | ❌ | ⚠️² | ❌ | ❌ | ❌ | ❌ | ❌ |
| NTFS | ❌ | ❌ | ✅³ | ❌ | ❌ | ❌ | ❌ |
| UFS, VMFS5, VMFS6, VMFS-L⁴ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ |
¹ See the ZFS vdevs vs standard RAID table for more details.
² The RAID level for swap can only be set to 1 within the OVHcloud API. In reality, the swap partitions will not use RAID. When a swap partition with size s is defined on a server with n disks, this will create n partitions of size s on every disk without any software RAID device underneath.
³ Windows native RAID (the one configured by the OVHcloud installer) supports RAID 1 but only between two disks while other implementations allow for more than two.
⁴ The ESXi installer does not support custom partitioning schemes. Partitioning is defined by the software publisher. Nevertheless, the OVHcloud API can give you an idea of what the partitioning looks like; see OVHcloud templates for more details.
ZFS vdevs vs standard RAID
ZFS does not support standard RAID levels. It refers to virtual devices (vdevs) to describe fault tolerance within a group of devices. See the official OpenZFS documentation for more details about vdevs.
In order to make the OVHcloud API as simple as possible, customers must define a standard RAID within the API for ZFS filesystems. The standard RAID level will then be translated to an equivalent vdev definition. The following table illustrates the translation of the various RAID levels offered by the OVHcloud API as well as a reminder of their respective characteristics.
| Standard RAID | Equivalent vdev type | Minimal Number of data disks | Number of parity disks | Total minimum number of disks required |
|---|---|---|---|---|
| RAID 0 | striped vdev | 1 | 0 | 1 |
| RAID 1 | mirror | 2 | 0 | 2 |
| RAID 5 | raidz1 | 2 | 1 | 3 |
| RAID 6 | raidz2 | 3 | 2 | 5 |
| RAID 7 | raidz3 | 4 | 3 | 7 |
| RAID 10 | ❌ | 4 | 0 | 4 |
Partitioning Backend
Architecture
There is an abstraction layer between the partitioning description on the OVHcloud API (that is quite minimalist) and the real partitioning (that can be very complex).
The key feature of this partitioning is the separation between the pre-processing and the action script:
-
the pre-processing runs on the OVHcloud infrastructure. It just converts the data from the OVHcloud API to a richer JSON representation.
-
the action script runs on the customer's server, takes the rich JSON representation of the partitioning, and creates the partitions.
Error handling
Basic customer input data errors are directly handled by the OVHcloud API. This is the most common and easiest situation as customers can see the error synchronously and retry immediately.
Customer input data related to partitioning might be too specific to be checked by the OVHcloud API and therefore require pre-processing. The drawback is that customers are notified later during the OS installation process.
Within the OVHcloud Control Panel, this is visible on the progress bar. From the OVHcloud API, this status can be obtained with the following API call:
GET /dedicated/server/{serviceName}/install/status
There are two types of errors:
- ovh errors: the customer is not responsible for the error, the customer can re-install with another partitioning layout but OVHcloud will have to fix the bug.
- customer errors: the customer requested a partitioning layout that cannot be achieved or one that would prevent the server from booting properly.
In the next section, we will only focus on the customer error types within the partitioning pre-processing step, because this is only helpful for the customer.
Common customer errors
The following table gives an overview of well-known customer errors and how to fix them.
| Error message | Details | Solution(s) |
|---|---|---|
Some Linux distributions such as RHEL family OSes don't support those mountpoints / mountpoint reserved/managed by OVHcloud (list forbidden mountpoints). Please remove those mountpoints and restart an installation |
- You have chosen /boot/efi as mountpoint. OVHcloud will create this partition automatically for you if your server needs one- You have chosen a mountpoint that is symlinked on some operating systems. See Filesystem Hierarchy Standard for more details. |
- Choose another mountpoint for the partition or remove this partition from your partitioning layout |
Partition of type t with mountpoint m cannot fill the disk. |
- You have chosen the swap partition to fill the disk (or partition with size 0 when defined within the OVHcloud API), we disallow this to avoid creating unnecessarily large swap partitions |
- Set a fixed size for the swap partition |
Missing / partition. Please add a / partition in your partition scheme! |
- Any Linux-based OS needs at least a / partition |
- Add a / partition in your partitioning layout |
message. Please adjust partitions so that the p partition fits on n disk(s) |
- You have chosen a partition with a RAID that requires a number of disks that your server can provide, but some disks are already full because of other partitions and/or this current partition | - If it is not already set on another partition, set the partition size to fill the disk (or partition with size 0 when defined within the OVHcloud API) - Reduce the size of this partition so that it fits the disks - Reduce the size of other partitions so that this partition fits the disks |
Error with MBR partition table: Partition p is larger than 2TiB and this server does not support GPT |
- You have defined a partition with a size that exceeds 2TiB and you are trying to apply such partitioning to a server that doesn't support GPT | - Reduce the partition to a size less than 2TiB - Apply this partitioning to another similar server that supports GPT - If you are using customer templates to apply a partitioning with partitions larger than 2TiB to GPT-compatible and GPT-incompatible servers, you should create two separate customer templates. One template can have partitions that exceed 2TiB and should be used with GPT-compatible servers, the other template must have smaller partitions and should be used with servers that are not compatible with GPT |
Error with MBR partition table: partition p cannot end after 2 TiB (interval stop) and this server does not support GPT! OVHcloud also needs to add a cloud-init size cloud-init partition at the very end of the disk. Therefore all customer partitions must end before (2TiB - cloud-init size). |
- We need to add a config-drive partition at the end of 1 disk on your dedicated server. The last partition of your partitioning will end after the 2TiB position on the disk. So appending a config-drive partition after the last partition will start after 2TiB position on disk and you are trying to apply such partitioning to a server that doesn't support GPT | - Reduce the partition p size (or any other partition) so that the total sum of all partitions size is less than 2TiB- Do not define a partition that fills the disk (or partition with size 0 when defined within the OVHcloud API) on a customer template that will be used for servers with disks bigger than 2TiB that don't support GPT |
/boot (or / if no /boot defined) partition cannot be larger than 2097151 MiB on this hardware |
- GRUB partition cannot be larger than 2 TiB with this hardware raid controller | - Create a separate /boot partition with a size less than 2TiB (1GiB should be enough) |
/boot (or / if no /boot defined) partition type cannot be XFS
|
- GRUB partition doesn't support XFS filesystem type on this Operating System. This is the case for most of debian-like OSes (debian, proxmox, ubuntu) |
- Create a separate /boot partition with filesystem other than XFS- Don't create a separate /boot partition but choose a filesystem other than XFS for the / partition |
ZFS partition already exists with zpool name n. Either choose another name for the m partition or set the same RAID level for all partitions within zpool n
|
Assigning multiple ZFS partitions to the same zpool name is possible: it means each dataset will be part of the same zpool. This is possible only if all the datasets (therefore the partitions defined via the API) have the same RAID level |
- Set the same RAID level as on the existing ZFS partition which will be part of the same zpool- Choose another zpool name: this partition will not be part of the same zpool - Don't provide any zpool name: we will assign a default zpool name and this partition will not be part of the same zpool |
Debian does not provide a precompiled ZFS module and this server does not have enough memory to compile it. Please use a different file system |
We always try to find the best balance between integration in the OVHcloud ecosystem, hardware compatibility, and reduced OS image size while providing an image that is as similar as possible to the official cloud-ready image provided by the software editor. ZFS module is not natively provided by the software editor, we don't want to make the image heavier for customers not needing ZFS and we want to offer a ZFS-ready OS with configured ZFS partitioning for customers who want it. Therefore ZFS module is compiled and installed during the OS installation only for customers who ask for it. Since compilation requires memory in addition to that already used to run the rescue OS in memory, we have set the threshold at 8GiB to guarantee smooth operation and customer experience |
- Remove all ZFS partitions or change their filesystems to something different than ZFS- Choose another OS that natively supports ZFS filesystem such as Proxmox- Use a server with 8GiB memory or more |
Input customer auto-fixing
In order to improve customer experience, reduce OVHcloud support workload, and avoid introducing breaking changes for customers, some customer input is automatically fixed or changed by the backend. The following table gives an overview of what is currently auto-fixed/changed during the pre-processing:
| Subject | Description |
|---|---|
| ZP grouping | All ZFS partitions with the same RAID level will be grouped within the same zpool (ZP) if possible depending on the size of the disks and if the same zpool name is provided or no zpool name is provided |
| LV grouping | All partitions of type lv with the same RAID level will be grouped within the same VG (if possible depending on the size of the disks) |
| VG expanding | In the case of LV partitions with a RAID level of 0, the VG will span multiple PPs (therefore PDs) and no SR device will be created |
| VG Disk fill | Remaining disk space will be filled by a VG (if any LV exists). The size of LVs attached to the VG is not affected. |
| RAID level reducing | In case the customer chooses a partition with a RAID level that requires more disks than the server has, the RAID level will be automatically reduced in the following order: 6, 10, 5, 1, 0 (or raidz3, raidz2, raidz, mirror, striped vdev for ZFS) |
| PP size reducing | In case the customer chooses a PP that requires more space than the server has, the size of this PP will be reduced so that it fits the disk. Note that in case several PPs require more space than the system has, the script will only act on the first partition, raising an error later in the script for the second oversized partition. Also note that an error will be raised if the customer sets another partition to fill the disk via the OVHcloud API |
