Configuring Additional IPs in bridge mode on your virtual machines

Learn how to use network bridging to configure internet access for your virtual machines.

Bridged networking can be used to configure your virtual machines. Some tweaking is necessary to make the network configuration work on our network.

Requirements

• a dedicated server with a hypervisor installed (e.g., Citrix Xen Server, Proxmox, etc.)
• at least one Additional IP address attached to the server
• access to the OVHcloud Control Panel

Instructions

The basic steps are always the same, independent of the underlying system:

• creating a virtual MAC address for an Additional IP
• creating a VM on a host
• setting the MAC of the VM to that new virtual MAC address
• Configuring the IP address, netmask, gateway, and route to the gateway inside the VM

Code samples in the following instructions have to be replaced with your own values:

• SERVER_IP = The main IP address of your server
• ADDITIONAL_IP = The address of your Additional IP
• GATEWAY_IP = The address of your default gateway

Step 1: Assign a virtual MAC address

Please follow the instructions in our Assigning a Virtual MAC to an Additional IP guide.

After a few seconds, a virtual MAC will appear in the "Virtual MAC" column of your Additional IP row. This virtual MAC will be required when configuring your VM on the host.

Step 2: Determine the gateway address

To configure your virtual machines for internet access, you will need to know the gateway of your host machine (i.e., your dedicated server). You can retrieve the gateway via the OVHcloud Control Panel or the OVHcloud API.

Via the OVHcloud Control Panel

Log in to the OVHcloud Control Panel, go to the Bare Metal Cloud section, and select your server in the Dedicated Servers section.

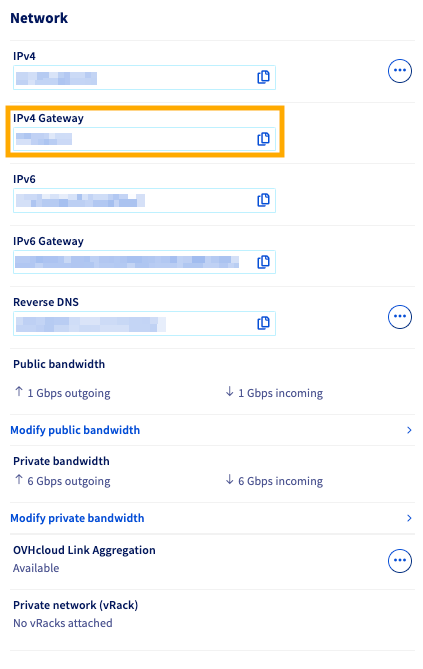

The IPv4 gateway assigned to your server will appear in the Network section of the General Information tab. Once you have copied it, continue with applying the configuration.

Via the OVHcloud API

On the OVHcloud API, execute the following API call, indicating the internal server name (example: ns1234567.ip-123-456-78.us):

Step 3: Prepare the host

Proxmox

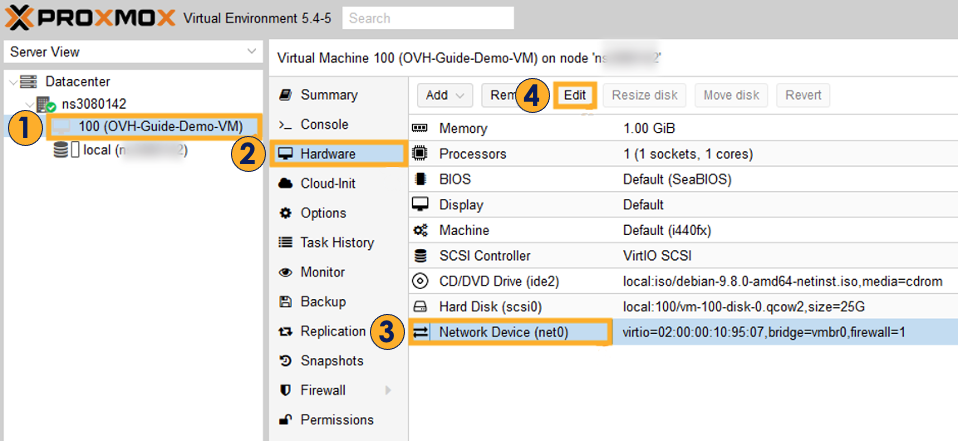

After creating the VM and while it is still powered off, right-click the VM and click Edit settings.

1. Select the VM.
2. Open the Hardware section.
3. Select Network Device.
4. Click the Edit button.

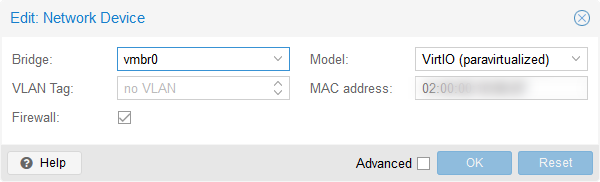

Then, add the vMAC address created previously.

Now, you can start the VM and proceed with the configuration steps, depending on the operating system installed.

VMware ESXi

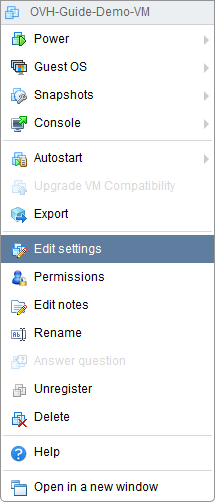

After creating the VM and while it is still powered off, right-click the VM and click Edit settings.

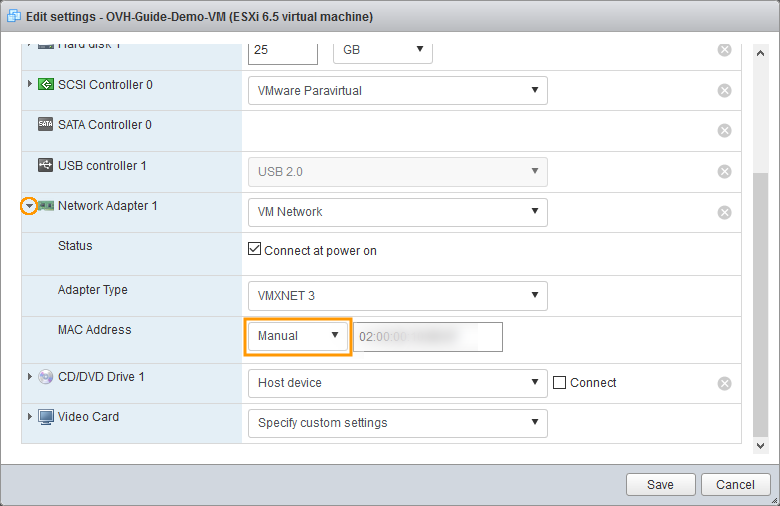

Fold out Network Adapter 1, change the value in the MAC Address drop-down menu to Manual, and enter the MAC address created previously.

Now, you can start the VM and proceed with the configuration steps, depending on the operating system installed.

Step 4: Configure the virtual machines

Debian

By default, the virtual machine's network configuration file is located in /etc/network/interfaces.

Once you are connected to the shell of your virtual machine, run the following command to identify your interface name:

ls /sys/class/net

Next, make a copy of the configuration file, so that you can revert at any time:

sudo cp /etc/network/interfaces /etc/network/interfaces.bak

In case of a mistake, you will be able to revert the changes, using the commands below:

sudo rm -f /etc/network/interfaces
sudo cp /etc/network/interfaces.bak /etc/network/interfaces

Edit the file so that it reflects the configuration below, replace INTERFACE_NAME, ADDITIONAL_IP and GATEWAY_IP with your own values.

sudo nano /etc/network/interfaces

auto lo
iface lo inet loopback

# The primary network interface
auto INTERFACE_NAME
iface INTERFACE_NAME inet static
address ADDITIONAL_IP
netmask 255.255.255.255
gateway GATEWAY_IP

Example

auto lo
iface lo inet loopback

# The primary network interface
auto ens192
iface ens192 inet static
address 192.0.2.1
netmask 255.255.255.255
gateway 203.0.113.254

Save and close the file.
Next, edit or create the file /etc/resolv.conf:

sudo nano /etc/resolv.conf

Add the following line:

nameserver 213.186.33.99

Save and close the file.
Now you will need to bring your network interface online. To do so, enter the following command (replace ens192 with your own values):

sudo ip link set ens192 up

Finally, restart your networking service using the following command:

sudo systemctl restart networking

To verify that the virtual machine is fully connected to the Internet, use the following command:

ping -c 4 example.com
PING example.com (93.184.215.14) 56(84) bytes of data.
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=1 ttl=55 time=29.3 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=2 ttl=55 time=24.9 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=3 ttl=55 time=30.8 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=4 ttl=55 time=27.0 ms

--- example.com ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3004ms
rtt min/avg/max/mdev = 24,925/28,028/30,840/2,254 ms

If you receive a response, this means that the Additional IP has been correctly configured. If not, reboot your virtual machine and retry the ping command.

Red Hat and Red Hat-based operating systems (CentOS, Rocky Linux 8/9, Alma Linux 8/9, etc.)

By default, the virtual machine's network configuration file is located in /etc/sysconfig/network-scripts/.

Once logged into your virtual machine shell, run the following command to identify the name of your interface:

ip a

Then make a copy of the configuration file, so that you can go back at any time:

sudo cp /etc/sysconfig/network-scripts/ifcfg-eth0 /etc/sysconfig/network-scripts/ifcfg-eth0.bak

In the event of an error, you can go back to the beginning using the commands below:

sudo rm -f etc/sysconfig/network-scripts/ifcfg-eth0
sudo cp /etc/sysconfig/network-scripts/ifcfg-eth0.bak etc/sysconfig/network-scripts/ifcfg-eth0

You can then edit this file using the nmcli handler, replacing ADDITIONAL_IP and GATEWAY_IP with your own values.

Add the IP address:

sudo nmcli connection modify interface_name IPv4.address ADDITIONAL_IP/32

Add the Gateway:

sudo nmcli connection modify interface_name IPv4.gateway GATEWAY_IP

Add a DNS server:

sudo nmcli connection modify interface_name IPv4.dns 213.186.33.99

Change the configuration to manual:

sudo nmcli connection modify interface_name IPv4.method manual

Make the configuration persistent:

sudo nmcli con mod interface_name connection.autoconnect true

Reboot your network with the following command:

sudo nmcli device down interface_name;nmcli device up interface_name

To verify that the virtual machine is fully connected to the Internet, use the following command:

ping -c 4 example.com
PING example.com (93.184.215.14) 56(84) bytes of data.
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=1 ttl=55 time=29.3 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=2 ttl=55 time=24.9 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=3 ttl=55 time=30.8 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=4 ttl=55 time=27.0 ms

--- example.com ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3004ms
rtt min/avg/max/mdev = 24,925/28,028/30,840/2,254 ms

If you receive a response, this means that the Additional IP has been correctly configured. If not, reboot your virtual machine and retry the ping command.

For more information on nmcli, consult this page.

FreeBSD 12.0

By default, the virtual machine's network configuration file is located in /etc/rc.conf.

Once you are connected to the shell of your virtual machine, run the following command to identify your interface name:

ifconfig

Next, make a copy of the configuration file, so that you can revert at any time:

sudo cp /etc/rc.conf /etc/rc.conf.bak

In case of a mistake, you will be able to revert the changes, using the commands below:

sudo rm -f /etc/rc.conf
sudo cp /etc/rc.conf.bak /etc/rc.conf

Edit the file so that it reflects the configuration below, replace ADDITIONAL_IP and GATEWAY_IP with your own values. In this example, the interface name is em0. Replace this value if it does not apply.

ifconfig_em0="inet ADDITIONAL_IP netmask 255.255.255.255 broadcast ADDITIONAL_IP"
static_routes="net1 net2"
route_net1="-net GATEWAY_IP/32 -interface em0"
route_net2="default GATEWAY_IP"

Save and close the file.
Next, edit or create the file /etc/resolv.conf and add this line.

nameserver 213.186.33.99

Save and close the file, then reboot your virtual machine.

To verify that the virtual machine is fully connected to the Internet, use the following command:

ping -c 4 example.com
PING example.com (93.184.215.14) 56(84) bytes of data.
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=1 ttl=55 time=29.3 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=2 ttl=55 time=24.9 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=3 ttl=55 time=30.8 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=4 ttl=55 time=27.0 ms

--- example.com ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3004ms
rtt min/avg/max/mdev = 24,925/28,028/30,840/2,254 ms

If you receive a response, this means that the Additional IP has been correctly configured. If not, reboot your virtual machine and retry the ping command.

Ubuntu

First, disable cloud-init:

touch /etc/cloud/cloud.cfg.d/99-disable-network-config.cfg

Add this line to the 99-disable-network-config.cfg file:

network: {config: disabled}

Then create the network configuration file in /etc/netplan/ with the following command:

touch /etc/netplan/00-installer-config.yaml

Then apply these permissions on /etc/netplan:

cd /etc/netplan
sudo chmod 600 *.yaml

Run the following command to identify the name of your interface:

ip addr

Next, make a copy of the configuration file, so that you can revert at any time. For demonstration purposes, our file is called 00-installer-config.yaml:

sudo cp /etc/netplan/00-installer-config.yaml /etc/netplan/00-installer-config.yaml.bak

In case of a mistake, you will be able to revert the changes, using the commands below:

sudo rm -f /etc/netplan/00-installer-config.yaml
sudo cp /etc/netplan/00-installer-config.yaml.bak /etc/netplan/00-installer-config.yaml

Next, open the network configuration file:

sudo nano /etc/netplan/00-installer-config.yaml

Edit the file so that it reflects the configuration below, replace INTERFACE-NAME, ADDITIONAL_IP and GATEWAY_IP with your own values.

network:
  ethernets:
    INTERFACE-NAME:
      dhcp4: true
      addresses:
          - ADDITIONAL_IP/32
      nameservers:
          addresses:
              - 213.186.33.99
      routes:
           - to: 0.0.0.0/0
             via: GATEWAY_IP
             on-link: true
  version: 2

For example

network:
  ethernets:
    ens18:
      dhcp4: true
      addresses:
          - 192.0.2.1/32
      nameservers:
          addresses:
              - 213.186.33.99
      routes:
           - to: 0.0.0.0/0
             via: 203.0.113.254
             on-link: true
  version: 2

Save and close the file. You can test the configuration with the following command:

sudo netplan try

If it is correct, apply it using the following command:

sudo netplan apply

To verify that the virtual machine is fully connected to the Internet, use the following command:

ping -c 4 example.com
PING example.com (93.184.215.14) 56(84) bytes of data.
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=1 ttl=55 time=29.3 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=2 ttl=55 time=24.9 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=3 ttl=55 time=30.8 ms
64 bytes from 93.184.215.14 (93.184.215.14): icmp_seq=4 ttl=55 time=27.0 ms

--- example.com ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3004ms
rtt min/avg/max/mdev = 24,925/28,028/30,840/2,254 ms

If you receive a response, this means that the Additional IP has been correctly configured. If not, reboot your virtual machine and retry the ping command.

Windows Server 2012 / Hyper-V

Before configuring your virtual machine, you need to create a virtual switch.

From the command line of your dedicated server, run the following command and note the name of the network adapter that contains the server's main IP address.

ipconfig /all

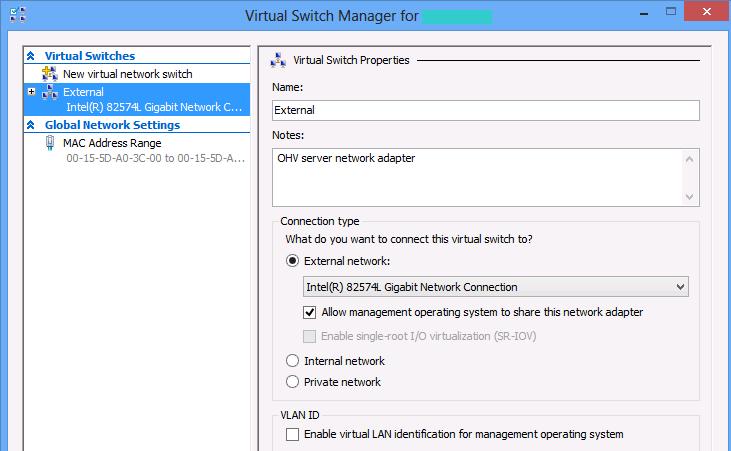

In the Hyper-V Manager, create a new virtual switch and set the connection type to External.

Select the adapter with the server’s IP, then tick the option Allow management operating system to share this network adapter.

Next, select the VM to which you want to add the Additional IP. Use the Hyper-V Manager to change the settings of the VM and shut it down.

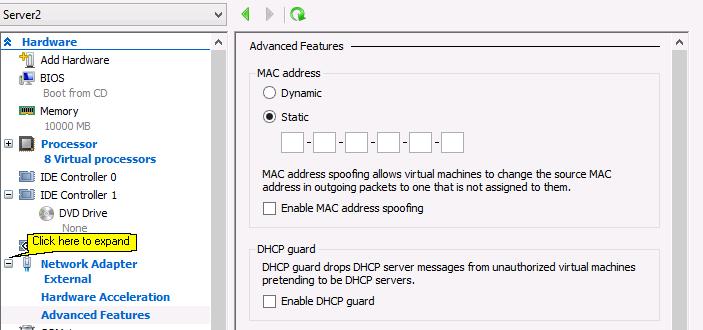

Expand the network adapter in the left-hand menu and click on Advanced Features. Change the MAC address to Static, and enter the virtual MAC address for the Additional IP. Once you have entered these settings, press OK to apply the changes.

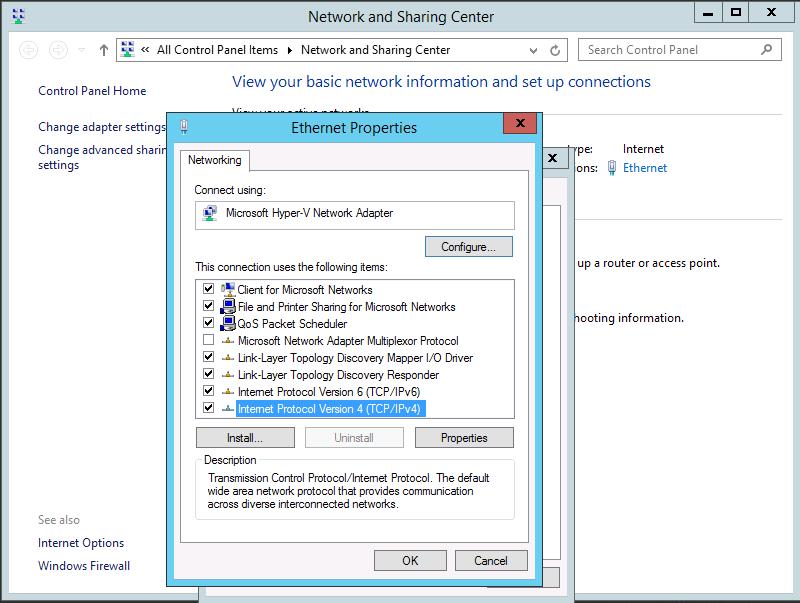

Next, start the VM and log in as an administrator, then go to the Control Panel's Network and Sharing Center. Click on Ethernet to open the settings and click on the Properties button to view the Ethernet Properties.

Select Internet Protocol Version 4 (TCP/IPv4), and then click on the Properties button.

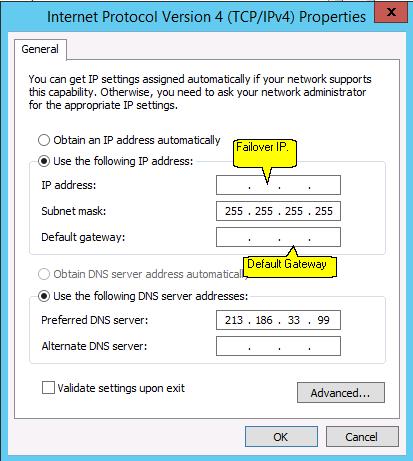

In the IPv4 Properties window, select Use the following IP address. Enter the Additional IP into the IP address field, and enter 255.255.255.255 into the subnet mask.

Fill in your server’s gateway IP address in the appropriate field below and enter 213.186.33.99 into the Preferred DNS Server field.

Finally, click OK, and ignore the warning message about the gateway IP and the assigned IP not being in the same subnet.

After rebooting the server, the VM should be connected to the internet using the Additional IP.

Troubleshooting

If you are unable to establish a connection from your VM to the public network and you suspect a networking problem, please reboot the server in rescue mode and set up the bridging network interface directly on the host.

Enter the following command in the rescue mode terminal, in which you replace MAC_ADDRESS with the vMAC address that you have generated in the Control Panel and ADDITIONAL_IP with your Additional IP address:

ip link add name test-bridge link eth0 type macvlan
ip link set dev test-bridge address MAC_ADDRESS
ip link set test-bridge up
ip addr add ADDITIONAL_IP/32 dev test-bridge

Next, ping your Additional IP address from an external device.

• If it responds, that probably means that there is a configuration error either on the VM or the host that prevents the Additional IP from working in normal mode.

• If the IP address is still not working, please create a ticket in your OVHcloud Control Panel to relay your test results to our support teams.
